1. Introducció
Thank you for choosing the Hisense 40A49Q FHD Smart VIDAA TV. This 40-inch Full HD Smart TV offers a vibrant viewing experience with its QLED display and intuitive VIDAA Smart OS. This manual will guide you through the setup, operation, and maintenance of your new television, ensuring you get the most out of its advanced features.

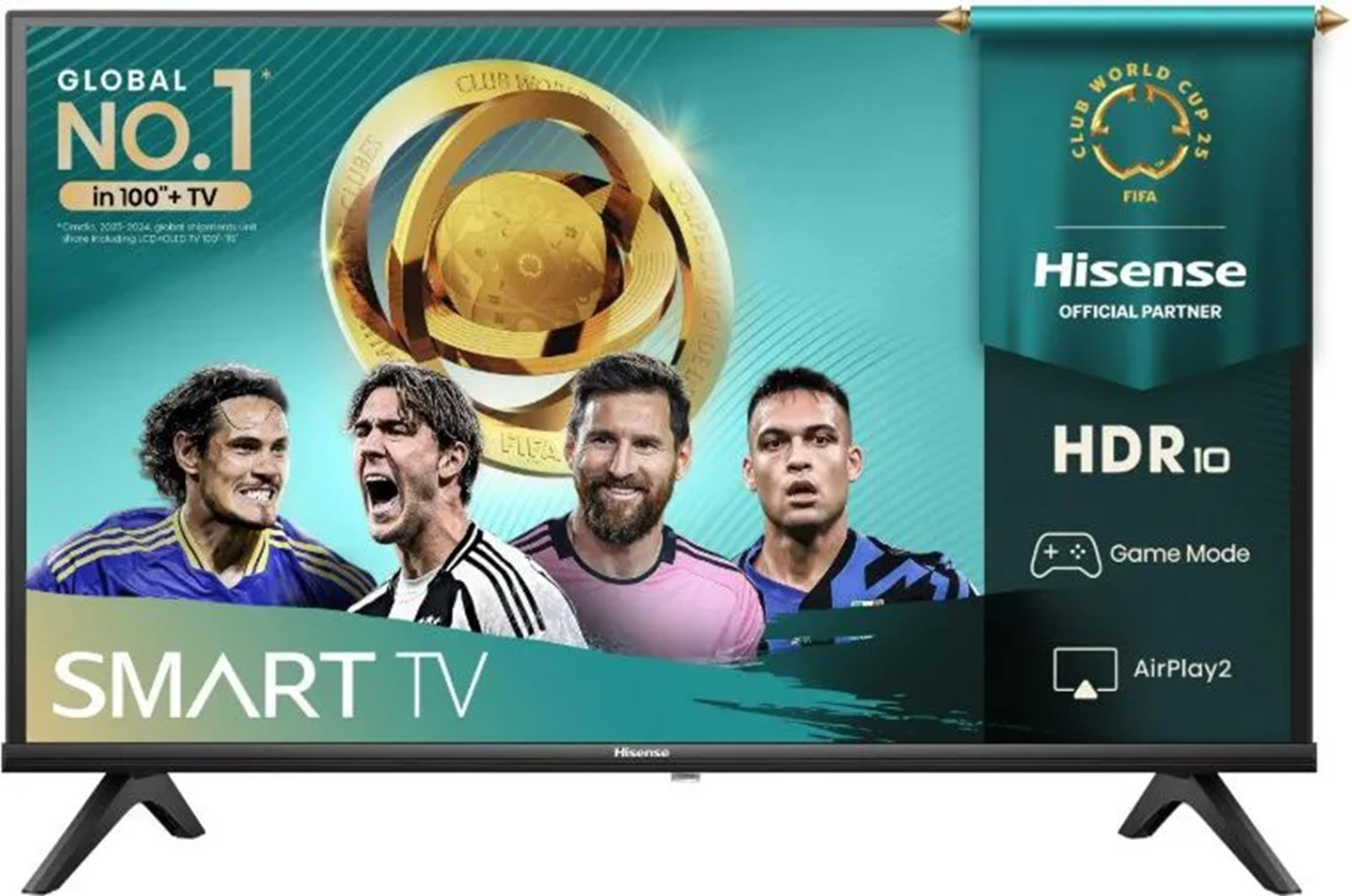

Figure 1: Hisense 40A49Q FHD Smart VIDAA TV, showcasinel seu disseny elegant i la seva pantalla vibrant.
2. Configuració
2.1 Desembalatge i col·locació
- Traieu amb cura el televisor del seu embalatge.
- Place the TV on a stable, flat surface or mount it on a wall using a VESA-compatible bracket (200x200mm). Ensure adequate ventilation around the TV.
- Connect the power cable to the TV and then to a power outlet (100-240 V).
2.2 Connexió de dispositius externs
El teu televisor Hisense ofereix diverses opcions de connectivitat:
- Ports HDMI: Connect devices like Blu-ray players, gaming consoles, or set-top boxes using HDMI cables. HDMI1 supports ARC for audio return.
- Port USB 2.0: Connecteu unitats USB per a la reproducció de contingut multimèdia.
- Sintonitzador de RF: Connect your antenna or cable for digital and analog TV channels (DVB-T2/T/C/S2/S).
- Ethernet (RJ45): Per a una connexió a Internet per cable.
- Sortida S/PDIF: For digital audio output to external sound systems.
- Audio Input (L/R) & Headphone Output: Per a connexions d'àudio analògiques.
- Interfície comuna (CI+): Insert a CI+ module for encrypted channels.
2.3 Engegada inicial i configuració de la xarxa
- Premeu el botó d'engegada del comandament a distància o del televisor.
- Segueix les instruccions que apareixen a la pantalla per seleccionar l'idioma, el país i la zona horària.
- Connect to your home Wi-Fi network (802.11bgn/2.4G) or use an Ethernet cable for a wired connection.
- Complete the VIDAA Smart OS setup, which may include signing into accounts for streaming services.
3. Instruccions de funcionament
3.1 Smart TV Features (VIDAA Smart OS)
Your Hisense TV runs on the intuitive VIDAA Smart OS, providing access to a wide range of applications and features:
- Aplicacions preinstal·lades: Enjoy popular streaming services like YouTube, Netflix, and more.
- Compartició de pantalla: Easily mirror content from your smartphone to the TV.
- Content Sharing (DMP/DMR): Share media files from compatible devices.
- Airplay 2 Support: Stream content directly from Apple devices.
- Control de veu: Control your TV using voice commands with Alexa integration.
3.2 Configuració d'imatge i so
Optimitzeu el vostre viewexperiència d'escolta i escolta:
- Modes d'imatge: Adjust brightness, contrast, and color settings to suit your preferences (e.g., Standard, Dynamic, Movie).
- Suport HDR: Experience enhanced contrast and color with HDR10 technology.
- Tecnologia d'àudio: Benefit from DTS Virtual X for immersive sound. An equalizer is available for fine-tuning audio output.
- Reducció de soroll: Features like 3D Digital Filter and MPEG Noise Reduction enhance picture clarity.
3.3 Digital TV Features
- Control parental: Manage access to channels and content.
- PVR Function & Time Shift: Record live TV and pause/rewind broadcasts (availability depends on location).
3.4 General Hisense TV Features
Video 1: Hisense E63QT series feature video. This video highlights general features and benefits of Hisense TVs, including smart functionalities and picture quality, which are also present in the 40A49Q model.
Video 2: Hisense E53QT feature video. This video demonstrates various aspects of Hisense TV operation, including user interface navigation and media playback, relevant to the 40A49Q model's VIDAA Smart OS.
4. Manteniment
- Neteja de la pantalla: Netegeu suaument la pantalla amb un drap suau, sec i sense borrissol. Per a les marques difícils, utilitzeu un netejador de pantalles dissenyat específicament per a televisors, aplicant-lo al drap, no directament a la pantalla.
- Neteja del cos: Use a soft, dry cloth to wipe the TV's plastic frame. Avoid abrasive cleaners or solvents.
- Ventilació: Assegureu-vos que les obertures de ventilació del televisor no estiguin bloquejades per evitar el sobreescalfament.
- Apagar: Apagueu sempre el televisor i desendolleu-lo de la presa de corrent abans de netejar-lo o si no l'utilitzareu durant un període prolongat.
5. Solució De Problemes
If you encounter issues with your TV, try the following solutions before contacting support:
- Sense energia:
- Comproveu si el cable d'alimentació està connectat correctament tant al televisor com a la presa de corrent.
- Assegureu-vos que la presa de corrent funciona connectant-hi un altre dispositiu.
- Sense imatge/so:
- Verify that the correct input source is selected (e.g., HDMI1, TV).
- Check all cable connections (HDMI, antenna, etc.) for looseness.
- Ajusteu el volum.
- Mala qualitat d'imatge:
- Check antenna/cable connections.
- Adjust picture settings (brightness, contrast, sharpness).
- Si feu servir un dispositiu extern, comproveu-ne la resolució de sortida.
- Funcions intel·ligents que no funcionen:
- Ensure the TV is connected to the internet (Wi-Fi or Ethernet).
- Restart the TV and your router.
- Check for system updates in the TV settings.
- El control remot no respon:
- Substituïu les piles del comandament a distància.
- Assegureu-vos que no hi hagi obstacles entre el comandament a distància i el sensor d'infrarojos del televisor.
6. Especificacions
| Característica | Detall |
|---|---|
| Model | 40A49Q |
| Marca | Hisense |
| Mida de la pantalla | 40 polzades (100 cm) |
| Resolució | Full HD (1920x1080) |
| Tecnologia de visualització | QLED |
| Sistema operatiu | VIDAA Smart US |
| Tecnologia HDR | HDR10, HDR |
| Potència de sortida d'àudio | 2x7 W |
| Tecnologia d'àudio | DTS Virtual X |
| Connectivitat | HDMI 1.4 (x2, HDMI1 with ARC), USB 2.0 (x1), S/PDIF Output (x1), Audio Input L/R (x1), Headphone Output (x1), RF Tuner (x2), Ethernet RJ45 (x1), Wi-Fi (802.11bgn/2.4G), CI+ (V2.0) |
| Compatibilitat amb muntatge de paret VESA | 200x200 mm |
| Consum d'energia (màx.) | 74 W |
| Consum d'energia en espera | 0.5 W |
| Classe d'eficiència energètica (SDR) | F |
| Classe d'eficiència energètica (HDR) | G |
| Net Weight (with base) | 5.5 kg |
| Dimensions (amb base) | Amplada: 900 mm, Alçada: 565 mm, Profunditat: 186 mm |
7. Garantia i assistència
For warranty information, product registration, or technical support, please refer to the documentation included with your TV or visit the official Hisense website. You can also contact Hisense customer service for assistance.
Política de devolució: This product has a 14-day return policy for refund/replacement.
Actualitzacions de programari: Software updates are guaranteed until an unknown date. Please check the Hisense weblloc per obtenir la informació més recent.
