1. Introducció
This manual provides comprehensive instructions for the setup, operation, and maintenance of your Nobsound VFD Audio Spectrum Analyzer AK2515 PRO V3. This device is designed to visually represent audio signals with a high-resolution Vacuum Fluorescent Display (VFD), offering various input options and display modes for audiophiles and studio professionals.
Image 1.1: The Nobsound VFD Audio Spectrum Analyzer AK2515 PRO V3, showcasing la seva pantalla vibrant.
2. Contingut del paquet
Si us plau, verifiqueu que tots els elements que s'enumeren a continuació estiguin inclosos al vostre paquet:
- 1 × AK2515 PRO V3 Audio Spectrum Analyzer Board
- 1 × USB Cable (Type-C)
- 1 cable d'àudio de 3.5 mm
- 1 × 1:2 3.5mm Cable
- 2 × Acrylic Board
- 1 Set × Installation Screws
Image 2.1: All components included in the AK2515 PRO V3 package, laid out for inspection.
3. Producte acabatview i Característiques
The Nobsound AK2515 PRO V3 is a versatile audio spectrum analyzer with advanced functionalities:
- High-Resolution VFD Display: Features a 25 × 15 resolution vacuum fluorescent display for clear frequency band visualization. Functions as a precise clock when no audio is present.
- Ampli rang de freqüències: Supports 32Hz-20KHz, capturing a broad spectrum of audio details. Includes an integrated noise filter for clean display.
- Múltiples opcions de connectivitat: Offers 3.5mm AUX, MIC, and Bluetooth 5.0 inputs. The 3.5mm jack can also serve as an audio output in Bluetooth mode, enabling the device to act as a Bluetooth receiver.
- Advanced AGC Algorithm: Built-in Automatic Gain Control dynamically adjusts the display to audio volume, maintaining vivid and balanced spectrum bars.
- Customizable Display Modes: Provides various gain settings, three spectrum display modes (real-time, smooth I, smooth II), and multiple music spectrum and clock display styles.
- Disseny fàcil d'utilitzar: Features 7-level brightness adjustment, adjustable peak-hold and fall speeds, power-off memory, auto-switch, and deep-sleep modes.
Image 3.1: The AK2515 PRO V3 demonstrating its wide frequency range and multiple input options (AUX, MIC, Bluetooth).
Image 3.2: The AK2515 PRO V3 highlighting its integrated Bluetooth 5.0 for wireless audio input.
4. Configuració
Follow these steps to set up your Nobsound VFD Audio Spectrum Analyzer:
- Muntatge: Attach the two acrylic boards to the main spectrum analyzer board using the provided installation screws. Ensure they are securely fastened to protect the display and components.
- Connexió d'alimentació: Connect the USB Type-C cable to the DC 5V input port on the analyzer board and plug the other end into a compatible 5V USB power source (e.g., a USB wall adapter, computer USB port).
- Entrada d'àudio:
- Entrada AUX de 3.5 mm: Use the provided 3.5mm audio cable to connect your audio source (e.g., smartphone, PC, audio player) to the 'AUDIO IN' 3.5mm jack on the analyzer.
- Entrada de micròfon: The device has a built-in microphone for ambient sound pickup. No external connection is needed for this mode.
- Entrada Bluetooth: Power on the device. On your audio source (e.g., smartphone), search for Bluetooth devices and connect to the AK2515 PRO V3. The 3.5mm jack will function as an audio output in this mode.
Imatge 4.1: Detallada view of the AK2515 PRO V3 board, showing input/output ports and control buttons.
5. Instruccions de funcionament
The AK2515 PRO V3 offers various modes and adjustable settings. Use the 'Up' and 'OK' buttons on the device to navigate and select options.
5.1 Modes de treball
- Mode automàtic: Displays music spectrum when audio is detected; switches to clock mode when no audio input.
- Auto Mode (No Clock): Displays music spectrum with audio; enters deep sleep mode when no audio.
- Music Spectrum Mode: Always displays the music spectrum.
- Mode de visualització del rellotge: Always displays the clock.
5.2 Sound Level Display Modes
- Mode normal
- Mirror mode 1
- Mirror mode 2
5.3 Amplification Curve Settings
These settings adjust how the spectrum responds to different frequencies:
- Compressed low-frequency
- Compressed low-frequency to enhance high frequency
- No enlarging (default setting)
- Slightly compression low frequency to enhances high frequency
- Enhance high frequency
5.4 Music Spectrum Modes
- Mode normal
- Invert color mode
- Mode invers
- Frequency division mode
- Amplified curve mode
- Real output
- Smooth output I
- Smooth output II

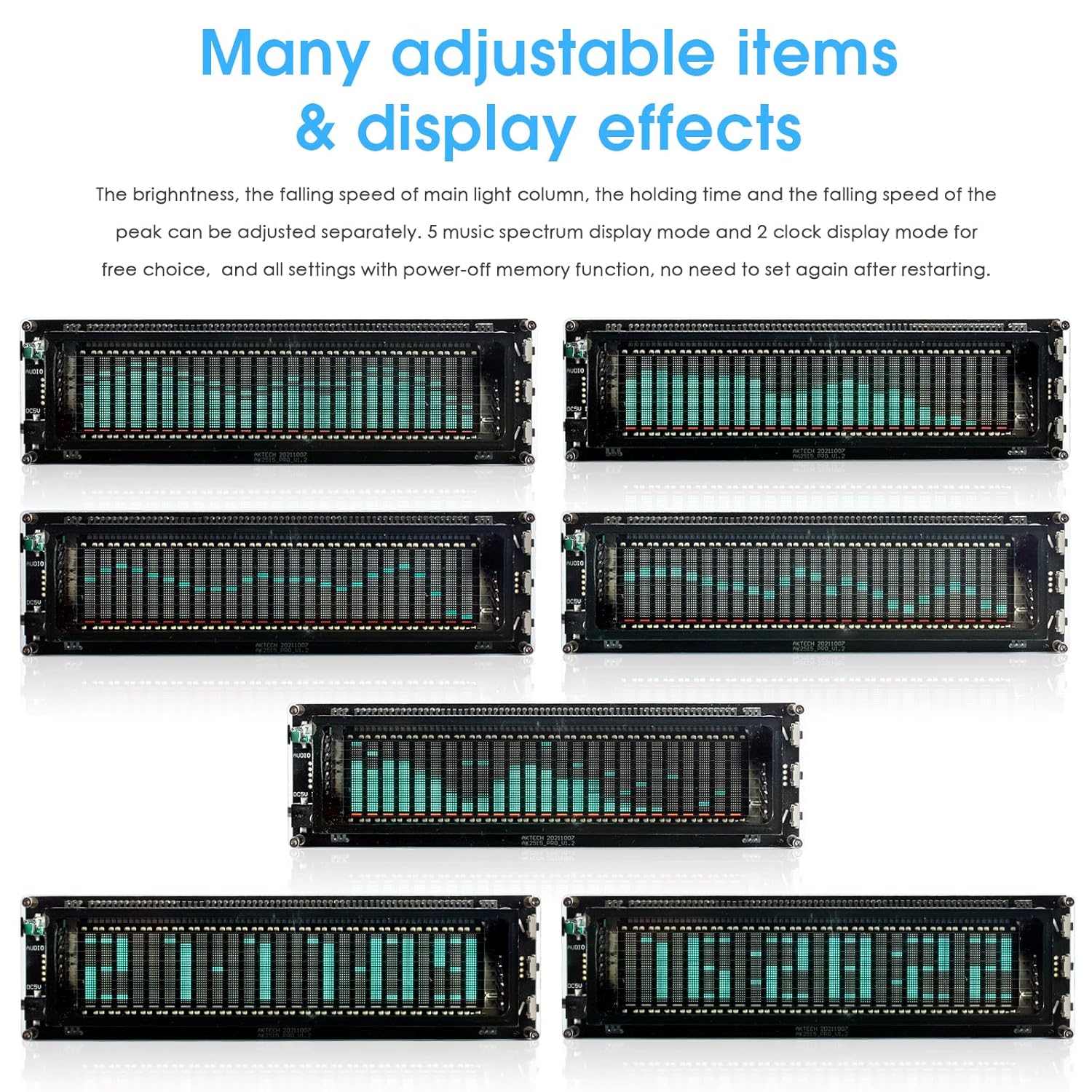

Imatge 5.1: Ex.amples of various adjustable display effects and spectrum modes.
Image 5.2: Illustration of the AGC algorithm and different output curve display modes (Real, Smooth I, Smooth II).
5.5 Adjustable Items
- Main light column falling speed
- Peak holding time
- Peak falling speed
- Ajust de brillantor (7 nivells)
- Font type (4 kinds for clock display)
5.6 Visualització del rellotge
The clock displays year, month, day, hour, minute, and second, along with the date. The clock accuracy is ±5ppm, with a year error within 2.5 minutes, thanks to the SD2405AL built-in crystal oscillator.
Image 5.3: The AK2515 PRO V3 displaying both music spectrum and clock functions.
6. Manteniment
To ensure the longevity and optimal performance of your Nobsound VFD Audio Spectrum Analyzer, follow these maintenance guidelines:
- Neteja: Use a soft, dry cloth to clean the display and exterior. Avoid abrasive cleaners or solvents that could damage the acrylic or VFD screen.
- Medi ambient: Operate the device in a clean, dry environment. Avoid exposure to extreme temperatures, humidity, or direct sunlight.
- Potència: Always use the specified DC 5V power supply. Disconnect power when the device is not in use for extended periods.
- Manipulació: Handle the device with care to prevent physical damage to the VFD screen or internal components.
7. Solució De Problemes
If you encounter issues with your AK2515 PRO V3, consider the following common solutions:
- Sense pantalla/alimentació: Ensure the USB Type-C power cable is securely connected to a functional 5V power source. Try a different USB cable or power adapter.
- No Audio Spectrum Display:
- Entrada AUX: Verify the 3.5mm audio cable is correctly connected to both the audio source and the analyzer. Check the audio source's volume level.
- Entrada Bluetooth: Confirm the device is successfully paired and connected via Bluetooth to your audio source. Ensure audio is playing on the source.
- Entrada de micròfon: Ensure there is ambient sound for the microphone to pick up.
- Check the selected work mode; ensure it is set to a music spectrum display mode.
- Incorrect Display Behavior: Review the operating instructions for different display modes and adjustable items. Reset settings to default if necessary.
- Clock Inaccuracy: While the clock is highly accurate, significant discrepancies might indicate a power interruption or a need for manual adjustment if available.
If problems persist, please refer to the support information in Section 9.
8. Especificacions
| Pantalla de visualització | VFD (Vacuum Fluorescent Display) |
| Resolució | 25 × 15 |
| Frequency Range Supported | 32Hz-20KHz |
| Mostra elements | Music spectrum / Sound level / Clock |
| Entrada de senyal d'àudio | 3.5mm AUX / MIC / Bluetooth 5.0 |
| Voltage | DC 5V |
| Dimensions (W×D×H) | 175 × 28 × 50 mm / 6.89 × 1.10 × 1.97 polzades |
| Pes net | 189 g / 0.42 lliures |
| Número de model | PJ454-BT |
| Data de primera disponibilitat | 29 de març de 2018 |
9. Garantia i Suport
For warranty information and technical support, please contact Douk Audio directly through their official weblloc web o el distribuïdor on vau comprar el producte. Conserveu el rebut de compra com a comprovant de compra.
