WilTec Catfree Ultrasonic Cat Repellent 88 m²

Introducció

Thank you for choosing the WilTec Catfree Ultrasonic Cat Repellent. This device is designed to humanely deter cats from specific areas using ultrasonic sound waves, providing an effective and harmless solution for your garden, pond, sandbox, or flower beds. Please read this manual carefully before installation and use to ensure optimal performance and safety.

Informació de seguretat

• This device emits ultrasonic frequencies that are generally inaudible and harmless to humans and most other animals.
• Do not place the device directly next to human or pet resting areas.
• Mantenir fora de l'abast dels nens.
• Ensure the battery compartment is sealed correctly to maintain weather resistance.
• Use only specified 9V batteries or a compatible power adapter (not included).
• Do not attempt to open or modify the device, as this will void the warranty and may cause malfunction.

Producte acabatview

The WilTec Catfree is an ultrasonic cat repellent featuring a motion sensor and weatherproof design for year-round outdoor use. It operates on a 9V battery or an optional power adapter.

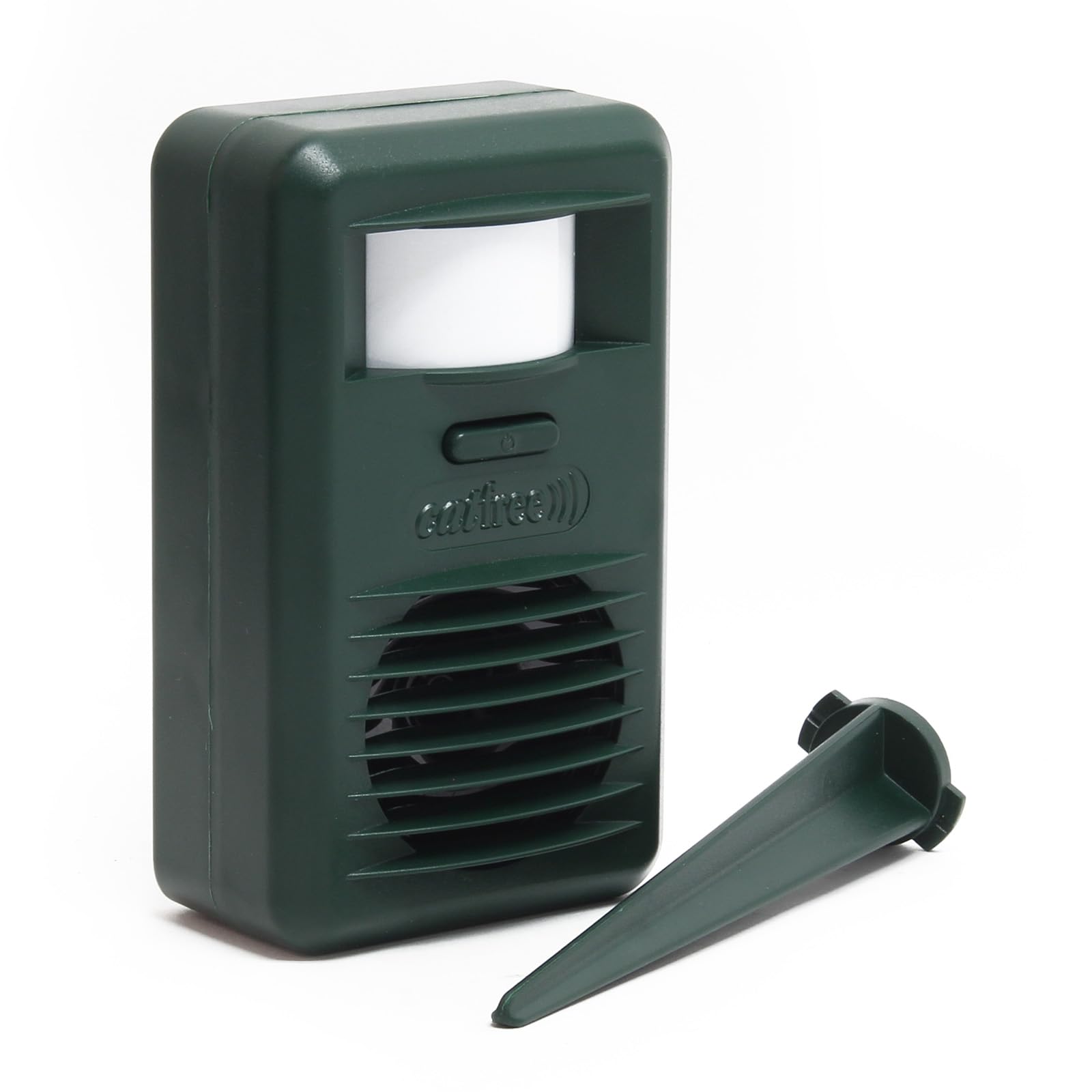

Imatge 1: Davant view of the WilTec Catfree Ultrasonic Cat Repellent, showing the motion sensor and speaker grille.

Imatge 2: Enrere view of the WilTec Catfree Ultrasonic Cat Repellent, illustrating the wall-mounting slot and battery compartment cover.

Característiques principals:

• Ultrasonic Deterrence: Emits high-frequency sound waves (20-24 kHz) to deter cats.
• Sensor de moviment: Detects feline movement within a 100° angle and up to 10 meters.
• Disseny impermeable: Suitable for year-round outdoor installation.
• Opcions d'alimentació flexibles: Operates on a 9V battery (not included) or an optional AC power adapter (not included).
• Indicador de bateria baixa: An integrated LED light signals when the battery needs replacement.
• RSPB Recommended: Endorsed by the Royal Society for the Protection of Birds.

Configuració i instal·lació

1. Alimentació del dispositiu:

The Catfree can be powered by a 9V battery or an optional AC power adapter.

1. Instal·lació de la bateria:
   1. Locate the battery compartment on the back of the device (refer to Image 2).
   2. Obriu la coberta del compartiment.
   3. Introduïu una pila nova de 9 V, assegurant-vos de la polaritat correcta.
   4. Securely close the battery compartment cover to maintain weather resistance.
2. AC Power Adapter (Optional):

   For continuous operation and increased signal intensity (up to 20% stronger), an optional AC power adapter can be used. Connect the adapter to the designated port on the device. The adapter is not included and must be purchased separately.

2. Recomanacions de col·locació:

Optimal detection and effectiveness are achieved with correct placement.

• Alçada: Position the Catfree at cat height. This typically means placing it in the area where cats usually move.
• Zona de detecció: The device detects movement within a 100° arc up to 10 meters in front of it, and also detects objects 10° below its horizontal line.
• Opcions de muntatge:
  • Instal·lació a terra: Use the provided stake to plant the device firmly into the ground, such as in a flower bed or pot.
  • Muntatge a la paret: The device can also be fixed to a wall using the mounting slot on the back (refer to Image 2).
• Eviteu les obstruccions: Ensure the motion sensor has a clear line of sight to the area you wish to protect. Obstacles like dense foliage or walls can reduce detection performance.

Imatge 3: The Catfree device installed in a garden using the provided stake, positioned at an optimal height for cat detection.

Instruccions de funcionament

1. Activació: Once the battery is installed or the power adapter is connected, the device is active. There is no separate ON/OFF switch.
2. Detecció de moviment: The integrated motion sensor continuously monitors the designated area.
3. Ultrasonic Emission: When a cat enters the detection zone, the motion sensor triggers the device to emit a burst of ultrasonic sound (20-24 kHz). This sound is designed to be unpleasant for cats, encouraging them to leave the area.
4. Inaudible to Humans: The ultrasonic frequency is typically beyond the range of human hearing, making the device discreet in operation.
5. Indicador LED: A small LED light on the device will illuminate when the 9V battery charge is low, indicating it's time for a replacement.

The Catfree operates automatically, providing continuous protection against feline intruders.

Manteniment

• Substitució de la bateria: Replace the 9V battery when the low battery LED indicator illuminates. Ensure the battery compartment is sealed tightly after replacement.
• Neteja: Periodically wipe the device, especially the motion sensor lens and speaker grille, with a soft, damp cloth to remove dirt, dust, or debris. Do not use abrasive cleaners or immerse the device in water.
• Clear Detection Path: Regularly check that the motion sensor's line of sight is not obstructed by growing plants, leaves, or other objects.
• Emmagatzematge d'hivern (opcional): While weatherproof, if you prefer to store the device during extreme winter conditions, remove the battery and store it in a dry place.

Resolució de problemes

Especificacions
