1. Introducció
This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your Isinwheel U8/U8 Pro Electric Bike. Please read this manual thoroughly before your first ride and retain it for future reference. Understanding the features and proper handling procedures will ensure a safe and enjoyable riding experience.
The Isinwheel U8/U8 Pro is designed for adult riders, featuring a powerful 1000W peak brushless motor, a 48V 13/18Ah concealed battery, 20x3.0 inch fat tires, and a 7-speed transmission system. It offers multiple riding modes and is equipped with safety features such as a 2000-lumen headlight and dual mechanical disc brakes.
Figure 1: Isinwheel U8/U8 Pro Electric Bike Overview
2. Informació de seguretat
La vostra seguretat és primordial. Seguiu sempre les directrius següents:
- Portar un casc: Utilitzeu sempre un casc de bicicleta homologat quan conduïu.
- Inspecció prèvia a la marxa: Before each ride, check tire pressure, brake functionality, headlight and taillight operation, and ensure all fasteners are secure.
- Lleis de trànsit: Obey all local traffic laws, regulations, and signage.
- Visibilitat: Use the integrated 2000-lumen headlight and high-visibility taillight, especially during low-light conditions. Consider wearing reflective clothing.
- Límit de pes: No supereu la capacitat de càrrega màxima de 150 kg (330 lliures).
- No Impaired Riding: No utilitzeu la bicicleta elèctrica sota els efectes de l'alcohol o les drogues.
- Nens: This e-bike is intended for adult use. Do not allow children to operate it.
3. Muntatge i muntatge
Your Isinwheel U8/U8 Pro Electric Bike comes partially assembled. Follow these steps to complete the assembly:
- Desembalatge: Traieu amb cura tots els components de l'embalatge. Conserveu els materials d'embalatge per a possibles transports o devolucions futures.
- Instal·lació del manillar: Attach the handlebars to the stem, ensuring they are centered and tightened securely. Adjust the angle for comfortable riding.
- Instal·lació de la roda davantera: Install the front wheel, ensuring the disc brake rotor is correctly aligned within the caliper. Secure the quick-release skewer or axle nuts firmly.
- Instal·lació de pedals: Identify the left (L) and right (R) pedals. The left pedal threads counter-clockwise, and the right pedal threads clockwise. Apply a small amount of grease to the threads and tighten them securely with a wrench.
- Ajust de la tija del seient i del seient: Insert the seat post into the frame. Adjust the saddle height (recommended for riders 5'4" to 6'2") and angle for optimal comfort and pedaling efficiency. Secure the quick-release clamp firmly. The adjustable seat height ranges from 81-100 cm (32-39 inches) from the ground.
- Instal·lació de la bateria i càrrega inicial: The 48V 13/18Ah battery is concealed within the frame. Ensure it is properly seated and locked. Fully charge the battery before your first ride. Connect the charger to the bike's charging port and then to a power outlet. The indicator light on the charger will change when fully charged.
- Comprovacions prèvies a la cursa: Before your first ride, double-check all connections, brake functionality, tire pressure, and ensure the quick releases for wheels and seat post are tight.
Figure 2: Isinwheel U8/U8 Pro Dimensions and Rider Fit
4. Instruccions de funcionament
4.1 Engegada/Apagada i Visualització
To power on the e-bike, press and hold the power button on the handlebar display. The LCD will illuminate, showing speed, battery level, assist level, and other ride data. To power off, press and hold the power button again.
Figure 3: Handlebar Display and Controls
4.2 Riding Modes (4+1 Intelligent Modes)
The U8/U8 Pro offers five distinct riding modes:
- Mode de pedal: Ride like a traditional bicycle without motor assistance.
- Mode del sistema d'assistència al pedaleig (PAS): El motor proporciona assistència mentre pedaleu. Feu servir els botons "+" i "-" de la pantalla per ajustar el nivell d'assistència (normalment d'1 a 5). Els nivells més alts proporcionen més assistència.
- Mode elèctric pur (accelerador): Use the throttle to engage the motor without pedaling. This mode provides full motor power up to the maximum speed.
- Mode de control de creuer: Engage cruise control for a consistent speed without holding the throttle. Refer to the display manual for specific activation instructions.
- Mode de caminada: Provides low-speed motor assistance (e.g., 6 km/h) to help you walk the bike uphill or through crowded areas.
4.3 Canvi de marxes
The e-bike is equipped with a 7-speed Shimano transmission system. Use the shifter on the handlebar to change gears, allowing you to adapt to various terrains and optimize pedaling efficiency. Shift gears smoothly and avoid shifting under heavy load.

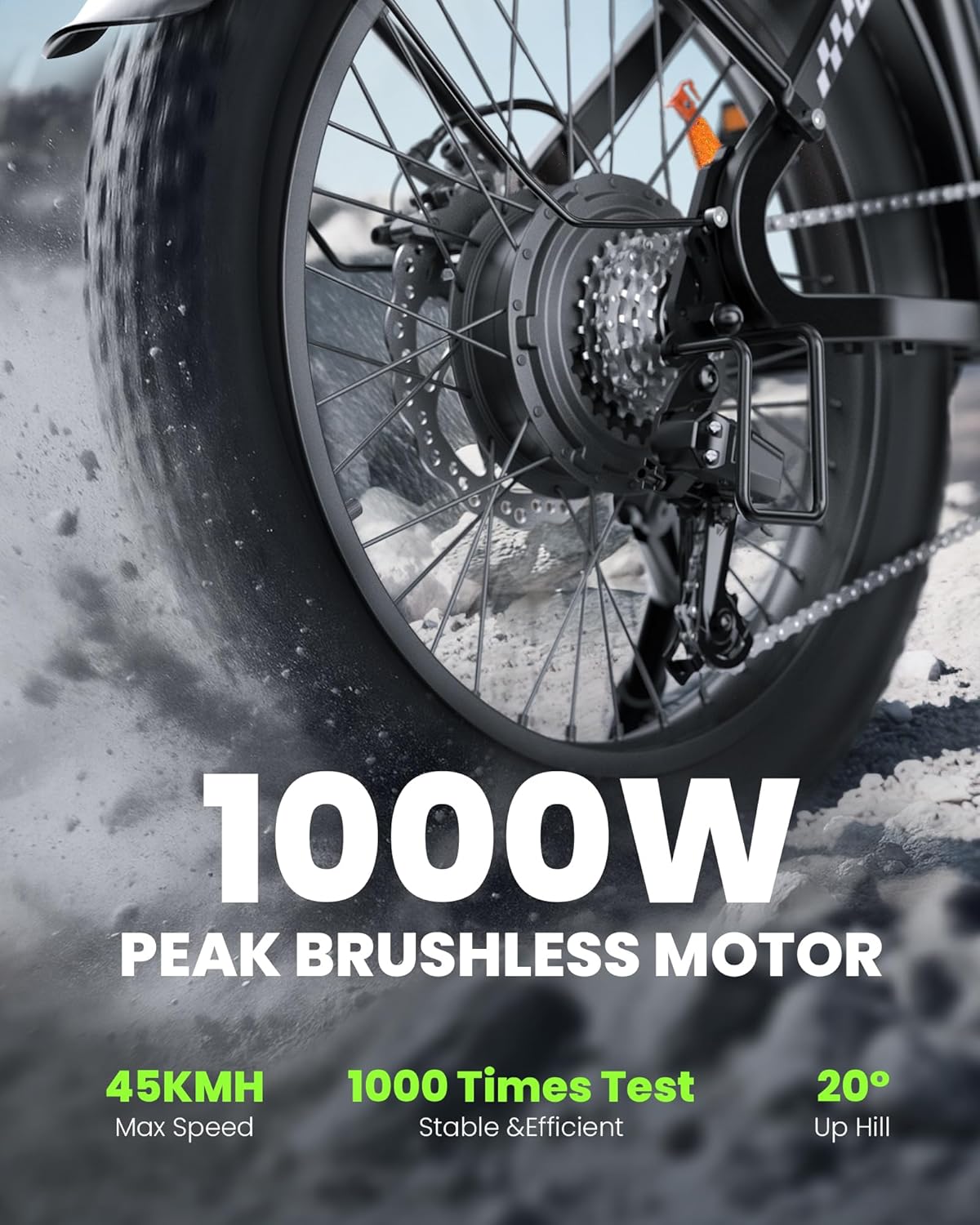

Figure 4: Rear Wheel with Motor and 7-Speed Gears
4.4 Sistema de frenada
The e-bike features dual mechanical disc brakes for reliable stopping power. Operate both front and rear brakes simultaneously for balanced and effective braking. Practice braking in a safe area to become familiar with their response.
Figure 5: Front Wheel with Disc Brake and Suspension
4.5 Sistema d'il·luminació
Activate the 2000-lumen headlight and high-visibility taillight using the controls on the handlebar. Always use lights when riding in low-light conditions or at night to ensure visibility to others.
Figure 6: 2000-Lumen Headlight
Figure 7: High-Visibility Taillight and Ergonomic Saddle
4.6 port de càrrega USB
The handlebar display includes a USB charging port, allowing you to charge small electronic devices while riding. Ensure the port cover is closed when not in use to protect against moisture.
Figure 8: USB Charging Port on Display
5. Manteniment
Un manteniment regular garanteix la longevitat i el funcionament segur de la teva bicicleta elèctrica.
- Cura de la bateria:
- Charge the battery fully after each ride, especially if it will be stored for an extended period.
- Guardeu la bateria en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Si l'emmagatzemeu durant períodes llargs, carregueu la bateria al 50-70% cada 1-2 mesos.
- Eviteu esgotar completament la bateria.
- Pneumàtics:
- Comproveu la pressió dels pneumàtics abans de cada trajecte. Consulteu el flanc del pneumàtic per conèixer la PSI recomanada.
- Inspect tires for wear, cuts, or embedded objects. The 20x3.0 inch fat tires are puncture-resistant but regular inspection is still important.
- Frens:
- Reviseu regularment les pastilles de fre per detectar el desgast i substituïu-les quan sigui necessari.
- Ensure brake levers engage smoothly and provide firm stopping power. Adjust cable tension if needed.
- Cadena i transmissió:
- Mantingueu la cadena neta i lubricada per garantir canvis de marxes suaus i evitar un desgast prematur.
- Inspeccioneu els engranatges i el desviador per assegurar-vos que estiguin alineats i funcionin correctament.
- Elements de fixació: Comproveu periòdicament tots els cargols, femelles i tancaments ràpids per assegurar-vos que estiguin ben ajustats.
- Neteja: Neteja la bicicleta elèctrica amb anuncisamp drap i sabó suau. Eviteu utilitzar rentadores d'alta pressió directament sobre els components elèctrics.
6. Solució De Problemes
If you encounter issues with your Isinwheel U8/U8 Pro, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La bicicleta elèctrica no s'encén. | Battery not charged, battery not properly seated, loose electrical connection. | Ensure battery is fully charged and correctly installed. Check all visible electrical connections. |
| El motor no ajuda. | Low battery, PAS level set to 0, brake levers engaged, motor cable disconnected. | Charge battery, increase PAS level, ensure brake levers are fully released. Check motor cable connection. |
| Brakes feel weak or noisy. | Worn brake pads, misaligned caliper, loose cable, contaminated rotor. | Inspect and replace brake pads. Adjust caliper alignment. Clean rotors with disc brake cleaner. |
| Tire loses air quickly. | Puncture, valve stem issue, improper tire seating. | Inspect tire for punctures and repair/replace tube. Ensure valve stem is tight and tire is properly seated on the rim. |
| La pantalla no mostra la informació correcta. | Loose connection, sensor issue. | Check display cable connections. If problem persists, contact support. |
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Isinwheel customer support.
7. Especificacions
| Característica | Detall |
|---|---|
| Model | Isinwheel U8/U8 Pro |
| Motor | Motor sense escombretes de 1000 W de màxima potència |
| Velocitat màxima | 45 KM/H (28 MPH) |
| Torque | 65 Nm |
| Bateria | 48V 13/18Ah Concealed Battery (BMS 2.0 System) |
| Max PAS Range | 120 KM (U8) / 168 KM (U8 Pro) |
| Material del marc | Alumini |
| Pneumàtics | 20 x 3.0 inch Puncture-Resistant Fat Tires |
| Suspensió | Suspensió davantera |
| Frens | Frens de disc mecànics duals |
| Engranatges | Transmissió Shimano de 7 velocitats |
| Il·luminació | 2000-Lumen Headlight, High-Visibility Taillight |
| Modes de conducció | PAS, Pure Electric, Cruise, Pedal, Walking |
| Capacitat de càrrega màxima | 150 kg (330 lliures) |
| Alçada del seient ajustable | 81-100 cm (32-39 polzades) |
| Alçada recomanada del genet | 162-188 cm (5'4"-6'2") |
| Pes de l'article | 30.2 kg (66.6 lliures) |
| Components inclosos | Ebike, Tool Kit |
8. Garantia i Suport
Isinwheel provides customer support for your electric bike. For warranty information, please refer to the documentation included with your purchase or contact Isinwheel directly. Keep your proof of purchase for warranty claims.
If you require assistance, have questions, or need to report an issue, please contact Isinwheel customer service:
- Telèfon: 1 (888) 293-5788
- Correu electrònic: support@isinwheel.com
- Botiga online: Visita el Isinwheel Store on Amazon per a més productes i informació.
Please have your model number (U8/U8 Pro) and purchase details ready when contacting support.
