1. Introducció
The CUBOT Kingkong 11 is a rugged 5G smartphone designed for durability and high performance. It features a powerful processor, extensive memory, a large battery, and an advanced camera system, all housed in a robust, water-resistant, and dustproof body.

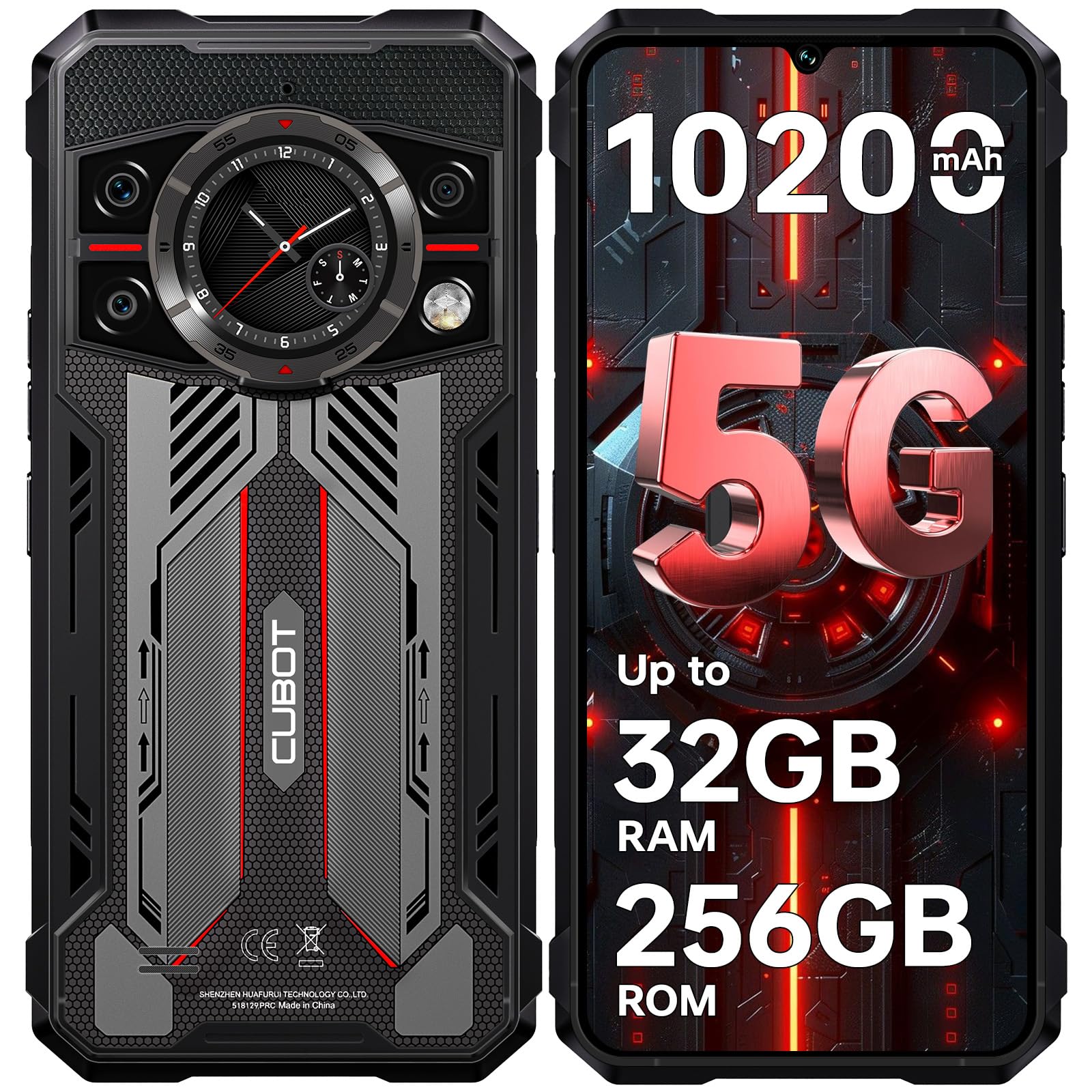

Imatge: Anvers i revers view of the CUBOT Kingkong 11 5G smartphone, highlighting its rugged design.
2. Configuració inicial
2.1. Inserció de targetes SIM i targeta MicroSD
The CUBOT Kingkong 11 supports dual SIM cards and a MicroSD card for expanded storage.
- Localitza la safata de la targeta SIM al lateral del dispositiu.
- Feu servir l'eina d'expulsió de la SIM proporcionada per obrir la safata.
- Carefully place your Nano-SIM cards and/or MicroSD card into the designated slots. Ensure correct orientation.
- Empenyeu suaument la safata cap enrere dins del dispositiu fins que quedi alineada amb el lateral.
Image: Close-up of the CUBOT Kingkong 11 showing the SIM card tray with waterproof seals.
2.2. Engegada i càrrega inicial
- Press and hold the power button located on the side of the device until the CUBOT logo appears.
- For first-time use, it is recommended to fully charge the device. Connect the USB-C cable to the phone and the 33W fast charger to a power outlet.
- L'indicador de bateria a la pantalla mostrarà l'estat de càrrega.
Image: Illustration of the 10200mAh battery capacity and 33W fast charging capability of the CUBOT Kingkong 11.
2.3. Configuració del programari
Follow the on-screen prompts to complete the initial setup, including language selection, Wi-Fi connection, Google account login, and security settings (Face ID/Fingerprint).
3. Funcionament
3.1. Sistema operatiu Android 15
The CUBOT Kingkong 11 runs on Android 15, offering an intuitive user interface and enhanced features. Navigate through apps, customize settings, and utilize smart functions for an optimized experience.
Image: Screenshot of the Android 15 operating system interface on the CUBOT Kingkong 11.
3.2. Main Display (6.72" FHD+ 120Hz)
The 6.72-inch FHD+ display provides vibrant visuals with a 120Hz refresh rate for smooth scrolling and gaming. The 1080x2400 resolution ensures clear and detailed content viewing.
Image: Visual representation of the 6.72-inch FHD+ display with 120Hz refresh rate on the CUBOT Kingkong 11.
3.3. Rear Smart Display (1.46")
The 1.46-inch rear smart display provides quick access to essential information such as time, notifications, battery status, and compass without activating the main screen. This feature is useful for quick glances during activities.
Image: The 1.46-inch rear smart display of the CUBOT Kingkong 11, showing widgets for clock, camera, music, battery, calls, compass, and alarm.
3.4. Sistema de càmeres
El dispositiu compta amb un sistema versàtil de quatre càmeres:
- Càmera principal de 108MP: Captures high-resolution photos with impressive detail.
- Càmera frontal de 32MP: For high-definition selfies and video calls.
- Càmera de visió nocturna de 24MP: Equipped with infrared LEDs for clear imaging in complete darkness.
- Lent macro de 8MP: Allows for close-up photography, capturing intricate details of small subjects.
Imatge: Més deview of the CUBOT Kingkong 11's quad-camera system, including the 108MP main, 32MP front, 24MP night vision, and 8MP macro lenses, with examples fotos.
3.5. Connectivitat i navegació
The Kingkong 11 supports 5G full-band connectivity for fast data speeds. It includes NFC for contactless payments and data transfer, and a quadruple positioning system (GPS+GLONASS+BeiDou+Galileo) for accurate navigation.
Image: Graphic illustrating the CUBOT Kingkong 11's 5G ultra-fast global coverage and connectivity features.
4. Manteniment
4.1. Durabilitat i protecció
The CUBOT Kingkong 11 is certified with IP68/IP69K for dust and water resistance, and MIL-STD-810H for shock resistance. It can withstand submersion in water up to 5 meters for 30 minutes.
- Resistència a l'aigua: Ensure all ports (USB-C, SIM tray) are properly sealed before exposing the device to water. After exposure to water, dry the device thoroughly before charging.
- Resistència a la pols: The device is designed to prevent dust ingress. Clean any accumulated dust from ports and crevices using a soft, dry brush.
- Resistència als cops: While rugged, avoid intentional drops or impacts from extreme heights to preserve the device's integrity.
Image: Visual representation of the CUBOT Kingkong 11's IP68, IP69K, and MIL-STD-810H certifications for water, dust, and shock resistance.
4.2. Neteja
Use a soft, lint-free cloth to clean the screen and body of the phone. For stubborn smudges, a slightly damp es pot utilitzar un drap, seguit d'assecat immediat.
5. Solució De Problemes
5.1. El dispositiu no s'encén
- Assegureu-vos que la bateria estigui carregada. Connecteu el carregador i espereu uns minuts abans d'intentar tornar-lo a engegar.
- Mantingueu premut el botó d'engegada durant almenys 10-15 segons per realitzar un reinici forçat.
5.2. Poor Performance/Lag
- Tanca les aplicacions de fons innecessàries.
- Esborra les dades de la memòria cau de les aplicacions que s'utilitzen amb freqüència.
- Ensure sufficient storage space is available. Consider moving large files to the MicroSD card or cloud storage.
- Restart the device periodically.
5.3. Problemes de càrrega
- Verifiqueu que el cable de càrrega i l'adaptador estiguin connectats correctament i no estiguin danyats.
- Try using a different compatible charger and cable.
- Check the USB-C port for any debris or obstruction.
5.4. Problemes de connectivitat de xarxa
- Ensure SIM cards are correctly inserted and activated.
- Check network settings (e.g., APN settings) with your service provider.
- Activa i desactiva el mode avió.
- Reinicieu el dispositiu.
6. Especificacions
| Característica | Detall |
|---|---|
| Marca | CUBOT |
| Model | CUBOT KINGKONG 11 |
| Sistema operatiu | Android 15 |
| Processador | 5G Dimensity 7025 Octa-Core |
| RAM | Up to 32 GB (16 GB physical + 16 GB extended) |
| Emmagatzematge intern | 256 GB |
| Emmagatzematge ampliable | Up to 1 TB via MicroSD card |
| Pantalla principal | 6.72 inches FHD+ (1080x2400), 120Hz refresh rate, 450 nits brightness |
| Pantalla posterior | 1.46 inches Smart Display |
| Càmera principal | 108 MP |
| Càmera frontal | 32 MP |
| Càmera de visió nocturna | 24 MP with IR LED |
| Lent macro | 8 MP |
| Capacitat de la bateria | 10200 mAh |
| Carregant | Càrrega ràpida de 33 W, càrrega inversa OTG |
| Connectivitat | 5G, NFC, Dual SIM |
| Navegació | GPS+GLONASS+BeiDou+Galileo |
| Durabilitat | IP68/IP69K, MIL-STD-810H (Water resistant up to 5m for 30 min) |
| Seguretat | Face ID, Fingerprint Sensor |
| Dimensions | 22.4 x 17.3 x 4.2 cm (Paquet) |
| Pes | 700 g (Package) |
Image: Energy label for the CUBOT Kingkong 11, showing battery life and durability ratings. View Fitxa informativa del producte EPREL
7. Garantia i Suport
CUBOT offers a comprehensive support package for the Kingkong 11:
- Devolucions: Hassle-free returns within 30 days of purchase.
- Garantia: A two-year warranty covers manufacturing defects.
- Suport tècnic: Long-term technical assistance is available.
- Atenció al client: 24/7 online customer service is provided for any inquiries during your ownership.
For assistance, please contact CUBOT customer service through their official channels.
