Cecotec Conga M50 X-Treme Robot Vacuum Cleaner User Manual

1. Introducció

Thank you for choosing the Cecotec Conga M50 X-Treme Robot Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read it thoroughly before first use and keep it for future reference.

The Conga M50 X-Treme is a versatile robot vacuum designed to sweep, vacuum, mop, and scrub your floors. It features advanced laser navigation for precise mapping and efficient cleaning of various surfaces, including hard floors and carpets.

2. Producte acabatview

The Cecotec Conga M50 X-Treme is equipped with several features to ensure a comprehensive cleaning experience:

• Navegació làser: High-precision laser mapping for interactive home mapping and personalized cleaning.
• Succió potent: 5000 Pa suction power for effective removal of dust, hair, and dirt.
• Raspall multifunció: Designed with bristles and silicone for optimal cleaning on all floor types, including hard floors and carpets.
• Durada de la bateria ampliada: 3200 mAh battery provides up to 160 m² of continuous cleaning.
• Disseny compacte: 310 mm diameter and 100 mm height allow access to narrow and low spaces.
• Sistema de doble tanc: Separate tanks for 420 ml water and 400 ml dust for combined cleaning functions.
• Control de l'aplicació: Cecotec APP 3.0 for defining, planning, and scheduling cleaning zones.

This visual summary highlights the robot's main features: intelligent mapping and customizable cleaning via app, powerful 5000 Pa suction for deep cleaning, efficient performance on both hard floors and carpets, five adjustable scrubbing levels, and the ability to clean areas up to 160 square meters continuously.

3. Configuració

3.1 Col·locació de la base de càrrega

Place the charging base against a wall in an open area. Ensure there are no obstacles within 1 meter to the sides and 2 meters in front of the base to allow the robot to dock properly.

This image provides instructions for connecting the robot vacuum to the Cecotec app and important notes regarding Wi-Fi network names (2.4Ghz only, no spaces or special characters). It also illustrates the recommended placement for the charging base, indicating minimum clearance distances of 1 meter to the sides and 2 meters in front for optimal operation.

3.2 Càrrega inicial

Before first use, ensure the robot is fully charged. Place the robot on the charging base. The indicator lights will show the charging status. A full charge typically takes several hours.

3.3 Connectivitat de l'aplicació

To unlock the full potential of your Conga M50 X-Treme, download and install the Cecotec App on your smartphone.

1. Install the Cecotec App, tap the '+' icon, and select 'Add device'.
2. Turn on the Conga (it will blink). Select it in the App and follow the on-screen instructions.
3. Alternatively, add manually: Navigate to Menu > 'Vacuuming' > Select your Model > Follow the steps.

Important Wi-Fi Notes:

• Your Wi-Fi network name (SSID) must NOT contain spaces or special characters. Modify it if necessary (e.g., 'MyCecotecNetwork').
• The robot only supports 2.4Ghz Wi-Fi networks.
• If you encounter issues, try creating a temporary Wi-Fi hotspot without spaces from another mobile device, connect the robot to it, and update its firmware.

4. Instruccions de funcionament

4.1 modes de neteja

The Conga M50 X-Treme offers multiple cleaning modes:

• Neteja automàtica: The robot intelligently navigates and cleans your entire home.
• Neteja de vores: Centrat en la neteja de parets i vores de mobles.
• Neteja de punts: Neteja una zona específica amb més intensitat.
• Neteja programada: Defineix hores específiques perquè el robot netegi automàticament a través de l'aplicació.

This image showcases the robot's versatile 4-in-1 cleaning capabilities: vacuuming, sweeping, scrubbing, and mopping, all in a single pass. It demonstrates the robot effectively cleaning various floor surfaces, from wood to tile and marble.

4.2 Navegació i cartografia làser

The robot uses high-precision laser navigation to create an interactive map of your home. This allows for efficient and systematic cleaning paths, adapting to your space for optimal results. You can view and manage these maps through the Cecotec App.

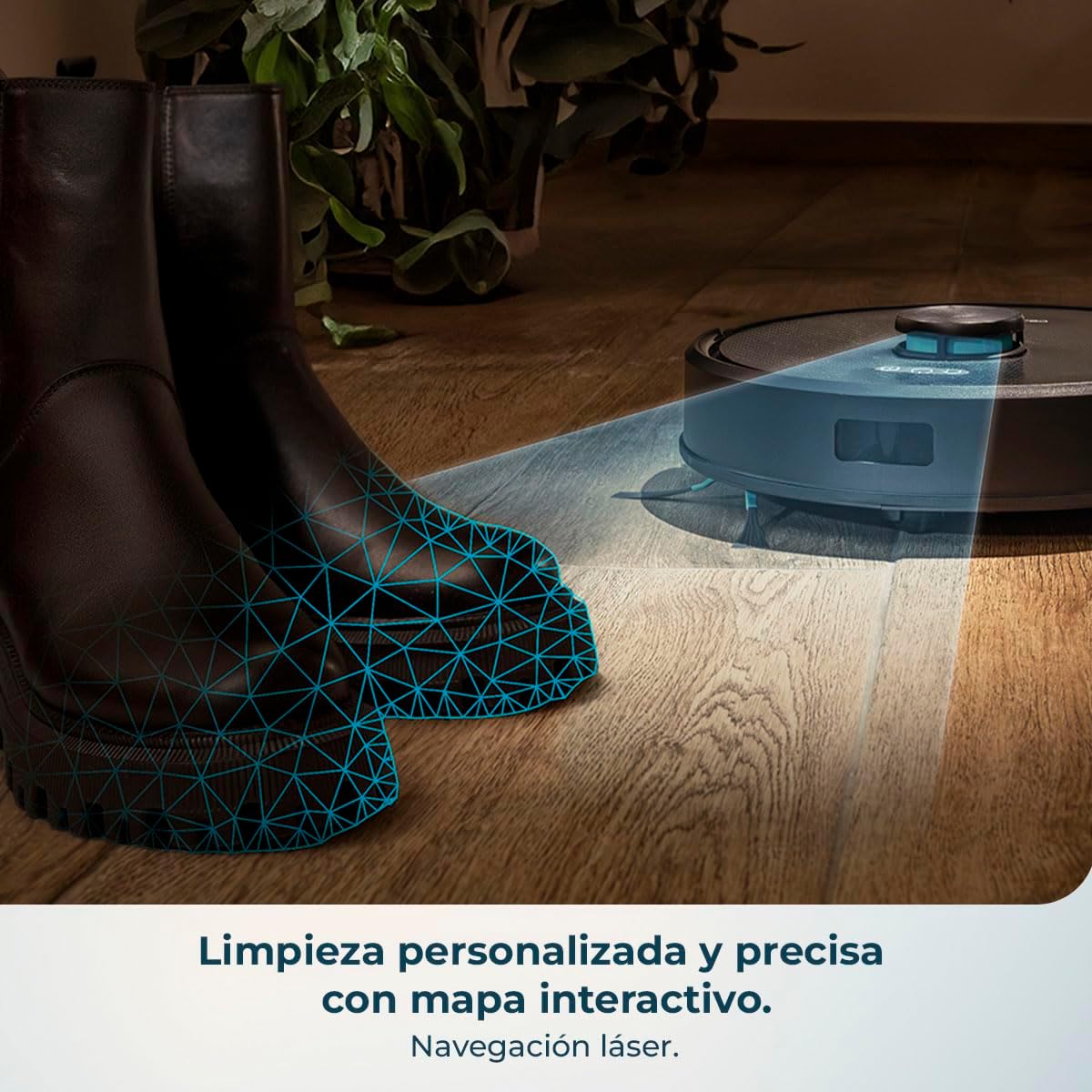

The robot vacuum uses advanced laser navigation to create an interactive map of your home, ensuring precise and personalized cleaning paths. The image shows the robot emitting a blue laser beam to detect obstacles and map the environment.

4.3 Control d'aplicacions

The Cecotec APP 3.0 provides comprehensive control over your robot vacuum. You can:

• Iniciar, pausar o aturar cicles de neteja.
• Select cleaning modes and adjust suction power.
• Define restricted zones or specific cleaning areas.
• Programar horaris de neteja.
• Monitor the robot's cleaning progress and battery level.

The Cecotec APP 3.0 allows users to define, plan, and schedule cleaning by specific zones, providing comprehensive control over the robot vacuum's operations. The image shows a user interacting with the app to manage cleaning tasks.

4.4 Rendiment de neteja

The robot's 5000 Pa suction power ensures efficient removal of various debris. Its multifunction brush is effective on both hard floors and carpets, providing detailed cleaning. The compact design allows it to reach under furniture and into narrow spaces.

Equipped with 5000 Pa suction power, the robot effortlessly vacuums various types of dirt from your floors. The image captures the robot in action, effectively removing debris from a wooden surface.

The robot features a multifunction brush capable of cleaning both hard floors and carpets thoroughly. This image shows the robot seamlessly moving between different floor types, ensuring comprehensive cleaning.

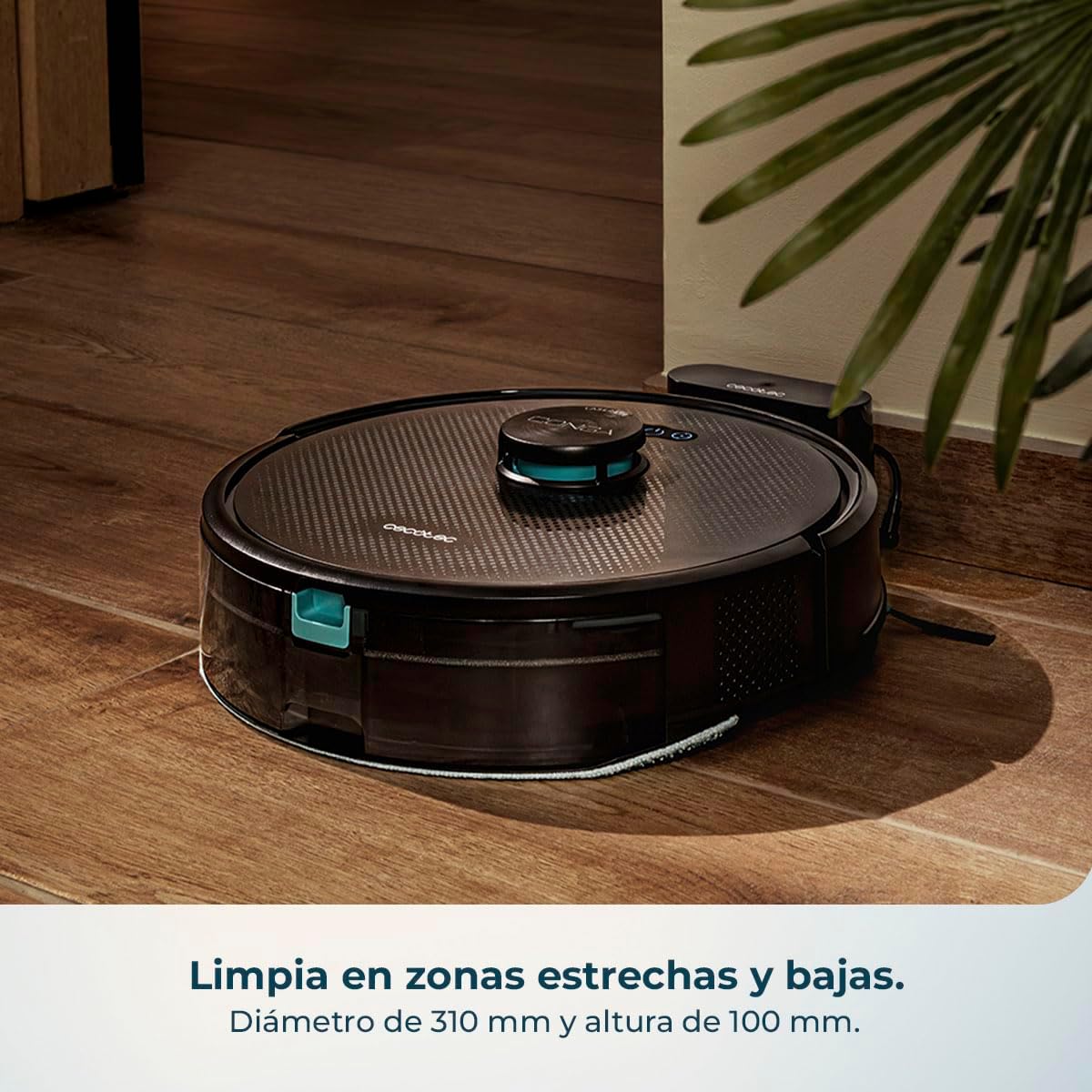

The robot's compact design, with a diameter of 310 mm and a height of 100 mm, allows it to easily clean under furniture and in narrow spaces, ensuring no area is left untouched.

5. Manteniment

5.1 Dipòsits de pols i aigua

The robot is equipped with a 400 ml dust tank and a 420 ml water tank. For optimal performance, empty the dust tank after each cleaning cycle and refill the water tank as needed for mopping functions. The dual tank system allows for continuous cleaning without frequent manual intervention.

The robot is designed for continuous cleaning, featuring a dual tank system with a 420 ml water tank and a 400 ml dust tank, reducing the need for frequent emptying. The image shows the robot automatically returning to its charging station.

5.2 Neteja del filtre

The robot uses a HEPA filter. Regularly clean the HEPA filter and the primary filter to maintain suction efficiency. Tap the filter gently to remove dust or use a small brush. Replace the HEPA filter every 3-6 months, depending on usage.

5.3 Manteniment dels raspalls

Periodically remove and clean the multifunction brush. Use the cleaning tool provided to cut and remove any tangled hair or debris. Ensure the side brushes are also free from obstructions.

6. Solució De Problemes

If you encounter issues with your Conga M50 X-Treme, refer to the following common solutions:

• El robot no es carrega: Ensure the charging base is properly connected to power and the robot is correctly docked. Clean the charging contacts on both the robot and the base.
• Robot encallat o perdut: Clear any obstacles from the robot's path. If the robot frequently gets stuck, consider setting up virtual walls or restricted zones in the app.
• Mal rendiment de neteja: Empty the dust tank, clean or replace filters, and clean the main and side brushes.
• Problemes de connexió Wi-Fi: Verify your Wi-Fi network name does not contain spaces or special characters and is operating on 2.4Ghz. Restart your router and the robot.
• L'aplicació no es connecta: Ensure the robot is powered on and in pairing mode. Check your phone's Wi-Fi connection and try reinstalling the app.

For more detailed troubleshooting, please consult the full manual available on the Cecotec weblloc o contacteu amb el servei d'atenció al client.

7. Especificacions

8. Vídeo oficial del producte

9. Garantia i Suport

The Cecotec Conga M50 X-Treme comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Cecotec weblloc.

For technical support, spare parts, or service inquiries, please contact Cecotec customer service through their official channels. Ensure you have your product model number (A01_EU01_119665) and proof of purchase ready when contacting support.
