1. Introducció
This manual provides detailed instructions for the safe installation, proper operation, and effective maintenance of your Empava 71-Inch Whirlpool Bathtub, Model EMPV-71JT408. Please read this document thoroughly before proceeding with installation or use. Retain this manual for future reference.
2. Informació de seguretat
Adherence to the following safety guidelines is crucial to prevent injury and ensure the longevity of your product.
- Seguretat elèctrica: Ensure all electrical connections are performed by a qualified electrician in accordance with local and national electrical codes. The bathtub requires two separate 110/120V 15 AMP outlets. Do not use extension cords.
- Temperatura de l'aigua: The inline heater maintains water temperature between 96.8°F (36°C) and 104°F (40°C). Always test the water temperature before entering the tub to avoid scalding.
- Supervisió: Children and individuals with reduced physical, sensory, or mental capabilities should be supervised when using the bathtub.
- Productes químics: Avoid using abrasive cleaners or harsh chemicals that may damage the acrylic surface or internal components. Refer to the maintenance section for cleaning instructions.
- Capacitat de pes: The tub is reinforced to support up to 660 lbs. Do not exceed this weight limit.
- Instal·lació: Ensure the bathtub is installed on a structurally sound and level surface capable of supporting its weight when filled with water and occupied.
3. Configuració i instal·lació
Proper installation is essential for the performance and safety of your whirlpool bathtub. It is recommended that installation be performed by certified professionals.
3.1 Llista de comprovació prèvia a la instal·lació
- Comproveu que tots els components estiguin presents i sense danys.
- Ensure the installation area meets the required dimensions and structural support.
- Confirm availability of two dedicated 110/120V 15 AMP circuits elèctrics.
- Prepare hot and cold water supply lines and a floor drain connection.
3.2 Dimensions and Requirements
- Dimensions del producte: 71 cm de llargada x 35 cm d'amplada x 25 cm d'alçada
- Profunditat de remull: 18 polzades
- Capacitat: 85 galons
- Pes buit: 225 lliures
- Tipus d'instal·lació: Alcova
- Material: Acrylic with fiberglass reinforcement and stainless steel frame.
- Panell frontal: 5/16" (8mm) thick tempered glass.
3.3 Diagrama d'instal·lació
Refer to the diagram below for typical electrical and plumbing connections.

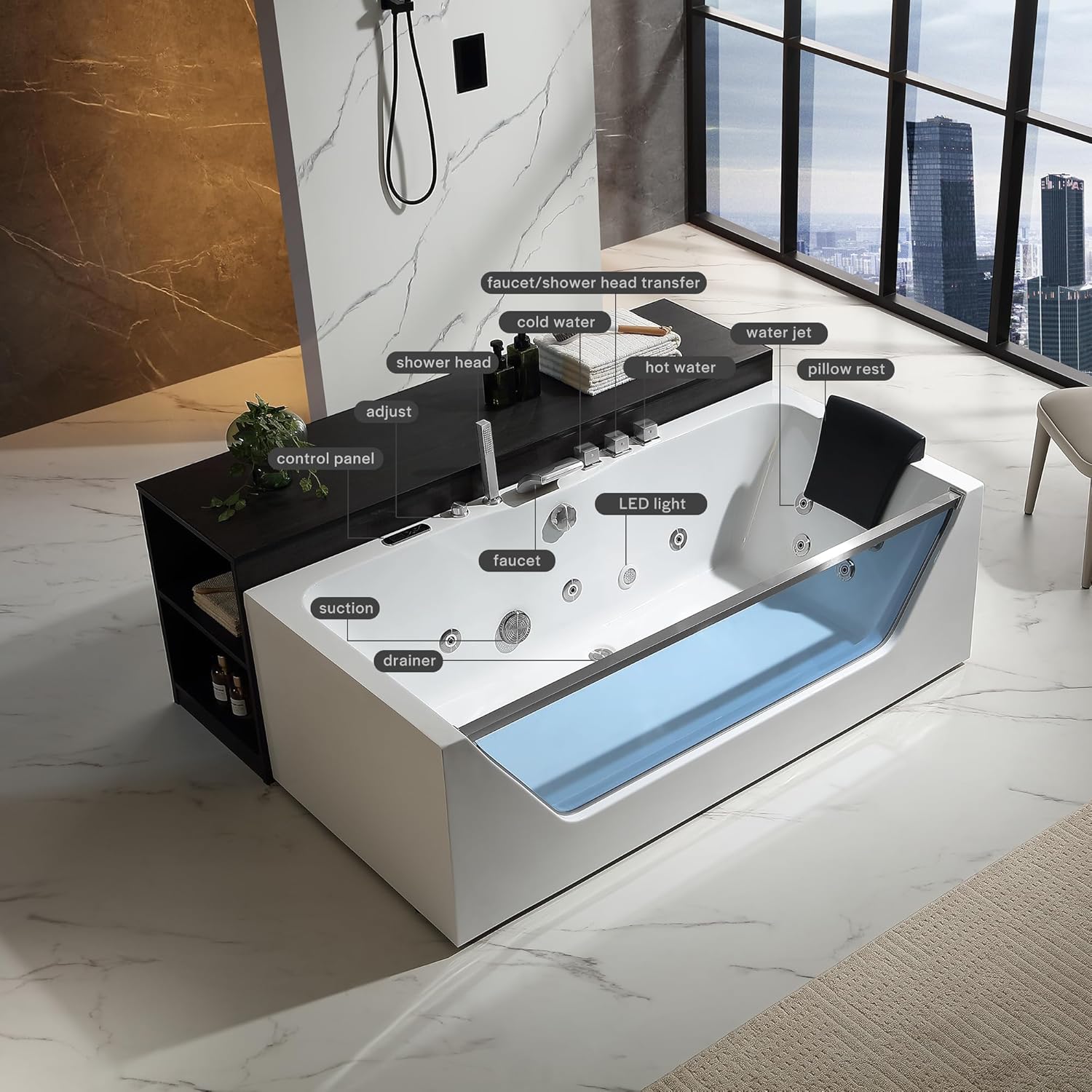

3.4 Component acabatview
Familiarize yourself with the main components of your bathtub.
4. Instruccions de funcionament
Your Empava whirlpool bathtub offers several features designed for relaxation and hydrotherapy.
4.1 Tauler de control
The integrated LED control panel manages all functions of the bathtub. Consult the specific control panel diagram for button functions.
4.2 Hydro Massage System
The bathtub features 10 adjustable water jets powered by a 1.0 HP motor. These jets are strategically placed to target lumbar, body, and foot regions for a deep-tissue massage.
- Activació: Press the 'Whirlpool Jet' button on the control panel.
- Ajust: Use the ergonomic knobs to customize the flow rate and angle of the jets.
4.3 Chromatherapy Lighting
Enhance your bathing experience with LED color therapy lights, creating a serene spa ambiance.
- Activació: Press the 'Mood Light' button on the control panel to cycle through colors or select a preferred hue.
4.4 Escalfador en línia
The inline heater is designed to maintain the water temperature between 96.8°F (36°C) and 104°F (40°C). It is not intended to heat cold water to a desired temperature, but rather to prevent the water from cooling down during your bath.
- Funcionament: Fill the tub with hot water to your desired initial temperature. The heater will then work to maintain this temperature.
4.5 Disseny ergonòmic
The bathtub is designed with a 125° recline angle and an 18-inch soaking depth to allow for comfortable full shoulder submersion.
5. Manteniment
Regular cleaning and maintenance will ensure your Empava whirlpool bathtub remains in optimal condition.
- Neteja general: Clean the acrylic surface with a soft cloth and a non-abrasive, mild bathroom cleaner. Rinse thoroughly with water after cleaning.
- Neteja amb raig: Periodically fill the tub with warm water and add a small amount of a non-foaming jet cleaner or white vinegar. Run the jets for 10-15 minutes, then drain and rinse the tub.
- Panell de vidre: Clean the tempered glass panel with a glass cleaner and a soft cloth to avoid streaks and scratches.
- Desguàs: Regularly clear the drain of hair and debris to prevent blockages.
6. Solució De Problemes
This section addresses common issues you might encounter with your whirlpool bathtub.
| Problema | Causa possible | Solució |
|---|---|---|
| Jets no operatius | No power; low water level; air lock in pump. | Check circuit breaker; ensure water level is above jets; turn off and on to reset pump. |
| L'escalfador no manté la temperatura | Initial water too cold; heater malfunction. | Ensure initial water is hot; contact customer support if issue persists. |
| El tauler de control no respon | No power; panel malfunction. | Check power supply; contact customer support. |
| Water draining slowly | Drain clogged with debris. | Clear drain of hair and other obstructions. |
7. Especificacions
Detailed technical specifications for the Empava EMPV-71JT408 Whirlpool Bathtub.
| Característica | Especificació |
|---|---|
| Marca | Empava |
| Número de model | EMPV-71JT408 |
| Dimensions del producte | 71 cm de llargada x 35 cm d'amplada x 25 cm d'alçada |
| Material | Acrílic |
| Color | Blanc |
| Tipus d'acabat | brillant |
| Pes de l'article | 225 lliures |
| Tipus d'instal·lació | Alcova |
| Capacitat | 85 galons |
| Forma | Rectangular |
| Nombre de jets | 10 |
| Potència del motor | 1.0 CV |
| Rang de temperatura de l'escalfador | 96.8 °F (36 °C) – 104 °F (40 °C) |
| Tipus de control | Electronic LED Control Panel |
| UPC | 810169486627 |
8. Garantia i Suport
For warranty information and customer support, please refer to the official Empava weblloc web o contacteu directament amb el seu departament d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
- Assistència en línia: Visit the Empava official weblloc web per a preguntes freqüents, registre de productes i recursos d'assistència.
- Contacta amb el servei d'atenció al client: Refer to your purchase documentation or the Empava weblloc per obtenir dades de contacte.
