OLEVS Model 3661 Men's Quartz Chronograph Watch User Manual

1. Introducció

This manual provides detailed instructions for the proper setup, operation, and maintenance of your OLEVS Model 3661 Men's Quartz Chronograph Watch. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece.

The OLEVS Model 3661 is a sophisticated quartz watch featuring a tonneau-shaped dial, chronograph functions, date display, and luminous hands, encased in durable stainless steel.

2. Producte acabatview

Característiques principals:

• Moviment de quars: Proporciona una cronometratge precisa i fiable.
• Funció de cronògraf: Includes 60-second and 60-minute subdials for timing events.
• Visualització de la data: Convenient window for the current date.
• Subesfera de 24 hores: Indicates AM/PM.
• Mans lluminoses: Allows for visibility in low-light conditions.
• Resistència a l'aigua de 30 metres: Suitable for daily splashes, hand washing, and rain. Not for swimming or diving.
• Construcció d'acer inoxidable: Durable case and band.
• Cristall Hardlex: Scratch-resistant watch face.

Components del rellotge:

Familiarize yourself with the main components of your OLEVS watch:

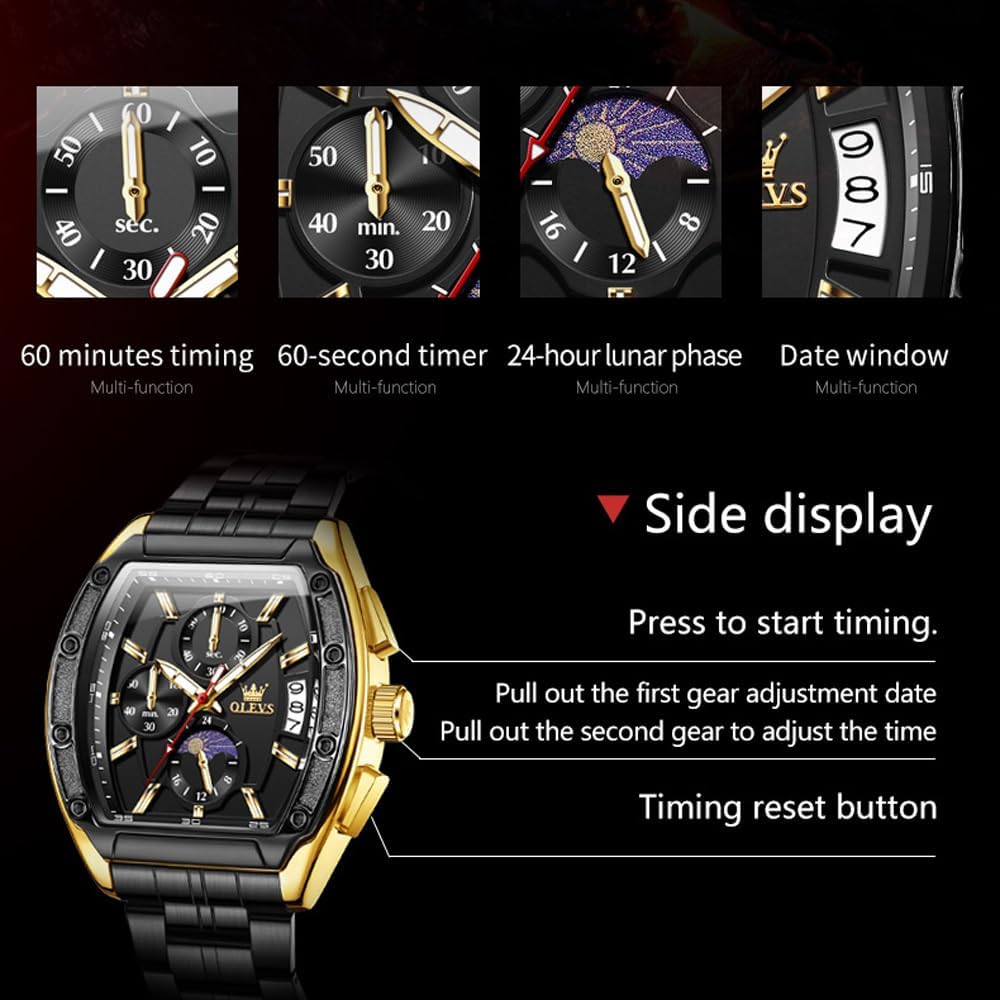

Descripció de la imatge: Un primer pla view of the OLEVS Model 3661 watch's right side, highlighting the crown and two push-buttons. Labels indicate the top button for starting timing, the crown for adjusting date and time, and the bottom button for resetting the timer.

• Corona: Used for setting the time and date.
• Top Pusher: Activates the chronograph start/stop function.
• Bottom Pusher: Resets the chronograph.
• Hour/Minute/Second Hands: Main time display.
• Finestra de data: Mostra la data actual.
• Subesferes: Include 60-second timer, 60-minute timer, and 24-hour indicator.

3. Configuració

3.1 Configuració de l'hora i la data

1. Per configurar la data: Gently pull the crown out to the first position. Rotate the crown clockwise or counter-clockwise until the correct date is displayed in the date window. Push the crown back in to secure the date.
2. Per definir l'hora: Pull the crown out to the second position. Rotate the crown to move the hour and minute hands until the desired time is set. Ensure the 24-hour subdial reflects the correct AM/PM period. Push the crown back in to the normal position to start the watch.

3.2 Ajust de la corretja del rellotge

The stainless steel band can be adjusted by adding or removing links to achieve a comfortable fit. A link removal tool is typically included with your watch. Arrows on the inside of the band links indicate the direction to push the pins out for removal.

• Identify the pins on the side of the links.
• Use the provided tool to push pins out in the direction of the arrows.
• Elimineu el nombre desitjat d'enllaços.
• Reinsert the pins to secure the band.

4. Instruccions de funcionament

4.1 Ús del cronògraf

1. Inici: Premeu el botó top pusher once to start the chronograph. The 60-second subdial hand will begin to move.
2. Atura: Premeu el botó top pusher again to stop the chronograph. The elapsed time will be indicated by the 60-second and 60-minute subdials.
3. Restablir: Després d'aturar el cronògraf, premeu el botó bottom pusher to reset all chronograph hands to their zero positions.

4.2 Funció lluminosa

The hands and hour markers of your OLEVS watch are coated with a luminous material. For optimal glow in the dark, expose the watch face to a bright light source (natural or artificial) for a few minutes. The intensity and duration of the glow will depend on the exposure time and light source strength.

Descripció de la imatge: A close-up of the OLEVS Model 3661 watch face in a dark environment, showing the hands and hour markers glowing brightly in green, demonstrating the luminous function.

4.3 Resistència a l'aigua

Your watch is rated for 30 meters (3ATM) of water resistance. This means it is suitable for:

• Accidental splashes
• Pluja
• Rentat de mans

Important: This watch is NOT suitable for swimming, diving, showering, or bathing. Do not operate the crown or pushers when the watch is wet or submerged, as this can compromise the water seal.

5. Manteniment

5.1 Neteja

Wipe the watch case and band regularly with a soft, dry cloth to remove dust and dirt. For stainless steel bands, a slightly damp es pot fer servir un drap i assecar-lo immediatament. Eviteu utilitzar netejadors químics o materials abrasius.

5.2 Substitució de la bateria

Your quartz watch is powered by a battery. When the watch stops or the second hand begins to skip, it indicates a low battery. Battery replacement should be performed by a qualified watch technician to ensure the water resistance seal is maintained.

5.3 Atenció general

• Eviteu exposar el rellotge a temperatures extremes (calor o fred).
• Keep the watch away from strong magnetic fields, which can affect timekeeping accuracy.
• Eviteu impactes o caigudes fortes.
• Rinse the watch with fresh water after exposure to saltwater, then dry thoroughly.

6. Solució De Problemes

Mira No Corrent:

• Comproveu si la corona està completament empenta cap a dins.
• The battery may be depleted. Refer to the 'Battery Replacement' section.

Hora/data incorrecta:

• Refer to the 'Setting the Time and Date' section to re-adjust.

Water Condensation Inside Watch:

• This indicates a breach in the water resistance. Stop using the watch immediately and have it inspected by a professional watch repair service.

Si trobeu problemes que no es cobreixen aquí, poseu-vos en contacte amb l'atenció al client.

7. Especificacions

Descripció de la imatge: The OLEVS Model 3661 watch, featuring a black and gold tonneau-shaped case and a black stainless steel band, displayed on a watch stand.

8. Garantia

This product is covered by a seller warranty. For specific details regarding the warranty period and coverage, please refer to your purchase documentation or contact the seller directly. Keep your proof of purchase for any warranty claims.

9. Suport

For technical assistance, service, or any questions regarding your OLEVS Model 3661 watch, please contact the seller or manufacturer through the platform where the purchase was made. Provide your model number and purchase date for faster service.
