Manual d'instruccions del marc de llit VECELO Queen Size amb capçal i peu de fusta

1. Informació important de seguretat

Si us plau, llegiu i enteneu totes les instruccions abans de muntar i utilitzar aquest producte. Si no seguiu aquestes instruccions, podeu patir lesions o danys.

• Capacitat de pes: No supereu la capacitat màxima de pes de 700 lliures for Queen size.
• Vores esmolades: Exercise caution during assembly to avoid injury from sharp edges.
• Nens: Mantingueu els nens allunyats de la zona de muntatge. Les peces petites poden suposar un perill d'asfíxia.
• Eines: Use only the tools provided or recommended in this manual.
• Superfície de nivell: Assemble the bed frame on a flat, level, and clean surface to prevent damage or misalignment.
• Inspecció periòdica: Reviseu periòdicament tots els cargols i connexions per assegurar-vos que romanen ben ajustats.

2. Package Contents and Parts List

Before beginning assembly, ensure all parts and hardware are present. Refer to the included parts list in your package. If any parts are missing or damaged, please contact VECELO customer support.

Figure 2.1: All parts and tools included for assembly.

The package includes all necessary parts, tools, and a detailed manual. Pillows, quilts, and mattresses are not included.

3. Instruccions de muntatge

Assembly of the VECELO Queen Size Bed Frame is designed to be straightforward and can typically be completed by one person in under an hour. Follow these steps carefully:

1. Desempaquetar components: Carefully remove all components from the packaging and lay them out on a clean, soft surface (e.g., a carpet or blanket) to prevent scratches. Verify all parts against the included parts list.
2. Muntar el capçal i el peu del llit: Attach the wooden headboard and footboard panels to their respective metal frames using the provided hardware. Ensure all bolts are finger-tight at this stage.
3. Connecteu els rails laterals: Attach the side rails to the headboard and footboard assemblies. The mid-frames with legs are foldable for easier handling. Secure with bolts, but do not fully tighten yet.
4. Instal·leu les potes de suport del centre: Ensure all center support legs are properly aligned and secured.
5. Inserir llistons: The bed frame features a snap-in slat design. Align each metal slat with the designated slots on the side rails and press down until it securely snaps into place. Ensure all slats are evenly spaced and firmly seated.
6. Ajustament final: Once all components are assembled and aligned, systematically tighten all bolts using the provided Allen wrench. Do not overtighten.
7. Comprovar l'estabilitat: Gently shake the assembled bed frame to ensure it is stable and all connections are secure.

Figure 3.1: Illustration of the snap-in slat design for easy installation.

4. Instruccions de funcionament

This section provides guidance on using your VECELO bed frame effectively.

4.1 Mattress Compatibility

The VECELO bed frame is designed to support various mattress types without the need for a box spring. It is compatible with 6-12 inch memory foam, latex, or spring mattresses.

Capacitat de pes 4.2

The Queen size bed frame has a maximum weight capacity of 700 lliures. Ensure this limit is not exceeded to maintain the structural integrity and safety of the bed frame.

4.3 Reducció del soroll

The bed frame incorporates EVA foam padding tape on the center rail to minimize friction and prevent squeaking. This design feature contributes to a quieter sleeping environment.

4.4 Under-bed Storage

With a 12.2-inch clearance from the floor to the underside of the frame, this bed provides ample space for under-bed storage. This can be utilized for storing various items in bins or containers.

Figura 4.1: Example of utilizing the 12.2-inch under-bed storage clearance.

5. Manteniment

Proper maintenance ensures the longevity and continued performance of your bed frame.

• Neteja: Wipe the metal and wood surfaces with a damp drap. Eviteu utilitzar productes químics agressius o netejadors abrasius que puguin danyar l'acabat.
• Comprovacions periòdiques: Periodically (e.g., every 3-6 months) inspect all bolts and connections. Tighten any loose hardware to maintain stability and prevent squeaking.
• Eviteu l'excés d'humitat: Keep the bed frame in a dry environment to prevent rust on metal components and warping of wood.

6. Solució De Problemes

Aquesta secció tracta problemes comuns que podeu trobar amb el marc del vostre llit.

• Sorolls de grinyols:

  Causa: Loose bolts or friction between metal parts.

  Solució: Ensure all bolts are securely tightened. The bed frame includes EVA foam on the center rail to reduce squeaking; verify it is properly in place. If squeaking persists, disassemble and reassemble the affected section, ensuring all parts are correctly aligned and tightened.

• Corredissa de matalàs:

  Causa: Smooth surface of slats or mattress material.

  Solució: While the footboard helps secure the mattress, some mattresses may still slide. Consider placing a non-slip mat between the mattress and the slats to prevent movement.
• Inestabilitat/Troballament:

  Causa: Muntatge desigual o connexions fluixes.

  Solució: Recheck all connections and ensure every bolt is tightened. Verify that the bed frame is placed on a level floor. If the issue persists, disassemble and reassemble, paying close attention to alignment.

7. Especificacions

Key specifications for the VECELO Queen Size Bed Frame:

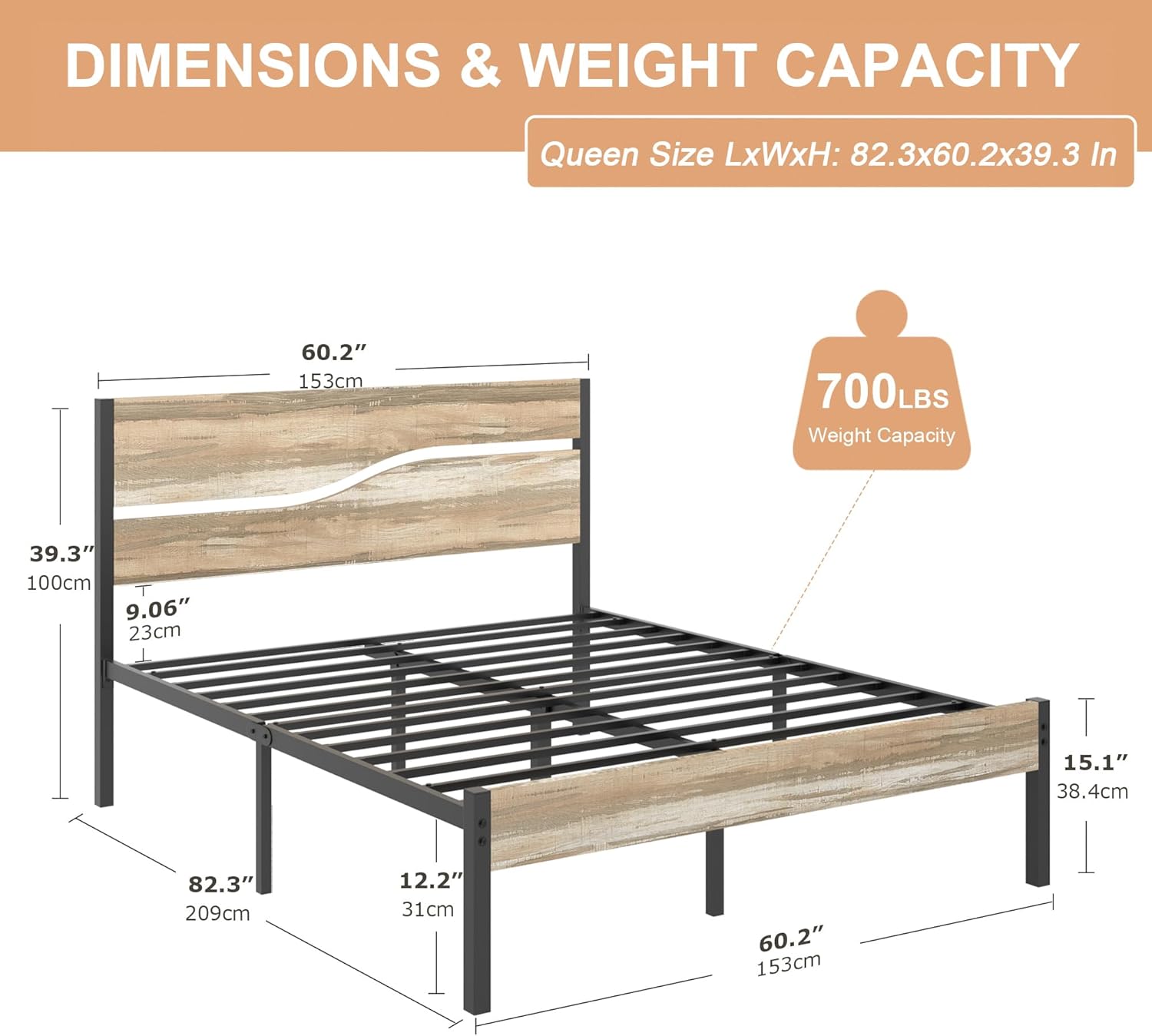

Figure 7.1: Dimensions and weight capacity of the Queen size bed frame.

8. Garantia i Suport

VECELO is committed to providing quality products and customer satisfaction.

• Garantia: Aquest producte ve amb un 24 mesos de garantia des de la data de compra.
• Devolucions: A 30-day free return service està disponible.
• Atenció al client: If you encounter any problems with the product, including missing parts, damage, or assembly difficulties, please do not hesitate to contact VECELO customer service. We are available to assist with free replacement parts or a brand-new item if necessary.

For support, please refer to the contact information provided in your purchase documentation or visit the official VECELO weblloc.
