NPET WF100

NPET WF100 Cat Water Fountain Instruction Manual

Model: WF100

Producte acabatview

The NPET WF100 Automatic Cat Water Fountain is designed to provide fresh, filtered water for cats and small dogs. It features a 54oz (1.6L) capacity, an ultra-quiet bottom suction pump, and a multi-stage filtration system to ensure clean drinking water. The fountain offers two distinct flow modes to encourage pets to drink more, promoting their hydration and overall health.

NPET WF100 Cat Water Fountain with filters

Image: The NPET WF100 Cat Water Fountain in blue, shown with a set of replacement filters.

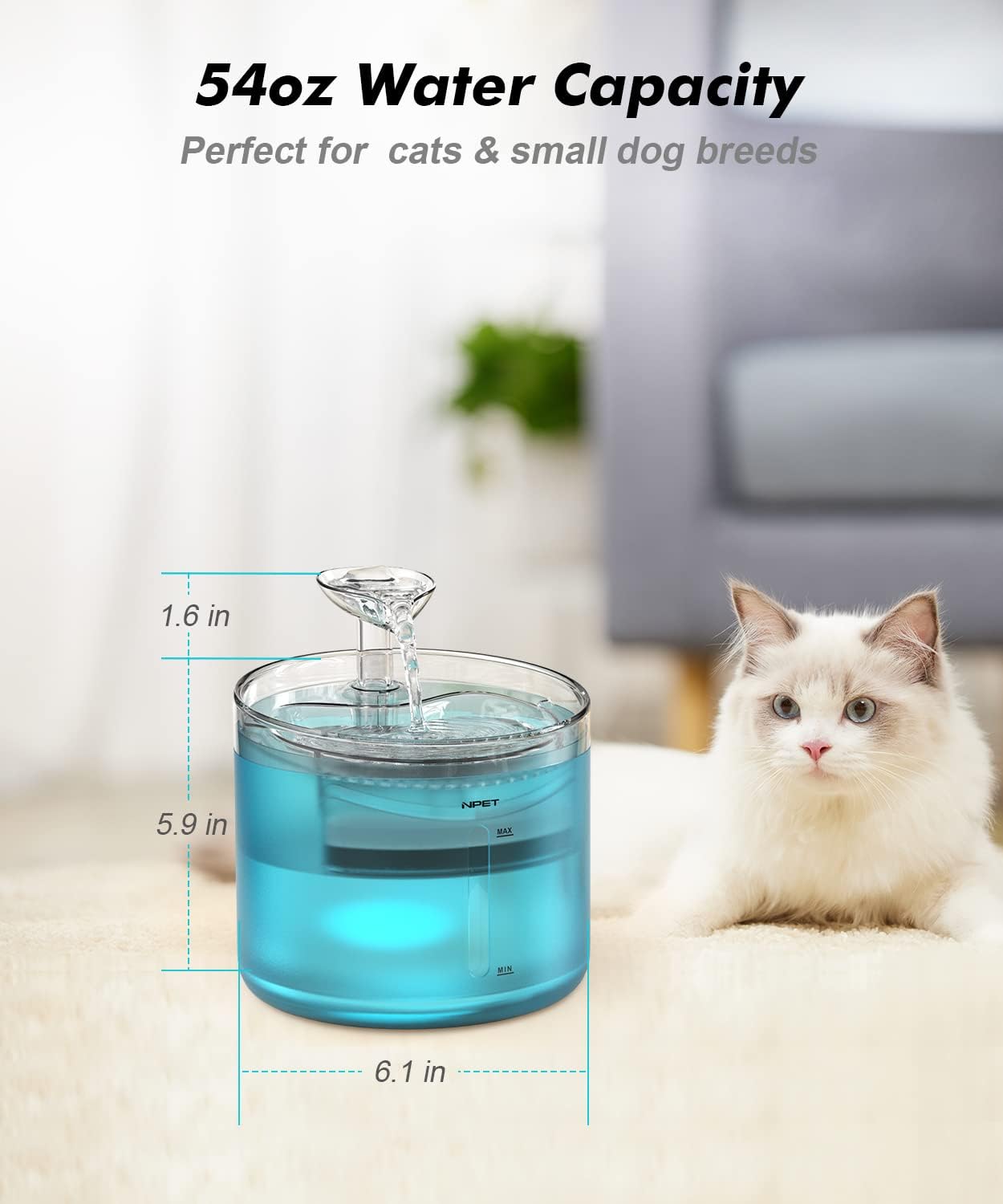

NPET WF100 Cat Water Fountain dimensions and capacity

Image: A visual representation of the NPET WF100 Cat Water Fountain's dimensions (6.1 in width, 5.9 in height) and its 54oz water capacity, suitable for cats and small dogs.

Instruccions de configuració

  1. Desempaquetar components: Traieu amb cura totes les peces de l'embalatge.
  2. Preparació del filtre: Soak the filter in water for 2 minutes and rinse it thoroughly under running water before initial use. This prevents activated carbon dust from shedding.
  3. Muntatge de la bomba: Place the pump inside the designated square indentation at the bottom of the water bowl. Ensure the double probe faces towards the clear window.
  4. Instal·leu el filtre: Insert the prepared filter into its compartment above the pump.
  5. Omplir aigua: Fill the fountain with water, ensuring the level is between the MIN and MAX indicators visible through the translucent tank.
  6. Connectar l'alimentació: Plug the USB power adapter into a wall outlet. Keep the cable hidden to prevent pets from chewing it.
Rinsing the NPET WF100 filter before use

Image: A hand rinsing the filter sponge under running water, demonstrating the 'Rinse Before Use' step for the NPET WF100 filter.

Video: A demonstration of the assembly and initial setup of an NPET Cat Water Fountain, including filter placement and filling with water. Note: This video may feature a slightly different model (WF210), but the setup principles are similar.

Instruccions de funcionament

The NPET WF100 fountain offers two distinct water flow modes to cater to your pet's preferences:

  • Leaf-Shaped Mode: This mode utilizes the leaf-shaped attachment to create a gentle, flowing stream of water, which can attract pets to drink more.
  • Gentle Fountain Mode: Without the leaf attachment, the fountain provides a bubbling, gentle flow of water from the top surface.

The translucent water tank and LED light allow for easy monitoring of the water level, reminding you when to refill. The bottom suction pump ensures continuous water circulation, providing fresh water and preventing stagàrees principals.

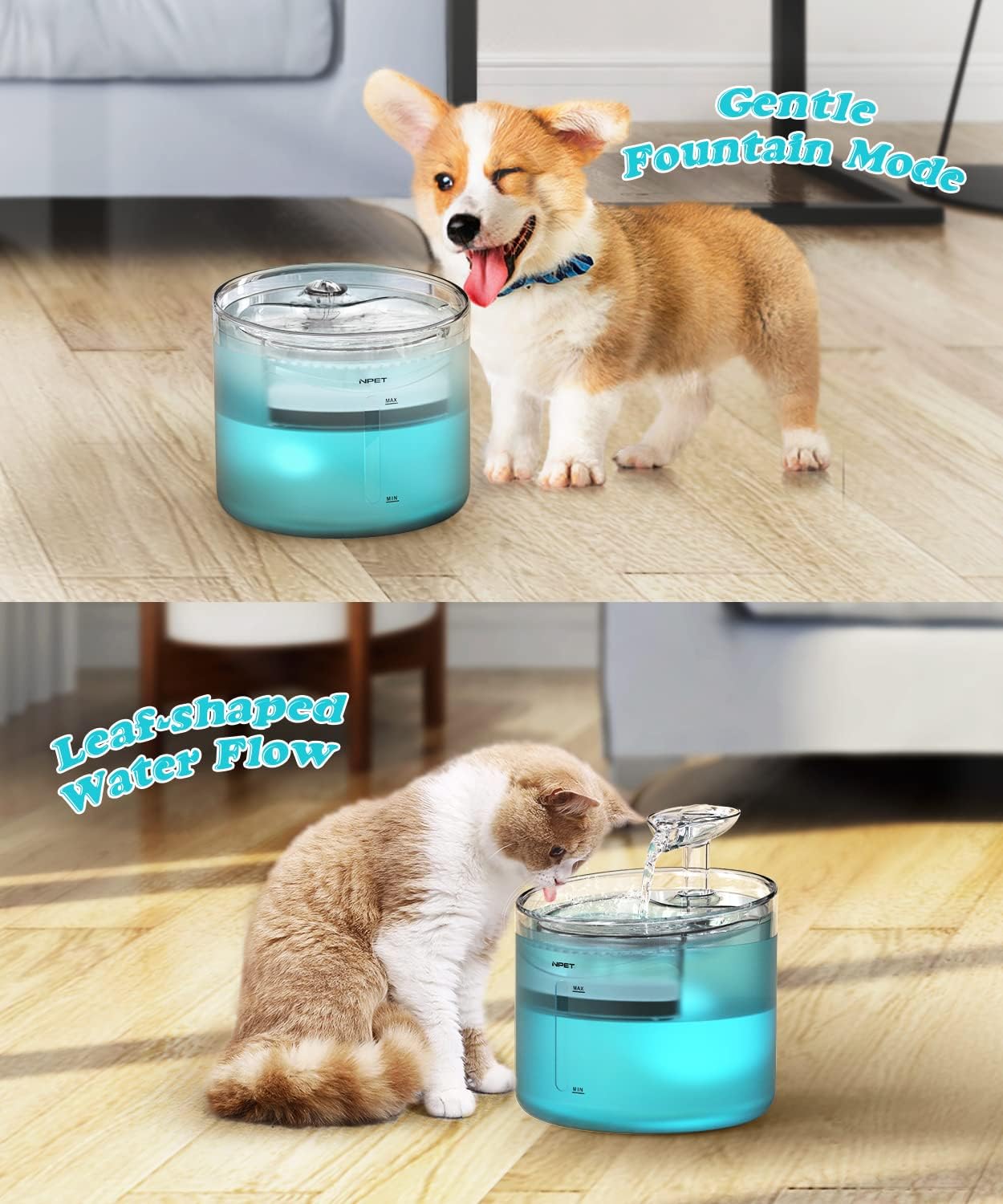

NPET WF100 Cat Water Fountain showing gentle and leaf-shaped flow modes

Image: Two images demonstrating the NPET WF100 Cat Water Fountain's two flow modes: a gentle fountain mode with a small dog, and a leaf-shaped water flow mode with a cat drinking.

NPET WF100 Cat Water Fountain with 200ml water storage lid

Image: The NPET WF100 Cat Water Fountain highlighting its 200ml water storage lid, designed to provide emergency drinking water during power outages.

Manteniment

Regular maintenance is crucial for the health of your pet and the longevity of the fountain.

  • Neteja setmanal: For your pet's health, it is suggested to change the water and clean the entire fountain every week.
  • Neteja de l'impel·lent: If the fountain becomes loud, it may be due to a low water level or a dirty impeller. Clean the pump's impeller and ensure the water reaches at least the minimum level.
  • Substitució del filtre i l'esponja: Replace the filter and the sponge every 2 to 4 weeks, depending on your pet's drinking frequency and the number of pets using the fountain. Flush the filter and sponge with water every time you change the water.
  • Seguretat del cable: Always keep the power cable hidden to prevent pets from chewing it.
Diagram of NPET WF100 5-stage sistema de filtració

Imatge: Un diagrama que il·lustra les 5-stage filtration system of the NPET WF100, including high-density sponge, activated carbon, medical stone, ion exchange resin, and non-woven fabric layers.

Resolució de problemes

  • Loud Fountain Operation: If the fountain is operating loudly, check the water level. Ensure it is above the minimum fill line. A dirty pump impeller can also cause noise; clean the impeller thoroughly.
  • Sense flux d'aigua: Verify that the power adapter is securely plugged in and the pump is correctly placed in its indentation. Check for any obstructions in the pump or tubing.
  • Problemes de qualitat de l'aigua: Ensure filters are replaced regularly (every 2-4 weeks) and the fountain is cleaned weekly to maintain optimal water quality.

Especificacions

CaracterísticaDetall
Número de modelWF100
Capacitat1.6 litres (54 oz)
Dimensions del producte6.5 cm de llargada x 6.5 cm d'amplada x 6.1 cm d'alçada
Pes de l'article1.52 lliures
MaterialPlastic (Fountain+8 Filters +8 Sponges)
ColorBlau
Entorn d'úsInterior

Informació de la garantia

The NPET WF100 Cat Water Fountain comes with a 1 anys de garantia del fabricant. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.

Suport

For further assistance, technical support, or warranty inquiries, please contact NPET customer service. Refer to the product packaging or the official NPET weblloc web per obtenir la informació de contacte més actualitzada.

També podeu visitar el NPET Store on Amazon per obtenir més informació sobre el producte i recursos d'assistència.
