1. Introducció
Thank you for choosing the OMMO OM-200 High-Speed Blender. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and retain it for future reference.
Image 1.1: The OMMO OM-200 High-Speed Blender with its pitcher filled with colorful fruits, alongside a glass of orange juice and a tampeh.
2. Instruccions de seguretat importants
Per reduir el risc d'incendi, descàrrega elèctrica o lesions, seguiu sempre aquestes precaucions de seguretat bàsiques:
- Llegiu totes les instruccions abans de fer servir la batedora.
- No submergiu la base del motor en aigua o altres líquids.
- Desendolleu la presa de corrent quan no estigui en ús, abans de muntar o desmuntar peces i abans de netejar.
- Eviteu el contacte amb les peces mòbils.
- No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi caigut o s'hagi danyat de cap manera.
- L'ús d'accessoris no recomanats o venuts pel fabricant pot provocar incendis, descàrregues elèctriques o lesions.
- No utilitzar a l'aire lliure.
- No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
- Keep hands and utensils out of container while blending to prevent the possibility of severe injury to persons or damage to the blender. A scraper may be used but only when the blender is not running.
- Les fulles són afilades. Manipular amb cura.
- Feu servir sempre la batedora amb la tapa al seu lloc.
- Do not blend hot liquids in the pitcher as pressure buildup may cause scalding.
- Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
3. Contingut del paquet
Verifiqueu que tots els elements estiguin presents i en bon estat en obrir el paquet:
- Base de motor de 1800 watts màxims
- 68oz BPA-Free Pitcher with Lid
- Tamper
- Guia d'inspiració de receptes
- Manual d'instruccions (aquest document)
4. Producte acabatview
Familiarize yourself with the components and controls of your OMMO OM-200 Blender.
Imatge 4.1: Un sobreview highlighting the key features of the OMMO Blender, including 68oz large capacity, 1400W motor, 6 stainless steel blades, BPA-free pitcher, adjustable speed, and timer function.
Característiques del tauler de control:
- Botó d'inici / aturada: Initiates or halts the blending process.
- Control de temps: Adjusts the blending duration up to 6 minutes for hands-free operation.
- Speed Control Knob (Min/Max): Allows for variable speed adjustment to achieve desired texture.
- Botó de pols: Provides short bursts of power for chopping or quick blending.
5. Configuració
Follow these steps to prepare your blender for first use:
- Desembalar: Traieu amb cura tots els components de l'embalatge.
- Neteja: Rentar el càntir, la tapa i el tamper with warm, soapy water. Rinse thoroughly and dry. The pitcher is top-rack dishwasher safe.
- Muntar: Col·loca la gerra fermament a la base del motor. Assegura't que estigui ben col·locada.
- Col·locació de la tapa: Place the lid onto the pitcher and ensure it is firmly closed. Insert the tamper plug into the lid opening.
- Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent estàndard.

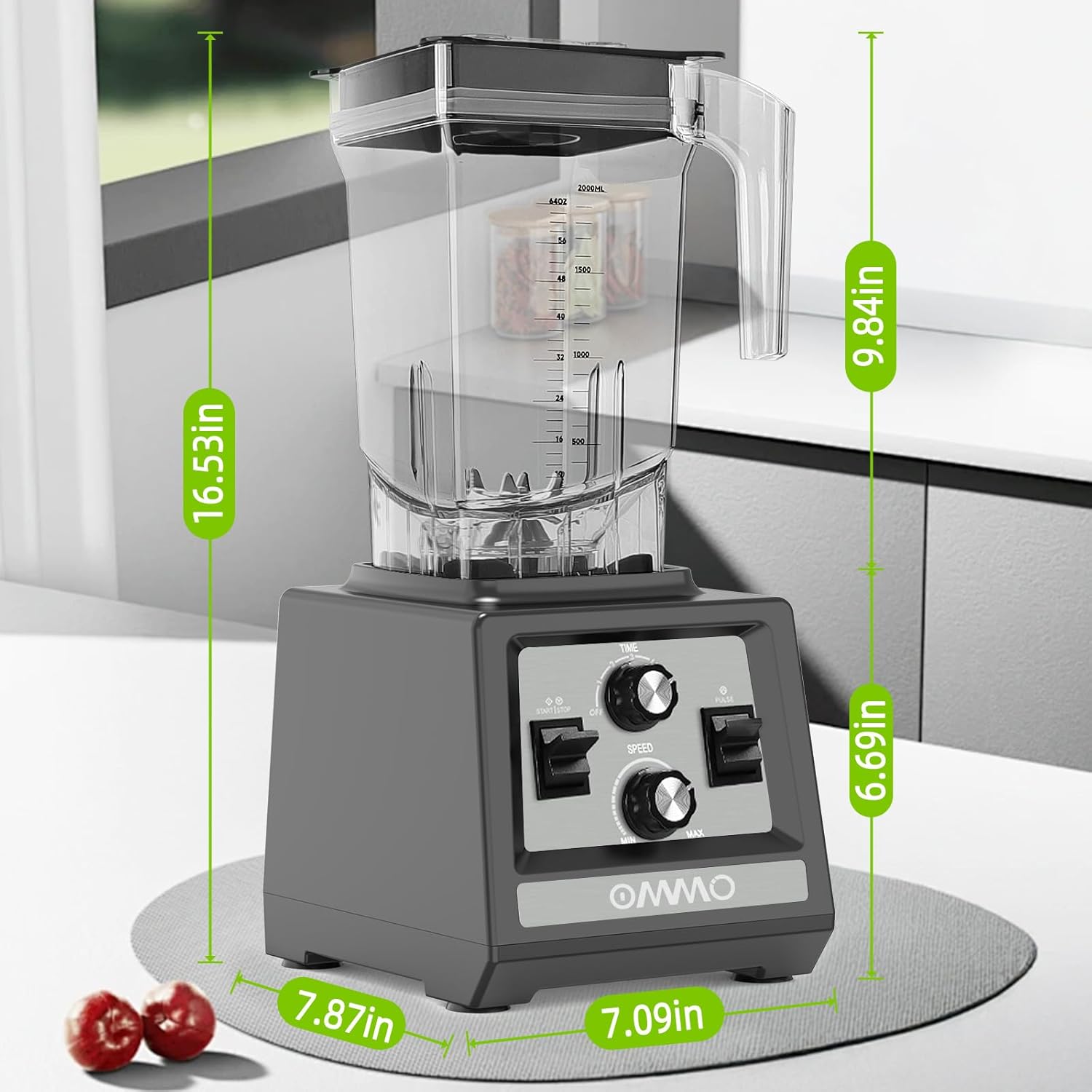

Image 5.1: A diagram illustrating the dimensions of the OMMO OM-200 Blender, showing its height, width, and depth.
6. Instruccions de funcionament
Your OMMO OM-200 Blender is designed for efficient blending of various ingredients. Always ensure the pitcher is securely placed and the lid is on before operating.
Barreja general:
- Add ingredients to the 68oz BPA-free pitcher. Do not exceed the maximum fill line.
- Secure the lid and tampendoll.
- Select your desired speed using the Speed Control Knob (Min to Max).
- Press the Start/Stop button to begin blending.
- For hands-free operation, set the desired blending time using the Time Control Knob (up to 6 minutes). The blender will automatically stop when the timer expires.
- Use the Pulse button for short bursts of power to chop ingredients or achieve a coarser texture.
- If ingredients get stuck, use the tamper through the lid opening to push them towards the blades while the blender is running.
- Once blending is complete, press the Start/Stop button (if not using the timer) and unplug the unit.
Image 6.1: A hand adjusting the timer knob on the OMMO Blender's control panel, with a green smoothie in the pitcher and a glass next to it.
Consells per obtenir els millors resultats:
- For optimal blending, add liquids first, then soft ingredients, followed by leafy greens, and finally frozen ingredients or ice.
- Do not overload the pitcher.
- Utilitzeu la tamper to help process thick or frozen mixtures.
Imatge 6.2: Un primer pla view of the OMMO Blender's six stainless steel blades efficiently crushing ice, strawberries, and kiwi, demonstrating its powerful blending capability.
7. Cura i Manteniment
Una neteja i un manteniment adequats garantiran la longevitat i el rendiment òptim de la teva batedora.
Neteja:
- Autoneteja: After use, fill the pitcher halfway with warm water and a drop of dish soap. Secure the lid and run the blender on low speed for 30-60 seconds. Rinse thoroughly.
- Apte per a rentavaixelles: The 68oz BPA-free pitcher is top-rack dishwasher safe.
- Rentat de mans: For thorough cleaning, disassemble the pitcher components and wash with warm, soapy water. Use a brush for hard-to-reach areas around the blades. Handle blades with extreme care.
- Base del motor: Netegeu la base del motor amb un anunciamp drap. No submergiu la base del motor en aigua ni en cap altre líquid.

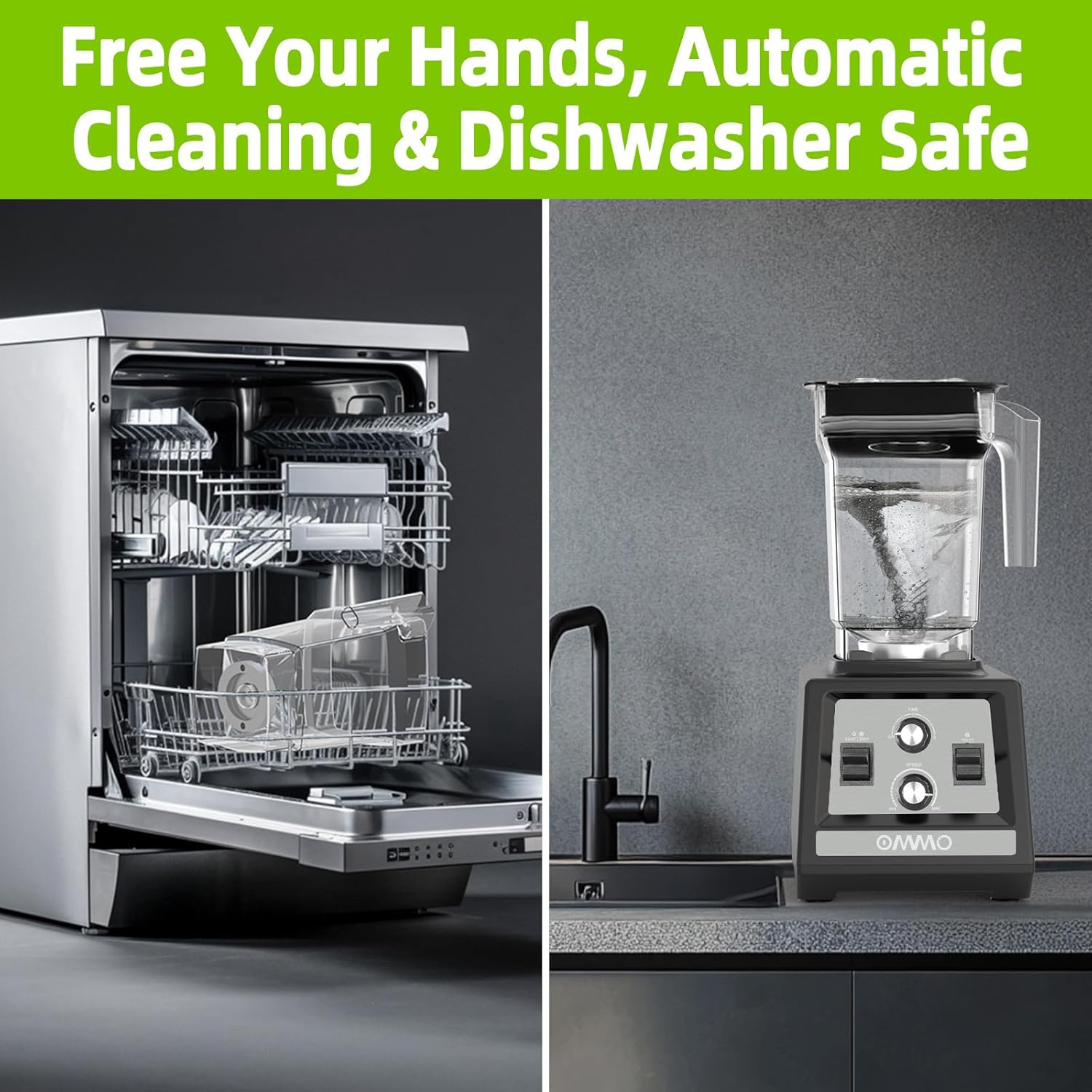

Image 7.1: The OMMO Blender pitcher shown inside a dishwasher on the left, and performing a self-cleaning cycle with water on the motor base on the right.
Emmagatzematge:
Store the blender in a clean, dry place. Ensure the pitcher is empty and clean before storage. Do not store anything on top of the blender.
8. Solució De Problemes
If you encounter issues with your OMMO OM-200 Blender, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La batedora no s'encén. | Not plugged in; power outlet not working; pitcher not correctly seated on base. | Ensure power cord is securely plugged in. Test outlet with another appliance. Re-seat the pitcher firmly on the motor base. |
| Els ingredients no es barregen suaument. | Massa poc líquid; massa ingredients; els ingredients són massa grans o durs. | Add more liquid. Reduce the amount of ingredients. Cut hard ingredients into smaller pieces. Use the tamper to push ingredients towards the blades. Increase speed. |
| La batedora s'atura durant el funcionament. | Sobreescalfament a causa d'un ús prolongat o d'una sobrecàrrega. | Unplug the blender and allow it to cool down for at least 15 minutes. Reduce load or blending time. |
| Loud noise or unusual odor. | Foreign object in pitcher; motor strain. | Immediately turn off and unplug. Check for any foreign objects. If no object, reduce load. If problem persists, contact customer support. |
9. Especificacions
| Característica | Detall |
|---|---|
| Marca | OMMO |
| Número de model | OM-200 |
| Color | Gris |
| Potència del motor | 1400 W (1800 W màxim) |
| Capacitat del càntir | 68oz (BPA-Free Plastic) |
| Fulles | 6 fulles d'acer inoxidable |
| Tipus de control | Manual (Variable Speed, Pulse, Timer) |
| Funció de temporitzador | Fins a 6 minuts |
| Dimensions del producte | 10 "P x 7.87" W x 14.17" H |
| Pes de l'article | 7.59 lliures |
| Voltage | 110 Volts |
| Característiques especials | Adjustable Speed Control, Adjustable Time, Automatic Cleaning, Dishwasher Safe Pitcher, Pulse Technology, Safety Lock |
10. Garantia i atenció al client
Informació de la garantia:
The OMMO OM-200 High-Speed Blender comes with a Garantia limitada de 1 anys from the date of purchase. This warranty covers manufacturing defects and workmanship under normal household use. It does not cover damage resulting from misuse, accident, alteration, neglect, or commercial use. Please retain your proof of purchase for warranty claims.
Atenció al client:
For any questions, concerns, or warranty claims, please contact OMMO customer support:
- Correu electrònic: service@ommohome.com
Image 10.1: An image displaying OMMO's commitment to professional after-sales support and a 1-year free replacement, along with the customer service email address: service@ommohome.com.
