Introducció
This manual provides essential information for the safe and effective use of your Bonacell Upgraded 7.0Ah 21.6V Replacement Battery for Dyson V6 vacuum cleaners. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of your battery.
Informació de seguretat
- No desmunteu, aixafeu ni punxeu la bateria.
- Keep the battery away from heat sources, direct sunlight, and flammable materials.
- No exposeu la bateria a l'aigua o la humitat.
- Use only the original Dyson charger or a compatible charger designed for V6 batteries.
- If the battery shows signs of damage, overheating, or leakage, discontinue use immediately and dispose of it properly.
- This battery includes built-in protections against over-charge, over-discharge, over-voltage, sobreintensitat i sobreescalfament.
Image: The battery is equipped with multiple safety protections, including over-current, over-discharge, over-temperature, over-voltage, and over-charging protection, ensuring safe operation.
Contingut del paquet
Si us plau, verifiqueu que tots els elements siguin presents al vostre paquet:
- 1 x Bonacell V6 Replacement Battery (7.0Ah, 21.6V)
- 1 x Battery Dust Cover
- 2 x cargols
- 2 x Pre-filters
Image: The package includes the Bonacell V6 replacement battery, two pre-filters, and two mounting screws.
Configuració i instal·lació
- Preparació: Ensure your Dyson V6 vacuum cleaner is turned off and unplugged from any power source.
- Treure la bateria antiga: Locate the screw holding the existing battery pack in place, typically near the handle. Use a suitable screwdriver to remove this screw. Gently slide the old battery out of its compartment.
- Instal·leu una bateria nova: Align the new Bonacell replacement battery with the battery compartment. Slide it firmly into place until it clicks securely. Reinsert and tighten the screw to secure the battery.
- Càrrec inicial: Before first use, fully charge the new battery. Connect your Dyson V6 vacuum to its charger. The battery's LCD power display will indicate charging progress.

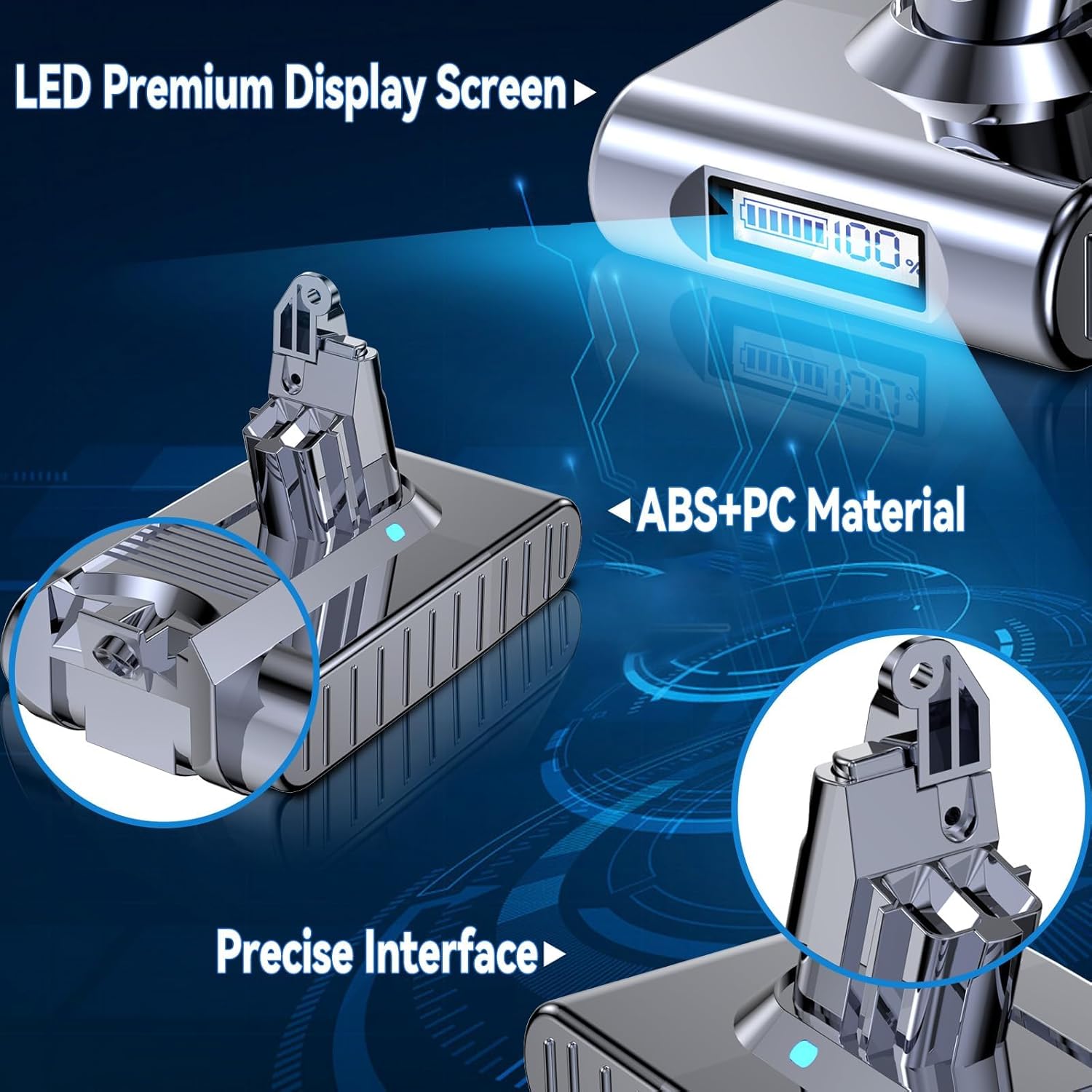

Image: The battery features a precise interface for easy installation and an LED display to monitor charge status.
Instruccions de funcionament
The Bonacell V6 replacement battery is designed to provide extended run time and consistent power for your Dyson V6 vacuum cleaner.
- Pantalla de potència: The integrated LCD screen provides a clear percentage display of the remaining battery charge, allowing for intuitive monitoring of battery usage.
- Optimizing Run Time: To maximize battery life during operation, use the vacuum at its standard speed for general cleaning. Reserve the high-speed (MAX) mode for difficult or stubborn debris, then return to standard speed.
- Compatibilitat: This battery is compatible with various Dyson V6 models, including SV03, SV04, SV05, SV06, SV07, SV09, DC58, DC59, DC61, DC62, DC72, DC74, V6 Trigger, V6 Animal, V6 Motorhead, V6 Fluffy, and V6 Absolute. It is NO compatible with V7, V8, V10, or V11 models.

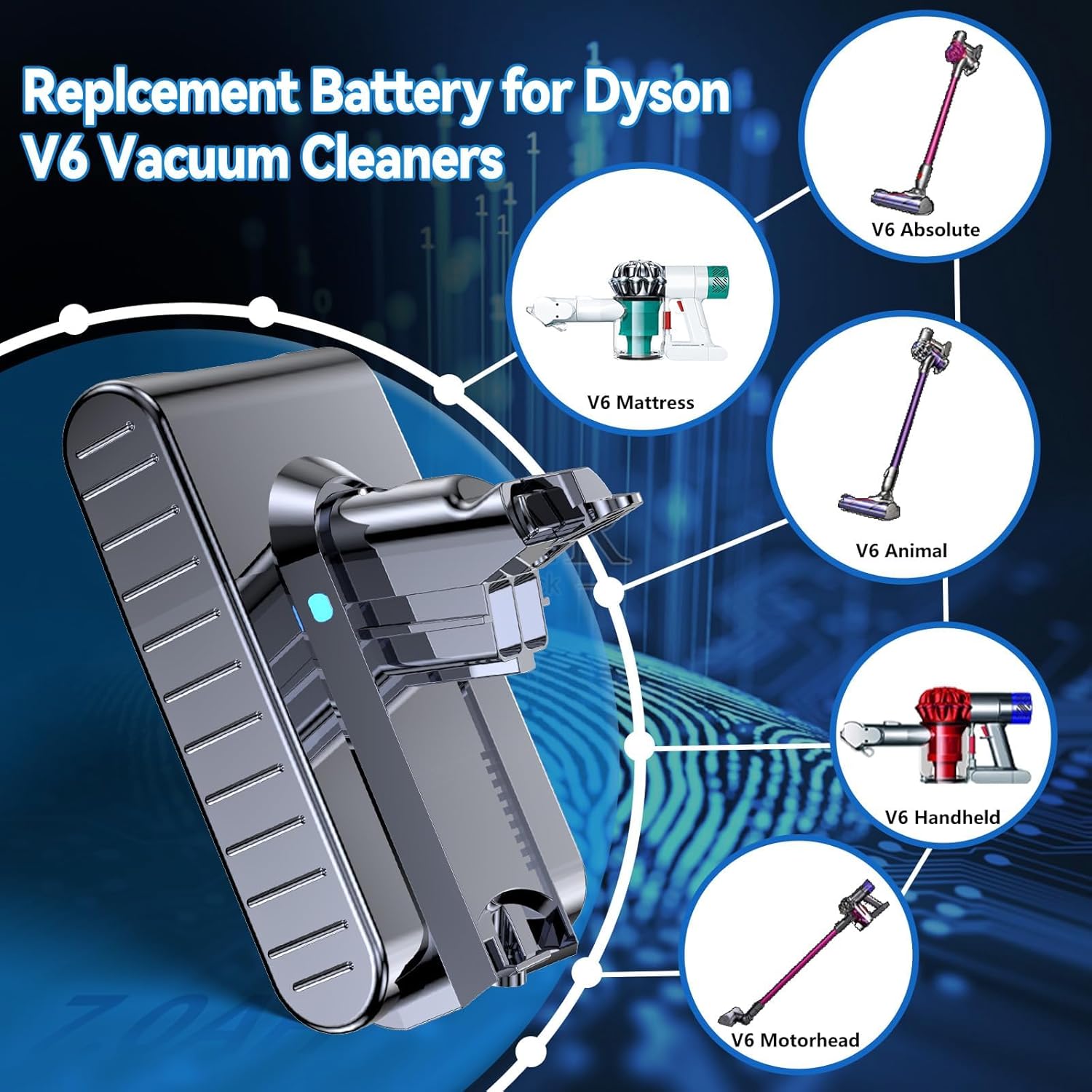

Image: The battery is designed for broad compatibility with Dyson V6 series vacuum cleaners.
Image: The battery powers the Dyson V6 for effective cleaning in diverse environments.
Manteniment
- Cura de la bateria: The battery can be stored, charged, or discharged as needed without loss of capacity, thanks to its no-memory effect design. For long-term storage, it is recommended to store the battery at approximately 50% charge in a cool, dry place.
- Manteniment del filtre: The included pre-filters are washable and reusable. Regularly clean the filters to maintain optimal suction performance. Rinse filters under cold water until the water runs clear. Allow filters to air dry completely for at least 24 hours before reinserting them into the vacuum. Do not use a dryer or heat source to dry filters.
Image: The included pre-filters are washable and reusable, designed to capture dust, hair, pet fluff, and pollen effectively.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La bateria no es carrega | Charger not connected properly; Faulty charger; Battery not seated correctly; Over-temperature protection activated. | Ensure charger is securely connected. Try a different outlet or charger. Reinstall the battery. Allow battery to cool down if it feels warm. |
| Temps d'execució reduït | Filter needs cleaning; Battery not fully charged; Battery nearing end of life; Consistent use of MAX mode. | Clean or replace filters. Ensure battery is fully charged before use. Optimize usage by minimizing MAX mode. |
| L'aspirador no s'encén | Battery completely discharged; Battery not installed correctly; Internal fault. | Charge the battery. Reinstall the battery, ensuring it is securely seated. If issues persist, contact customer support. |
Especificacions
| Característica | Detall |
|---|---|
| Model | LED V6 |
| Tipus de bateria | Ió de liti |
| Voltage | 21.6 V |
| Capacitat | 7000 mAh (7.0 Ah) |
| Energia | 151.2 Wh |
| Compatibilitat | Dyson V6 series (SV03, SV04, SV05, SV06, SV07, SV09, DC58, DC59, DC61, DC62, DC72, DC74, V6 Trigger, V6 Animal, V6 Motorhead, V6 Fluffy, V6 Absolute) |
| Certificacions | CE, FCC, PSE, RoHS |
| Pes | Aproximadament 1.06 lliures (0.48 kg) |
Image: Key specifications and safety certifications for the Bonacell V6 replacement battery.
Garantia i Suport
Bonacell products are manufactured to high quality standards and undergo rigorous testing. This replacement battery is CE, FCC, PSE, and RoHS certified, ensuring its safety and reliability.
If you encounter any issues or require assistance with your Bonacell V6 replacement battery, please do not hesitate to contact our customer service team. We are committed to providing support and resolving any concerns you may have regarding our product or service.
For support, please refer to the contact information provided with your purchase or visit the official Bonacell store on Amazon.
