1. Introducció
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your VEVOR 6.5-Ton Electric Log Splitter, Model ELS106S. Please read and understand all instructions before operating the machine. Retain this manual for future reference.
2. Instruccions de seguretat
Operating a log splitter can be hazardous if proper safety precautions are not followed. Always prioritize your safety and the safety of others.
2.1 Seguretat general
- Llegiu i compreneu tot el manual d'instruccions abans de fer servir.
- Wear appropriate Personal Protective Equipment (PPE), including safety glasses, gloves, and sturdy footwear.
- Keep the work area clear of bystanders, children, and pets.
- Operate the log splitter on a firm, level surface.
- Do not operate the machine under the influence of drugs, alcohol, or medication.
2.2 Seguretat elèctrica
- Ensure the power supply matches the specifications of the log splitter (120V, 15 Amps).
- Use an extension cord no longer than 50 ft and with a cross-section no less than 3.3 mm² (12-gauge or thicker) to prevent voltagcaiguda i sobreescalfament.
- Plug the log splitter into a dedicated circuit to handle the initial power surge and avoid tripping breakers.
- Never operate the log splitter in wet conditions or expose it to rain.
2.3 Seguretat operativa
- The log splitter features a two-hand operation system for user safety. Both the motor button and the hydraulic lever must be engaged simultaneously to operate the ram.
- Keep hands away from the splitting wedge and ram during operation.
- Only split logs within the recommended capacity: up to 20 inches in length and 9.8 inches in diameter.
- Avoid splitting knotty or excessively hard wood, as this can strain the machine and cause kickback.
- Ensure logs are free of nails, wire, or other foreign objects.
3. Configuració
Your VEVOR log splitter requires minimal assembly before first use.
3.1 Desembalatge i muntatge
- Traieu amb cura tots els components de l'embalatge.
- Attach the transport wheels to the designated axle points.
- Secure the support legs to ensure stability during operation.
- Ensure all bolts and fasteners are tightened securely.

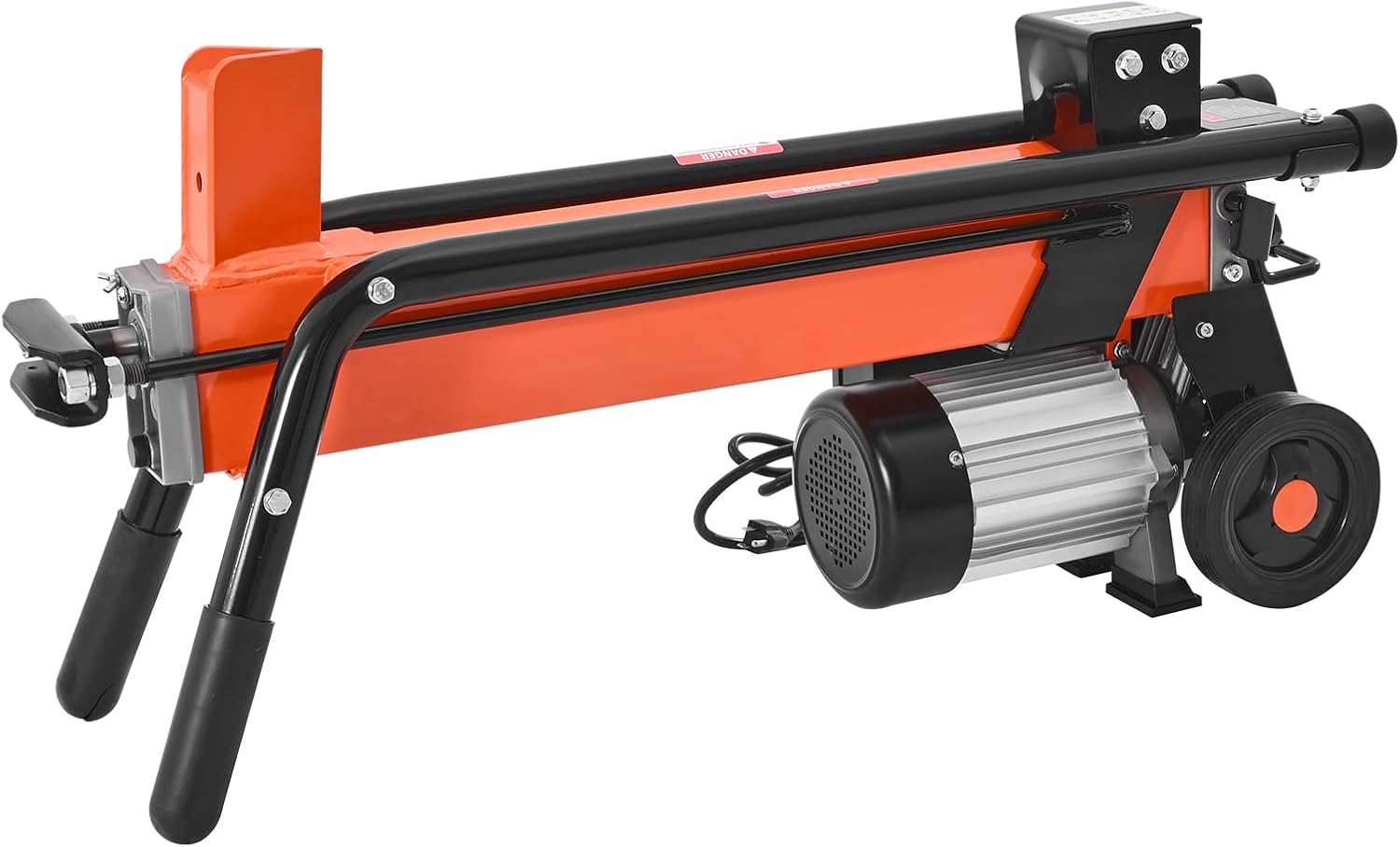

Figura 1: lateral view of the VEVOR Electric Log Splitter, showing the attached wheels and support legs for portability and stability.
3.2 Comprovacions prèvies a l'operació
- Comproveu que totes les connexions estiguin estretes i segures.
- Check the hydraulic oil level. Ensure it is within the recommended range.
- Inspect the power cord and extension cord for any damage.
4. Instruccions de funcionament
Follow these steps for safe and effective log splitting.
4.1 Preparing Logs
- For optimal performance, use dry timber. Wet or green wood is significantly harder to split.
- Ensure logs are cut to appropriate lengths (max 20 inches) and diameters (max 9.8 inches).
- Place the log firmly on the splitting bed against the wedge.
Figure 2: A user positions a log on the splitter, demonstrating the machine's capacity for efficient wood processing.
4.2 Splitting Process
- With the log securely in place, simultaneously press the motor button and pull the hydraulic lever.
- The hydraulic ram will extend, pushing the log against the steel wedge and splitting it.
- Once the log is split, release both controls. The ram will automatically retract to its starting position.
- Repeat the process for remaining logs.
Figure 3: The two-hand control system ensures operator safety by requiring simultaneous engagement of both controls to activate the splitting ram.
4.3 Optimizing Splitting
- For shorter logs, the ram can be adjusted to reduce travel distance, improving efficiency.
- If a log does not split completely on the first pass, reposition it or try splitting from a different angle.
5. Manteniment
Regular maintenance ensures the longevity and optimal performance of your log splitter.
5.1 Neteja
- After each use, clear wood chips, sawdust, and debris from the splitting bed and around the motor.
- Using a tarp or mat under the splitter can significantly simplify cleanup.
5.2 Sistema hidràulic
- Periodically check the hydraulic oil level and top up if necessary. Refer to the specifications for the correct oil type and capacity (3.5 L).
- Inspect hydraulic hoses and connections for leaks or damage.
5.3 Inspecció general
- Regularly inspect all moving parts for wear and tear.
- Ensure all fasteners remain tight.
6. Solució De Problemes
Aquí teniu alguns problemes comuns i les seves possibles solucions.
| Problema | Causa possible | Solució |
|---|---|---|
| El motor no arrenca | No power, tripped circuit breaker, faulty switch | Check power connection, reset circuit breaker, ensure both controls are engaged. |
| Log not splitting | Log too large/wet, knotty wood, dull wedge | Reduce log size, use dry wood, reposition log, inspect wedge for damage. |
| Ram not extending/retracting | Low hydraulic fluid, air in system, faulty hydraulic valve | Check hydraulic fluid level, bleed air from system (refer to detailed manual), contact support. |
| Sobreescalfament | Improper extension cord, continuous heavy use | Use correct gauge extension cord, allow machine to cool down between heavy tasks. |
7. Especificacions
Detailed technical specifications for the VEVOR 6.5-Ton Electric Log Splitter.
- Número de model de l'article: ELS106S
- Max Splitting Force: 6.5 tones

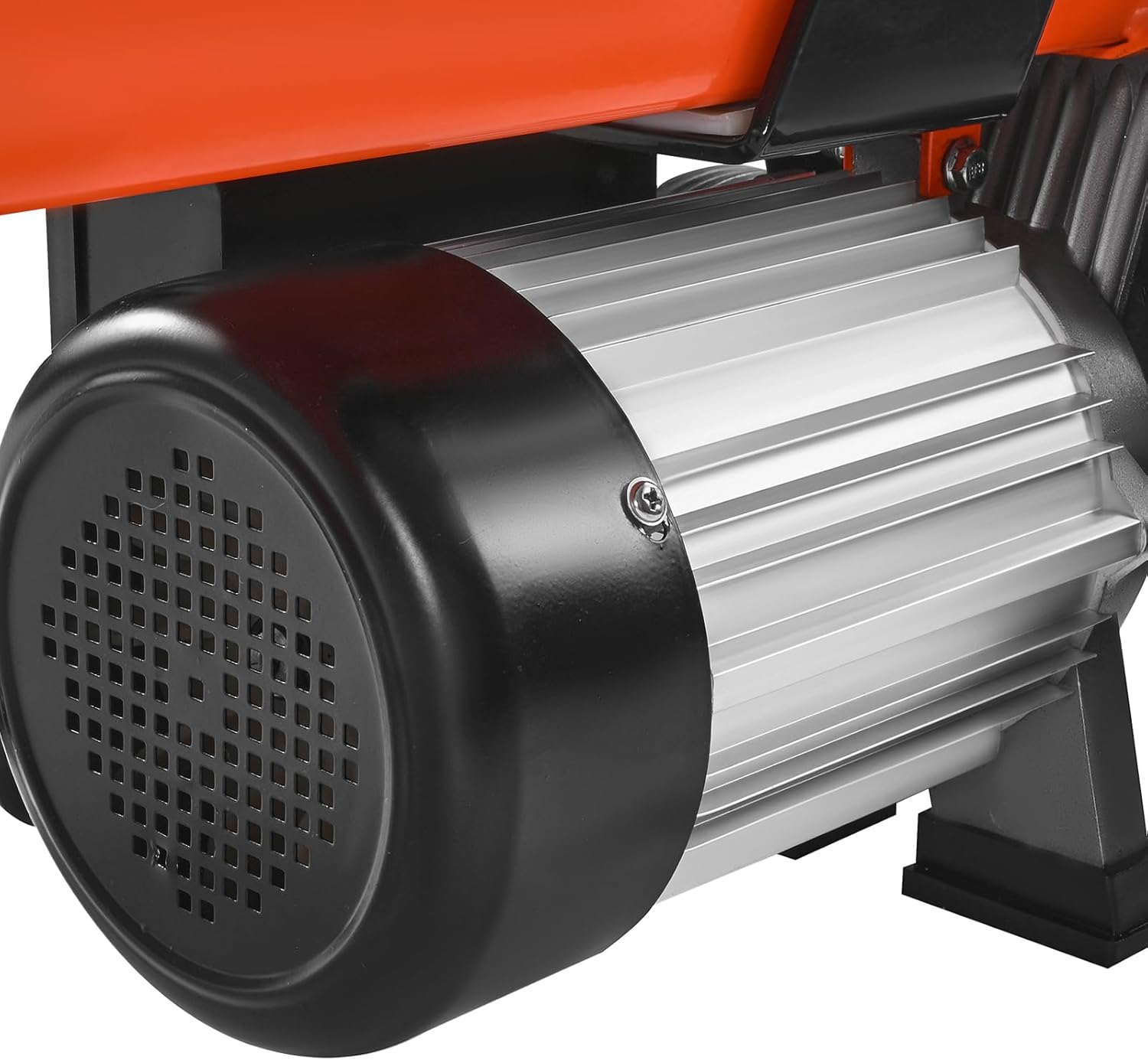

- Motor: 120 V, 15 Amps
- Velocitat sense càrrega: 3400 RPM
- Log Capacity: Up to 20 in (L) x 9.8 in (Dia)
- Capacitat d'oli hidràulic: 3.5 L
- Mida de la roda: 6 polzades
- Pes net: 99.2 lliures (45.0 kg)
- Dimensions del producte: 37.4 x 10.83 x 18.19 polzades (950 x 275 x 462 mm)
Figure 4: Detailed dimensions and specifications of the VEVOR Electric Log Splitter, Model ELS106S.
8. Garantia i Suport
Per obtenir informació sobre la garantia, assistència tècnica o peces de recanvi, poseu-vos en contacte amb el servei d'atenció al client de VEVOR. Consulteu la documentació de compra per conèixer els termes específics de la garantia i les dades de contacte.
