OUKITEL P1000 PLUS Solar Generator Instruction Manual

1. Introducció

The OUKITEL P1000 PLUS is a versatile 1800W portable power station with a 1024Wh LiFePO4 battery, designed to provide reliable power for home backup, camping, RVs, and other off-grid needs. It features fast charging capabilities, app control, and multiple output ports to power a wide range of devices and appliances.

2. Què hi ha a la caixa

En desempaquetar, assegureu-vos que hi hagi tots els elements que s'enumeren a continuació:

• OUKITEL P1000 PLUS Portable Power Station (x1)
• Panell solar de 100 W (x1)
• Cable de càrrega de CA (x1)
• Cable de càrrega per a cotxe (x1)
• MC4 to XT60 Cable (x1)
• Bluetooth Pairing Pin (x1)
• Targeta de garantia (x1)
• Manual d'usuari (x1)

Note: Due to the product's weight, the power station and solar panel may be delivered separately.

3. Producte acabatview

3.1 Característiques del panell frontal

The front panel of the OUKITEL P1000 PLUS provides access to all output ports and the main display for monitoring. It includes:

• Botó d'encesa: Per encendre/apagar la unitat.
• Pantalla LCD: Mostra el nivell de la bateria i l'aigua d'entrada/sortidatage, remaining runtime, and other status indicators.
• DC Output Buttons: Individual buttons for 12V/3A and 12V/10A DC outputs.
• Ports USB: Two QC3.0 18W USB-A ports, one PD 20W USB-C port, and one PD 100W USB-C port.
• AC Output Buttons: Individual buttons for the four AC outlets.
• Llum LED: Multi-mode LED light for illumination.

Image: Front panel of the OUKITEL P1000 PLUS, showing the display, power button, DC, USB, and AC output ports, and the LED light.

Image: The OUKITEL P1000 PLUS power station actively powering various household devices, demonstrating its multi-output capability.

3.2 Característiques del panell posterior

The rear panel houses the input ports and additional safety features:

• Entrada de CA: For charging the power station via a standard wall outlet (1200W fast charging).
• Entrada solar/cotxe: For charging via solar panels or a car charger.
• Terminal terrestre: Per a una connexió a terra segura.
• AC Charge Speed Switch: Allows selection between slow and quick charging modes for AC input.

Image: Rear panel of the OUKITEL P1000 PLUS, highlighting the AC input, solar/car input, ground terminal, and AC charge speed switch.

3.3 Top Handle

The unit features a sturdy, integrated handle on top for easy portability.

4. Configuració

4.1 Càrrega inicial

Before first use, fully charge the OUKITEL P1000 PLUS. Connect the AC charging cable to the AC input port on the rear panel and plug it into a wall outlet. The LCD display will show the charging status. The unit supports 1200W fast charging, reaching 0-100% in approximately 41 minutes when combined with 500W solar input.

Image: The OUKITEL P1000 PLUS connected to an AC wall outlet for fast charging.

4.2 Càrrega solar

To charge using solar panels, connect the 100W solar panel (included) or other compatible solar panels (up to 500W) to the Solar/Car input port on the rear panel using the MC4 to XT60 cable. Position the solar panels in direct sunlight for optimal charging efficiency.

Image: The OUKITEL P1000 PLUS connected to a solar panel for outdoor charging.

5. Instruccions de funcionament

5.1 Engegada/apagada

Press and hold the main power button on the front panel for 3 seconds to turn the unit on or off. The LCD display will illuminate upon activation.

5.2 Ús dels ports de sortida

The OUKITEL P1000 PLUS offers 11 output ports:

• 4 AC Outlets (1800W continuous, 3600W peak): Press the 'AC' button to activate.
• 2 USB-A Quick Charge 3.0 Ports (18W each): Automatically activate when a device is connected.
• 1 USB-C PD Port (20W): Automatically activates when a device is connected.
• 1 USB-C PD Port (100W): Automatically activates when a device is connected.
• 2 DC Outlets (12V/3A): Press the 'DC' button to activate.
• 1 Car Lighter Socket (12V/10A): Press the 'DC' button to activate.

Imatge: Una imatge detallada view of the OUKITEL P1000 PLUS output ports, including AC, USB-A, USB-C, DC, and car lighter socket.

5.3 Control d'aplicacions

Download the OUKITEL app to monitor and control your power station remotely via Bluetooth or Wi-Fi. The app provides real-time data on battery level, power input/output, charging progress, and temperature. You can also adjust AC charging power settings through the app.

Image: A smartphone displaying the OUKITEL app interface, showing real-time power station data and control options.

5.4 Funció de sistema d'alimentació ininterrompuda (SAI)

The P1000 PLUS features a 0.01-second UPS switching function. When connected to an AC wall outlet and powering devices, it can automatically switch to battery power during an outage, ensuring continuous operation for connected essential devices.

Image: The OUKITEL P1000 PLUS providing backup power during a simulated power outage, highlighting its UPS capability.

5.5 Vídeos oficials de productes

6. Battery Technology & Safety

The OUKITEL P1000 PLUS utilizes premium LiFePO4 batteries, known for their durability and long lifespan. These batteries offer over 3,500 charge cycles, providing reliable service for more than 10 years.

Image: Diagram illustrating the advanced LiFePO4 battery technology and Smart BMS protection system within the OUKITEL P1000 PLUS.

6.1 Smart Battery Management System (BMS)

A smart BMS continuously monitors voltage, current, and temperature to ensure safe and reliable operation, protecting the battery from overcharge, over-discharge, over-current, and short circuits.

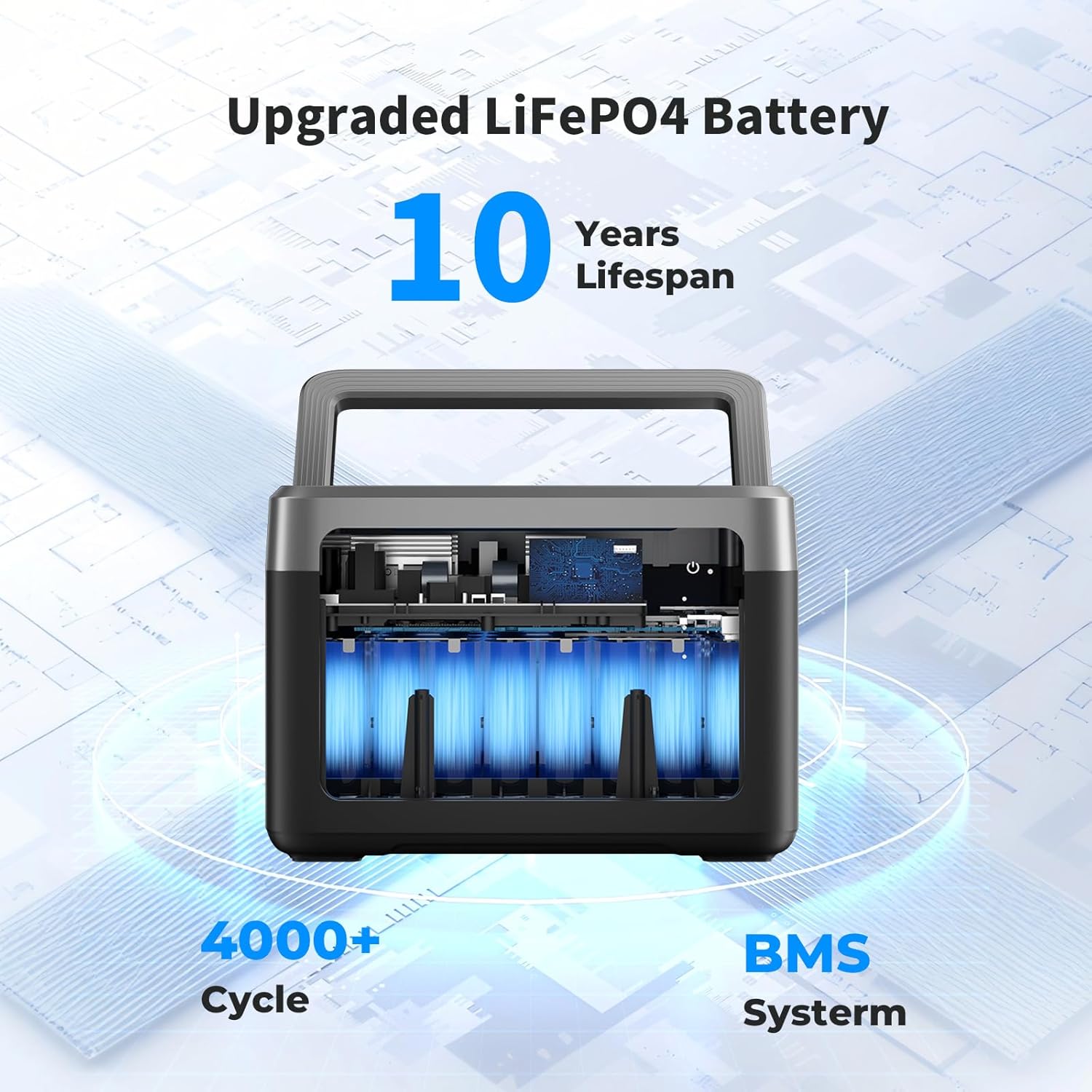

Image: Visual representation of the 10-year lifespan and 4000+ cycle rating of the upgraded LiFePO4 battery with BMS.

6.2 Certificacions

The OUKITEL P1000 PLUS complies with various international safety and quality standards, including CE, FCC, PSE, UN38.3, EMC, LVD, RoHS, and MSDS.

7. Manteniment

• Neteja: Use a dry, soft cloth to clean the exterior. Do not use abrasive cleaners or immerse the unit in water.
• Emmagatzematge: Store the power station in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge the unit to 50-80% every 3-6 months to prolong battery life.
• Ventilació: Assegureu-vos que hi hagi una ventilació adequada durant l'ús i la càrrega per evitar el sobreescalfament. No bloquegeu les obertures de ventilació.

8. Solució De Problemes

If you encounter issues with your OUKITEL P1000 PLUS, please refer to the following common solutions:

• La unitat no s'encén: Ensure the battery is charged. If not, connect to an AC outlet or solar panel.
• Sense sortida dels ports: Verify that the specific output (DC, AC) is activated by pressing its respective button. Check if the device connected is within the power station's wattage límits.
• Protecció de sobrecàrrega: If an overload occurs, the unit may shut down. Disconnect the overloaded device, restart the power station, and connect devices within its rated output.
• Problemes de càrrega: Ensure cables are securely connected. Check the AC charge speed switch on the rear panel; try switching modes if charging is slow. For solar charging, ensure panels are in direct sunlight and correctly connected.
• Connectivitat de l'aplicació: Ensure Bluetooth or Wi-Fi is enabled on your device and the power station. Restart both devices if connection fails.

For persistent issues, please contact OUKITEL customer support.

9. Especificacions

10. Garantia i assistència

The OUKITEL P1000 PLUS comes with a 2-year warranty, ensuring peace of mind for your investment. For any technical assistance, troubleshooting, or warranty claims, please contact OUKITEL customer service through their official channels. Details can be found on the warranty card included in your package or on the official OUKITEL weblloc.
