GOURMETmaxx FryUp XXL Vertical Dual Chamber Air Fryer Instruction Manual

Introducció

This manual provides essential information for the safe and efficient operation of your GOURMETmaxx FryUp XXL Vertical Dual Chamber Air Fryer. Please read these instructions carefully before first use and keep them for future reference. This appliance is designed for preparing a variety of foods using hot air, offering a healthier alternative to traditional frying methods.

Instruccions importants de seguretat

• Col·loqueu sempre l'aparell sobre una superfície estable i resistent a la calor, allunyat de les parets i altres aparells per garantir una ventilació adequada.
• No submergiu l'aparell, el cable o l'endoll en aigua o altres líquids.
• Mantingueu els nens i les mascotes lluny de l'aparell durant el funcionament.
• Do not block the air inlet and outlet openings.
• Desendolleu l'aparell de la presa de corrent quan no l'utilitzeu i abans de netejar-lo.
• No feu funcionar l'aparell si el cable o l'endoll estan danyats, o si l'aparell no funciona correctament o ha estat danyat de qualsevol manera.
• The appliance operates at high temperatures. Use oven mitts when handling hot components.
• Ensure food items do not exceed the maximum fill line in the baskets.
• Aquest aparell només és per a ús domèstic.

Producte acabatview i Components

Familiarize yourself with the parts of your GOURMETmaxx FryUp Air Fryer:

• Unitat principal: The primary housing containing heating elements and fans.
• Dual Cooking Chambers: Two independent compartments for cooking different foods simultaneously.
• ViewWindows: Integrated into each chamber to monitor cooking progress without opening.
• Foldable LED Touch Screen: Intuitive control panel for program selection, temperature, and time settings.
• Cistelles per fregir: Non-stick coated baskets for holding food.
• Crisper Racks: Non-stick racks placed inside the baskets for optimal air circulation.

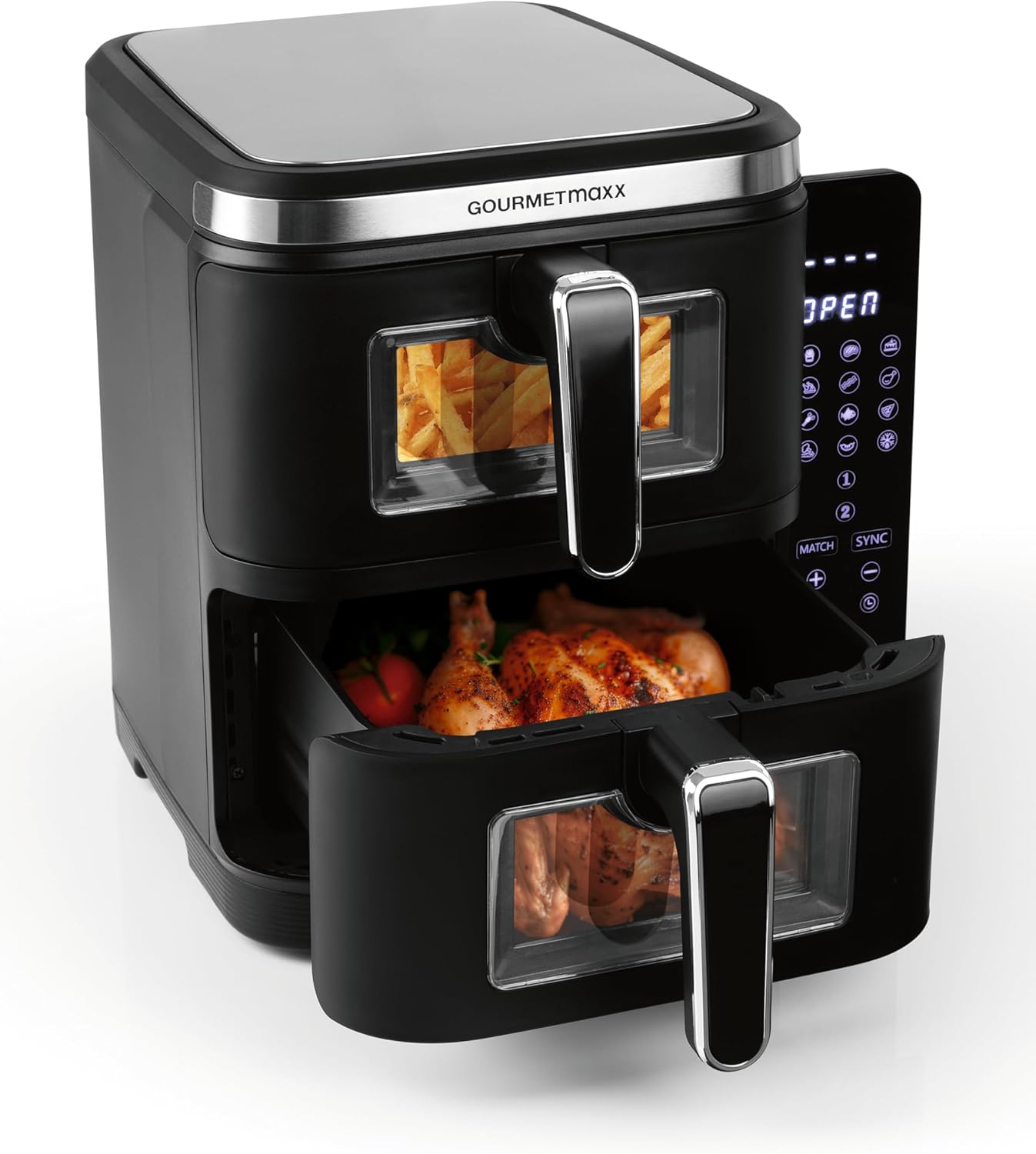

Image 1: The GOURMETmaxx FryUp Air Fryer with its dual chambers open, displaying food inside and the control panel.

Imatge 2: Frontal view of the appliance, highlighting the sleek design and digital interface.

Configuració i primer ús

1. Desembalatge: Carefully remove all packaging materials and stickers.
2. Neteja: Wash the frying baskets and crisper racks with warm soapy water. Rinse thoroughly and dry completely. Wipe the main unit with a damp tela.
3. Col·locació: Place the air fryer on a stable, level, and heat-resistant surface. Ensure there is at least 15 cm (6 inches) of clear space around the appliance for proper air circulation.
4. Execució inicial (cremació): Before cooking food, run the air fryer empty for about 10-15 minutes at 180°C (350°F) to eliminate any manufacturing odors. A slight odor or smoke may be present during this process; this is normal.
5. Connexió d'alimentació: Connecteu el cable d'alimentació a una presa elèctrica amb connexió a terra.

Instruccions de funcionament

Tauler de control acabatview

The GOURMETmaxx FryUp features an intuitive foldable LED touch screen. Tilt the screen to your preferred viewangle de ing.

Image 3: User interface interaction, demonstrating the touch screen and viewfinestres.

Funcionament bàsic

1. Preparar menjar: Place your ingredients into the frying baskets, ensuring not to overfill.
2. Select Chamber: Use the touch screen to select Chamber 1 or Chamber 2.
3. Choose Program: Select one of the 12 preset programs for common dishes (e.g., fries, chicken, pizza). The appliance will automatically set the optimal time and temperature.
4. Configuració manual: Alternatively, manually adjust the temperature (up to 200°C / 390°F) and cooking time using the +/- buttons.
5. Comença a cuinar: Premeu el botó Inici per començar el procés de cocció.
6. Recordatori de sacsejar: For certain programs or longer cooking times, the appliance may issue an automatic "Shake Reminder" to prompt you to shake or turn the food for even cooking.
7. Supervisar el progrés: Utilitza el viewing windows to check on your food without interrupting the cooking cycle.
8. Acabat: The appliance will beep when cooking is complete. Carefully remove the baskets and transfer food to a serving dish.

Sync & Match Technology

The Sync & Match function allows you to cook two different dishes with different settings simultaneously, ensuring they finish at the same time. You can also use it to cook double the quantity of the same food.

• Funció de sincronització: Set different cooking times and temperatures for Chamber 1 and Chamber 2. Activate the Sync function, and the air fryer will automatically adjust the start times so both chambers finish cooking together.
• Funció de concordança: Use this to apply the same cooking settings (program, time, temperature) to both chambers, ideal for cooking larger quantities of the same food.

Image 4: Illustration of the 360° hot air circulation technology for even cooking.

Cura i Manteniment

• Desconnectar: Desendolla sempre la fregidora d'aire i deixa que es refredi completament abans de netejar-la.
• Cistelles i prestatgeries: The non-stick frying baskets and crisper racks are dishwasher safe. For hand washing, use warm soapy water and a non-abrasive sponge.
• Unitat principal: Netegeu l'exterior de l'aparell amb anunciamp tela. No utilitzeu netejadors o fregalls abrasius.
• Interior: Clean the interior of the chambers with a damp cloth. For stubborn residue, a small amount of mild detergent can be used. Ensure all detergent is wiped away.
• Element de calefacció: Gently clean the heating element with a soft brush if necessary, ensuring the appliance is unplugged and cool.
• Emmagatzematge: Guardeu l'aparell net i sec en un lloc fresc i sec.

Imatge 5: Ex.ample of a crisper rack with food, highlighting its easy-to-clean design.

Imatge 6: Detallada view of the non-stick crisper rack.

Resolució de problemes

Especificacions tècniques

• Marca: GOURMETmaxx
• Número de model: 16509
• Color: Negre
• Dimensions (L x A x A): 44.3 x 28.6 x 35.45 cm (17.44 x 11.26 x 13.96 polzades)
• Capacitat: 10 litres (2 x 5 litres)
• Potència: 2800 watts
• Voltage: 230 Volts
• Material: Stainless Steel, Polypropylene (PP), Glass
• Pes de l'article: 8.5 quilos (18.74 lliures)
• Característica especial: Sync & Match technology for simultaneous cooking of two different dishes or preparing double quantities.
• Usos recomanats: Frying fries, chicken wings, pizzas, pre-cooking for the week.

Informació de la garantia

Specific warranty details for the GOURMETmaxx FryUp Air Fryer are not provided in this manual. Please refer to the warranty card included with your purchase or contact GOURMETmaxx customer support for detailed information regarding warranty coverage and terms.

Atenció al client

For further assistance, technical support, or inquiries regarding your GOURMETmaxx FryUp Air Fryer, please visit the official GOURMETmaxx weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Normalment, les dades de contacte es troben a l'embalatge del producte o a la fitxa del fabricant. weblloc.
