1. Introducció
Thank you for choosing the WIPCOOL C10B Portable Cordless HVAC Coil Cleaning Machine. This device is designed for efficient and convenient cleaning of HVAC coils, offering dual pressure modes and cordless operation for both indoor and outdoor applications. Please read this manual thoroughly before operation to ensure safe and effective use.
Figure 1: WIPCOOL C10B Cordless Coil Cleaning Machine Overview
2. Informació de seguretat
Always observe basic safety precautions when using this product to reduce the risk of fire, electric shock, or personal injury.
- Llegeix totes les instruccions: Familiaritzeu-vos amb els controls i l'ús correcte de la màquina.
- Utilitzeu equips de protecció individual (EPI): Always wear safety glasses, gloves, and appropriate clothing to protect against splashes and chemicals.
- Seguretat elèctrica: Ensure the battery is correctly installed and removed. Do not operate the machine with damaged batteries or chargers. Unplug the AC unit before cleaning internal components.
- Pressió de l'aigua: Be aware of the dual pressure settings. Use appropriate pressure for the surface being cleaned to avoid damage. Never direct the spray at people, animals, or electrical components.
- Ús químic: If using cleaning chemicals, follow the chemical manufacturer's instructions for dilution, application, and safety. Ensure adequate ventilation.
- Superfície estable: Place the machine on a stable, level surface during operation.
- Nens i animals de companyia: Mantenir els nens i les mascotes lluny de la zona de treball.
3. Característiques del producte
- Dual Pressure Modes: Easily switch between 44–73 psi (low pressure) and 102–145 psi (high pressure) for effective cleaning of various AC coil types.
- Sense fil i portàtil: Powered by a standard 18V Li-ion battery (not included), offering freedom from AC outlets. Lightweight at approximately 3.5kg (7.7 lbs) for easy transport.
- Àmplia compatibilitat de bateries: Designed with battery adapters (sold separately) to fit Makita, DeWalt, and Milwaukee 18V Li-ion batteries, allowing use of existing tool batteries.
- Self-Priming Function: Supports drawing water from external containers via a 2.5m inlet hose, providing flexible water supply on job sites. Includes a 5m outlet hose for extended reach.

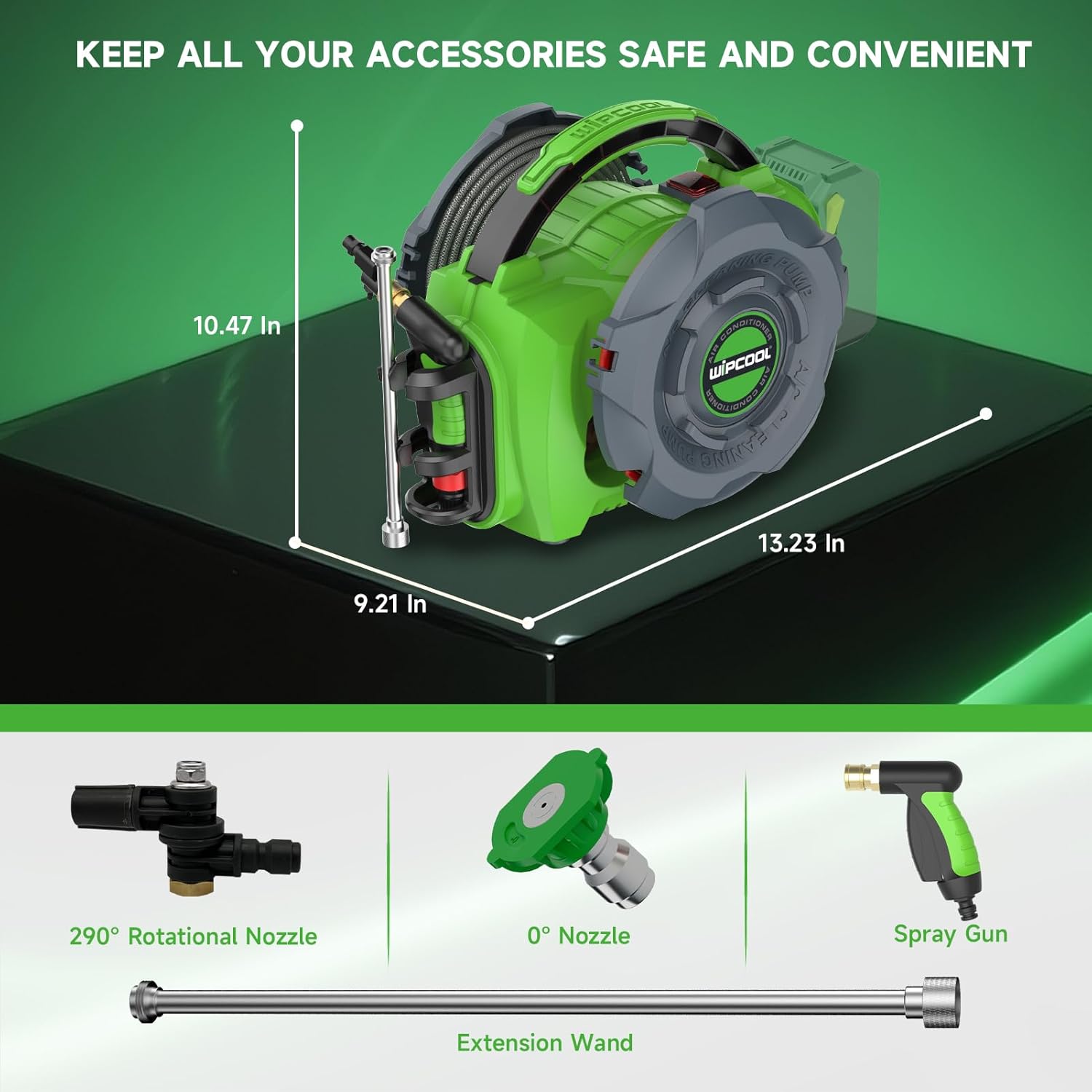

- Accessoris professionals: Includes a 290° rotational nozzle, 0° nozzle, spray gun, and a 37cm extension wand for precise cleaning in hard-to-reach areas.
Figure 2: Dual Pressure Regulation
Figure 3: Battery Compatibility Adapters (Sold Separately)
Figure 4: Professional Accessories
4. Contingut del paquet
Verifiqueu que hi hagi tots els elements en desempaquetar:
- WIPCOOL C10B Cleaning Machine x 1
- 290° Rotational Nozzle x 1
- 0° Nozzle x 1
- Spray Gun x 1
- 37cm Extension Wand x 1
- Inlet Hose (2.5m) x 1
- Outlet Hose (5m) x 1
Note: 18V Li-ion battery and battery adapters are not included and must be purchased separately.
5. Configuració
- Instal·la la bateria: Insert a compatible 18V Li-ion battery (with appropriate adapter if necessary) into the battery slot on the machine until it clicks into place.
- Connecteu la mànega d'entrada: Attach the 2.5m inlet hose to the machine's water inlet port. Place the other end of the inlet hose into a clean water source (e.g., bucket of water).
- Connect Outlet Hose and Spray Gun: Connect the 5m outlet hose to the machine's outlet port. Attach the spray gun to the other end of the outlet hose.
- Col·loca el broquet: Select the desired nozzle (290° rotational or 0° nozzle) and attach it to the spray gun or the 37cm extension wand.
The machine features a self-priming function, allowing it to draw water from an external container. Ensure the inlet hose is fully submerged in water before starting the machine to prime the pump.
Video 1: Product Setup and Operation Demonstration
This video demonstrates the setup process, including battery installation, hose connections, and the use of various nozzles for both outdoor and indoor AC coil cleaning. It shows the application of cleaning chemicals and the subsequent rinsing with the pressure washer.
6. Funcionament
6.1 Neteja de la unitat exterior
- Prepara la unitat: Ensure the outdoor AC unit is powered off.
- Apply Chemical (Optional): If using a cleaning chemical, apply it evenly to the coils using an electric sprayer (available separately) or a manual sprayer. Allow the chemical to dwell as per manufacturer instructions.
- Select Pressure Mode: Use the pressure selection button on the machine to choose between low pressure (44–73 psi) for general cleaning or high pressure (102–145 psi) for stubborn grime.
- Neteja les bobines: Using the spray gun with the appropriate nozzle (e.g., 290° rotational nozzle for fins), spray water evenly across the coils. Maintain a safe distance to avoid damaging the fins. Work from top to bottom.
Figure 5: Outdoor AC Coil Cleaning
6.2 Neteja de la unitat interior
- Apagar: Disconnect power to the indoor AC unit.
- Remove Cover and Filters: Carefully remove the front cover and air filters from the indoor unit. Clean the filters separately.
- Install Cleaning Cover (Optional): For mess-free cleaning, install a split A/C cleaning cover (e.g., WIPCOOL CSC-1, available separately) around the indoor unit to collect wastewater. Ensure the outlet hose of the cover is directed into a drain bucket.
- Apply Chemical (Optional): Spray cleaning chemical onto the indoor coils.
- Neteja les bobines: Using the spray gun with the extension wand and 290° rotational nozzle, carefully spray water onto the indoor coils. Use low pressure to prevent damage. Ensure all chemical residue is rinsed away.
- Torneu a muntar: Once cleaning is complete and the coils are dry, remove the cleaning cover, reinstall filters and the front cover, and restore power to the unit.

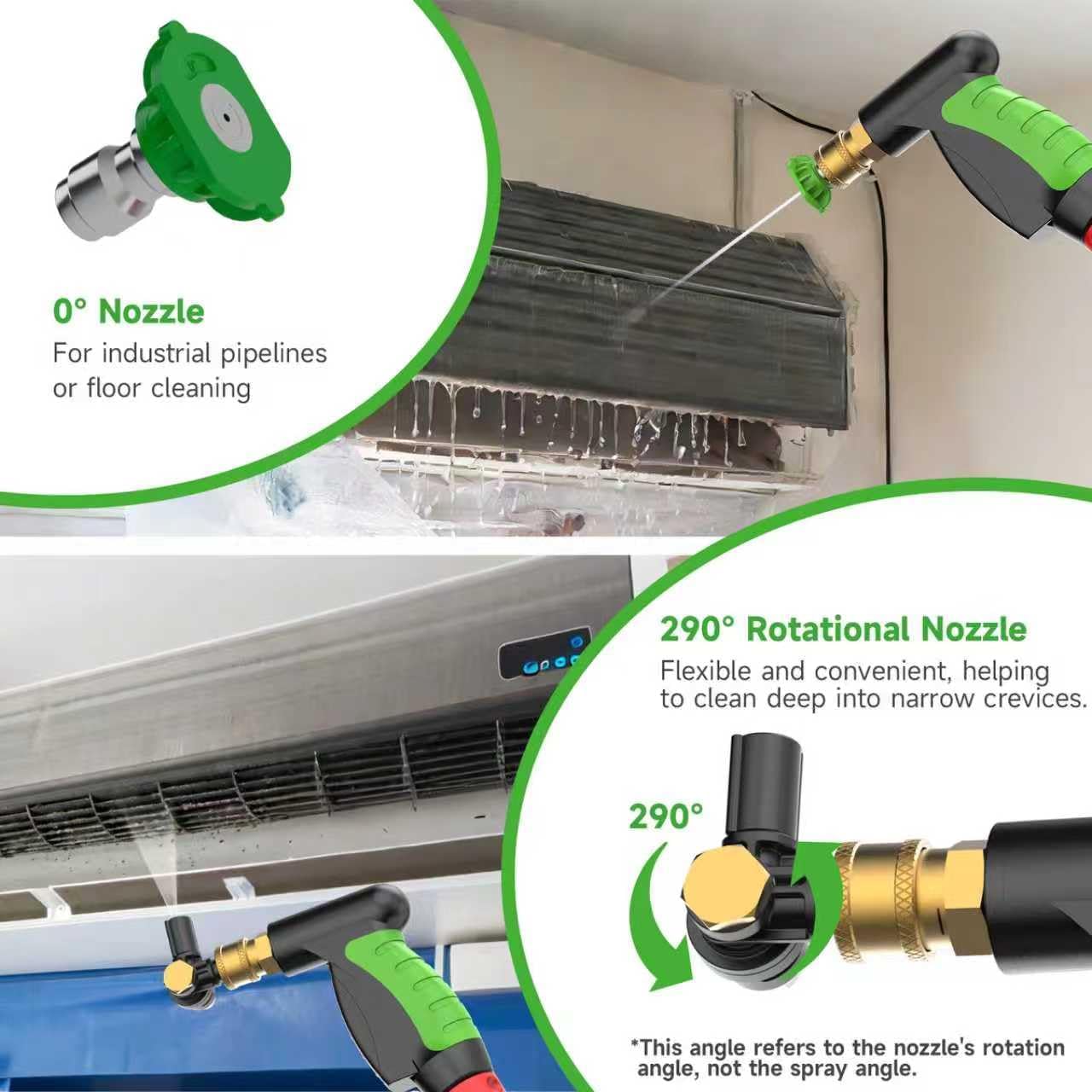

Figure 6: Nozzle Types and Applications
7. Manteniment
- Neteja després de cada ús: Flush the machine with clean water after each use to remove any chemical residues or debris.
- Inspect Hoses and Nozzles: Regularly check hoses for kinks, cuts, or leaks. Clean nozzles to ensure proper spray patterns.
- Cura de la bateria: Store batteries in a cool, dry place. Do not expose to extreme temperatures.
- Emmagatzematge: Store the machine in a dry, protected area when not in use.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina no arrenca | Bateria no carregada o mal instal·lada. | Assegureu-vos que la bateria estigui completament carregada i inserida correctament. |
| Low pressure or no water flow | Inlet hose not submerged, air in pump, clogged nozzle, or low water supply. | Ensure inlet hose is fully submerged. Prime the pump by running for a few seconds. Clean the nozzle. Check water source. |
| Fuites d'aigua de les connexions | Connexions soltes o juntes tòriques danyades. | Tighten all connections. Inspect and replace damaged O-rings if necessary. |
9. Especificacions
| Especificació | Valor |
|---|---|
| Marca | WIPCOOL |
| Número de model | C10B |
| Font d'alimentació | DC 18V (Lithium-Ion Battery, not included) |
| Potència del motor | 80W |
| Caudal màxim | 4 litres per minut |
| Low Pressure Range | 44–73 psi (3-5 bar) |
| High Pressure Range | 102–145 psi (7-10 bar) |
| Pes de l'article | 7.7 lliures (3.5 kg) |
| Dimensions del producte | 14.76 cm de llargada x 11.81 cm d'amplada x 10.63 cm d'alçada |
| Longitud de la mànega d'entrada | 2.5 metres |
| Longitud de la mànega de sortida | 5 metres |
10. Garantia i Suport
The WIPCOOL C10B Portable Cordless HVAC Coil Cleaning Machine comes with a 1 anys de garantia from the date of purchase, covering manufacturing defects. This warranty does not cover damage caused by misuse, neglect, unauthorized modifications, or normal wear and tear.
For technical support, warranty claims, or to purchase additional accessories and battery adapters, please contact WIPCOOL customer service through the retailer where the product was purchased or visit the official WIPCOOL weblloc.
