FORNO Fornace 30-Inch Over-the-Range Convection Microwave (FOTR3038-30) Instruction Manual

1. Introducció

Thank you for choosing the FORNO Fornace 30-Inch Over-the-Range Convection Microwave. This appliance is designed to provide efficient and versatile cooking solutions for your kitchen. Please read this manual thoroughly before installation and operation to ensure proper use and maintenance.

2. Informació de seguretat

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. Keep these instructions for future reference.

• No intenteu fer funcionar aquest forn amb la porta oberta, ja que això pot provocar una exposició nociva a l'energia de les microones.
• No col·loqueu cap objecte entre la cara frontal del forn i la porta ni deixeu que s'acumuli terra o residus de neteja a les superfícies de segellat.
• No feu funcionar el forn si està malmès. És especialment important que la porta del forn tanqui correctament i que no hi hagi danys a la porta (doblegada), a les frontisses i als pestells (trencats o afluixats), ni a les juntes i superfícies de segellat de la porta.
• El forn no ha de ser ajustat ni reparat per ningú excepte per personal de servei degudament qualificat.
• Assegureu-vos una ventilació adequada durant el funcionament.
• Never use metal containers or foil in the microwave unless specifically instructed by the recipe or manual.

3. Producte acabatview

The FORNO Fornace microwave combines microwave heating with convection and speed cook technology. It features a spacious 1.5 cu. ft. capacity and a durable stainless steel finish.

• Convection and Speed Cooking: Delivers faster, even cooking results with multistage options and auto menus.
• Powerful Two-Speed Ventilation: Features a versatile 105/300 CFM blower system to efficiently clear smoke, steam, and cooking odors.
• Durable Stainless Steel Finish: Resists fingerprints and daily wear for easier cleaning and lasting appeal.
• Il·luminació LED brillant: Energy-efficient LED lighting brightens your cooktop for improved visibility.
• Fàcil de cuidar, tractar: Removable, washable filter simplifies upkeep.

Figura 3.1: Frontal view of the FORNO Fornace microwave with the door open, revealing the spacious interior and the control panel on the right.

4. Configuració i instal·lació

This microwave is designed for over-the-range installation. Ensure you have adequate space and proper electrical connections before beginning. Refer to the included templates for precise mounting.

4.1 Preparació per a la instal·lació

• Remove the old microwave and clear the installation area.
• Locate wall studs for secure mounting of the bracket.
• Remove the mounting bracket from the new microwave (it is attached for shipping).

4.2 Ventilation Setup

Determine if your microwave will vent from the top (vertical) or from the back (horizontal), or if it will recirculate air (ventless). Adjust the blower motor direction as needed.

Figure 4.1: Underside of the microwave, showing the grease filter compartments and the vent fan openings.

4.3 Mounting the Microwave

• Use the provided rear wall template to mark screw locations for the mounting bracket.
• Securely attach the mounting bracket to the wall, ensuring it is level.
• Use the top cabinet template to mark and drill holes for the screws that will secure the top of the microwave to the cabinet above.
• Carefully lift the microwave and hook its rear onto the mounting bracket.
• Thread the power cord through the hole in the bottom of the top cabinet.
• Insert and tighten the screws from the cabinet above into the top of the microwave.

Figure 4.2: The microwave fully installed, showcasing its stainless steel exterior and integrated design.

5. Instruccions de funcionament

The microwave features an intuitive glass touch control panel for easy operation.

5.1 Tauler de control acabatview

Figura 5.1: Detallada view of the touch control panel, displaying options for convection, sensor microwave, and convenience features.

• Cuiner exprés: Press numbers 1-6 for quick cooking times (e.g., press '1' for 1 minute).
• Temps de cocció: Manually set desired cooking duration.
• Nivell de potència: Adjust microwave power intensity.
• Convection Bake/Roast: Utilize convection technology for baking and roasting.
• Sensor Microwave: Features like Popcorn, Beverage, Potato, Cook, Reheat, and Defrost (Weight/Time) automatically adjust time and power.
• Afegeix 30 segons: Afegiu ràpidament 30 segons al temps de cocció.
• Tocadiscos encès/apagat: Controla la rotació del plat giratori de vidre.
• Llum de superfície: Turn on/off the LED cooktop lighting.
• Ventilador de ventilació: Control the two-speed ventilation fan.

5.2 Using the Turntable

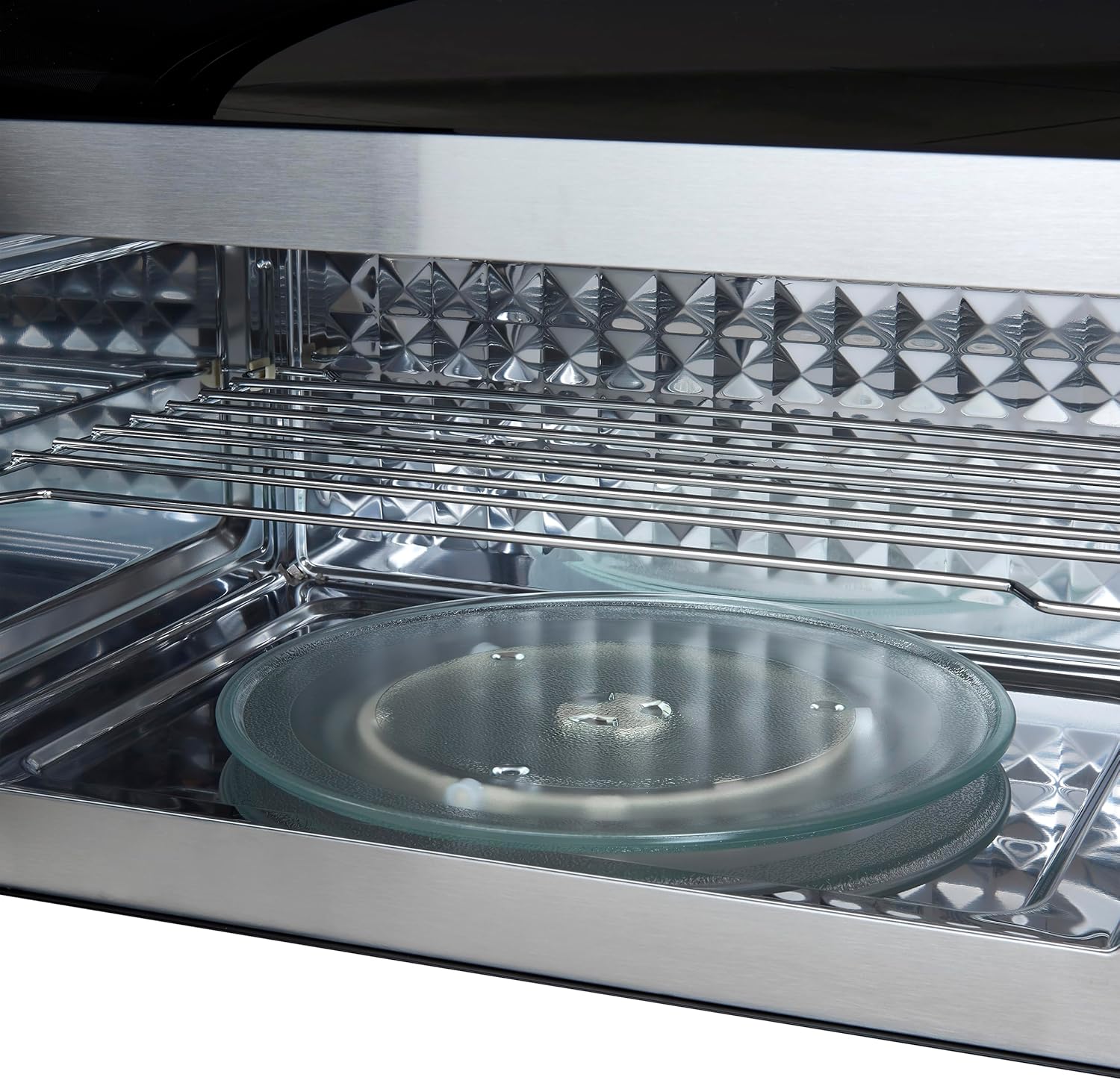

Figure 5.2: A close-up of the microwave's interior, highlighting the removable glass turntable and its rolling support ring, designed for even cooking.

The glass turntable ensures even cooking. It can be turned on or off via the control panel. Always ensure the turntable and its support ring are correctly placed before operating the microwave.

6. Manteniment i neteja

Regular cleaning and maintenance will ensure the longevity and optimal performance of your microwave.

6.1 Neteja de l'interior

• Wipe the interior with a soft cloth and mild detergent after each use.
• For stubborn stains, place a bowl of water with lemon slices inside and microwave for a few minutes to loosen residue, then wipe clean.
• The glass turntable is removable and washable.

6.2 Neteja de l'exterior

• Netegeu l'exterior d'acer inoxidable amb un drap suau i un netejador d'acer inoxidable.
• Avoid abrasive cleaners or scouring pads that can scratch the surface.

6.3 Manteniment del filtre

The microwave includes a removable, washable grease filter. Clean this filter regularly to maintain efficient airflow and ventilation performance.

• Remove the filter by sliding it out from its compartment on the underside of the microwave.
• Wash the filter with warm, soapy water or place it in the dishwasher.
• Ensure the filter is completely dry before reinserting it.

7. Solució De Problemes

If you experience issues with your microwave, consult the following common troubleshooting tips before contacting service.

8. Especificacions

• Marca: Forno
• Model: FOTR3038-30
• Capacitat: 1.5 peus cúbics
• Tipus d'instal·lació: Abast de gamma
• Color: Acer inoxidable
• Material: Acer
• Dimensions del producte: 16.9 "P x 29.9" W x 16.4" H
• Consola de control: Toca
• Wattage: 1500 watts
• Nombre de nivells de potència: 11
• Característica especial: Ventless (adaptable for ducted)
• Eficiència: Alta eficiència

9. Garantia i assistència

This FORNO Fornace microwave is backed by a Garantia limitada d'2 any. For warranty claims or technical support, please contact Forno customer service. Keep your proof of purchase for warranty validation.

Per obtenir ajuda addicional, visiteu el Forno Store o consulteu la informació de contacte que trobareu a l'embalatge del producte.
