VIKIO HOME 30-inch Wall Mount Range Hood

1. Introducció

Thank you for choosing the VIKIO HOME 30-inch Wall Mount Range Hood. This manual provides essential information for the safe installation, operation, and maintenance of your new kitchen appliance. Designed with a powerful dual-intake motor, quiet operation, and user-friendly touch controls, this range hood ensures a clean and fresh cooking environment.

Si us plau, llegiu aquest manual detingudament abans de la instal·lació i l'ús, i guardeu-lo per a futures consultes.

2. Informació de seguretat

ADVERTÈNCIA: Per reduir el risc d'incendi, descàrrega elèctrica o lesions a les persones, observeu el següent:

• Install this range hood in accordance with all specified instructions.
• Desconnecteu sempre l'alimentació al panell de servei abans de fer el manteniment o la neteja de la unitat.
• Ensure proper ventilation is provided for combustion gases from fuel-burning equipment to prevent back-drafting.
• No utilitzeu aquesta unitat amb cap dispositiu extern de control de velocitat d'estat sòlid.
• Never leave surface units unattended at high settings. Boil-overs cause smoking and greasy spillovers that may ignite.
• Netegeu els ventiladors amb freqüència. No s'ha de deixar que s'acumuli greix al ventilador o al filtre.
• Utilitzeu-lo només per a finalitats generals de ventilació. No l'utilitzeu per a l'extracció de materials i vapors perillosos o explosius.

3. Contingut del paquet

Verifiqueu que tots els components que s'enumeren a continuació s'inclouen al paquet:

• VIKIO HOME 30-inch Wall Mount Range Hood
• 6-inch Round Vent Pipe × 1
• Blower Housing with Integrated 6-inch Vent Outlet × 1
• Grease Cup × 1
• Installation Screw Kit × 1
• User & Installation Manual × 1
• Stainless Steel Baffle Filters × 2

Image: Complete installation kit for the VIKIO HOME 30-inch Wall Mount Range Hood, including the hood, duct, filters, and mounting hardware.

4. Especificacions

Image: Detailed dimensions and recommended cooktop-to-hood distance for installation.

5. Instal·lació

The VIKIO HOME range hood is designed for both ducted and ductless (recirculating) installations. All necessary installation hardware and clear instructions are included in your package. For ductless operation, optional carbon filter kits are available and sold separately.

Installation Options: Ducted vs. Ductless

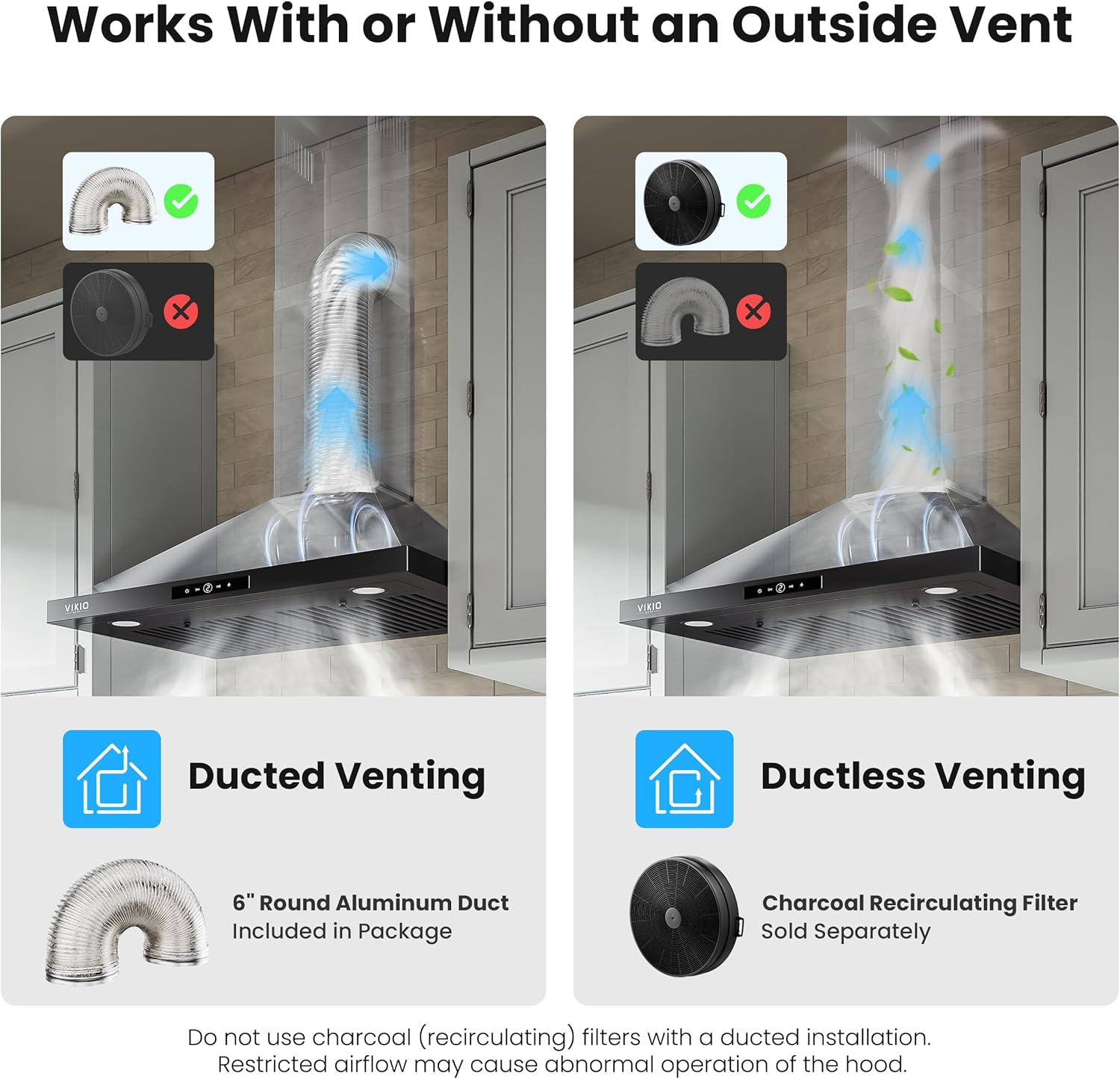

Image: Visual comparison of ducted venting (using a 6-inch round aluminum duct) and ductless venting (requiring a charcoal recirculating filter, sold separately).

Passos d'instal·lació acabatsview

1. Preparació: Horizontally draw a straight line on the wall according to the specified installation height.
2. Instal·lació del suport de muntatge: Place the hanging plate on the marked line, mark positioning holes, drill holes, insert expansion plugs, and fix the hanging plate with screws.
3. Hood Mounting: Hang the range hood onto the installed hanging plate. Fix the hood to the wall from the inside with screws.
4. Ductwork/Filter Installation:
   • For Ducted: Insert the provided 6-inch round aluminum pipe into the air outlet.
   • For Ductless: Install two carbon filters on both sides of the blower housing (filters sold separately).
5. Instal·lació de la xemeneia: Assemble the chimney sections and fix them to the support brackets on the wall.
6. Connexió elèctrica: Connecteu el cable d'alimentació a una presa de corrent adequada.

Guia de vídeo d'instal·lació

6. Funcionament

Your VIKIO HOME range hood features intuitive touch controls for easy operation.

Funcions del tauler de control:

• Encès/apagat: Premeu el botó d'encesa per encendre o apagar la unitat.
• Ajust de velocitat del ventilador: Select from 3 fan speeds (Low, Medium, High) to match your cooking needs. The dual-intake motor provides powerful 580 CFM suction.
• Il·luminació LED: Activate the energy-efficient LED lights to illuminate your cooktop.
• Delay Shut-Off Timer: Utilize the 1-9 minute delay shut-off function to automatically clear residual steam and odors after cooking.

Image: Simple touch control panel for fan speeds, lighting, and delay shut-off.

Quiet and Efficient Performance:

Experience a peaceful cooking environment with noise levels as low as 40 dBA at low speeds and under 65 dBA at high speeds, thanks to its advanced ductwork system and dual-intake motor design.

Image: The range hood provides quiet operation, ensuring a pleasant kitchen atmosphere.

Image: The dual-intake motor design enhances airflow by 20% for effective smoke and odor removal.

7. Manteniment

Un manteniment regular garanteix un rendiment òptim i una llarga vida útil de la campana extractora.

Cleaning Baffle Filters:

The stainless steel baffle filters are dishwasher-safe and easy to remove. For best results, clean them regularly to prevent grease buildup.

1. Carefully remove the baffle filters by releasing their latches.
2. Place the filters in a dishwasher for thorough cleaning, or wash them by hand with warm, soapy water.
3. Assegureu-vos que els filtres estiguin completament secs abans de tornar-los a instal·lar.

Neteja exterior:

Wipe the exterior of the range hood with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals that may damage the stainless steel finish.

Carbon Filter Replacement (Ductless Only):

If using the range hood in ductless mode, the optional carbon filters should be replaced every 3-6 months, depending on usage, to maintain effective odor absorption.

8. Solució De Problemes

If you encounter any issues with your range hood, please refer to the following common troubleshooting tips:

• Sense energia: Comproveu si el cable d'alimentació està ben connectat a la presa de corrent i si s'ha saltat l'interruptor.
• Succió feble: Ensure baffle filters are clean and not clogged with grease. For ducted installations, check that the ductwork is properly connected and free of obstructions. For ductless, ensure carbon filters are not expired.
• Soroll excessiu: Verify that all mounting screws are tightened and that the fan blades are free from obstructions.
• Els llums no funcionen: Check if the LED light button has been pressed. If lights still do not work, contact customer service for replacement.

9. Garantia i Suport

Your VIKIO HOME Wall Mount Range Hood comes with a 2 anys de garantia, garantint la tranquil·litat pel que fa a la qualitat i el rendiment del producte.

Oferim 24-Hour Service Response for any inquiries or concerns you may have. Free replacements for accessories such as filters and lights are available when needed.

Our dedicated customer service team is always here to assist with any questions or concerns. Please refer to the contact information provided in your original packaging or visit the official VIKIO HOME weblloc de suport.
