Introducció
The EMEET Wireless Remote Control is designed to enhance your experience with EMEET P-Series 4K webcams, including PIXY, Piko+, and Piko. This controller provides convenient access to key webcam functions such as AI tracking, pan, tilt, zoom, image adjustments, and privacy mode, allowing for effortless operation during streaming, meetings, or content creation. For full functionality, ensure you have the EMEETSTUDIO software installed on your computer.
Què hi ha a la caixa
Image: Contents of the EMEET Remote Control R2 box.
Your EMEET Remote Control package includes:
- EMEET Remote Control R2
- Receptor USB
- Manual d'usuari
By default, the EMEET remote control and its USB wireless receiver are pre-paired for one-to-one use. Please ensure the safe keeping of the USB receiver.
Producte acabatview: Remote Control Functions

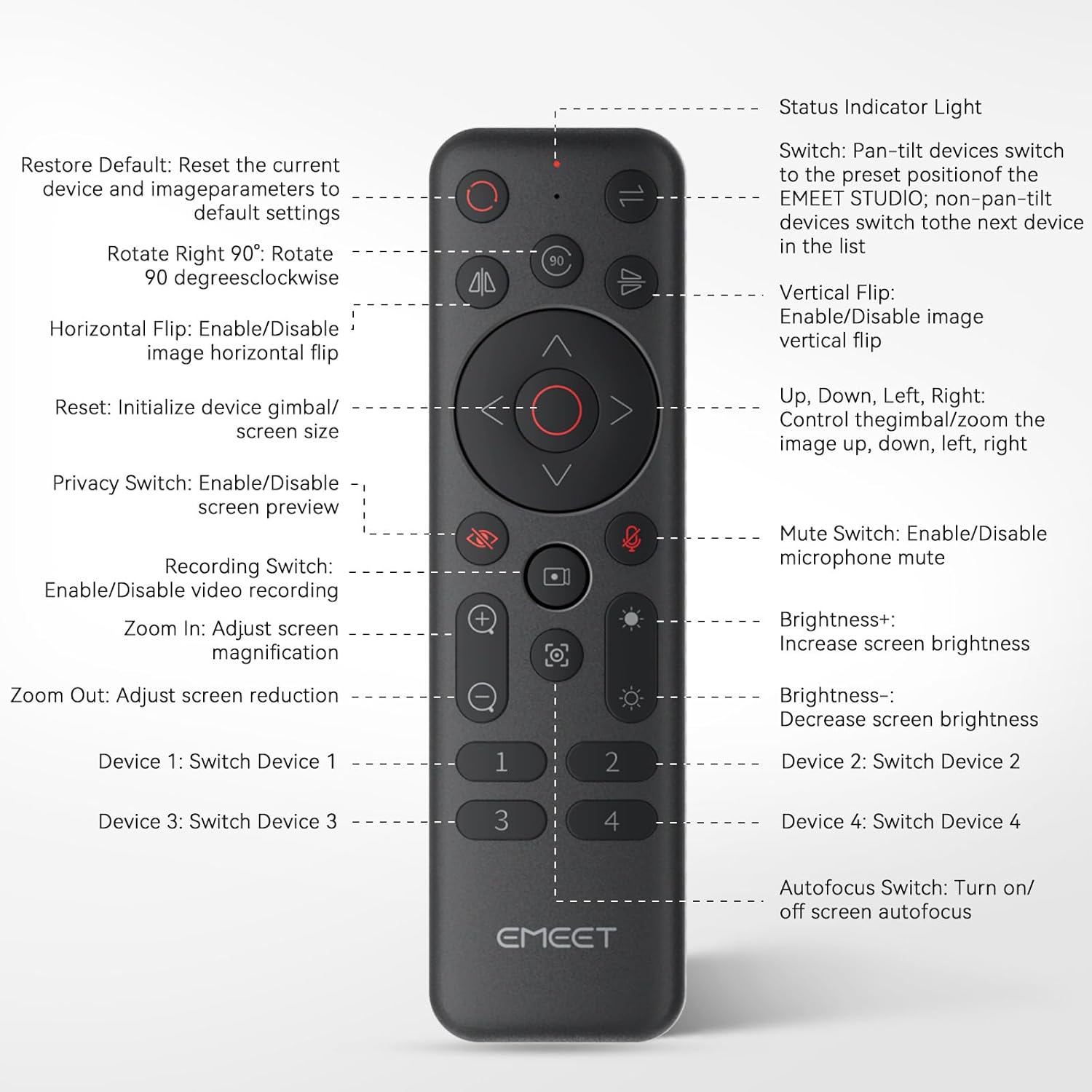

Image: EMEET Remote Control button layout and functions.
- Llum indicador d'estat: Displays the remote's status.
- Restaura el valor predeterminat: Reset the current device and image parameters to default settings.
- Gira 90°: Gireu 90 graus en sentit horari.
- Volteig horitzontal: Enable/Disable image horizontal flip.
- Restablir: Initialize device gimbal/screen size.
- Privacy Switch: Enable/Disable screen preview.
- Recording Switch: Enable/Disable video recording.
- Apropa: Adjust screen magnification.
- Disminuir el zoom: Adjust screen reduction.
- Dispositiu 1-4: Switch between connected devices (1-4).
- Pan-tilt Switch: Pan-tilt devices switch to the preset position of the EMEET STUDIO; non-pan-tilt devices switch to the next device in the list.
- Volteig vertical: Enable/Disable image vertical flip.
- Amunt, avall, esquerra, dreta: Control the gimbal/zoom the image up, down, left, right.
- Interruptor de silenci: Enable/Disable microphone mute.
- Brillantor +: Augmenta la brillantor de la pantalla.
- Brillantor-: Disminueix la brillantor de la pantalla.
- Autofocus Switch: Turn on/off screen autofocus.
Instruccions de configuració
Follow these steps to set up your EMEET Remote Control with your EMEET P-Series weblleva:
- Instal·leu les bateries: Please install 2 AAA batteries into the remote control. Ensure correct polarity (follow the positive and negative marks). Batteries are not included and need to be purchased separately.
- Connecteu el receptor USB: Connecteu el receptor USB a un port USB disponible de l'ordinador.
- Connecta't Weblleva: Connect your EMEET PIXY, Piko+, or Piko 4K Webcam to your computer.
- Launch EMEET Studio: Open the EMEET Studio software on your computer.
- Start Operating: You can now start operating your device effortlessly via the remote control. Keep the remote within 32.8 ft (10 meters) for best performance.
Setup for EMEET PIXY
Setup for EMEET Piko
Setup for EMEET Piko+
Instruccions de funcionament
Precision PTZ Control (for PIXY)
Instantly adjust pan, tilt, and zoom for your PIXY webcam with one click using the remote. This feature is designed for streamers, educators, and professionals who require fast, stable, and accurate framing adjustments on the fly.
Remote Control for PIXY
Remote Control for Piko+
Remote Control for Piko
AI Tracking & Preset Access (for PIXY)
Activate auto-tracking or switch between preset views during live sessions for PIXY without needing to reach for your mouse. This allows for seamless scene switching, boosting production value.
Basic Image Adjustment
Control brightness, zoom level, mirroring, and flip functions directly via the remote. Fine-tune your visuals in real time without touching software controls.
Mode de privadesa
Utilize the one-tap privacy mode to protect your space. Whether you're pausing a call or stepping away, simply tilt to hide the lens via the remote for a secure, silent, and quick privacy solution.
Compatibilitat
The EMEET Remote Control is fully compatible with all EMEET 4K dual-camera streaming webcams in the P-Series family, specifically PIXY, Piko, and Piko+. Full function access requires the EMEETSTUDIO software.
Especificacions
| Característica | Detall |
|---|---|
| Marca | EMEET |
| Pes de l'article | 2.88 unces |
| Dimensions del paquet | 6.1 x 1.83 x 0.94 polzades |
| Característiques especials | Lleuger |
| Tecnologia de connectivitat | Freqüència de ràdio |
| Dispositius compatibles | EMEET PIXY, Piko+, Piko 4K Weblleves |
Resolució de problemes
- El comandament a distància no respon: Ensure fresh AAA batteries are correctly installed. Check that the USB receiver is securely plugged into your computer. Verify the remote is within the 32.8 ft (10 meters) operating range of the weblleva.
- Funcions que no funcionen: Make sure the EMEET Studio software is running and your webcam is properly connected and recognized by the software. Check for any available software or firmware updates for your webcam and remote control within EMEET Studio.
- Problemes d'aparellament: The remote and receiver are pre-paired. If issues persist, consult the full user manual for specific re-pairing instructions if available.
Garantia i Suport
EMEET is committed to providing excellent customer service and product reliability. We offer a 2-year exclusive warranty for your EMEET Remote Control. For any technical assistance or inquiries, our professional technical team provides suport de tota la vida. You can expect a quick reply to your queries, typically within 24 hores.
For further support, please refer to the contact information provided in your user manual or visit the official EMEET weblloc.
