Bextgoo T16-DT Multi-Function Hidden Device Detector User Manual

1. Introducció

The Bextgoo T16-DT is an advanced multi-function device designed to enhance your personal privacy and security. This compact and portable detector combines six key detection modes to identify various hidden devices, including wireless cameras, audio bugs, RF signals, GPS trackers, and infrared cameras. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and effective use of your device.

2. Informació de seguretat

• Mantingueu el dispositiu allunyat de l'aigua i la humitat.
• No intenteu desmuntar ni reparar el dispositiu vosaltres mateixos. Poseu-vos en contacte amb el servei d'assistència si sorgeixen problemes.
• Utilitzeu només el cable de càrrega proporcionat per evitar danys.
• Avoid direct eye exposure to the infrared LEDs.
• Guardeu el dispositiu en un lloc fresc i sec quan no l'utilitzeu.

3. Contingut del paquet

• Bextgoo T16-DT Multi-Function Detector
• Cable de càrrega USB
• Manual d'usuari

4. Dispositiu acabatview

The Bextgoo T16-DT is designed for ease of use with a clear LED display and intuitive controls. Below is an image highlighting the main components of the device.

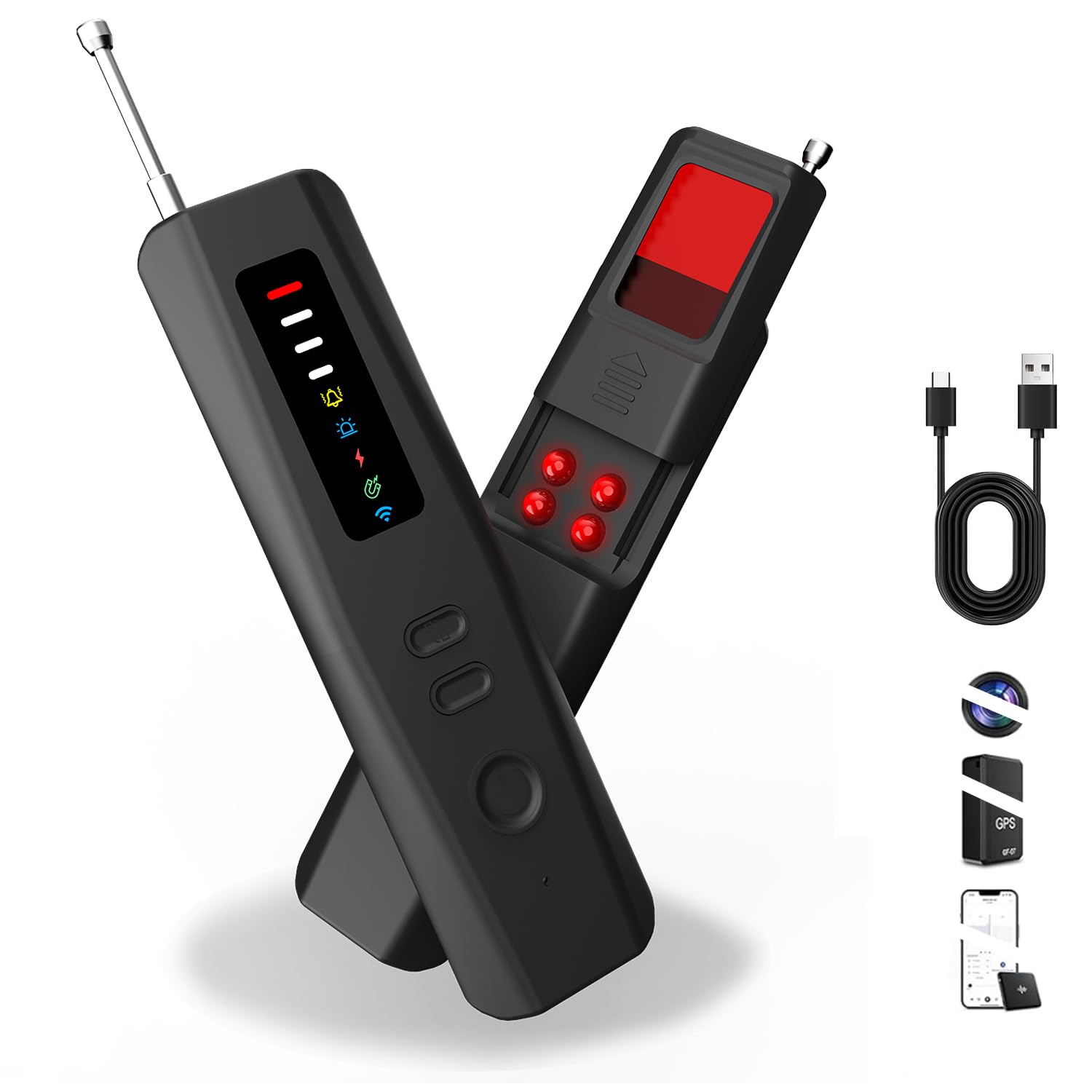

Figura 4.1: Davant view of the Bextgoo T16-DT detector showing the display and control buttons.

The device features a compact design, making it easy to carry and operate discreetly. It includes an extendable antenna for enhanced signal detection and a viewing window for infrared camera identification.

5. Configuració

5.1. Càrrega del dispositiu

Before first use, fully charge the Bextgoo T16-DT. The device is equipped with a 1000mAh rechargeable battery.

1. Connect the provided USB charging cable to the charging port on the device.
2. Connect the other end of the USB cable to a standard USB power adapter (not included), power bank, computer, or car USB charger.
3. The battery indicator on the LED display will show charging status. A full charge provides up to 25 hours of continuous use or 60 days of standby time.

Figura 5.1: Illustration of charging the Bextgoo T16-DT using various USB power sources.

5.2. Encendre/apagar

• To power on: Press and hold the power button for 3 seconds.
• Per apagar: premeu i manteniu premut el botó d'engegada durant 3 segons.

6. Modes de funcionament

The Bextgoo T16-DT offers multiple detection modes. Use the "MODE" button to cycle through the available modes and the "ADJ" button to adjust sensitivity or other settings within a mode.

6.1. Wireless Signal Detection Mode (RF Detector)

This mode detects wireless signals from hidden cameras, GPS trackers, and listening devices operating within the 1MHz–6.5GHz frequency range.

1. Power on the device. The default mode is typically Wireless Signal Detection.
2. Extend the antenna for optimal detection.
3. Use the "ADJ" button to adjust sensitivity. Higher sensitivity allows detection of weaker signals from a greater distance.
4. Slowly scan the area. The signal strength indicator on the LED display will increase as you approach a transmitting device. The device will also emit an audible alert or vibrate (depending on settings).
5. For best results, temporarily turn off personal Wi-Fi/Bluetooth devices in the area.

Figura 6.2: Step-by-step guide for using the RF Signal Detection mode to locate transmitting devices.

6.2. Infrared Light Scanning (Hidden Camera Lens Finder)

This mode helps locate hidden camera lenses by reflecting light off their optics, making them visible through the detector's dedicated viewfinestra d’engegada.

1. Press the "MODE" button until the Infrared Light Scanning icon is displayed.
2. Turn off room lights for better visibility.
3. Look through the red optical filter on the detector while slowly scanning the area. The 4 high-brightness infrared LEDs will illuminate any hidden camera lenses, causing them to appear as bright red dots.
4. Scan all suspicious objects and areas, including smoke detectors, clocks, USB chargers, and mirrors.

Figura 6.3: Visual guide for using the Infrared Light Scanning mode to find hidden camera lenses.

6.3. Infrared Night Vision Detection

This mode specifically identifies hidden cameras that are actively emitting infrared light for night vision capabilities.

1. Press the "MODE" button until the Infrared Night Vision Detection icon is displayed.
2. Turn off all lights in the room to create a dark environment.
3. Slowly scan the area. The detector will identify IR light emitted by night vision cameras and alert you with a beep sound or vibration.

Figura 6.4: Instructions for using the IR Laser Induction Detection mode to find night vision cameras.

6.4. Magnetic Field Detection (GPS Tracker Detector)

This mode is designed to detect hidden magnetic GPS trackers and other strong magnetic devices, often found attached to vehicles or metal surfaces.

1. Press the "MODE" button until the Magnetic Field Detection icon is displayed.
2. Slowly move the detector along surfaces where magnetic devices might be hidden, such as under car bodies, office desks, or home appliances.
3. The device will alert you when a magnetic field is detected, indicating the presence of a magnetic tracker.

Figura 6.5: Guide for using the Magnetic Field Detection mode to locate hidden magnetic devices.

6.5. Anti-Theft Mode

Activate this mode to protect your belongings or secure an area. The device will alert you if it is moved or disturbed.

1. Press the "MODE" button until the Anti-Theft Mode icon is displayed.
2. Place the device on or near the item you wish to protect, or near an entrance like a door or window.
3. If the device detects movement or is knocked over, it will emit a loud alarm or vibrate, alerting you to potential unauthorized access.

Figura 6.6: Illustration of using the Anti-Theft Mode to secure an area.

7. Manteniment

• Clean the device regularly with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
• Assegureu-vos que el port de càrrega estigui lliure de pols i deixalles.
• Store the device in its protective pouch when not in use to prevent scratches and damage.
• Eviteu les temperatures extremes i la llum solar directa.

8. Solució De Problemes

9. Especificacions

10. Garantia i Suport

Bextgoo products are designed for reliability and performance. For warranty information, technical support, or any questions regarding your T16-DT detector, please refer to the contact details provided on the product packaging or visit the official Bextgoo weblloc.

Conserveu el vostre comprovant de compra per a reclamacions de garantia.
