1. Introducció
Thank you for choosing the Jebao FA-1500 Submersible Fountain Pump. This pump is designed for versatile water garden applications, including powering pond filters, creating water fountains, waterfalls, and use in hydroponic and aquaponic systems. Its energy-efficient magnetic drive technology ensures reliable operation. Please read this manual thoroughly before installation and operation to ensure proper use and longevity of your pump.
2. Instruccions de seguretat
WARNING: To avoid injury, basic safety precautions should be observed, including the following:
- Read and follow all safety instructions and all important notices before using this appliance.
- This pump is designed for submersible use only. Do not operate the pump dry.
- Always disconnect the pump from the power supply before handling, performing maintenance, or cleaning.
- Ensure the pump is connected to a properly grounded outlet. Do not remove the grounding prong from the plug.
- Do not use this pump with flammable liquids.
- No aixequeu la bomba pel seu cable d'alimentació.
- Inspeccioneu el cable d'alimentació per detectar danys abans de cada ús. No l'utilitzeu si el cable està malmès.
- Mantingueu els nens i les mascotes allunyats de la bomba i de la font d'aigua durant el funcionament.
3. Contingut del paquet
Verifiqueu que tots els elements estiguin presents i en bon estat en obrir el paquet:
- Jebao FA-1500 Submersible Fountain Pump
- Hose Adapters (various sizes)
- Manual d'usuari (aquest document)
Image 3.1: Contents of the Jebao FA-1500 package, including the pump, power cord, hose adapters, and the owner's manual.
4. Configuració
Follow these steps for proper installation of your Jebao FA-1500 pump:
- Tria la ubicació: Place the pump in the desired location within your pond, fountain, or reservoir. Ensure it is fully submerged and rests on a stable, level surface. The suction cups on the base can help secure it.
- Connecteu l'adaptador de mànega: Select the appropriate hose adapter for your tubing size. Thread the adapter onto the pump's outlet. Ensure a tight, secure connection to prevent leaks.
Image 4.1: The Jebao FA-1500 pump with a hose adapter securely attached to the water outlet.
- Connexió de tubs: Connect your flexible tubing to the attached hose adapter. Use a hose clamp (not included) for an extra secure connection, especially for high-pressure applications.
- Posició de la bomba: Ensure the pump is fully submerged in water. The water level should always be above the pump's intake to prevent it from running dry.
- Connexió elèctrica: Route the power cord safely, avoiding kinks or damage. Plug the pump into a grounded electrical outlet. Ensure a drip loop is formed to prevent water from traveling along the cord to the outlet.
5. Instruccions de funcionament
Once the pump is properly set up and submerged:
- Posada en marxa inicial: Plug the pump into the power outlet. The pump should start immediately, and water will begin to flow through your system.
- Comprovar el flux: Observe the water flow. If the flow is weak or inconsistent, check for air pockets in the tubing or blockages in the pump's intake.
- Funcionament continu: The Jebao FA-1500 is designed for continuous operation. However, regular checks of water level and pump performance are recommended.
- Apagar: To turn off the pump, simply unplug it from the electrical outlet. Always unplug before performing any maintenance.
6. Manteniment
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la bomba.
- Desconnecteu l'alimentació: Desendolleu sempre la bomba de la font d'alimentació abans de qualsevol manteniment.
- Neteja la pantalla d'admissió: Periodically remove debris from the pump's intake screen to maintain proper water flow.
- Clean Impeller/Rotor:
- Carefully remove the front cover of the pump.
- Gently pull out the impeller assembly. The FA-1500 features a fixed ceramic shaft rotor, which is durable and quiet.
- Clean the impeller and the impeller chamber with a soft brush and clean water to remove any mineral deposits or debris.
- Rinse all components thoroughly and reassemble. Ensure the impeller spins freely.
- Comproveu el cable d'alimentació: Regularly inspect the power cord for any signs of wear, cuts, or damage.
- Winterization (for outdoor use): In freezing temperatures, remove the pump from the water, clean it thoroughly, and store it in a frost-free location. Do not allow the pump to freeze in water.
Imatge 6.1: Frontal view of the Jebao FA-1500 pump, highlighting the intake area for cleaning.
7. Solució De Problemes
If your pump is not operating correctly, refer to the following common issues and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La bomba no arrenca ni funciona. | No power; clogged impeller; damaged impeller/motor. | Check power connection/outlet; clean impeller and chamber; inspect impeller for damage. |
| Baix cabal d'aigua. | Clogged intake screen; kinked/blocked tubing; low water level. | Clean intake screen; clear tubing; ensure pump is fully submerged. |
| La bomba és sorollosa. | Debris in impeller; pump running dry; worn impeller. | Clean impeller; ensure pump is fully submerged; replace impeller if worn. |
| Pump stops intermittently. | Overheating (thermal protection); intermittent power supply. | Check for blockages causing overheating; verify stable power supply. |
8. Especificacions
Detailed technical specifications for the Jebao FA-1500 pump:
- Model: FA-1500
- Cabal màxim: 350 GPH (galons per hora)
- Capçalera màxima: 6.25 peus
- Potència: 18W
- Voltage: 120 V
- Actual: 0.26A
- Freqüència: 60 Hz
- Dimensions (L x A x A): Aproximadament 3.75 x 3 x 4 polzades
- Pes de l'article: 1.8 lliures
- Material: Plàstic
- Estil: Submergible
- Font d'alimentació: Elèctric amb cable
- Tipus de rotor: Fixed Ceramic Shaft

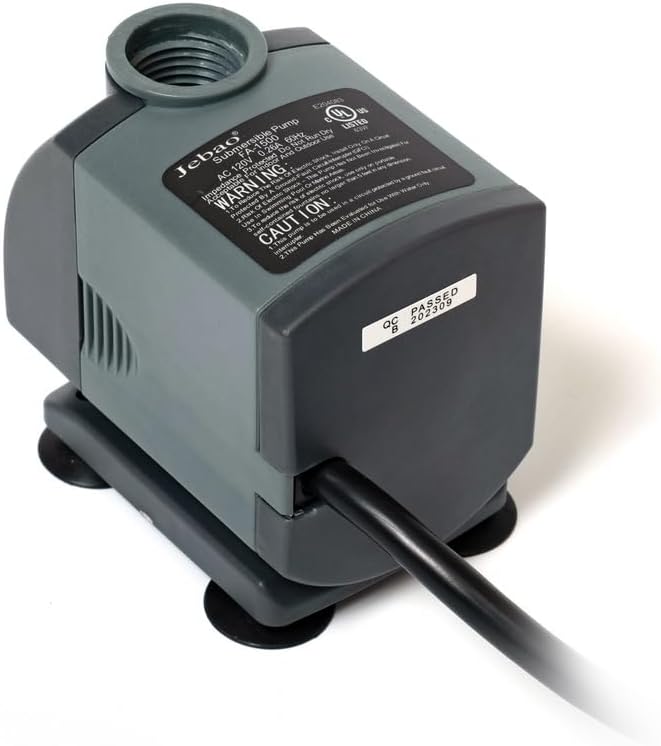

Imatge 8.1: posterior view of the Jebao FA-1500 pump, displaying the product label with electrical specifications and safety information.
9. Garantia i Suport
For warranty information or technical support, please contact the retailer where you purchased the Jebao FA-1500 pump or refer to the official Jebao weblloc web. Conserveu el rebut de compra com a comprovant de compra.
