VEVOR JTL-5000BM 2 Post Car Lift Instruction Manual

1. Informació de seguretat

Important: Read and understand all instructions and safety warnings before installing, operating, or maintaining this equipment. Failure to follow these instructions may result in serious injury or property damage.

• Install only on a pre-cast concrete base that meets the specified requirements.
• Ensure the lift is properly anchored to the floor.
• Always use the safety locks when the vehicle is raised.
• Do not exceed the maximum lifting capacity of 12,000 lbs.
• Ensure the vehicle is properly centered and balanced on the lifting arms before raising.
• Mantingueu les mans i els peus allunyats de les peces mòbils durant el funcionament.
• Utilitzeu equips de protecció individual (EPI) adequats.

2. Producte acabatview

The VEVOR JTL-5000BM 2 Post Car Lift is designed for heavy-duty vehicle lifting, suitable for sedans, SUVs, and pickup trucks. It features a powerful motor, adjustable lifting height, and multiple safety mechanisms.

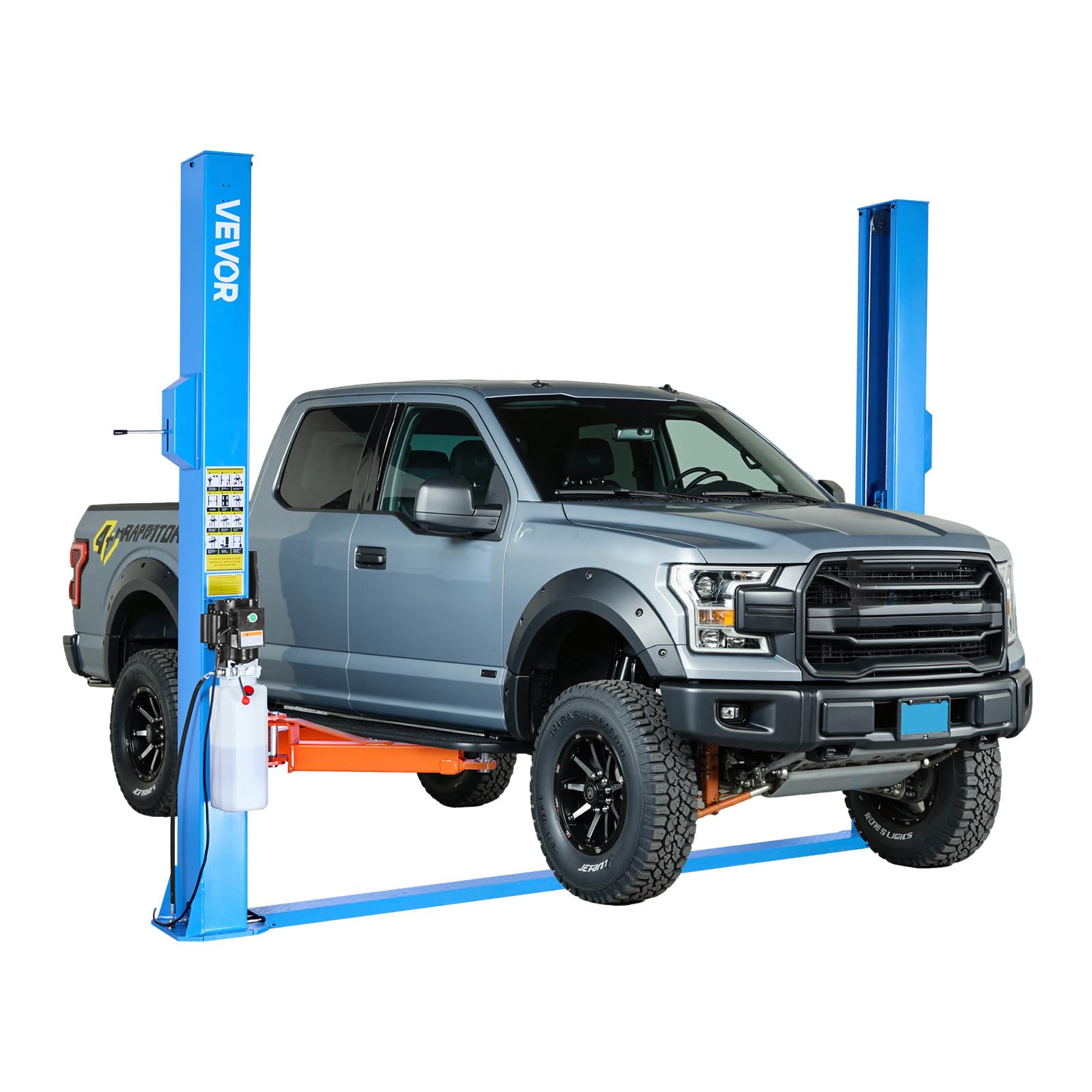

Imatge 1: The VEVOR 2 Post Car Lift effortlessly lifting a pickup truck, demonstrating its 12,000 lbs capacity. The image highlights the lift's robust structure and suitability for various vehicle types including sedans, SUVs, and pickups.

Imatge 2: Un detallat view of the VEVOR 2 Post Car Lift with key dimensions, including a 74.8-inch lift height, 31.5-47.2 inch adjustable arm reach, and 107.1-inch drive-through width. The image also shows various maintenance tasks being performed under a lifted vehicle.

Imatge 3: A close-up of the lift's control panel and 2.95 HP high-torque motor, emphasizing its efficient and easy operation. The image shows a hand pressing the green lift button.

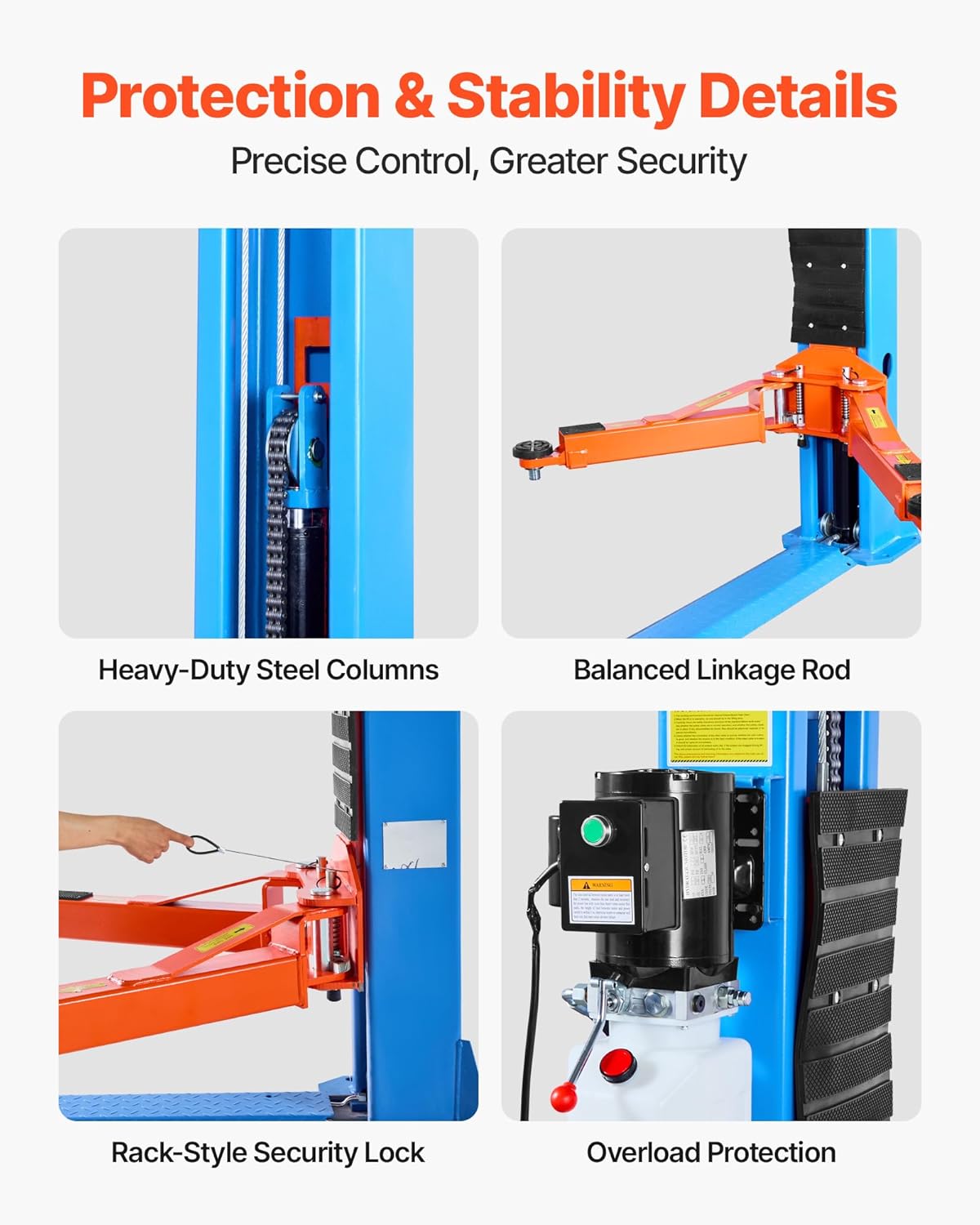

Imatge 4: Visual details of the lift's protection and stability features, including heavy-duty steel columns, a balanced linkage rod, rack-style security lock, and overload protection.

3. Què hi ha a la caixa

• 1 x Two Post Lift
• 1 x Hydraulic Hose Adapter (for cylinder connection)
• 2 x Zerk Fittings (for lubrication points)
• 1 x Manual d'usuari

4. Especificacions

5. Configuració i instal·lació

Proper installation is crucial for safe and efficient operation. Refer to the detailed steps in the videos below for guidance.

6. Instruccions de funcionament

Before operating, ensure the lift is correctly installed and all safety checks are performed.

1. Vehicle Positioning: Drive the vehicle onto the lift, ensuring it is centered between the posts. Adjust the lifting arms to make contact with the vehicle's designated lifting points.
2. Ajust del braç: The lift features adjustable arms (31.5-47.2 inches) and height adjustment pads. Use the appropriate pads and adjust the arms to securely support the vehicle's chassis.
3. Aixecament: Press the 'Up' button on the control panel to raise the vehicle. Monitor the vehicle's stability as it lifts.
4. Enganxament de bloqueig de seguretat: Once the vehicle reaches the desired height, lower it slightly until the safety locks engage. This ensures the vehicle is securely held in place.
5. Baixada: To lower the vehicle, slightly raise it to disengage the safety locks, then press the 'Down' button. Ensure the area beneath the vehicle is clear.

Imatge 5: A woman operating the VEVOR 2 Post Car Lift, demonstrating the user-friendly control panel and the ease of lifting a vehicle. The image highlights the practical application of the lift in a workshop setting.

7. Maintenance and Care Instructions

Regular maintenance ensures the longevity and safe operation of your VEVOR 2 Post Car Lift.

Ús diari:

• Check daily if the safety device can lock into place and if the linkage is functioning properly. If there are any potential hazards, repair or replace them promptly.

Inspecció setmanal:

• Inspect the steel wire for looseness or broken strands. Observe the sliding blocks on the internal platform of the columns and apply grease as needed. If wear on one side exceeds 20%, it will no longer be securely gripped by the columns and should be replaced in a timely manner.

Bi-Weekly Check:

• Inspect all hydraulic hose connections for leaks or ruptures, and repair or replace them as necessary.

Manteniment mensual:

• Check if all screws and nuts are tightened properly. After a test run, retighten all screws and nuts.

8. Solució De Problemes

If you encounter any issues with your VEVOR 2 Post Car Lift, please refer to the following general troubleshooting tips:

• Lift not raising: Check power supply, hydraulic fluid level, and ensure all connections are secure.
• Lift not lowering: Ensure safety locks are disengaged. Check for any obstructions.
• Sorolls inusuals: Inspect for loose components, worn parts, or insufficient lubrication.
• Hydraulic leaks: Check all hose connections and seals. Tighten or replace as needed.

For complex issues, contact qualified service personnel or VEVOR customer support.

9. Garantia i Suport

VEVOR offers various protection plans for your product. For specific warranty details and to register your product, please visit the official VEVOR weblloc o contacteu amb el servei d'atenció al client.

• Pla de protecció de 2 anys: Disponible per a cobertura ampliada.
• Pla de protecció de 3 anys: Disponible per a cobertura ampliada.
• Protecció completa: A comprehensive plan covering eligible past and future purchases.

For customer support, please refer to the contact information provided in your product packaging or on the VEVOR weblloc.
