PG 30,000 BTU Split System Air Conditioner Heat Pump User Manual

1. Introducció

Thank you for choosing the PG 30,000 BTU Split System Air Conditioner Heat Pump. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new unit. Please read this manual thoroughly before operating your air conditioner and retain it for future reference.

This unit is designed to deliver 30,000 BTU of cooling power (3 Tons), suitable for large rooms up to 1,500 sq ft. It features inverter technology for energy-efficient performance and consistent temperature control. Built-in Wi-Fi connectivity allows remote control via smartphone or voice assistants. Utilizing R-32 refrigerant, it is an environmentally friendly choice. The heat pump functionality provides both heating and cooling for year-round comfort.

2. Contingut del paquet

Your PG Split System Air Conditioner package includes the following components:

• Unitat interior
• Unitat exterior
• Control remot
• USB Adapter for Wi-Fi Connectivity
• Petit filtre
• Screws and various installation parts
• Manual d'instal·lació
• Manual del propietari
• Documentació de garantia
• Rubber Pads (for outdoor unit)
• Drainage Hose (for indoor unit)
• Electrical Cable (connects indoor to outdoor unit)
• Refrigerant Tubing (16 ft, pre-charged)
• Insulating Tape (2 rolls)
• Plastic Wall Sleeve and Cover
• Putty Sealant

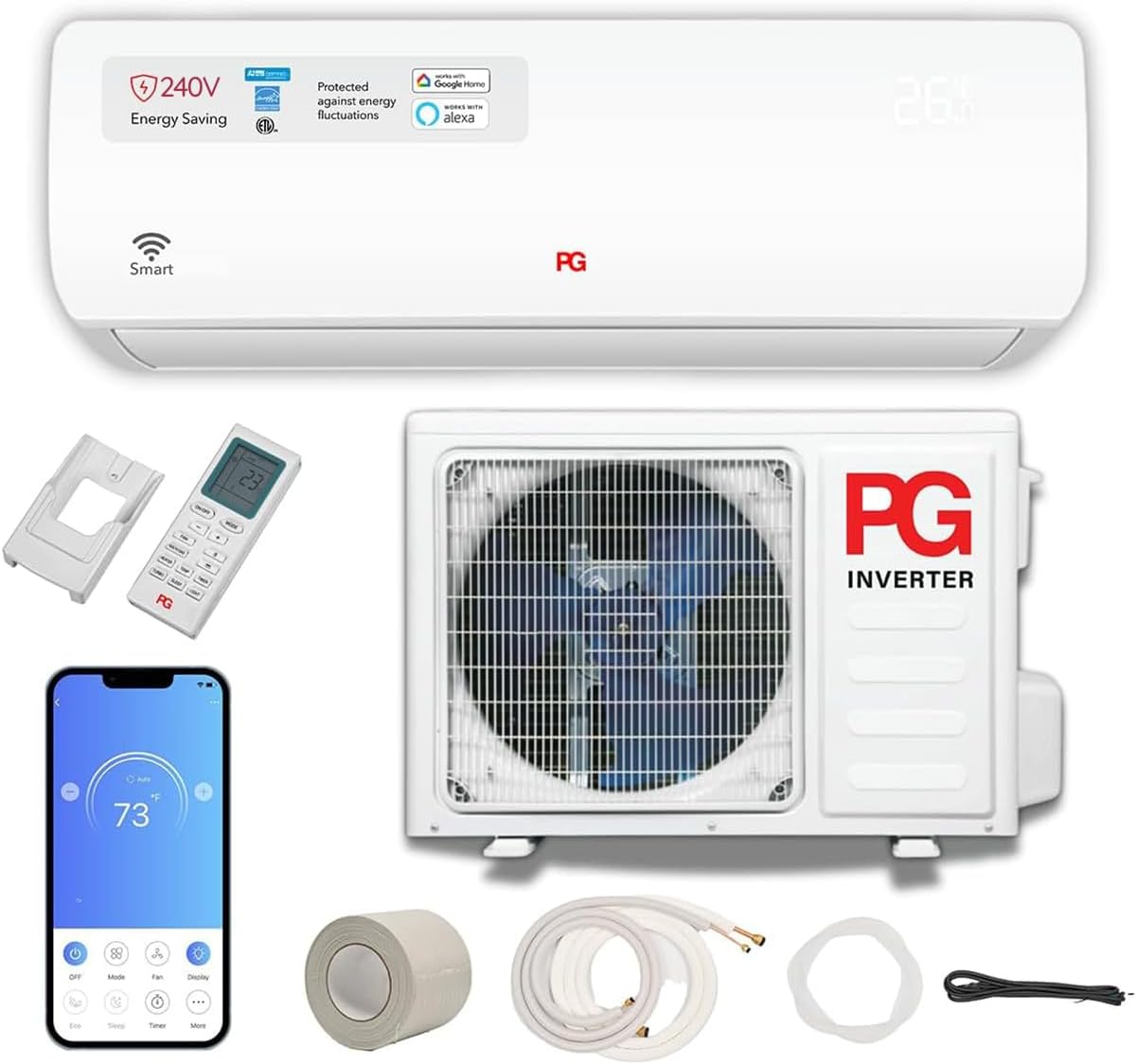

Figure 1: All components included with the PG Split System Air Conditioner.

3. Producte acabatview

The PG Split System Air Conditioner is engineered for optimal climate control and energy efficiency. Key features include:

• 30,000 BTU Cooling Capacity (3 Tons): Suitable for large rooms up to 1,500 sq ft.
• Tecnologia inversor: Provides energy-efficient performance and stable temperature control.
• Connectivitat Wi-Fi: Allows remote operation via smartphone or voice assistants like Alexa and Google Home.
• Refrigerant R-32: Eco-friendly refrigerant with low global warming potential.
• Funció de la bomba de calor: Offers both heating and cooling functionalities for all-season use.
• Funcionament silenciós: Indoor unit operates at a low noise level for minimal disturbance.
• Mode de repòs: Gradually adjusts temperature for nighttime comfort and energy efficiency.
• 4D Air Supply: Designed to avoid direct airflow for enhanced comfort.

Figure 2: The PG Split System Air Conditioner provides 30,000 BTU heating/cooling capacity for up to 1500 sq ft.

Figure 3: Sleep Mode ensures quiet and energy-efficient operation for nighttime comfort.

Figure 4: The 4D Air Supply feature prevents direct airflow for increased user comfort.

4. Guia d'instal·lació

Important: Installation should be performed by a certified professional to ensure proper function and warranty validity. Self-installation may void the product warranty.

4.1 Consideracions prèvies a la instal·lació

• Mida de l'habitació: Mesura el peu quadrattage of the area to be cooled or heated. For this 30,000 BTU unit, it is suitable for areas up to 1,500 sq ft.
• Voltage: This unit operates on 240V. Ensure your electrical system can support this requirement. Larger units typically require 220V/240V systems for efficient and safe operation.
• Col·locació de la unitat interior: Ensure at least 6 to 8 inches of clearance from the ceiling for optimal air intake and efficient operation. Avoid placing the unit too close to the ceiling.
• Col·locació de la unitat exterior: Choose a location that allows for proper airflow and is not prone to flooding. Consider using a wall-mounted bracket in flood-prone areas or a raised floor base.

4.2 General Installation Steps (Illustrative Guide)

The following videos provide general guidance on mini-split installation. While these videos feature a DELLA unit, the steps illustrate common practices for split system air conditioners. Always refer to the specific installation manual provided with your PG unit for detailed instructions.

4.3 Line Set and Electrical Connections

• The provided refrigerant tubing is 16 feet long. It can be shortened to as little as 10 feet if needed.
• If the tubing exceeds 25 feet, additional refrigerant will need to be added by a professional to compensate for the extra distance.
• Ensure the drainage hose and tubing running from the indoor unit to the wall hole have a slight downward slope to prevent water accumulation.
• Cover all pipes and connections with insulating tape and the provided plastic cover for a tidy and professional finish.
• Connect the outdoor unit to a disconnect box for safety, allowing quick power shut-off for maintenance or emergencies. The disconnect box should be wired directly to its own dedicated breaker in your main electrical panel.

5. Instruccions de funcionament

5.1 Funcions de control remot

The remote control provides easy access to all unit functions:

Figura 5: Disposició del comandament a distància i funcions dels botons.

• Pantalla LCD: Shows current temperature setting, fan mode, and operational status.
• Botó d'engegada (ENCÈS/APAGAT): Turns the AC unit on or off.
• Botó de mode: Cycles through different operating modes (Cool, Heat, Fan, Auto).
• Botó del ventilador: Ajusta la velocitat del ventilador (Baixa, Mitjana, Alta, Automàtica).
• Botó de l'escalfador: Activa la funció de calefacció.
• Botó TEMP: Switches between Fahrenheit and Celsius.
• Botó Turbo: Boosts cooling or heating to maximum for rapid temperature adjustment.
• Botó de dormir: Enables sleep mode, which gradually adjusts temperature for nighttime comfort and energy efficiency.
• Botó del temporitzador: Sets a countdown timer to automatically turn the AC on or off.
• Botó de llum: Controls the display backlight or AC panel lighting.

5.2 Control intel·ligent Wi-Fi

Control your PG Air Conditioner remotely using your smartphone or voice assistants like Alexa and Google Home. The included USB adapter enables Wi-Fi connectivity.

Figure 6: Control your AC unit with your smartphone via Wi-Fi connectivity.

Using the dedicated app or Alexa, you can adjust temperature, switch between cooling and heating, change fan speeds, set timers, or turn the unit on or off without needing to touch the remote.

6. Manteniment

Un manteniment regular garanteix un rendiment òptim i una llarga vida útil del vostre aire condicionat.

• Neteja de filtres: Regularly clean the indoor unit's air filters to maintain airflow and efficiency. Refer to the manual for specific cleaning instructions.
• Neteja de la unitat exterior: Keep the outdoor unit free from debris, leaves, and other obstructions that can block airflow.
• Inspecció professional: Schedule annual professional inspections and servicing to ensure all components are functioning correctly and to prevent potential issues.

7. Solució De Problemes

If you encounter issues with your PG Split System Air Conditioner, refer to the following common troubleshooting tips. For more complex problems, contact a certified technician.

• La unitat no s'encén: Check the power supply, ensure the disconnect box is on, and verify the circuit breaker.
• Refrigeració/calefacció insuficient: Ensure air filters are clean, check for obstructions around indoor/outdoor units, verify correct mode and temperature settings.
• Sorolls inusuals: Minor noises during operation are normal. Excessive or unusual noises may indicate a problem and should be inspected by a professional.
• Fuites d'aigua: Check the drainage hose for blockages or improper slope. Ensure connections are secure.
• Problemes de connectivitat Wi-Fi: Ensure the USB adapter is correctly installed, check your Wi-Fi network status, and refer to the app's troubleshooting guide.

8. Especificacions

9. Garantia i assistència

Your PG Split System Air Conditioner comes with a manufacturer's warranty. Please refer to the warranty certificate included in your package for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.

For technical support, troubleshooting assistance, or warranty claims, please contact PG customer service. Contact details can be found in your Owner's Manual or on the official PG weblloc.
