vannect X420S Folding Treadmill User Manual

1. Instruccions de seguretat importants

Please read this entire manual carefully before operating the vannect X420S Folding Treadmill. Retain this manual for future reference.

• Always place the treadmill on a level, stable surface.
• Mantingueu els nens i les mascotes lluny de la cinta de córrer durant el funcionament.
• Ensure adequate clear space around the treadmill for safe use and emergency stops.
• Porteu calçat i roba esportiva adequats.
• Always attach the safety key clip to your clothing before starting your workout.
• Consulteu un metge abans de començar qualsevol programa d'exercici, sobretot si teniu problemes de salut preexistents.
• No supereu la capacitat màxima de pes de l'usuari de 180 kg (400 lliures).
• Desendolleu la cinta de córrer de la presa de corrent quan no l'utilitzeu o abans de netejar-la o fer-ne el manteniment.

2. Contingut del paquet

Verifiqueu que tots els components siguin presents al paquet:

• vannect X420S Folding Treadmill Unit
• Oli lubricant
• Clau de seguretat
• Manual d'usuari (aquest document)

3. Muntatge i muntatge

The vannect X420S Folding Treadmill is designed for minimal setup. It requires no complex assembly.

1. Traieu amb cura la cinta de córrer del seu embalatge.
2. Col·loqueu la cinta de córrer sobre una superfície plana i estable.
3. Unfold the treadmill according to the instructions in the 'Storage and Folding' section.
4. Assegureu-vos que tots els mecanismes de bloqueig estiguin ben encaixats abans d'utilitzar-lo.
5. Connecteu el cable d'alimentació a una presa elèctrica amb connexió a terra.

4. Producte acabatview

The vannect X420S is a versatile folding treadmill designed for home use, featuring adjustable incline, app connectivity, and a quiet motor.

Característiques principals:

• Inclinació ajustable: Features a 12% incline function to simulate varied terrains and enhance workout intensity.
• Velocitat variable: Offers a speed range from 1 KM/H to 14 KM/H, suitable for walking, jogging, and running.
• Connectivitat intel·ligent: Bluetooth enabled for APP integration and music playback through a built-in speaker.
• Monitorització de la freqüència cardíaca: Integrated sensors in the handles provide real-time heart rate data.
• Funcionament silenciós: Equipped with a high-performance motor designed for silent operation, maintaining noise levels below 25dB.
• Absorció d'impactes avançada: Features a 7-layer running belt, 8 built-in shock absorbers, and 2 silicone shock pads for joint protection.
• Àmplia zona de running: Provides a running surface of 104 cm x 42 cm for comfortable workouts.
• Construcció duradora: Built with an industrial-grade carbon steel frame, supporting users up to 180 kg.
• Pantalla LED dual: Provides clear visibility of workout metrics.

5. Instruccions de funcionament

5.1 Engegar la cinta de córrer

1. Ensure the treadmill is plugged in and the safety key is properly placed on the console.
2. Col·loca el clip de la clau de seguretat a la teva roba.
3. Press the 'Start' button on the console or remote control. The treadmill will typically begin with a low speed after a short countdown.

5.2 Ajust de la velocitat i la inclinació

• Use the speed control buttons (usually '+' and '-') on the console or remote to increase or decrease the running speed (1-14 KM/H).
• Use the incline control buttons to adjust the incline level up to 12%.

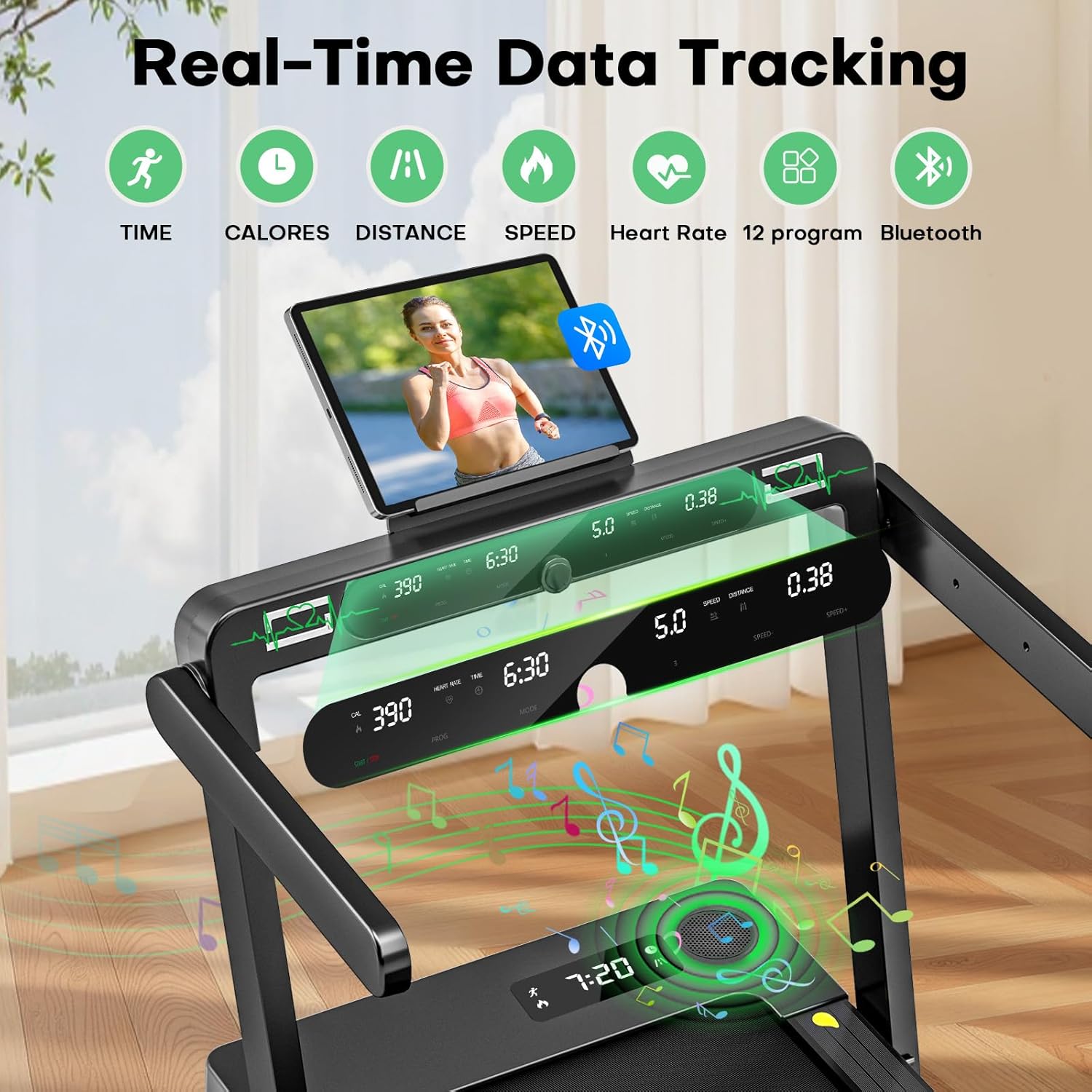

5.3 Using the APP and Bluetooth Speaker

1. Connexió a l'aplicació: Download the compatible fitness APP (refer to the APP's instructions for specific details). Enable Bluetooth on your mobile device and pair it with the treadmill. The APP allows for tracking workout data and accessing various training programs.
2. Altaveu Bluetooth: Enable Bluetooth on your mobile device and connect to the treadmill's speaker. You can then play music through the treadmill's integrated speaker during your workout.

5.4 Monitorització de la freqüència cardíaca

To monitor your heart rate, grip the metal sensors on the treadmill handles with both hands. Your heart rate will be displayed on the console after a few seconds.

5.5 Stopping the Treadmill

• Press the 'Stop' button on the console or remote control.
• In an emergency, pull the safety key from the console to immediately stop the treadmill.

6. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim de la cinta de córrer.

• Neteja: Netegeu les superfícies de la cinta de córrer amb anuncisamp cloth after each use. Avoid using abrasive cleaners.
• Lubricació: The running belt requires periodic lubrication. Refer to the specific instructions provided with the lubricating oil for frequency and application method.
• Ajust del cinturó: If the running belt feels loose or off-center, consult the troubleshooting section or contact customer support for instructions on how to adjust it.
• Inspecció: Periodically check all bolts and nuts for tightness. Ensure the power cord is not damaged.

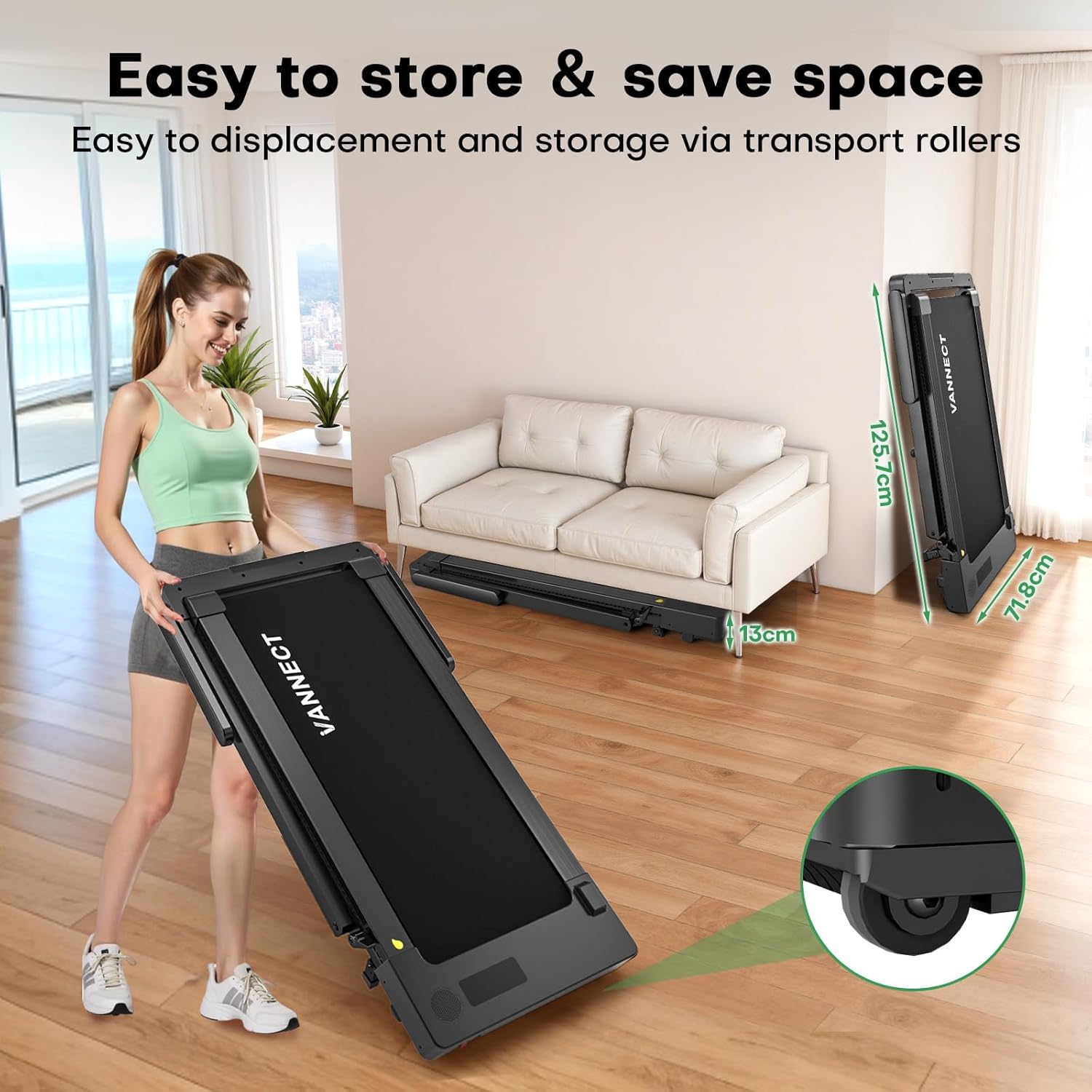

7. Storage and Folding

The vannect X420S is designed for easy folding and storage to save space.

1. Assegureu-vos que la cinta de córrer estigui aturada i desendollada.
2. Carefully lift the running deck until it locks into the upright folded position.
3. Utilize the integrated transport rollers to move the folded treadmill to your desired storage location.
4. To unfold, gently release the locking mechanism and lower the running deck until it is flat on the floor.

8. Solució De Problemes

Si teniu problemes amb la cinta de córrer, consulteu les solucions habituals següents:

• La cinta de córrer no s'encén: Check if the power cord is securely plugged into a working outlet. Ensure the safety key is correctly placed on the console.
• Running belt stops unexpectedly: Verify that the safety key is still attached to your clothing and properly seated on the console.
• Running belt slips or is off-center: The belt may require adjustment. Refer to the maintenance section or contact customer support for detailed instructions.
• Sorolls inusuals: Stop the treadmill immediately and inspect for any obstructions or loose parts. If the noise persists, discontinue use and contact customer support.

For issues not covered here, please contact vannect customer support.

9. Especificacions

10. Garantia i Suport

For warranty information, technical support, or any inquiries regarding your vannect X420S Folding Treadmill, please refer to the contact details provided with your purchase documentation or visit the official vannect weblloc.
