PRORUN 60V 22-Inch Cordless Snow Blower Instruction Manual

Introducció

Thank you for choosing the PRORUN 60V 22-Inch Cordless Snow Blower. This manual provides essential information for the safe assembly, operation, and maintenance of your snow blower. Please read these instructions thoroughly before use and retain for future reference.

Informació important de seguretat

Operating any power equipment can be dangerous. Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.

• Always keep hands and feet away from the auger.
• Wear appropriate protective clothing, including gloves and eye protection, when operating the snow blower.
• Guardeu les piles en un lloc fresc i sec quan no les utilitzeu.
• Ensure the work area is clear of debris and obstacles before operation.
• No feu servir la màquina llevaneu en pendents pronunciats.
• Never direct discharge towards people or property.

Què hi ha a la caixa

Your PRORUN 60V 22-Inch Cordless Snow Blower package includes the following components:

• PRORUN 60V 22-Inch Cordless Snow Blower Unit
• (2) Bateries 5.0Ah 60V
• (2) Battery Chargers
• Manual d'instruccions

Image: The PRORUN 60V 22-Inch Cordless Snow Blower, accompanied by two 60V 5.0Ah batteries and their respective chargers, illustrating the complete package contents.

Característiques clau

• Motor sense escombretes: High-efficiency brushless motor for maximized performance and extended lifespan.
• Temps d'execució estès: Up to 30 minutes of runtime, capable of clearing a 10-car driveway on a single charge with included batteries.
• Rendiment potent: Delivers a 22-inch clearing width and 8-inch clearing depth, throwing snow up to 45 feet in the chosen direction.
• Auger-Assist Drive: Self-propels at variable speeds up to 2.7 mph forward or 1 mph in reverse, featuring an Eco Mode for longer runtime.
• Intelligent Power System: Dual battery ports accept all PRORUN 60V battery types and include auto switchover between batteries for continuous operation.
• Emmagatzematge fàcil: Handle folds in seconds and includes a shutoff switch for safe and compact storage.
• Fars LED: Integrated LED headlights for improved visibility during early morning or late evening operation.
• Controls intuïtius: Dual control handles, instant starting, LED lights switch, and a convenient personal speed setting dial.

Image: Detailed diagram of the PRORUN snow blower highlighting key components such as the battery compartment, 180° remote chute rotation adjustment lever, control console, aluminum handles, handle release mechanism, LED headlights, steel augers, and steel auger housing.

Image: The PRORUN snow blower in action, demonstrating its snow-clearing capabilities, including a throwing distance of up to 45 feet, powered by a high-efficiency brushless motor, with a 22-inch clearing width and 8-inch clearing depth, and a runtime of up to 30 minutes.

Imatge: Un primer pla view of the rugged steel augers of the PRORUN snow blower, engineered for effectively breaking up heavy, wet snow and ice.

Imatge: Una imatge detallada view of the LED headlights integrated into the PRORUN snow blower, designed to enhance visibility during snow clearing operations in low-light conditions.

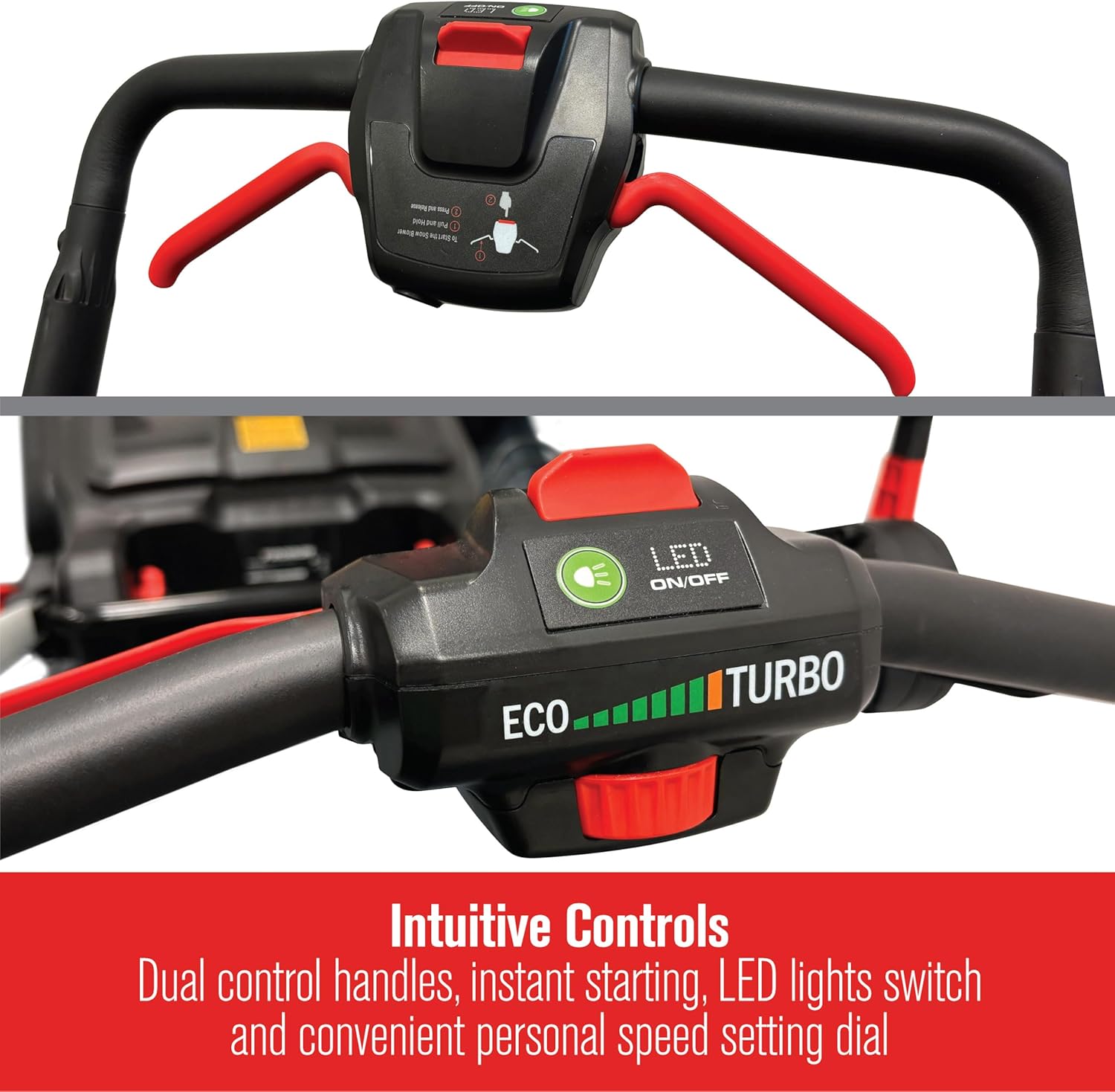

Image: Close-up of the intuitive control panel on the PRORUN snow blower, featuring dual control handles, an instant start button, an LED lights switch, and a dial for adjusting speed settings.

Muntatge i muntatge

Muntatge del mànec

The handle of the PRORUN snow blower is designed for quick assembly and compact storage. To set up the handle for operation:

1. Unfold the handle from its storage position.
2. Secure the handle in the upright operating position using the provided fasteners or quick-release levers. Ensure it clicks securely into place.
3. Connect any electrical cables running along the handle, if applicable, ensuring they are not pinched.

Instal·lació de la bateria

Your snow blower uses two 60V 5.0Ah batteries. Ensure batteries are fully charged before first use.

1. Obriu la tapa del compartiment de la bateria.
2. Align the battery with the battery port and slide it in until it clicks into place.
3. Repetiu el procés per a la segona bateria.
4. Tanqueu bé la tapa del compartiment de la bateria.

Image: A close-up of the handle release lever on the PRORUN snow blower, which facilitates folding the handle for compact storage and transport.

Instruccions de funcionament

Engegant el bufador de neu

1. Ensure both batteries are fully charged and correctly installed.
2. Premeu i manteniu premut el botó de seguretat del mànec.
3. While holding the safety button, pull the bail switch towards the handle to start the motor.
4. Deixeu anar el botó de seguretat un cop el motor estigui en marxa.

Adjusting Chute Direction

Use the 180° remote chute rotation adjustment lever located on the control console to direct the snow discharge. Rotate the lever to change the direction of the snow throw.

Using Auger-Assist Drive

The snow blower features an auger-assist drive system. To engage, simply push the snow blower forward. The auger's rotation will help propel the unit. Adjust your walking speed to match the snow conditions and the unit's propulsion.

Mode Eco

For lighter snow conditions or to extend battery runtime, activate the Eco Mode via the control panel. This reduces power consumption while still providing effective clearing.

Aturant el bufador de neu

Release the bail switch to stop the motor and auger rotation. The unit will automatically shut off.

Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la màquina llevaneu.

• Neteja: After each use, clear any snow or ice from the auger housing, chute, and exterior surfaces. Use a soft brush or cloth. Never use water directly on electrical components.
• Cura de la bateria: Always store batteries in a cool, dry place. Charge batteries fully before long-term storage.
• Inspecció de la barrena: Periodically inspect the auger for wear or damage. Replace worn auger blades as needed.
• Emmagatzematge: Fold the handle for compact storage. Store the snow blower in a dry, protected area away from direct sunlight and moisture.

Resolució de problemes

Especificacions

• Número de model: PSB160SS
• Font d'alimentació: Funciona amb bateria (60 V)
• Tipus de motor: Elèctric sense escombretes
• Amplada de neteja: 22 polzades
• Profunditat de neteja: 8 polzades
• Distància de llançament: Fins a 45 peus
• Tipus de bateria: (2) 5.0Ah 60V Lithium-Ion
• Temps d'execució aproximat: Up to 30 minutes (with included batteries)
• Auger-Assist Drive Speed: Up to 2.7 mph forward, 1 mph reverse
• Dimensions del producte: 134.11 x 63.75 x 103.38 cm
• Pes de l'article: 38.1 kg

Garantia i Suport

PRORUN offers the following limited warranties for this product:

• Residential Limited Warranty: 3 Anys
• Commercial Limited Warranty: 1 any

For warranty claims, technical support, or replacement parts, please contact PRORUN customer service. Refer to your purchase documentation for specific contact details or visit the official PRORUN weblloc.
