Manual d'usuari de l'arrencador de bateria portàtil AVAPOW 8000A

Introducció

The AVAPOW 8000A Portable Battery Jumper Starter is a versatile device designed to jump-start 12V vehicles, including cars, trucks, SUVs, RVs, motorcycles, and boats. It features a high peak current for quick starts, smart clamps with multiple safety protections, a 4-inch HD display for real-time feedback, and dual-way fast charging capabilities. This manual provides essential information for safe and effective use, maintenance, and troubleshooting.

Característiques del producte

• Real 8000A Peak Current: Capable of starting 12V vehicles in just 3 seconds, suitable for all gas engines and diesel engines up to 10L. Built with top-grade ternary lithium cells and a durable ABS+PC casing for extreme conditions.
• Safe & Easy Smart Clamps: Features exclusive built-in jump clamps and an advanced Battery Management System (BMS) with 12 layers of protection, including overcurrent, short-circuit, and reverse polarity.
• 4" Smart HD Display: Provides real-time feedback on battery level, charging status, clamp status, and error alerts for clear operation.
• PD 30W Dual-Way Fast Charging: Offers quick charging for the unit itself and can power external devices via USB-C and USB-A outputs.
• Llum LED integrada: Includes an LED light for illumination during nighttime or low-light situations.

Contingut del paquet

The AVAPOW 8000A Jumper Starter package typically includes the following items:

• AVAPOW 8000A Jumper Starter Unit
• Smart Jumper Clamps
• Cable de càrrega USB-C
• 12V DC Output Adapter (Cigarette Lighter Socket)
• Manual d'usuari
• Estoig d'emmagatzematge

The image above displays the complete package contents, including the main jumper starter unit, the smart jumper clamps, a USB-C charging cable, a 12V DC output adapter, and a protective carrying case. The user manual is also included for detailed instructions.

Producte acabatview

Familiarize yourself with the various components and ports of your AVAPOW 8000A Jumper Starter.

• Botó d'encesa: Used to turn the unit on/off and activate the LED light.
• USB-C Input/Output (PD 30W Max): For charging the jumper starter and for fast charging compatible external devices.
• USB-A Output (5V/3A, 9V/2A, 12V/1.5A): Per carregar telèfons intel·ligents, tauletes i altres dispositius alimentats per USB.
• Sortida de CC (12V/10A): For powering 12V accessories using the provided adapter.
• Port de sortida EC5: Connects to the smart jumper clamps per a l'arrencada auxiliar del vehicle.
• Llum LED: Provides illumination with multiple modes (steady, SOS, strobe).
• 4-Inch Smart Display: Mostra el percentatge de bateriatage, charging status, clamp status, and error indicators.

The smart display features color-coded indicators for battery level (Green: 100%-60%, Orange: 60%-20%, Red: 20%-0%), charging (IN), powering external devices (OUT), activation start (READY), forced start, and fault detection.

Configuració i càrrega

Before first use, fully charge the AVAPOW 8000A Jumper Starter. It is recommended to keep the unit charged above 50% for optimal performance and longevity.

1. Connect the USB-C charging cable to the USB-C Input/Output port on the jumper starter.
2. Connect the other end of the USB-C cable to a compatible PD 30W wall adapter (not always included) or a car charger.
3. The 4-inch smart display will show "IN" and the battery level will increase as it charges.
4. Charging time is approximately 3-6 hours with a 5V/3A Type-C input.

Ensure the device is charged to at least 50% before attempting to jump-start a vehicle.

Instruccions de funcionament

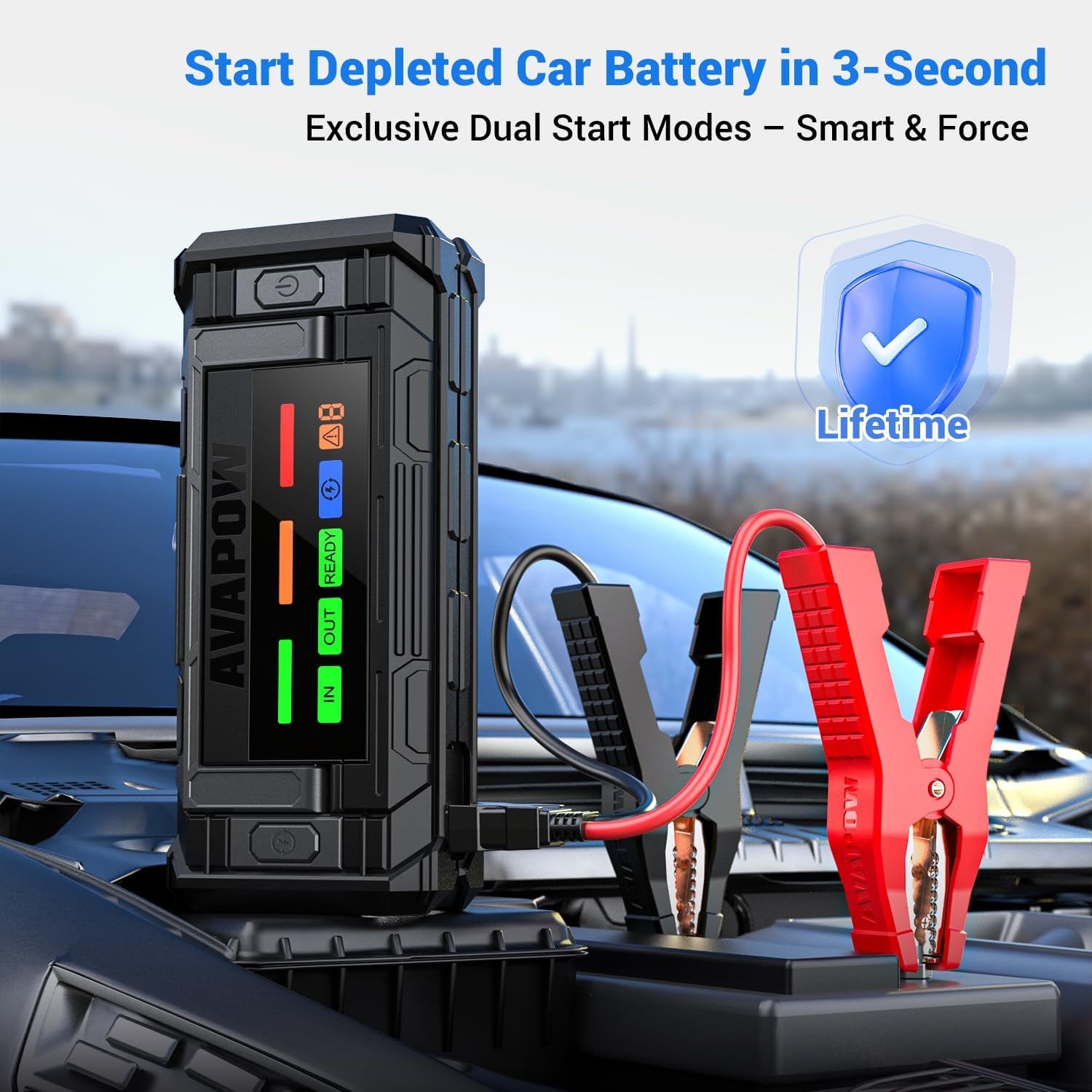

1. Normal Jump Start Procedure

1. Ensure the jumper starter unit is charged above 50%.
2. Inseriu el cl del pont intel·ligentamps into the EC5 output port on the jumper starter. The display will show a blue light indicating standby.
3. Connecteu el VERMELL clamp al terminal positiu (+) de la bateria del vehicle.
4. Connecteu el NEGRE clamp al terminal negatiu (-) de la bateria del vehicle.
5. Once connected correctly, the smart display will show a green light ("READY"), indicating it's safe to start the vehicle.
6. Engega el motor del teu vehicle.
7. After the vehicle starts, immediately remove the smart jumper clamps from the vehicle battery, then disconnect them from the jumper starter unit.

2. Force Start Procedure (for completely dead batteries)

If the vehicle battery is completely dead (voltage below 2V) and the "READY" indicator does not light up, you may need to use the Force Start function.

1. Follow steps 1-4 of the Normal Jump Start Procedure to connect the clamps to the battery and the jumper starter.
2. Long-press the "Force Start" button on the smart clamps for 3 seconds until the middle indicator light turns green.
3. Engegueu el motor del vehicle en 30 segons.
4. After the vehicle starts, immediately remove the smart jumper clamps from the vehicle battery, then disconnect them from the jumper starter unit.

3. Ús de la llum LED

The integrated LED light can be used for illumination or as a signal in emergencies.

• Activar/Desactivar: Long-press the power button on the jumper starter for 3 seconds.
• Canvi de modes: Short-press the power button to cycle through modes: Steady On, SOS, Strobe.

Manteniment

• Càrrega regular: Recharge the unit every 3-6 months, even if not used, to maintain battery health.
• Emmagatzematge: Store the jumper starter in a cool, dry place, away from direct sunlight and extreme temperatures.
• Neteja: Feu servir un drap suau i sec per netejar la unitat. No utilitzeu productes químics agressius ni materials abrasius.
• Nivell de bateria: Always ensure the device is at least 50% charged before use.

Resolució de problemes

The smart display and clamps provide indicators for common issues:

If the above solutions do not resolve the issue, please contact AVAPOW customer support.

Especificacions

• Model: TJ58 (8000A Peak Current)
• Inici Voltage: 12 V
• Punt actual: 8000A
• Compatibilitat del motor: Tots els motors de gasolina, fins a motors dièsel de 10L
• Entrada/sortida USB-C: PD 30W (5V/3A, 9V/2A, 12V/1.5A)
• Sortida USB-A: 5V/3A, 9V/2A, 12V/1.5A)
• Sortida de corrent continu: 12V/10A
• Llum LED: 1W Blanc
• Temperatura de funcionament: -10 °C a +60 °C
• Temperatura d'emmagatzematge: -10 °C a +60 °C
• Cicle de vida: > 1000 vegades

Informació de seguretat

• Do NOT start any engines that exceed the maximum displacement the jump starter can bear.
• Do NOT crank the engine for more than 3 seconds.
• Allow the jump starter to cool down for at least 1 minute between each starter attempt.
• Ensure the device is at least 50% charged before use.
• Do NOT attempt to jump start vehicles with a higher battery rating or different voltagmés de 12V.
• NO utilitzeu el clamps in an environment full of flammable gas.
• Mantenir fora de l'abast dels nens.
• Avoid disassembling the unit.

Garantia i Suport

For warranty information, technical support, or any inquiries regarding your AVAPOW 8000A Jumper Starter, please refer to the contact details provided in your product packaging or visit the official AVAPOW weblloc. Conserveu el rebut de compra per a reclamacions de garantia.
