GOWENIC Drain Auger Cable Instruction Manual

Model: GOWENICk8i5nv9spd-11 (3 Meters / 9.84ft)

1. Producte acabatview

The GOWENIC Drain Auger Cable is a robust and flexible tool designed for effectively clearing blockages in various drainage systems. Constructed from high-quality manganese steel with a spring steel wire, it offers excellent flexibility and durability, resisting breakage and cracking. Its unique spring design allows for easy navigation through curved pipes and P-traps, making it suitable for a wide range of applications from bathroom sinks to kitchen drains.

GOWENIC Drain Auger Cable coiled, showing its flexible manganese steel construction.

Image: The GOWENIC Drain Auger Cable coiled, illustrating its flexible and durable manganese steel construction.

Característiques principals:

2. Especificacions

CaracterísticaDetall
MaterialManganese Steel
Diàmetre de la mollaAprox. 16 mm / 0.6 polzades
Longitud3 Meters / 9.84ft
Pes de l'article395 g
Número de modelGOWENICk8i5nv9spd-11
FabricantGOWENIC
País d'origenXina
Close-up of the drain auger cable showing the 16mm spring diameter.

Imatge: Un primer pla view of the drain auger cable, highlighting its approximate 16mm spring diameter.

3. Configuració

Before using the GOWENIC Drain Auger Cable, ensure you have adequate lighting and protective gear. Always wear gloves to protect your hands from debris and potential contaminants.

  1. Inspeccioneu la zona: Identify the drain opening and assess the type of blockage if possible. Remove any drain covers or stoppers.
  2. Prepare the Auger: Uncoil a sufficient length of the drain auger cable to reach the suspected blockage.
  3. Utilitzeu equip de protecció: Always wear sturdy gloves and eye protection to prevent injury from debris or splashing water.

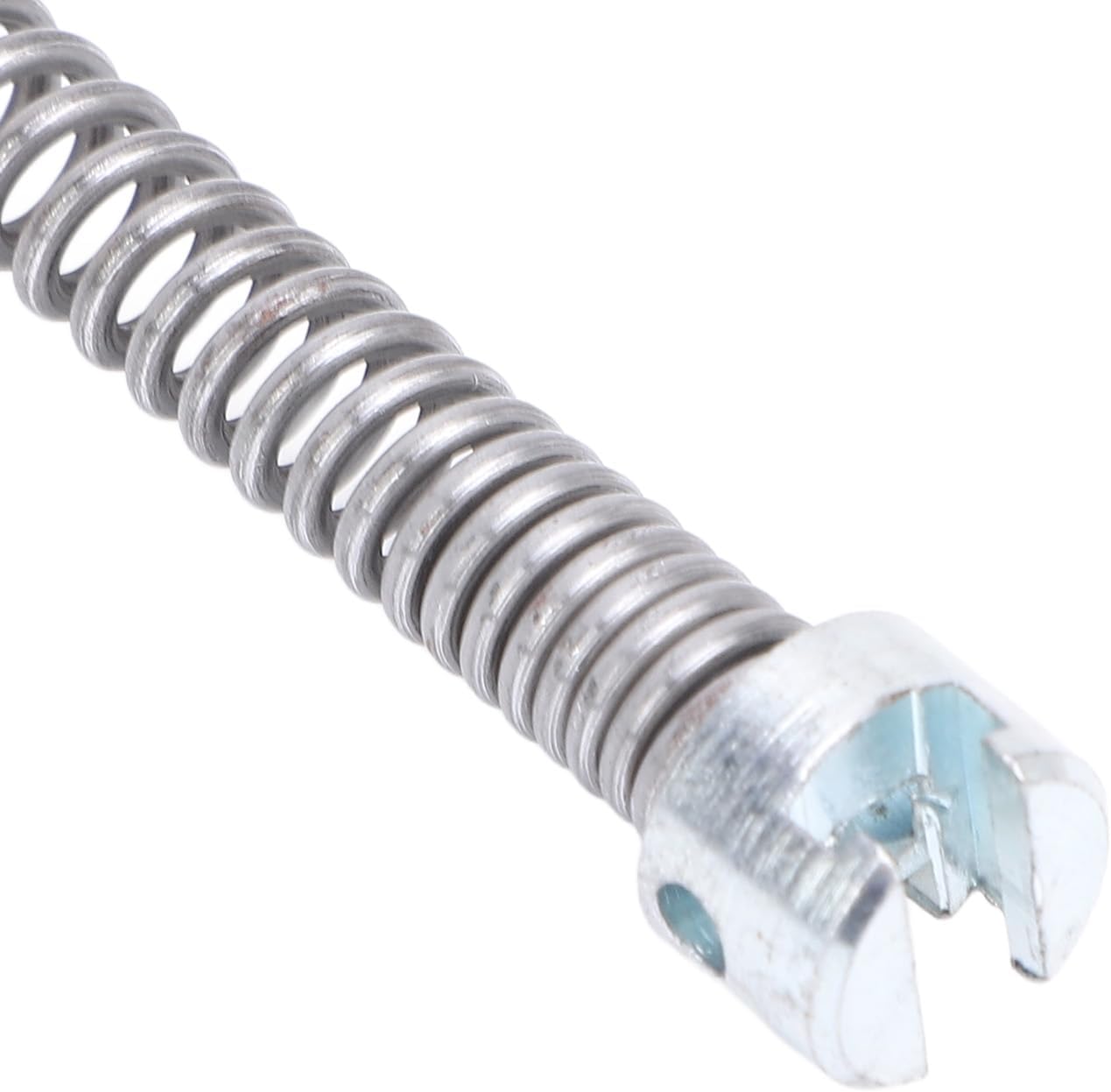

Close-up of the GOWENIC Drain Auger Cable's extendable claw head.

Imatge: Una imatge detallada view of the drain auger's extendable claw mechanism, designed to effectively grasp and remove blockages.

4. Instruccions de funcionament

Follow these steps to effectively clear drain blockages using your GOWENIC Drain Auger Cable:

  1. Inseriu el cable: Carefully feed the auger cable into the drain opening. Push it slowly until you feel resistance, indicating the blockage.
  2. Navigate Bends: When encountering bends, gently rotate the cable while pushing to help it navigate through the pipe's curves. The flexible spring design assists in this process.
  3. Engage the Blockage: Once you reach the blockage, push and pull the cable repeatedly, and rotate it to allow the claw end to break up or hook onto the obstruction.
  4. Retrieve the Blockage: Once the blockage is engaged, slowly pull the cable back, carefully extracting the debris from the drain.
  5. Flush the Drain: After removing the blockage, run hot water down the drain for several minutes to flush away any remaining debris and ensure the pipe is clear.
  6. Repetiu si cal: If the drain is still slow or blocked, repeat the process until the water flows freely.
GOWENIC Drain Auger Cable coiled, demonstrating its flexibility for navigating pipes.

Image: The flexible, coiled design of the drain auger cable, illustrating its ability to bend and maneuver through various pipe configurations.

5. Manteniment

Proper maintenance ensures the longevity and effectiveness of your drain auger cable.

6. Solució De Problemes

If you encounter issues while using your drain auger cable, consider the following:

7. Garantia i Suport

GOWENIC products are manufactured to high-quality standards. For any questions, concerns, or support regarding your Drain Auger Cable, please contact GOWENIC customer service or visit our official store.

Official GOWENIC Store: Visit GOWENIC Store on Amazon
