1. Introducció
Thank you for choosing the SIXTHGU S2102 Portable Power Bank. This device is designed to provide reliable and fast charging for your electronic devices on the go. With its 20000mAh capacity and advanced charging technologies, it ensures your smartphones, tablets, and other gadgets remain powered throughout your day. Please read this manual carefully to understand the product's features, operation, and safety guidelines.
2. Informació de seguretat
To ensure safe operation and prolong the lifespan of your power bank, please observe the following safety precautions:
- No exposeu el banc d'energia extern a temperatures extremes (superiors a 60 °C/140 °F o inferiors a 0 °C/32 °F), a la llum solar directa ni al foc.
- Avoid dropping, disassembling, or attempting to repair the device yourself. This may cause damage or injury.
- Mantingueu el banc d'energia allunyat de l'aigua, la humitat i els materials corrosius.
- Feu servir només cables i adaptadors de càrrega certificats.
- No utilitzeu el banc d'energia extern si està visiblement danyat, inflat o té fuites.
- Mantenir fora de l'abast dels nens.
- Desfeu-vos del banc d'energia de manera responsable d'acord amb la normativa local.
3. Contingut del paquet
Si us plau, comproveu el paquet per veure si hi ha els elements següents:
- SIXTHGU S2102 20000mAh Portable Power Bank
- Cable de càrrega USB-C
- Manual d'usuari (aquest document)
4. Producte acabatview
The SIXTHGU S2102 features a compact design with multiple ports for versatile charging. Below is an illustration of the power bank and its key components.

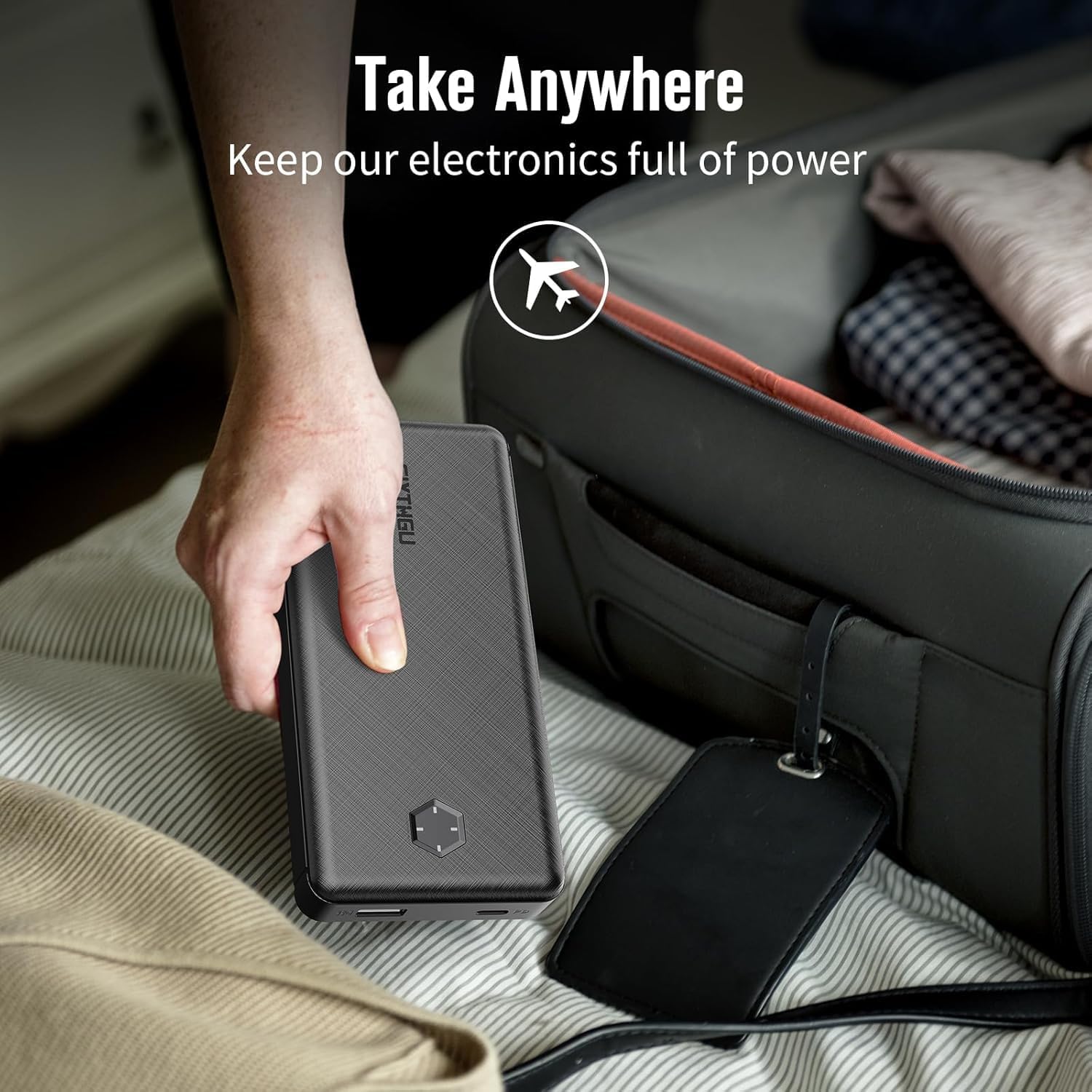

Imatge: Frontal view of the SIXTHGU S2102 Portable Power Bank in Apricot color, showcasing el seu disseny elegant.
Imatge: Primer pla view of the SIXTHGU S2102 Power Bank's ports, including USB-A output and USB-C input/output.
Els components clau inclouen:
- Port USB-C (entrada/sortida): Supports Power Delivery (PD) 20W for fast charging compatible devices and rapid recharging of the power bank.
- USB-A Port (Output): Supports Quick Charge (QC) 3.0 for fast charging compatible Android devices.
- Indicador LED: Displays the remaining battery level and charging status.
5. Configuració
Before first use, it is recommended to fully charge your SIXTHGU S2102 Portable Power Bank.
- Connecteu el cable USB-C proporcionat al port USB-C del banc d'alimentació.
- Connect the other end of the USB-C cable to a compatible USB wall charger (not included). For optimal charging speed, use a PD-compatible wall charger.
- The LED indicator will show the charging progress. The power bank is fully charged when the indicator shows 100% or all segments are lit.
6. Instruccions de funcionament
6.1. Càrrega dels vostres dispositius
The SIXTHGU S2102 can charge two devices simultaneously using its USB-A and USB-C output ports.
Image: The power bank connected to and charging two smartphones simultaneously, demonstrating its dual output capability.
- Connecta el cable de càrrega del dispositiu al port de sortida corresponent del banc d'alimentació (USB-A o USB-C).
- Connecteu l’altre extrem del cable al dispositiu.
- The power bank will automatically begin charging your device. The LED indicator will show the power bank's remaining charge.
Compatibilitat de càrrega ràpida:
- PD 20W (USB-C Output): Optimized for newer devices like iPhone 12/13/14/15/16 series, iPad, and other USB-C compatible devices. Can charge an iPhone up to 50% in approximately 30 minutes.
- QC 3.0 (USB-A Output): Provides rapid charging for compatible Android phones such as Samsung Galaxy and Google Pixel.
Image: An iPhone 12 connected to the power bank, illustrating the fast charging capability of reaching 50% charge in 30 minutes.
6.2. Recarregar el banc d'energia extern
To recharge the SIXTHGU S2102, use the USB-C input port.

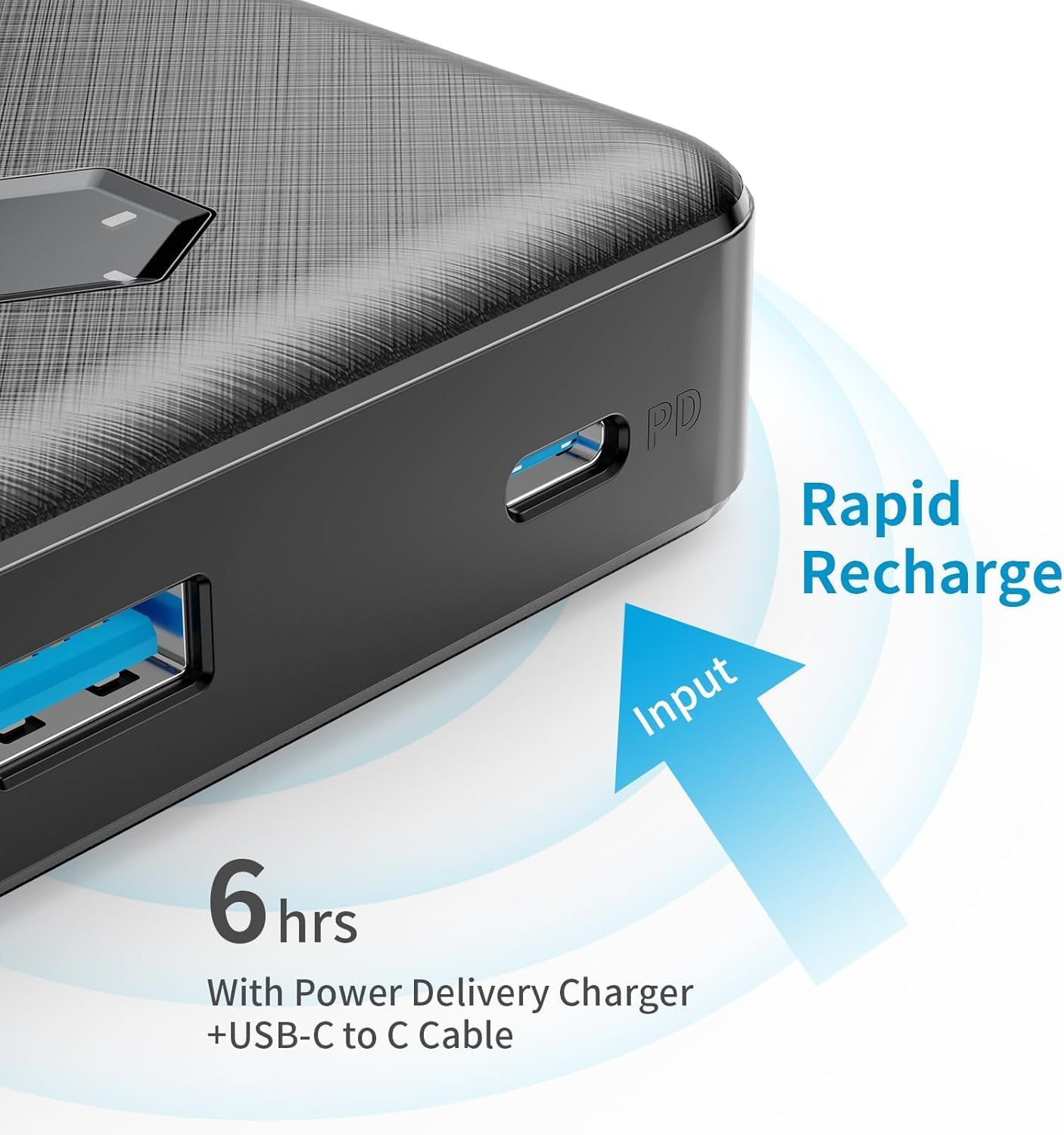

Image: A close-up of the power bank highlighting the USB-C input port and indicating a rapid recharge time of 6 hours with a PD charger and USB-C to C cable.
- Connecteu el cable USB-C proporcionat al port USB-C del banc d'alimentació.
- Connect the other end of the USB-C cable to a compatible USB wall charger. For the fastest recharge (approximately 6 hours), use a Power Delivery (PD) compatible charger.
- The LED indicator will show the charging status. Once fully charged, disconnect the power bank from the charger.
7. Manteniment
- Netegeu el banc d'energia amb un drap suau i sec. No utilitzeu productes químics agressius ni materials abrasius.
- Guardeu el banc d'energia en un lloc fresc i sec quan no l'utilitzeu.
- If storing for an extended period, recharge the power bank every 3-6 months to maintain battery health.
- Avoid placing heavy objects on the power bank.
8. Solució De Problemes
| Problema | Possible solució |
|---|---|
| El banc d'energia no carrega els dispositius. |
|
| El banc d'energia no es carrega. |
|
| Velocitat de càrrega lenta. |
|
9. Especificacions
| Característica | Detall |
|---|---|
| Número de model | S2102 |
| Capacitat de la bateria | 20000 milionsamp Hores (mAh) |
| Dimensions del producte | 5.75 x 2.93 x 0.85 polzades |
| Pes de l'article | 15.2 unces |
| Entrada (USB-C) | PD 20 W màx |
| Sortida (USB-C) | PD 20 W màx |
| Sortida (USB-A) | QC 3.0 Max |
| Característiques especials | Fast Charging, Multiple Safety Protections |
| Fabricant | Shenzhen Vanyust Technology Limited |
10. Garantia i Suport
The SIXTHGU S2102 Portable Power Bank comes with a Garantia de 12 mesos des de la data de compra. Aquesta garantia cobreix els defectes de fabricació i garanteix un rendiment fiable en condicions d'ús normals.
For technical support, warranty claims, or any questions regarding your product, please contact our customer service team. We offer 7-day/24-hour friendly customer service to assist you.
Please refer to your purchase documentation for specific contact details or visit the official SIXTHGU weblloc web per obtenir informació de suport.
