1. Introducció
This instruction manual provides detailed guidance for the assembly, operation, and maintenance of your chartustriable 68-inch Tall Farmhouse Corner Cabinet, Model SQL-666. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This cabinet is designed to provide efficient storage in various rooms such as kitchens, bathrooms, living rooms, and dining rooms, utilizing corner spaces effectively.
Image 1.1: The chartustriable 68-inch Tall Farmhouse Corner Cabinet, fully assembled and placed in a kitchen setting.
2. Informació de seguretat
AVÍS: Si no es segueixen aquestes instruccions de seguretat, es poden produir lesions o danys al producte.
- Always secure the cabinet to the wall using the provided anti-tip device to prevent tipping and potential injury.
- Do not overload the cabinet as it may cause instability or tipping.
- Ensure all screws and fasteners are tightened securely during assembly. Periodically check for tightness.
- Mantingueu les peces petites fora de l'abast dels nens durant el muntatge per evitar riscos d'asfíxia.
- Munta el moble sobre una superfície suau i neta per evitar ratllades.
Imatge 2.1: Detall view highlighting the anti-falling accessory for wall mounting, adjustable shelves, and metal handles.
3. Contingut del paquet
Before beginning assembly, verify that all parts and hardware are present. The package includes all necessary tools and accessories for assembly. If any parts are missing or damaged, please contact customer support.
- Cabinet panels (numbered)
- Hardware pack (screws, dowels, hinges, handles, anti-tip kit)
- Manual d'instruccions de muntatge
4. Instruccions de muntatge i instal·lació
Assembly is required for this product. It is recommended to have two people for certain steps. Each part and accessory is marked with a number. Follow the provided illustrations in the included manual for precise assembly. A Phillips head screwdriver (not included) is required.
4.1 Comprovacions prèvies al muntatge
- Deixeu una zona espaiosa per al muntatge.
- Lay out all components on a soft, clean surface to prevent damage.
- Identify all numbered parts and hardware according to the parts list.
Image 4.1: Dimensional diagram of the cabinet, showing overall height (68 inches) and width (28.3 inches).
4.2 Passos de muntatge (General Over)view)
- Muntar la base: Connect the bottom panels and side supports using the designated hardware.
- Fixeu els panells posteriors: Secure the back panels to the assembled base.
- Instal·leu prestatgeries: Insert the fixed shelves into their respective slots.
- Muntar la secció superior: Construct the upper cabinet section similarly to the base.
- Unir seccions: Carefully align and secure the upper section onto the lower section.
- Fixar portes: Mount the four barn-style doors using the provided hinges. Ensure proper alignment for smooth operation.
- Instal·leu les nanses: Fixeu les nanses metàl·liques a les portes.
- Secure Anti-Tip Device: Fasten the anti-tip device to the top rear of the cabinet and then to a wall stud. This step is crucial for safety.
Image 4.2: Illustration of the four barn-style doors, indicating their placement on the cabinet.
5. Instruccions de funcionament
5.1 Prestatges ajustables
The cabinet features adjustable shelves to accommodate items of various heights. To adjust a shelf:
- Buideu el prestatge de tot el contingut.
- Aixequeu amb cura el prestatge i traieu els passadors del prestatge dels seus forats actuals.
- Torneu a inserir els passadors de la prestatgeria als nous forats desitjats, assegurant-vos que estiguin anivellats.
- Torneu a col·locar el prestatge sobre els passadors, assegurant-vos que estigui estable abans de col·locar-hi objectes.

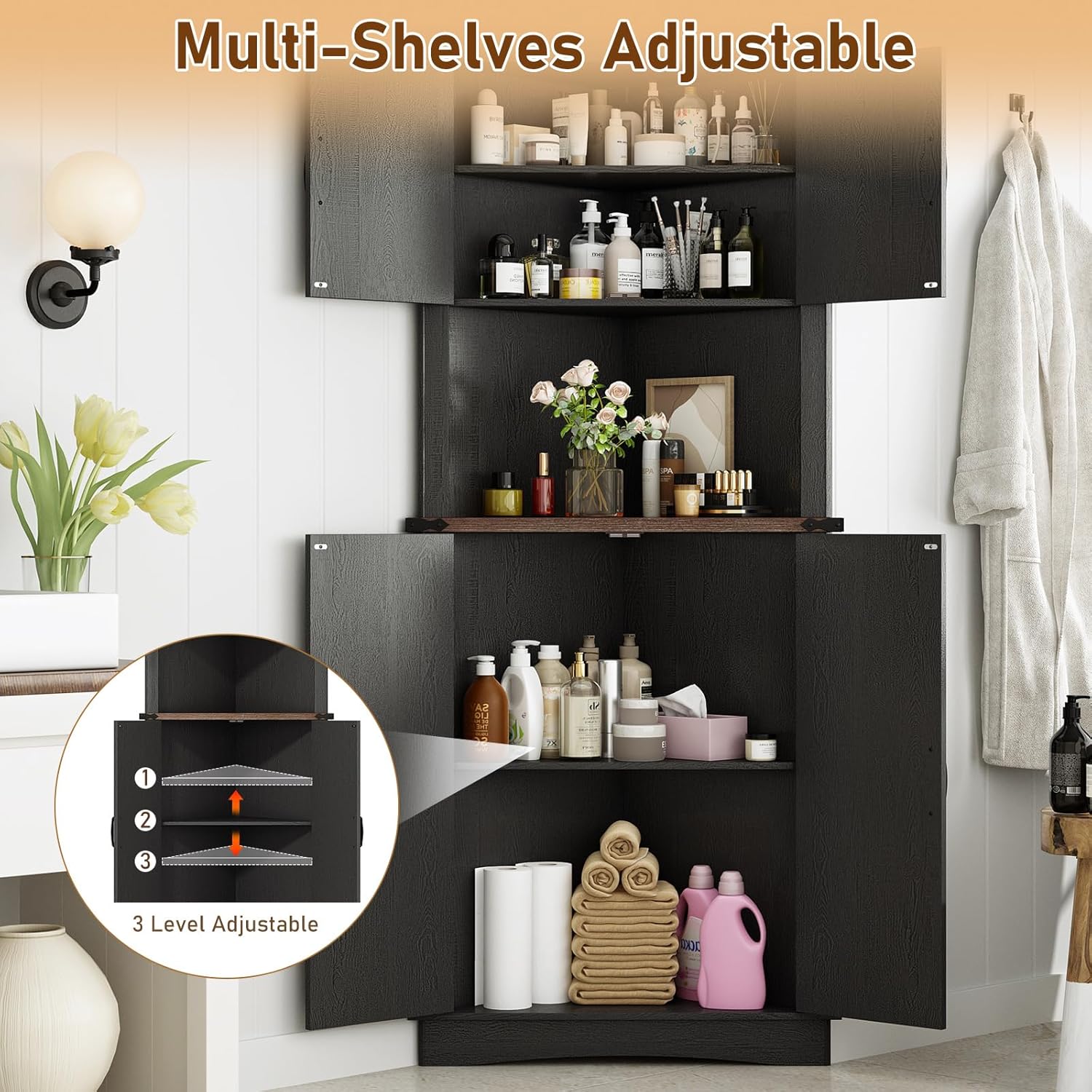

Image 5.1: The adjustable shelves feature, demonstrating how to change shelf height for customized storage.
5.2 Funcionament de la porta
The barn-style doors open and close smoothly. Use the metal handles to open and close the doors. Avoid forcing the doors if they feel stiff; check hinges for any obstructions or misalignment.
6. Manteniment
- Neteja: Netegeu les superfícies amb un suau, damp drap. Eviteu netejadors abrasius o productes químics agressius que puguin danyar l'acabat.
- Maquinari: Periodically check all screws and fasteners to ensure they remain tight. Tighten as necessary to maintain stability.
- Medi ambient: Avoid placing the cabinet in direct sunlight or near heat sources to prevent material warping or discoloration. Maintain a stable humidity level.
7. Solució De Problemes
- Armari inestable: Ensure all screws are fully tightened. Verify the cabinet is placed on a level surface. Adjust leg levelers if applicable.
- Portes no alineades: Check hinge adjustments. Loosen hinge screws slightly, adjust door position, and re-tighten. Ensure the cabinet itself is level.
- Peces que falten: If any parts were missing upon unboxing, refer to the contact information in Section 9 for assistance.
8. Especificacions
| Característica | Detall |
|---|---|
| Marca | cartustriable |
| Nom del model | SQL-666 |
| Dimensions del producte | 20 "P x 28.3" W x 68" H |
| Color | Negre |
| Material | Fusta d'enginyeria |
| Característica especial | Prestatgeria ajustable |
| Tipus de muntatge | Wall Mount (with anti-tip device) |
| Nombre de prestatgeries | 5 (including 1 open compartment and 4 hidden) |
| Pes de l'article | 60 lliures |
| Muntatge obligatori | Sí |
9. Garantia i Suport
For warranty information or customer support, please refer to the documentation included with your purchase or contact chartustriable directly through their official website or the retailer where the product was purchased. Please have your model number (SQL-666) and purchase date available when contacting support.
For additional assistance, you may visit the chartustriable store online: Botiga chartustriable
