1. Introducció
This manual provides comprehensive instructions for the safe and efficient installation, operation, and maintenance of your HumsiENK 48V 100AH LiFePO4 Lithium Battery. This 5.12kWh wall-mounted energy storage system is designed to provide reliable power for various applications. Please read this manual thoroughly before installation and use, and retain it for future reference.
1.1 Informació de seguretat
- Llegeix totes les instruccions: Before operating the battery, read and understand all safety warnings and operating instructions in this manual.
- Personal qualificat: La instal·lació i el manteniment només els ha de dur a terme personal qualificat.
- Eviteu curtcircuits: No curtcircuiteu els terminals de la bateria.
- Ventilació adequada: Ensure adequate ventilation around the battery during operation.
- Temperatura: Feu funcionar la bateria dins del rang de temperatura especificat.
- Sense desmuntatge: Do not attempt to disassemble, repair, or modify the battery. This can cause serious injury and voids the warranty.
- Emergència: In case of fire, use a Class D fire extinguisher. Do not use water.
2. Contingut del paquet
Upon unpacking, please verify that all items listed below are present and undamaged. If any items are missing or damaged, contact your supplier immediately.
- HumsiENK 48V 100AH LiFePO4 Lithium Battery Unit
- Battery Cells (pre-installed within the unit)
- Manual d'usuari (aquest document)
- Ferramenteria de muntatge (si escau, comproveu l'embalatge)
- Communication cables (if applicable, check packaging)
3. Característiques del producte
The HumsiENK 48V 100AH LiFePO4 Lithium Battery offers advanced features for reliable energy storage:
- Alta capacitat: 48V 100AH LiFePO4 battery provides 5.12kWh of reliable energy storage.
- Disseny de paret: Space-saving and convenient for home or commercial installations.
- BMS integrat: Built-in Battery Management System for optimal performance, protection, and monitoring.
- Llarga vida útil: Designed for a long cycle life, offering extended reliability.
- Escalabilitat: Supports connection in series or parallel for increased voltage or capacity (refer to specifications for limits).
- Visualització informativa: Features a display for monitoring battery status, including State of Charge (SOC), voltage, corrent i temperatura.

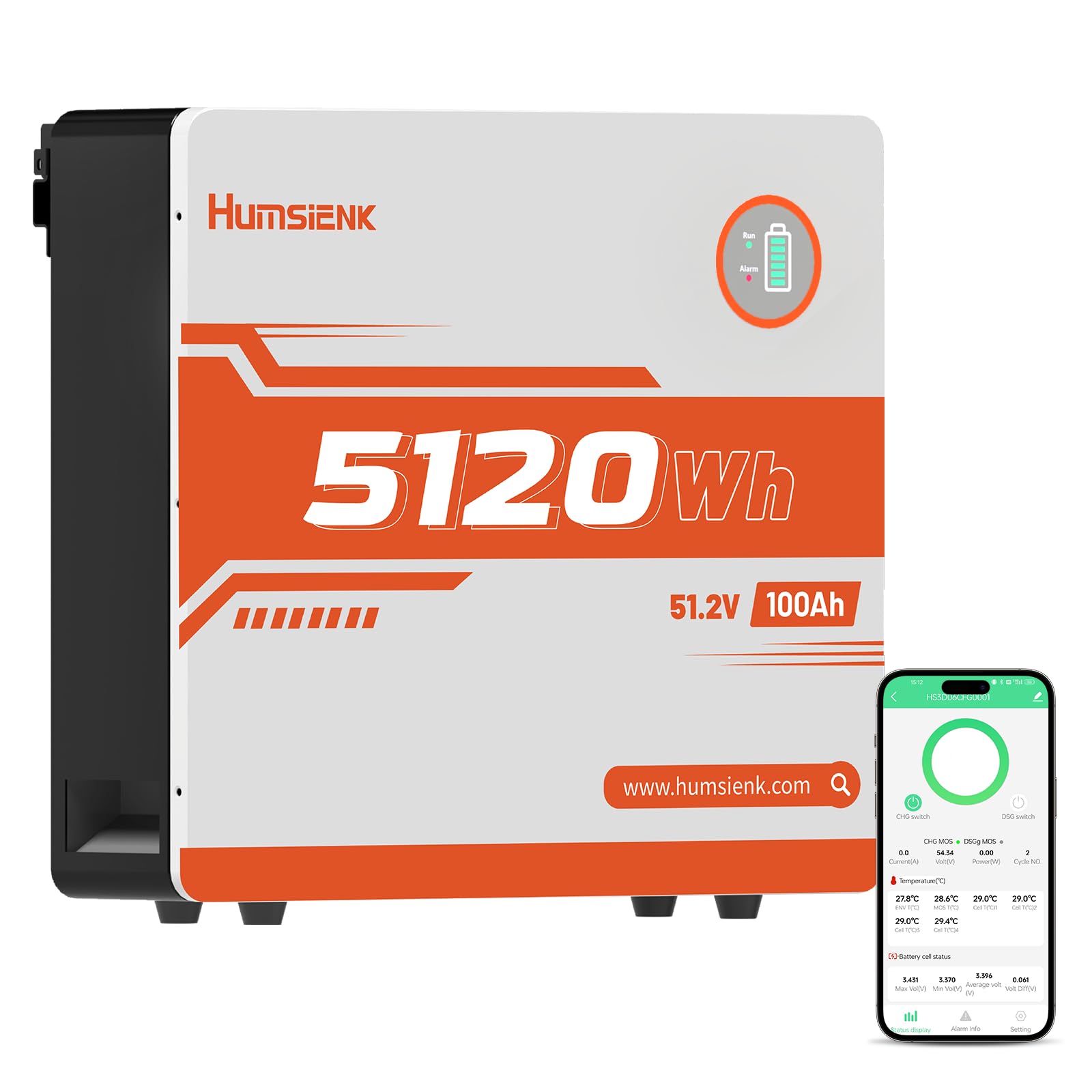

Figura 1: Frontal view of the HumsiENK 48V 100AH LiFePO4 Lithium Battery. This image shows the compact, wall-mountable design of the energy storage system.
4. Configuració i instal·lació
4.1 Selecció del lloc
- Trieu una zona fresca, seca i ben ventilada.
- Avoid direct sunlight, heat sources, and flammable materials.
- Ensure the mounting surface can support the battery's weight (refer to specifications).
- Maintain adequate clearance around the battery for air circulation and maintenance.
4.2 Muntatge a la paret
- Mark the drilling points on the wall using the provided mounting template (if included).
- Perfora forats i insereix els ancoratges de paret adequats.
- Secure the mounting bracket (if separate) to the wall.
- Carefully lift and attach the battery unit to the mounting bracket/wall, ensuring it is securely fastened.
4.3 Connexions elèctriques
Before making any electrical connections, ensure the battery's ON/OFF switch is in the OFF position and all connected equipment is powered down.
- Positive (+) and Negative (-) Terminals: Connect the positive terminal of the battery to the positive input of your inverter/charger, and the negative terminal to the negative input. Use appropriately sized cables and ensure connections are tight.
- Communication Ports (RS485, CAN, RS232): Connect the battery to your inverter or monitoring system using the appropriate communication cables. Refer to your inverter's manual for specific connection details.
- Posada a terra: Ensure the battery system is properly grounded according to local electrical codes.
4.4 Engegada inicial
- Double-check all electrical connections for correctness and tightness.
- Turn on the battery's ON/OFF switch. The display should illuminate.
- Observe the battery display for any error messages or warnings.
- Power on your connected inverter/charger and other equipment.
5. Funcionament
5.1 Pantalla i controls
The battery features an integrated LCD display and control buttons (MENU, ENTER, DOWN, ESC) for monitoring and configuration.
Video 1: Introduction to the HumsiENK 51.2V 100Ah LiFePO4 battery. This video demonstrates the physical features, including the connection ports, the integrated display, and navigation through the BMS menu to view parameters like pack voltage, current, temperature, and cell voltage. It also highlights the use of Grade A Gotian cells and the original QR code for authenticity.
- MENÚ: Press to enter the main menu or navigate back.
- ENTRAR: Press to confirm a selection or enter a sub-menu.
- BAIX: Press to scroll through menu options or decrease values.
- ESC: Press to exit a menu or cancel an operation.
5.2 Monitorització de l'estat de la bateria
From the main display, you can view key operational parameters:
- SOC (estat de càrrega): Percenttage de la capacitat restant de la bateria.
- PackV (Pack Voltage): Vol. Totaltage de la bateria.
- Im (Current): Current flowing into or out of the battery.
- Temperatura: Internal battery temperature.
- Cell voltage: Cèl·lula individual voltages (accessible through BMS Status menu).
5.3 Series and Parallel Connection
This battery supports connection in series or parallel to meet higher voltage or capacity requirements. Always consult a qualified electrician for multi-battery installations to ensure proper balancing and safety. Refer to the specifications section for maximum allowable configurations.
6. Manteniment
- Inspecció periòdica: Periodically inspect the battery and its connections for any signs of damage, corrosion, or loose connections.
- Neteja: Keep the battery clean and free from dust and debris. Use a dry, soft cloth for cleaning. Do not use liquid cleaners.
- Control de temperatura: Ensure the operating environment remains within the recommended temperature range to maximize battery life.
- Actualitzacions de firmware: Comproveu el del fabricant website for any available firmware updates for the BMS.
7. Solució De Problemes
Si teniu problemes amb la bateria, consulteu els passos habituals següents per a la resolució de problemes:
| Problema | Causa possible | Solució |
|---|---|---|
| Battery not powering on | ON/OFF switch is off; Loose connections; Low battery voltage | Ensure switch is ON; Check and tighten all cables; Connect to a charger. |
| Sense potència de sortida | Overload protection activated; BMS fault; Inverter issue | Reduce load; Check display for error codes; Consult inverter manual. |
| La pantalla no funciona | Battery is off; Display fault | Ensure battery is ON; Contact support if issue persists. |
| Sorolls o olors inusuals | Error intern; Sobreescalfament | Immediately disconnect power and contact support. |
If the problem persists after attempting these solutions, please contact HumsiENK customer support.
8. Especificacions
| Paràmetre | Valor |
|---|---|
| Marca | HumsiENK |
| Nom del model | 48 V 100 Ah |
| Tipus de bateria | LiFePO4 Liti |
| Volum nominaltage | 48 V (51.19 volts) |
| Capacitat nominal | 100 AH |
| Capacitat energètica | 5.12 kWh |
| Pes de l'article | 99 lliures (45 quilograms) |
| Dimensions del paquet | 55 x 50 x 16 polzades |
| Data de primera disponibilitat | 13 de setembre de 2025 |
| ASIN | B0FR26LZVH |
9. Garantia i Suport
9.1 Informació de la garantia
The HumsiENK 48V 100AH LiFePO4 Lithium Battery typically comes with a 5-year warranty, ensuring peace of mind regarding product quality and performance. This battery is built with Grade A cells, designed for a lifespan of up to 10 years under optimal conditions. Please retain your proof of purchase for warranty claims.
9.2 Atenció al client
For technical assistance, troubleshooting, or warranty inquiries, please contact HumsiENK customer support through the official HumsiENK store on Amazon or via the contact information provided with your purchase documentation.
HumsiENK Official Store: Visit the HumsiENK Store
