De'Longhi PrimaDonna Aromatic ECAM 630.75.TSM Espresso Machine User Manual

Introducció

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your De'Longhi PrimaDonna Aromatic ECAM 630.75.TSM espresso machine. Please read all instructions carefully before using the appliance.

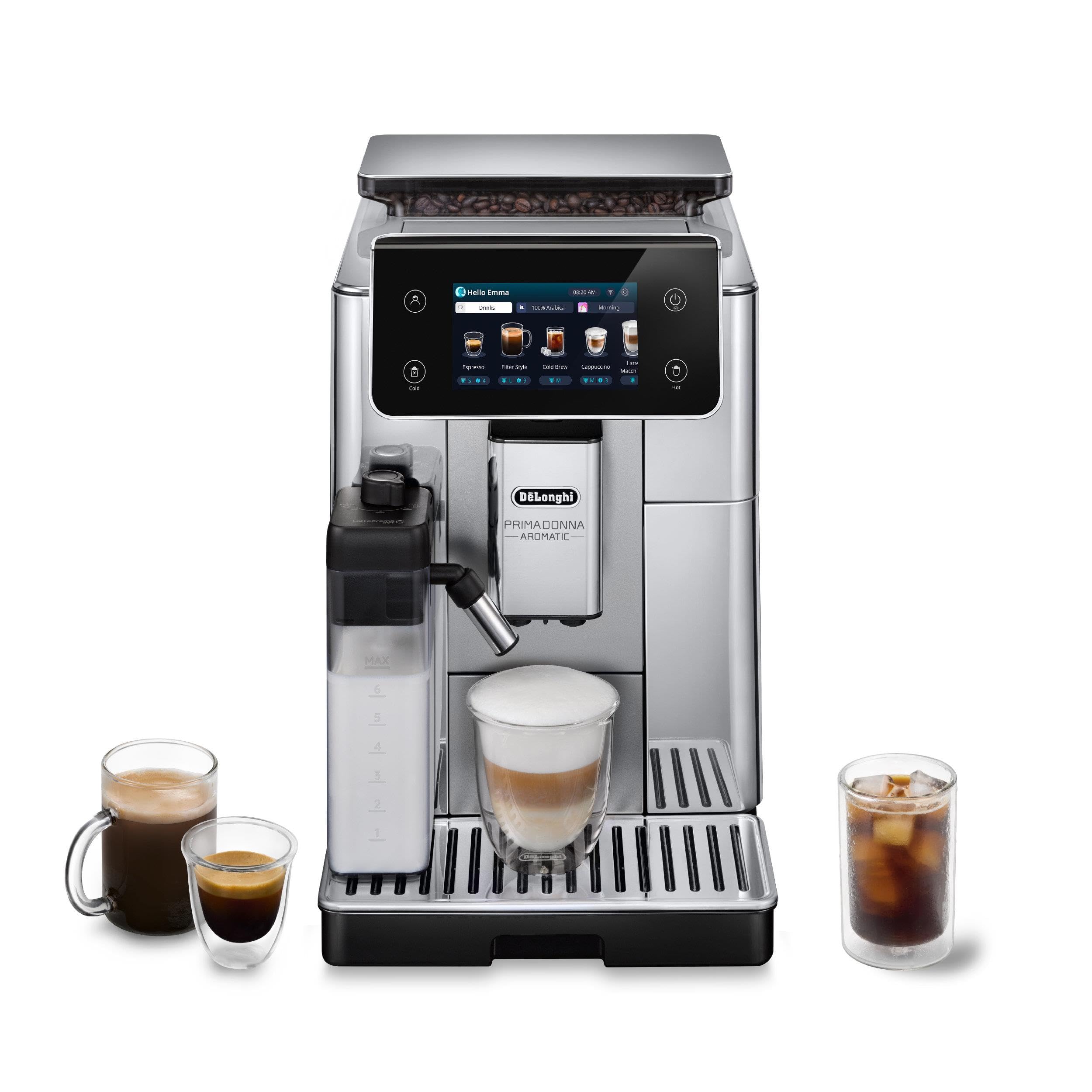

Image: De'Longhi PrimaDonna Aromatic ECAM 630.75.TSM Espresso Machine. This image shows the front view of the espresso machine with its touchscreen display.

Configuració

Unpacking and Initial Preparation

• Carefully remove all packaging materials from the machine and its accessories.
• Col·loqueu la màquina sobre una superfície estable i anivellada.
• Clean the water tank, milk carafe(s), and drip tray with warm water and mild detergent before first use.

Omplint el dipòsit d'aigua

• Remove the 2.2-liter water tank, located on the side of the machine.
• Fill the tank with fresh, cold tap water up to the MAX level.
• Insert the water filter cartridge as instructed in the separate filter manual.
• Return the water tank to its position, ensuring it is securely seated.

Omplint la tremuja de mongetes

• Obriu la tapa de la tremuja de mongetes.
• Pour fresh coffee beans into the hopper, ensuring not to exceed the maximum fill line. The hopper has a capacity of 500g.
• Tanqueu la tapa amb seguretat.

Connexió d'alimentació

• Connecteu el cable d'alimentació a una presa de corrent adequada.
• Engegueu la màquina amb l'interruptor principal.

Accessoris inclosos

The machine comes with the following accessories to enhance your coffee experience:

• 2 Removable Milk Carafes
• Cartutx de filtre d'aigua
• Descaler Solution
• Raspall de neteja
• Measuring Spoon for pre-ground coffee
• Safata de glaçons

Image: Included Accessories. This image displays the various accessories that come with the espresso machine, including milk carafes, a water filter, descaler, cleaning brush, measuring spoon, and an ice cube tray.

Instruccions de funcionament

Interfície de pantalla tàctil

The machine features an intuitive touchscreen display for easy navigation and selection of beverages. You can customize up to 4 user profiles to save your preferred drink settings.

Image: Intuitive Touchscreen. This image shows a close-up of the machine's touchscreen display, illustrating various drink options and settings.

Preparació del cafè

The machine can prepare coffee using either whole coffee beans or pre-ground coffee. You can select to brew 1 or 2 cups simultaneously.

• Ús de mongetes senceres: The integrated steel grinder offers 13 grind settings to achieve your desired coffee strength and flavor. The Bean Adapt Technology automatically adjusts grinding, dosing, and brewing parameters for optimal extraction.
• Ús de cafè premòlt: Use the dedicated funnel for pre-ground coffee. Refer to the display for instructions on adding pre-ground coffee.

Selecció de begudes

Choose from a wide range of 11 coffee recipes and 14 milk-based recipes, including:

• Ristretto
• Espresso
• Lungo
• Cappuccino
• Latte Macchiato
• Cold Brew (using Cold Extraction Technology)
• Filtre de cafè
• I molts més.

Image: Coffee Moment Feature. This image shows the touchscreen displaying various coffee options like Espresso, Cappuccino, Cold Brew, and Latte Macchiato.

Image: Cold Extraction Technology. This image features several cold coffee beverages, highlighting the machine's ability to prepare refreshing cold brews.

Sistema de llet

The integrated milk system uses a removable milk carafe to prepare frothed milk for your milk-based beverages. Ensure the carafe is clean and filled with cold milk for optimal results.

Característiques addicionals

• Escalfador de copes: The integrated cup warmer helps maintain the temperature of your coffee.
• Apagat automàtic: The machine features an automatic shut-off function for energy saving.
• Adjustable Coffee Intensity: Customize the strength of your coffee to your preference.
• Adjustable Coffee Spout Height: The coffee spout can be adjusted to accommodate various cup sizes.

Connectivity (Coffee Link App)

The machine can be connected to the De'Longhi Coffee Link App, allowing you to personalize recipes and create up to 4 different user profiles directly from your smartphone or tablet.

Image: Coffee Link App. This image shows a smartphone screen displaying the De'Longhi Coffee Link App interface, demonstrating recipe customization.

Manteniment

Regular maintenance ensures the longevity and optimal performance of your espresso machine. The machine is designed for easy maintenance and descaling.

Neteja diària

• Safata de degoteig: Empty and clean the removable drip tray daily or when the indicator shows it is full.
• Contenidor de mòlt: Empty and clean the grounds container when prompted by the machine or after approximately 14 portions.
• Carafa de llet: After each use, disassemble and clean the milk carafe components thoroughly to prevent milk residue buildup.
• Broc de cafè: Netegeu el broc del cafè amb anunciamp tela.

Descalcificació

The machine will indicate when descaling is required. Follow the on-screen instructions and use the provided descaling solution. Regular descaling is crucial for preventing limescale buildup and maintaining machine efficiency.

Cartutx de filtre d'aigua

Replace the water filter cartridge regularly as indicated by the machine or specified in the filter instructions to ensure optimal water quality and reduce descaling frequency.

Resolució de problemes

This section addresses common issues you might encounter. For more complex problems, refer to the full product manual or contact customer support.

• "Water Tank Empty" Indicator: Refill the water tank with fresh water and ensure it is correctly inserted.
• "Grounds Container Full" Indicator: Empty the coffee grounds container and the drip tray, then reinsert them correctly.
• "Drip Tray Full" Indicator: Empty the drip tray and reinsert it correctly.
• Coffee Not Dispensing: Check if the water tank is full, the coffee beans are present, and the brewing unit is correctly inserted. Perform a rinse cycle if necessary.
• Milk Not Frothing Correctly: Ensure the milk carafe is clean, the milk is cold, and the frothing nozzle is not blocked.

Especificacions

Image: Product Dimensions. This image illustrates the key dimensions (length, width, height) of the espresso machine.

Garantia

This De'Longhi PrimaDonna Aromatic ECAM 630.75.TSM espresso machine is covered by a 2 any de garantia from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use conditions. For detailed terms and conditions, refer to the warranty card included with your product or visit the official De'Longhi weblloc.

Suport

For further assistance, technical support, or to order spare parts, please contact De'Longhi customer service. Contact information can be found in the full product manual or on the official De'Longhi website. When contacting support, please have your product model number (ECAM 630.75.TSM) and serial number ready.
