1. Introducció
Thank you for choosing the Cecotec Bolero CoolMarket Chest 143P Horizontal Freezer. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read it thoroughly before use and keep it for future reference.

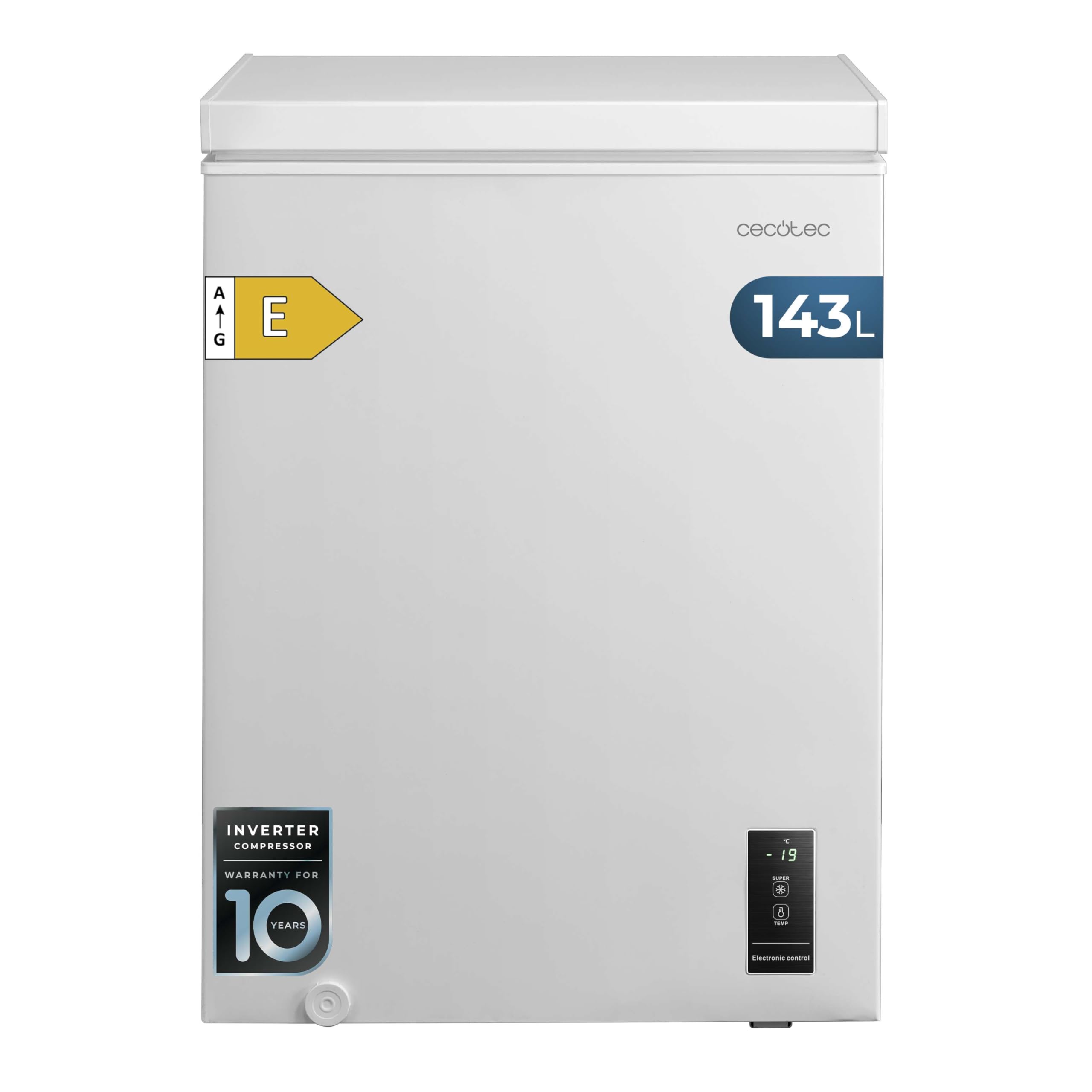

Image 1.1: Cecotec Bolero CoolMarket Chest 143P Horizontal Freezer.
2. Informació de seguretat
Per garantir un funcionament segur, seguiu sempre aquestes precaucions bàsiques:
- Assegureu-vos que l'aparell estigui correctament connectat a terra abans d'utilitzar-lo.
- No emmagatzemeu substàncies explosives com ara llaunes d'aerosol amb un propulsor inflamable en aquest aparell.
- Mantenir les obertures de ventilació lliures d'obstruccions.
- No utilitzeu dispositius mecànics o altres mitjans per accelerar el procés de descongelació, diferents dels recomanats pel fabricant.
- No danyeu el circuit de refrigerant.
- No utilitzeu aparells elèctrics dins dels compartiments d'emmagatzematge d'aliments de l'aparell, tret que siguin del tipus recomanat pel fabricant.
- Aquest aparell està dissenyat només per a ús domèstic.
- Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.
3. Configuració
3.1 Desembalatge
Carefully remove all packaging materials. Inspect the freezer for any damage. Report any damage to your retailer immediately.
3.2 Col·locació
Place the freezer on a firm, level surface away from direct sunlight, heat sources, and extreme cold. Ensure adequate ventilation around the appliance. The minimalist design with integrated handle and hinges prevents snagging and facilitates placement in any space.
Image 3.1: Minimalist design with integrated handle.
3.3 Neteja inicial
Abans del primer ús, netegeu l'interior i l'exterior del congelador amb un detergent publicitari.amp drap i detergent suau. Assecar bé.
3.4 Connexió d'alimentació
Plug the freezer into a dedicated power outlet. Allow the appliance to stand for at least 2-4 hours before plugging it in to allow the refrigerant to settle.
4. Instruccions de funcionament
4.1 Capacitat i organització
The Bolero CoolMarket Chest 143P offers a generous 143L capacity for storing a variety of frozen goods. The ergonomic basket with handles facilitates the extraction, classification, and transport of food, allowing convenient access to products at all levels.
Image 4.1: 143L capacity for ampl'emmagatzematge.
Image 4.2: Removable basket with ergonomic handles for easy organization.

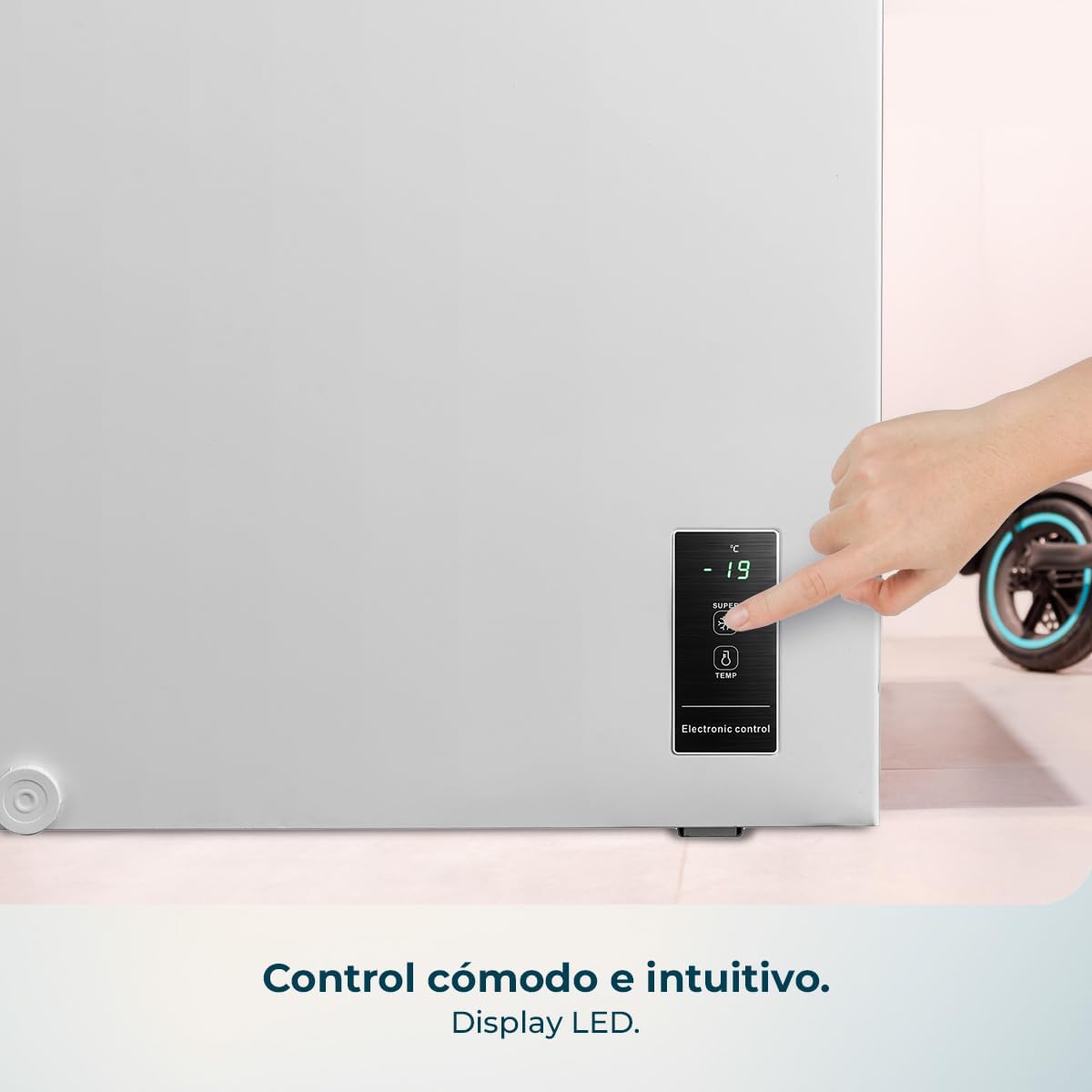

4.2 Electronic Control and Temperature Adjustment
Utilize the electronic control panel with LED display to precisely set the temperature. This allows for perfect adaptation to each type of food, ensuring optimal preservation conditions with the touch of a button.
Image 4.3: Intuitive electronic control with LED display.
4.3 Dual Functionality (Freezer/Refrigerator)
Experience complete freedom with the Dual Function, which transforms your appliance between a freezer and a refrigerator according to your needs. Refer to the electronic control section for switching modes.
Image 4.4: Dual Functionality allows use as a freezer or refrigerator.
4.4 UltraContact D-Cool Technology
Equipped with the innovative UltraContact D-Cool system, its optimized geometry ducts maximize thermal transfer, providing intense and uniform cooling. This technology ensures constant temperature with reduced consumption.
Image 4.5: UltraContact D-Cool for efficient and uniform cooling.
4.5 Funció de congelació ràpida
The Fast Freezing function instantly preserves nutrients, flavors, and textures, maintaining the original quality of your food until consumption. Activate this function when adding large quantities of fresh food.
Image 4.6: Fast Freezing preserves food quality.

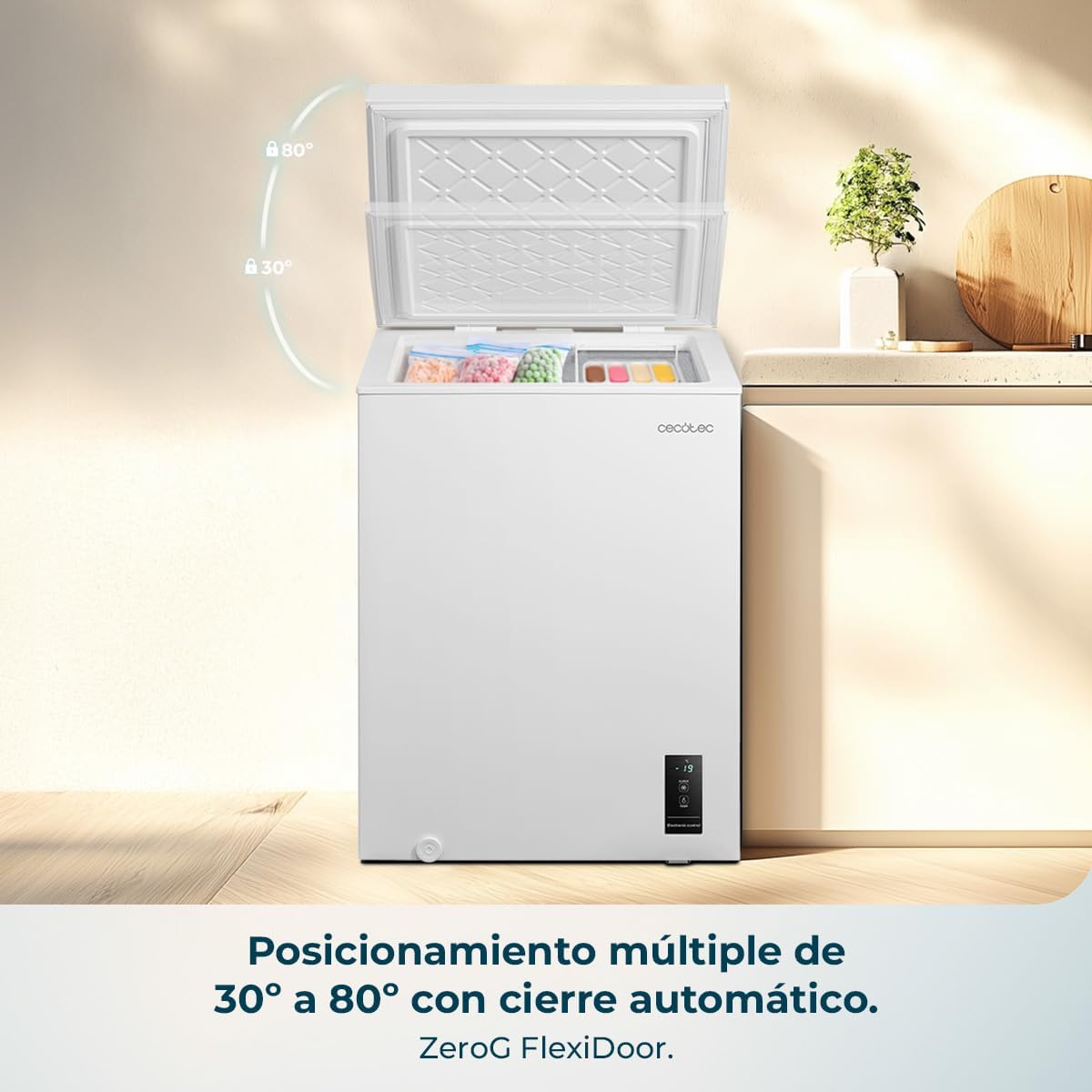

4.6 ZeroG FlexiDoor
The revolutionary ZeroG FlexiDoor allows you to position the door at any angle between 30° and 80°, freeing your hands while ensuring an automatic hermetic seal when closed.
Image 4.7: ZeroG FlexiDoor for flexible door positioning.
4.7 Door Open Alarm System
The alarm system constantly monitors the temperature, immediately alerting you to any anomaly, such as an open door, protecting your food investment.
Image 4.8: Door open alarm for enhanced food safety.

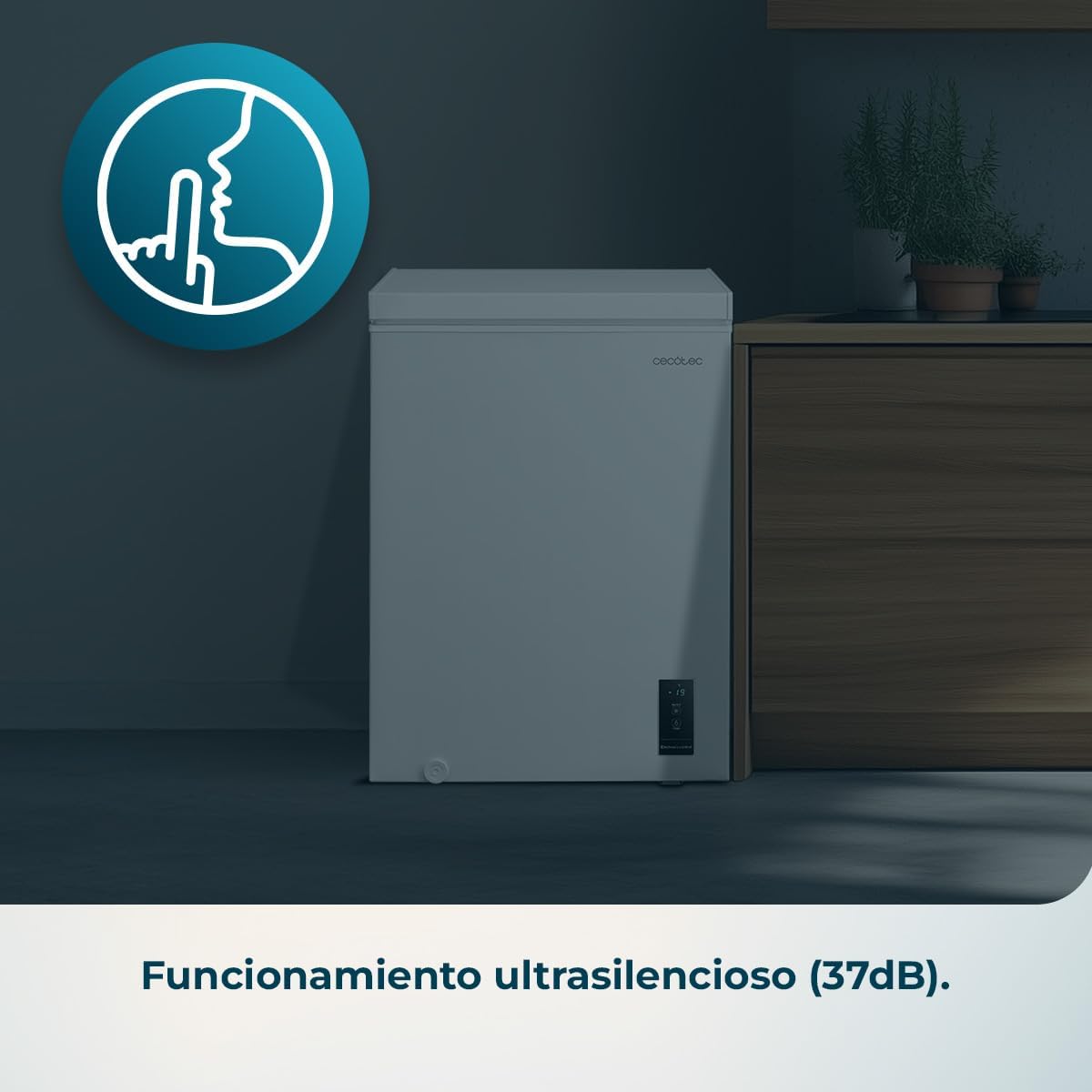

4.8 Ultra-Silent Operation
Designed for modern homes, this freezer operates with ultra-silent performance (37dB), allowing its integration into any environment without disturbing household harmony.
Image 4.9: Ultra-silent operation (37dB).
5. Manteniment
5.1 Neteja
Regularly clean the interior and exterior of the freezer. Use a soft cloth with mild detergent and warm water. Avoid abrasive cleaners or solvents. Ensure the appliance is unplugged before cleaning.
5.2 Descongelació
Defrost the freezer when the ice layer reaches a thickness of about 5-10 mm. Unplug the appliance, remove all food, and allow the ice to melt naturally. Use a plastic scraper to remove ice, never sharp metal objects. Clean and dry the interior thoroughly before restarting.
5.3 Power Outtage
En cas d'una potènciatage, keep the freezer door closed to maintain the internal temperature for as long as possible. Food can remain frozen for several hours depending on the insulation and ambient temperature.
6. Solució De Problemes
If you encounter any issues with your freezer, refer to the table below for common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El congelador no es refreda | Power supply issue; thermostat setting too high; door not closed properly. | Check power connection; adjust thermostat to a lower setting; ensure door is fully closed. |
| Acumulació excessiva de gel | Door left open too long; faulty door seal; high humidity. | Minimize door openings; check and clean door seal; defrost the unit. |
| Soroll inusual | Appliance not level; objects vibrating inside; compressor noise (normal). | Adjust leveling feet; remove vibrating objects; consult manual for normal operating sounds. |
| Door alarm sounds | Door not closed properly; door seal compromised. | Ensure door is fully closed; check and clean door seal. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
7. Especificacions
Below are the technical specifications for your Cecotec Bolero CoolMarket Chest 143P Horizontal Freezer:
- Nom del model: Bolero CoolMarket Chest 143P
- Número de model: A01_EU01_113715
- Capacitat: 143 litres
- Dimensions (Profunditat x Amplada x Alçada): 55 x 60 x 85 cm
- Pes del producte: 22.1 kg
- Color: Blanc
- Tipus de control: Electrònica
- Tipus de material de la porta: Plàstic
- Voltage: 220 Volts
- Tipus d'instal·lació: Autònom
- Disponibilitat de recanvis a la UE: 10 Anys
Image 7.1: Product dimensions (Height: 85 cm, Width: 60 cm, Depth: 56 cm).
8. Garantia i Suport
Your Cecotec Bolero CoolMarket Chest 143P Horizontal Freezer comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
For technical assistance, spare parts, or any inquiries, please contact Cecotec customer support. Keep your purchase receipt and model number handy when contacting support.
Què hi ha a la caixa:
- 1 x Freezer
- 1 x Manual d'usuari
