Manual d'instruccions de l'arrencador de bateria LOKITHOR LIFEPO4 JA3000 amb compressor d'aire

Producte acabatview

The LOKITHOR LIFEPO4 JA3000 is a versatile multi-functional device designed for automotive emergency situations and general utility. It combines a powerful jump starter, a cordless smart tire inflator, a portable power bank, and a multi-purpose LED flashlight into a single, durable unit.

Equipped with LiFePO4 technology, it offers enhanced safety, longer cycle life, and reliable performance across a wide range of temperatures. Its compact and portable design makes it an essential tool for any vehicle owner.

Què hi ha a la caixa

JA3000 Jump Starter and Air Compressor unit
Salt d'arrencada clamps (x1)
Inflatable hose (x1)
Nozzle adapters (x4) for various inflation needs
Cable USB-C (x1)
Product storage bag (x1)
Accessories storage bag (x1)
Manual d'usuari (x1)

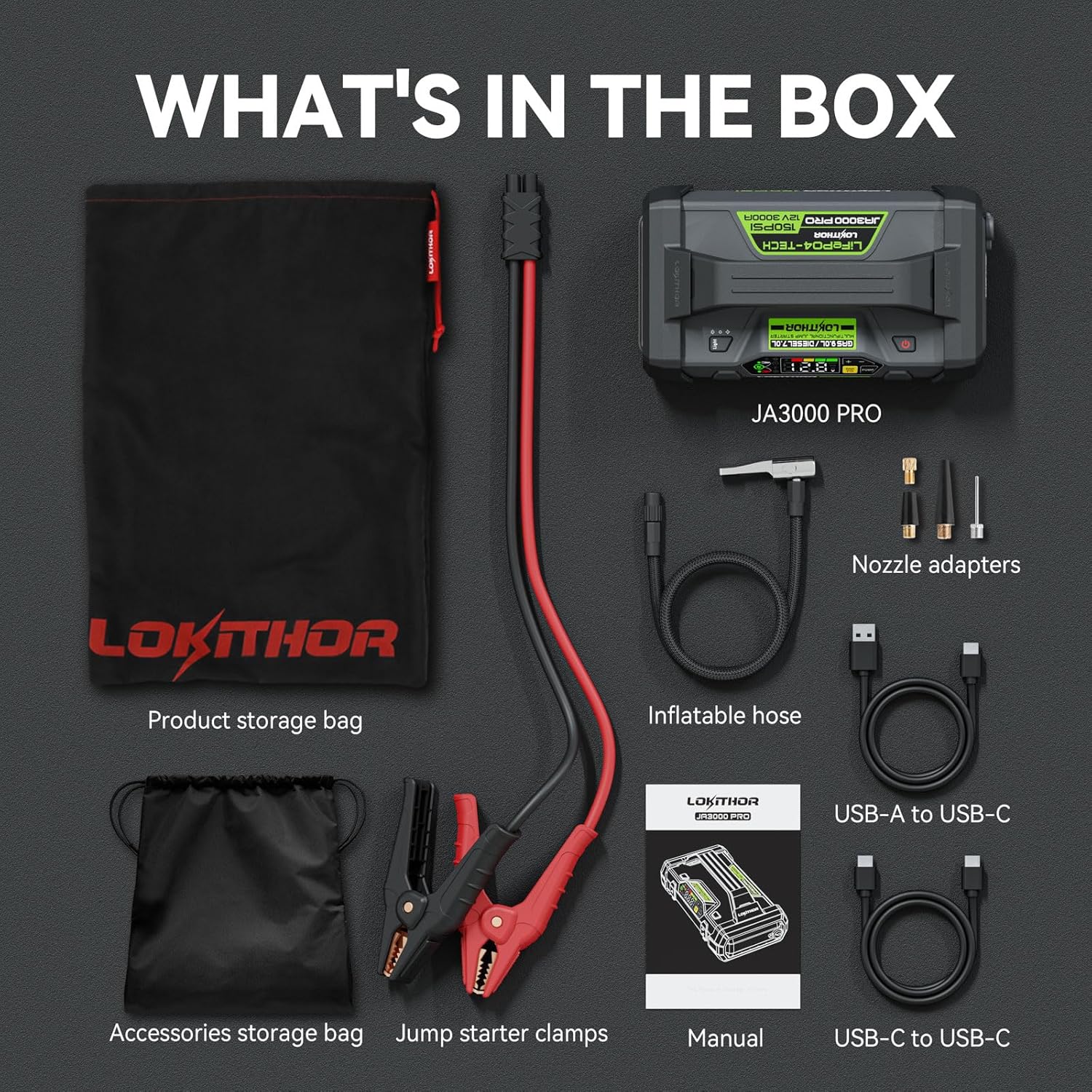

LOKITHOR JA3000 Jump Starter with all included accessories laid out — Image: All components included in the LOKITHOR JA3000 package, neatly arranged.

Informació de seguretat

The JA3000 PRO is built with LiFePO4 materials, offering superior chemical stability and safety compared to traditional lithium-ion batteries. It incorporates 10 types of built-in protection mechanisms to ensure safe operation:

Protecció a prova de guspires
Protecció de polaritat inversa
Protecció contra curtcircuits
Reverse-Charge Protection
Protecció de baixa temperatura
Protecció a alta temperatura
Més de voltage Protecció
Protecció de sobrecàrrega
Protecció contra sobrecàrregues
Protecció contra sobreintensitat

Always ensure proper connection of clamps to battery terminals. The device features ConneCtMax Technology to detect connection impedance and optimize performance, reducing starting issues due to poor contact.

Diagram illustrating 10 safety protection technologies of the LOKITHOR JA3000 — Image: Visual representation of the 10 integrated safety protection features, including spark-proof and reverse-polarity protection.

Configuració i càrrega

Before first use, fully charge your LOKITHOR JA3000 unit. The device can be charged using the provided USB-C cable connected to a standard wall charger (not included). The larger the wall charger's wattage, the faster the charging process.

Connect the USB-C cable to the JA3000's input port.
Connect the other end of the USB-C cable to a compatible USB wall adapter.
The display will indicate charging progress.
A full charge can maintain standby power for up to 24 months.

LOKITHOR JA3000 unit being charged via USB-C cable — Image: The JA3000 unit connected to a USB-C cable for charging, demonstrating its power bank capabilities.

Operating Instructions: Jump Start

The JA3000 PRO delivers a 3000 Amp peak starting current, suitable for 9.0L gas or 7.0L diesel engines. Follow these steps to jump start your vehicle:

Connectar Clamps: Insert the jumper cable connector into the JA3000's jumpstart output port.
Connectar a la bateria: Connecteu el cl vermell (positiu).amp to the positive (+) terminal of your vehicle's battery and the black (negative) clamp to the negative (-) terminal. The unit's display will show the current battery voltage.
Encès: Press the power button on the JA3000 unit. The display will show a green light indicating it's ready to start.
Inici del vehicle: Enter your vehicle and start the engine.
Desconnectar: Un cop engegat el motor, desconnecteu el clamps from the vehicle battery, then remove the jumper cable from the JA3000 unit.

If the battery is extremely low, use the Boost mode by holding down the 'M' button for a few seconds to deliver maximum current safely.

LOKITHOR JA3000 Jump Starter connected to a car battery — Image: The JA3000 unit with jumper clampconnectat a la bateria d'un cotxe, a punt per engegar el vehicle.

Video: Demonstration of using a LOKITHOR jump starter to start a vehicle with a dead battery. The video shows the connection process and successful engine start.

Operating Instructions: Tire Inflator

The cordless smart tire inflator provides up to 150 PSI, capable of inflating a 195/65/R15 car tire from 0 to 35 PSI in approximately 6 minutes. It supports 4 different units (BAR, PSI, KPA, Kg/cm²) and comes with 4 nozzle adapters.

Connecteu la mànega d'aire: Screw the inflatable hose onto the unit's air output port.
Connect to Tire/Item: Attach the other end of the hose to the tire valve or the item you wish to inflate, using the appropriate nozzle adapter.
Encès: Press the power button on the JA3000 unit.
Select Unit & Adjust Pressure: Use the 'Mode' button to select the desired pressure unit (PSI, BAR, KPA, Kg/cm²) and the '+' / '-' buttons to set the target pressure.
Inici de la inflació: Press the 'Pump' button to begin inflation. The unit will automatically shut off once the preset pressure is reached.
Traieu la mànega: Disconnect the hose from the item and the unit.

LOKITHOR JA3000 unit inflating a car tire — Image: The JA3000 unit positioned next to a car tire, demonstrating its use as a cordless tire inflator.

Various nozzle adapters for the LOKITHOR JA3000 air compressor — Image: A selection of 4 different nozzle adapters for inflating various items like car tires, bicycle tires, balls, and inflatable toys.

Operating Instructions: Power Bank & Flashlight

The JA3000 PRO features USB-C and USB-A output ports to charge your portable electronic devices. The integrated 300-lumen LED flashlight offers steady, flashing, and SOS modes.

Funció del banc d'energia:

Connectar el dispositiu: Plug your device's charging cable into either the USB-C or USB-A output port on the JA3000 unit.
Encès: La unitat començarà a carregar el dispositiu automàticament.

Funció de llanterna:

Activar/Desactivar: Press and hold the flashlight button to turn the LED light on (steady mode).
Canvi de modes: Tap the flashlight button to cycle through flashing mode, SOS mode, and off.

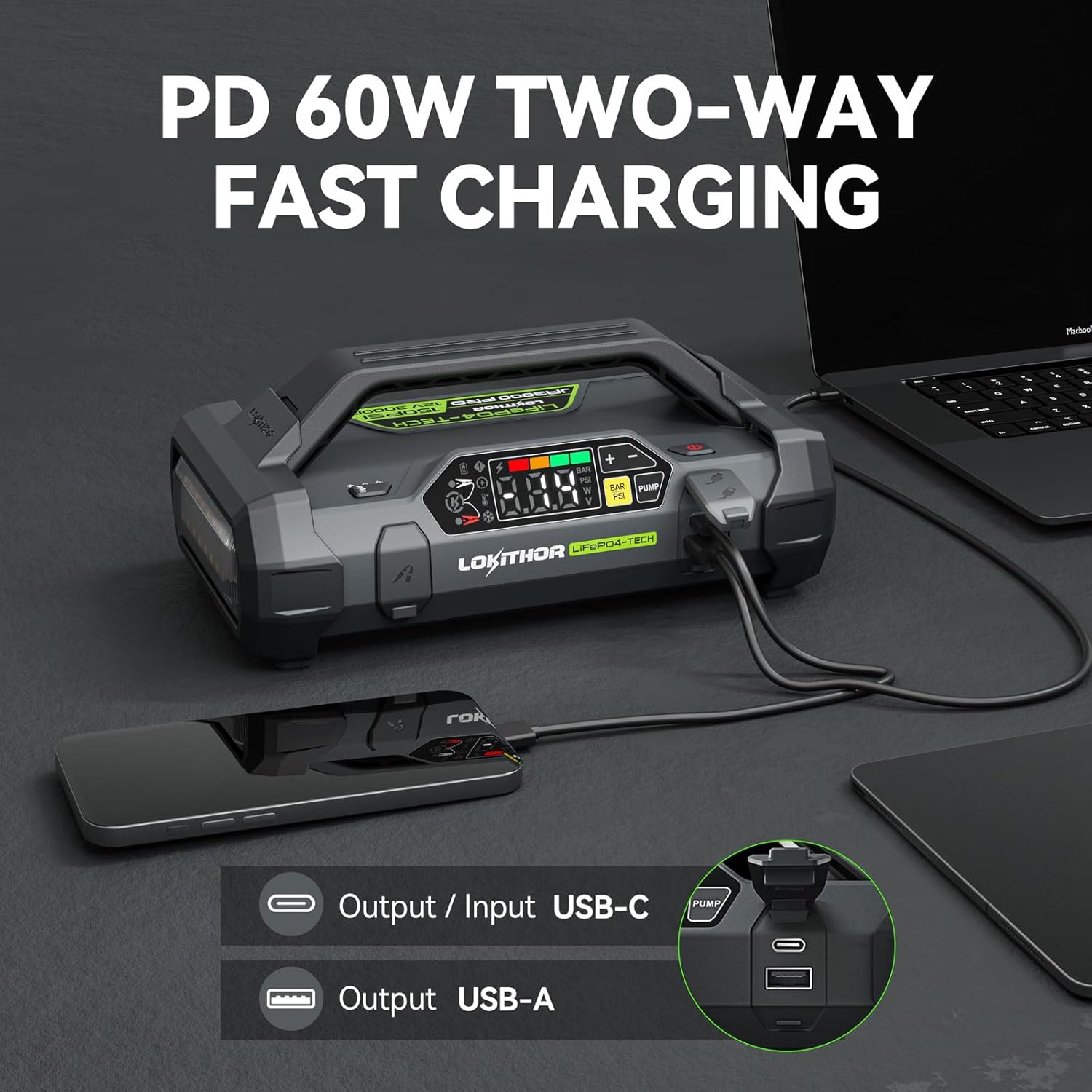

LOKITHOR JA3000 unit charging a smartphone and laptop — Image: The JA3000 unit connected via USB-C and USB-A cables to charge a smartphone and a laptop, highlighting its power bank functionality.

LOKITHOR JA3000 unit with its LED flashlight illuminated — Image: The JA3000 unit's 300-lumen LED flashlight in operation, showing its utility in dark conditions.

Manteniment

Recarrega regularment: To maintain optimal battery health, recharge the JA3000 unit every 3-6 months, even if not in use.
Emmagatzematge: Guardeu la unitat en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
Neteja: Feu servir un drap suau i sec per netejar la unitat. No utilitzeu productes químics agressius ni materials abrasius.
Clamp Atenció: Ensure jumper clamps are clean and free of corrosion for optimal conductivity.

Resolució de problemes

Problema	Causa possible	Solució
La unitat no s'encén	La bateria està completament descarregada	Charge the unit fully
El vehicle no arrenca amb ajuda d'un cable	Mala connexió de clamps als terminals de la bateria	Assegureu-vos que clamps are clean and securely attached. Use ConneCtMax technology to verify connection.
L'inflador de pneumàtics no funciona	Incorrect pressure setting or unit selected	Verify pressure unit and target PSI/BAR/KPA/Kg/cm² settings.
La llanterna LED no funciona	Unit battery is low or depleted	Carregueu la unitat completament.

Especificacions

Marca: LOKITHOR
Model: JA3000
Peak Starting Current: 3000 Amps
Tipus de bateria: LiFePO4 (fosfat de ferro de liti)
Compatibilitat del motor: Up to 9.0L Gas, Up to 7.0L Diesel
Air Compressor Pressure: Fins a 150 PSI
Llanterna LED: 300 Lumens (Steady, Flashing, SOS modes)
Sortida USB: USB-C (Input & Output), USB-A (Output)
Cicle de vida: 2000+ cycles at 100% depth of discharge / 8000 cycles at 50% depth of discharge
Temps d'espera: Up to 24 months on a full charge
Temperatura de funcionament: -4 °F a 140 °F
Dimensions del producte: 5.55 "P x 10.05" W x 4" H
Pes de l'article: 5.18 lliures

Garantia i Suport

LOKITHOR provides a 12-month warranty for the JA3000 unit. For any questions, technical assistance, or warranty claims, please refer to the contact information provided in your product packaging or visit the LOKITHOR Official Store.
