Introducció
Thank you for choosing the SAMOLLA MT30W-II Deep Sea 2-Speed Conventional Fishing Reel. This manual provides essential information for the proper setup, operation, and maintenance of your new fishing reel. Designed for deep sea fishing, this reel features a robust CNC metal construction, a 2-speed gear system, and a powerful drag to handle large game fish such as Tuna, Sailfish, and Swordfish. Please read this manual thoroughly before using your reel to ensure optimal performance and longevity.

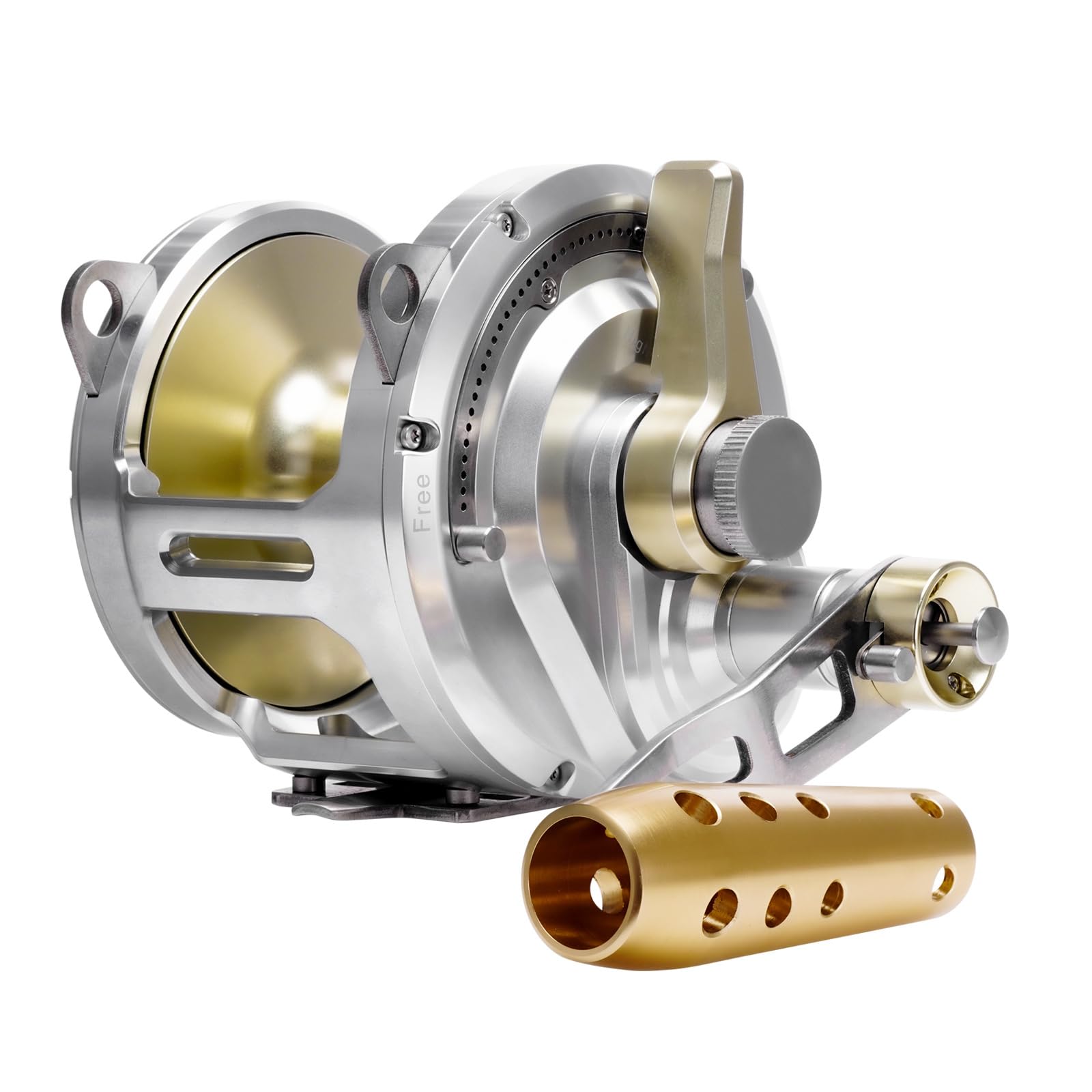

Image: The SAMOLLA MT30W-II Deep Sea 2-Speed Conventional Fishing Reel, showcasing el seu disseny robust.
Configuració
1. Fixació de la nansa
The reel handle is designed for secure attachment.
- Align the handle shaft with the corresponding slot on the reel body.
- Insert the handle and ensure it is fully seated.
- Secure the handle by tightening the handle nut clockwise until firm.
Video: Demonstration of assembling the SAMOLLA Deep Sea Fishing Reel, including handle attachment and other components.
2. Spooling the Line
Proper line spooling is crucial for optimal casting and retrieval.
- Attach the reel to a fishing rod for stability during spooling.
- Lliga la línia de pescar al carret amb un nus adequat (per exemple, un nus d'arbre).
- Maintain consistent tension on the line while winding it onto the spool. Ensure the line is evenly distributed across the spool.
- Do not overfill the spool; leave a small gap from the spool lip to prevent tangles.
3. Mounting the Reel to a Rod
Securely attach the reel to your fishing rod.
- Place the reel foot into the reel seat on your fishing rod.
- Tighten the reel seat locking nuts until the reel is firmly secured and does not wobble.
Instruccions de funcionament
1. Drag System Adjustment
The SAMOLLA MT30W-II features a three-position drag system: Gratuït, Vaga, i Complet.
- Gratuït: Allows the line to run freely, ideal for dropping bait or when a fish takes the bait and runs.
- Vaga: The primary fighting drag setting. Adjust this to approximately one-third of your line's breaking strength.
- Complet: Provides maximum drag pressure for critical moments during a fight, but use cautiously to avoid line breakage.
Imatge: Detallada view of the reel, highlighting the drag lever with Free/Strike/Full positions and the main cover design.
2. 2-Speed Gear Ratio Operation
This reel is equipped with a 2-speed gear system to adapt to various fishing scenarios.
- Alta marxa: Use for fast retrieval, such as when checking bait or quickly bringing in smaller fish.
- Marxa baixa: Provides increased torque for fighting large, powerful fish, making it easier to reel them in.
- To switch between gears, locate the gear shift button (usually near the handle) and press it to engage the desired speed.
Image: The reel's internal mechanism illustrating the two-speed gear ratio, designed for adapting to different fishing conditions.
3. Spool Elastic Adjustment
The spool elastic adjustment allows for micro-adjustments to the spool tension.
- Rotate the button located on the side of the reel to achieve the desired micro-adjustment effect. This helps in fine-tuning line release and preventing backlashes.
Image: Close-up of the reel showing the spool elastic adjustment knob and the sound switch for audible feedback during line drag.
4. Sound Switch
The reel includes a sound switch that provides audible feedback when line is being pulled from the spool under drag.
- Engage the sound switch to hear the "dadadada" sound as a fish pulls line, indicating drag is being applied.
Manteniment
Regular maintenance ensures the longevity and smooth operation of your SAMOLLA MT30W-II reel.
1. Neteja
- After each use, especially in saltwater, rinse the reel thoroughly with fresh water. Do not submerge the reel.
- Wipe down the exterior with a soft cloth to remove salt residue and dirt.
- Allow the reel to air dry completely before storage.
2. Lubricació
- Periodically apply a small amount of high-quality reel grease to the gears and moving parts.
- Use a light reel oil on bearings and other friction points.
- Avoid over-lubricating, as this can attract dirt and debris.
3. Emmagatzematge
- Store the reel in a dry, cool place away from direct sunlight and extreme temperatures.
- Penseu en utilitzar una funda o bossa per al rodet per protegir-lo de la pols i les ratllades.
- Ensure the drag is backed off to its lightest setting during storage to prevent compression of the drag washers.
Resolució de problemes
This section addresses common issues you might encounter with your fishing reel.
| Problema | Causa possible | Solució |
|---|---|---|
| Reel feels stiff or gritty | Saltwater corrosion, dirt, or old lubricant. | Clean and re-lubricate the reel thoroughly. Inspect for any debris. |
| Drag is inconsistent or slipping | Contaminated or worn drag washers. | Clean or replace drag washers. Ensure drag is not overtightened during storage. |
| Line tangles or backlashes frequently | Improper line spooling, incorrect spool tension, or worn line. | Respool line correctly, adjust spool elastic tension, or replace old line. |
| El mànec està solt | Handle nut is not tightened. | Tighten the handle nut securely. |
Especificacions
Key technical specifications for the SAMOLLA MT30W-II Deep Sea 2-Speed Conventional Fishing Reel.
| Característica | Detall |
|---|---|
| Marca | SAMOLLA |
| Nom del model | MT30W-II |
| Orientació de la mà | Mà dreta |
| Color | Silver-Right Hand |
| Material | CNC Metal |
| Tècnica de pesca | Conventional Reel |
| Pes de l'article | 3 lliures (1400 g) |
| Relació de la caixa de canvis | 5.2:1 / 2.3:1 (2-Speed) |
| Característiques especials | Anti-Reverse, Anti-Slip, Corrosion Resistant, Rust Resistant |
| Material del mànec | CNC Metal |
| Bearing Material | CNC Metal |
| Dimensions del producte | 3.93 cm de llargada x 3.5 cm d'amplada x 3.5 cm d'alçada |
| Fishing Reel Maximum Drag | 44 lliures (20 kg) |
| Line Capacity (PE/yds) | 8#/683 yards |
| Fishing Line Type | Braided, Monofilament, Fluorocarbon |
| Tipus esportiu | Rodets de pesca |
Image: A table detailing various parameters for SAMOLLA fishing reels, including model MT30W-II, its weight, hand orientation, gear ratio, maximum drag, and line capacity.
Image: A visual comparison of different SAMOLLA reel sizes (ST20W, ST30W, ST50W), showing their respective weights and dimensions.
Garantia i Suport
For warranty information or technical support regarding your SAMOLLA MT30W-II Deep Sea 2-Speed Conventional Fishing Reel, please contact the manufacturer directly through their official weblloc web o al distribuïdor on es va comprar el producte. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
Recursos addicionals
Vídeo: Un overview of the SAMOLLA deep sea fishing reel in action, demonstrating its use for big game fishing.
