1. Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your VIKIO HOME 42 Inch Under Cabinet Range Hood, model VK-RC13-42. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
Imatge 1.1: Frontal view of the VIKIO HOME 42 Inch Under Cabinet Range Hood with control panel and LED lights.
2. Informació de seguretat
Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica o lesions.
- Ensure the range hood is properly grounded.
- No feu funcionar cap ventilador amb un cable o un endoll danyats. Descarteu el ventilador o torneu-lo a un centre de servei autoritzat per a l'examen i/o reparació.
- No utilitzeu aquesta unitat amb cap dispositiu de control de velocitat d'estat sòlid.
- Netegeu els filtres de greix amb freqüència. No s'ha de permetre que s'acumuli greix al ventilador ni al filtre.
- No deixeu mai les unitats de superfície desateses a configuracions altes. Les ebullicions provoquen fum i vessaments de greix que poden encendre.
- Always turn hood ON when cooking at high heat or when flaming foods.
- Feu servir estris de cuina de la mida adequada a cada superfície.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats en desembalar-lo.
- VIKIO HOME 42 Inch Under Cabinet Range Hood (Model VK-RC13-42)
- 5-Layer Aluminum Grease Filters (Pre-installed)
- Installation Hardware (Screws, anchors, etc.)
- Cable d'alimentació
- Manual d'instruccions
4. Especificacions
| Característica | Especificació |
|---|---|
| Número de model | VK-RC13-42 |
| Marca | CASA VIKIO |
| Mida | 42 polzades |
| Tipus de muntatge | Sota el muntatge del gabinet |
| Capacitat de cabal d'aire | 900 peus cúbics per minut (CFM) |
| Nivell de soroll | 35 dBA (Low Speed) to 65 dBA (High Speed) |
| Material | Acer inoxidable |
| Voltage | 110 Volts |
| Pes de l'article | 27.7 lliures |
| Dimensions del producte (P x A x A) | 19.68" x 41.3" x 6" |
| Filtres | 5-Layer Aluminum Mesh, Dishwasher Safe |
| Controls | Touch/Gesture Control, 3-Speed Fan |
| Il·luminació | LED Lights (4000K, 3W, GU10) |
| Característiques especials | Dual-Motor, Noise Reduction |
5. Configuració i instal·lació
This range hood is designed for under-cabinet mounting. Due to its size and weight, proper installation typically requires two people.
5.1 Llista de comprovació prèvia a la instal·lació
- Verify that the installation area meets the required dimensions (minimum 24 inches, recommended 24-30 inches above the stovetop).
- Ensure adequate electrical supply (110V).
- Confirm all necessary hardware is present.
- Review local building codes and regulations for range hood installation.
5.2 Passos d'instal·lació
- Preparar el gabinet: Measure and mark the mounting points on the underside of the cabinet according to the provided template (if included) or product dimensions.
- Forats: Drill pilot holes for mounting screws and for the electrical wiring access. If ducting through the cabinet, cut the appropriate opening for the exhaust connector.
- Muntar la caputxa: Carefully lift the range hood into position and secure it to the cabinet using the provided mounting screws. Ensure it is level and firmly attached.
- Connectar els conductes: Attach the exhaust ducting to the range hood's exhaust connector. Ensure all connections are sealed to prevent air leaks. (Ducting and adapter not included).
- Connexió elèctrica: Connect the power cord to a grounded 110V outlet. If hardwiring, ensure connections are made by a qualified electrician.
- Instal·lar filtres: Ensure the 5-layer aluminum filters are securely in place.

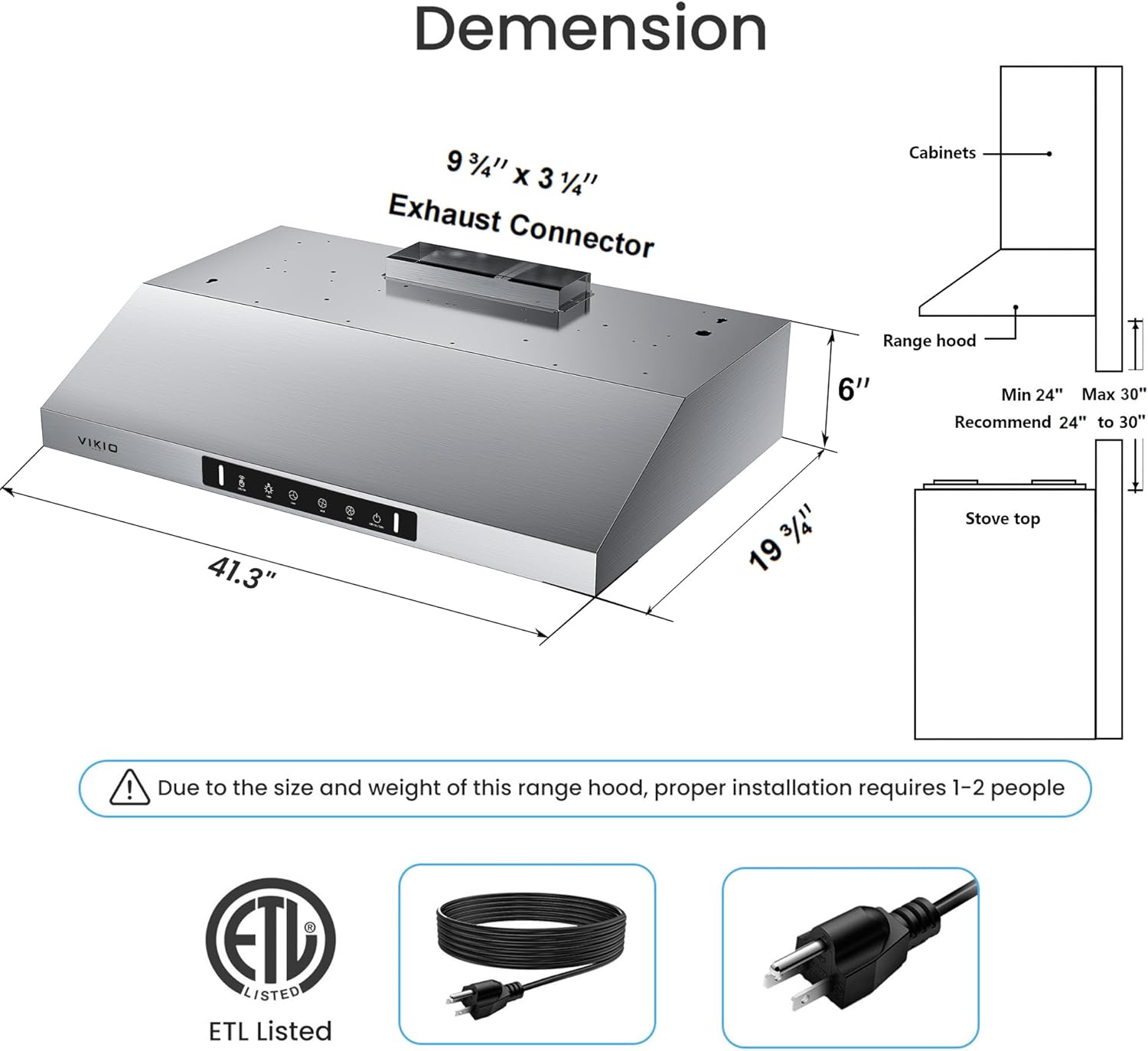

Image 5.1: Diagram showing product dimensions and recommended installation height above the stovetop. Note: Proper installation requires 1-2 people.
Imatge 5.2: Interna view illustrating the dual motor system and filter placement, highlighting the powerful airflow mechanism.
6. Instruccions de funcionament
Your VIKIO HOME range hood features intuitive touch and gesture controls for ease of use.
6.1 Funcions del tauler de control
Imatge 6.1: Detallada view of the touch control panel, indicating functions for lights, fan speeds, and power.
- Llum encès/apagat: Touch the light icon to turn the LED lights on or off. The 4000K LED lights provide clear illumination for your cooking area.
- Control de velocitat del ventilador: Select from three fan speeds (Low, Medium, High) by touching the corresponding icons to adjust suction power.
- On/Off / 3S Delay Off: Touch the power icon to turn the unit on or off. Press and hold for 3 seconds to activate the delay-off function, which will continue ventilation for a short period before shutting down.
6.2 Gesture Control
The range hood features responsive gesture-sensing technology for hands-free operation. Gesture control is activated when both sensing points are crossed.
Image 6.2: Illustration of gesture control, showing how to activate the fan by waving a hand across the sensing points.
- Activar/desactivar gestos: Wave your hand across the designated sensing points to turn the fan on or off. This feature offers convenience, especially when your hands are occupied or soiled during cooking.
7. Manteniment
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la campana extractora.
7.1 Neteja dels filtres de greix
The 5-layer aluminum mesh filters efficiently trap grease and particles. Clean them regularly to maintain suction efficiency.
- Eliminació: Gently push the latch on each filter and pull downwards to remove.
- Neteja: The filters are dishwasher-safe. Alternatively, wash them by hand with warm, soapy water. Ensure they are completely dry before reinstallation.
- Reinstal·lació: Insert the dry filters back into their slots, ensuring they click securely into place.
Image 7.1: Visual guide demonstrating how to clean the aluminum grease filters, either by hand washing or using a dishwasher.
7.2 Neteja de l'exterior
Wipe the stainless steel exterior with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that could scratch the surface.
7.3 Replacing LED Lights
The range hood uses GU10 LED bulbs. If a bulb needs replacement, ensure the power is off before carefully twisting out the old bulb and inserting a new one.
Image 7.2: The range hood's LED lights providing ample illumination for the cooking surface.
8. Solució De Problemes
Consulteu aquesta secció per conèixer els problemes comuns i les seves solucions.
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no s'encén | Sense font d'alimentació Problema amb el tauler de control | Check power cord connection and circuit breaker. Contact customer support if control panel is unresponsive. |
| Baixa potència d'aspiració | Filtres de greix obstruïts Improper ducting Problema motor | Netejar o substituir els filtres de greixos. Check ductwork for obstructions or leaks. Contacta amb l'assistència al client. |
| Els llums no funcionen | Bombeta solta o defectuosa Problema de connexió elèctrica | Ensure bulbs are securely seated or replace them. Comproveu les connexions elèctriques. |
| Soroll excessiu | Parts soltes Desequilibri motor Instal·lació incorrecta | Check for and tighten any loose components. Ensure proper installation and contact customer support if noise persists. |
| Gesture control unresponsive | Obstruction of sensors Incorrect gesture | Assegureu-vos que els sensors estiguin nets i sense obstruccions. Review gesture control instructions (Image 6.2). |
9. Informació de la garantia
VIKIO HOME products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty covering defects in materials and workmanship from the date of purchase. Please retain your proof of purchase for warranty claims. Specific warranty terms and duration may vary; refer to the warranty card included with your product or contact customer support for details.
10. Atenció al client
For any questions, assistance, or to report issues with your VIKIO HOME range hood, please contact our customer support team. We are dedicated to providing reliable support and complimentary replacements for filters and lights as needed.
Informació de contacte: Please refer to the contact details provided on the VIKIO HOME official website or your product packaging for the most current support options.
