1. Introducció
The Jebao FA-2000 submersible pump is designed for various water garden applications, including powering pond filters, creating water fountains, waterfalls, and for use in hydroponic and aquaponic systems. This pump features an energy-efficient magnetic drive and a durable ceramic shaft rotor for reliable and quiet operation.
This manual provides essential information for the safe installation, operation, and maintenance of your Jebao FA-2000 pump.

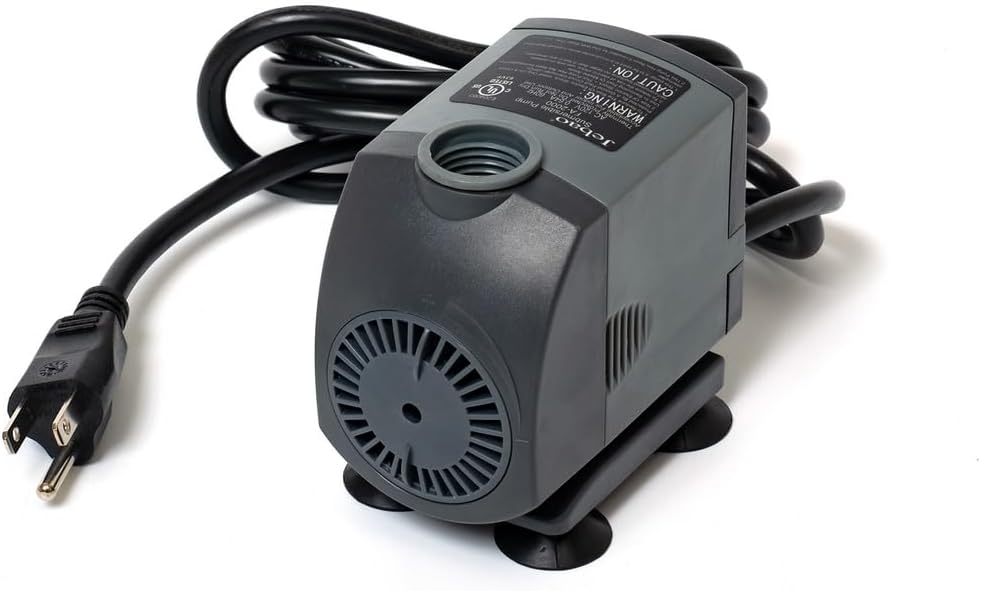

Image: The Jebao FA-2000 submersible pump, showing its compact design and power cord.
2. Instruccions de seguretat
WARNING: To avoid serious injury, basic safety precautions should be observed, including the following:
- Llegiu atentament totes les instruccions abans de la instal·lació i l'ús.
- This pump is designed for submersible use only. Do not operate dry.
- Connect to a properly grounded, ground fault circuit interrupter (GFCI) protected outlet.
- Do not operate if the power cord or plug is damaged. Do not cut the power cord.
- Assegureu-vos que el voltage and frequency of the power supply match the pump's specifications (120V, 60Hz).
- Desconnecteu sempre l'alimentació abans de realitzar qualsevol manteniment o neteja.
- No aixequeu la bomba pel seu cable d'alimentació.
- Mantingueu els nens i les mascotes allunyats de la bomba i de la font d'aigua durant el funcionament.
- This pump is suitable for fresh water applications only.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents al paquet:
- Jebao FA-2000 Submersible Pump
- Hose Adapters (various sizes)
- Manual d'usuari (aquest document)

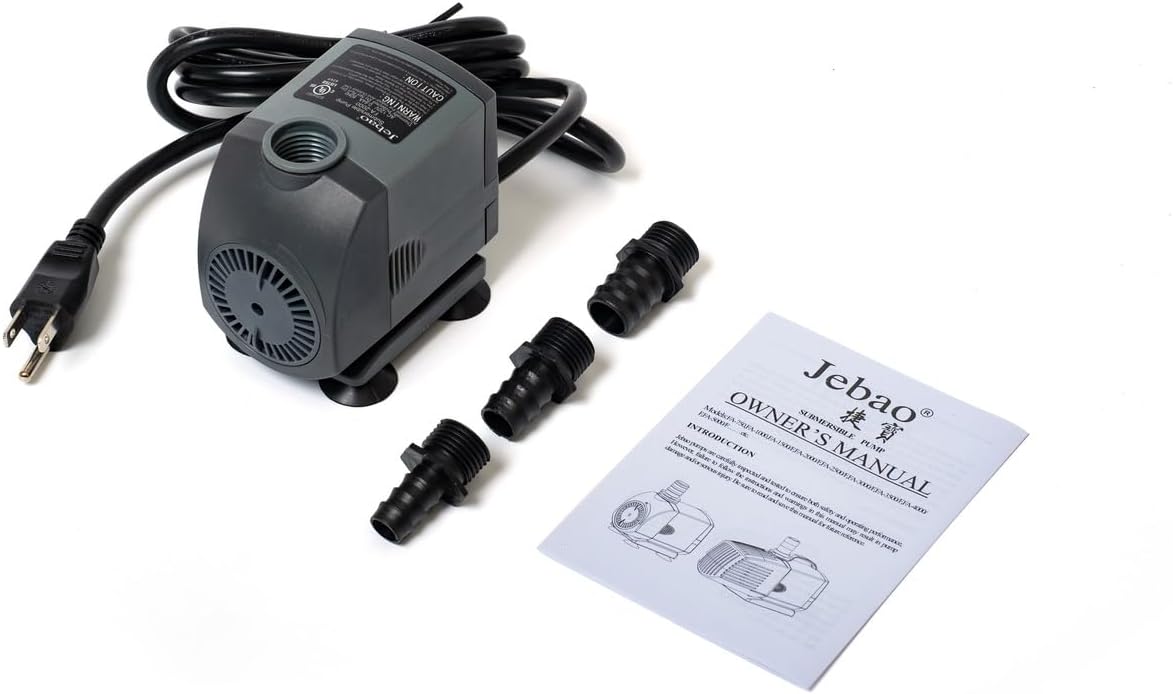

Image: Jebao FA-2000 pump, three hose adapters, and the included owner's manual.
4. Configuració i instal·lació
-
4.1 Trieu una ubicació
Place the pump in the deepest part of your pond or water feature, ensuring it is fully submerged. The pump's suction cups on the base can be used to secure it to a smooth, flat surface to prevent movement.
-
4.2 Connect Hose Adapters
Select the appropriate hose adapter for your tubing size. Thread the adapter onto the pump's outlet. Ensure a tight connection to prevent leaks. For flexible tubing, use a hose clamp (not included) for added security.

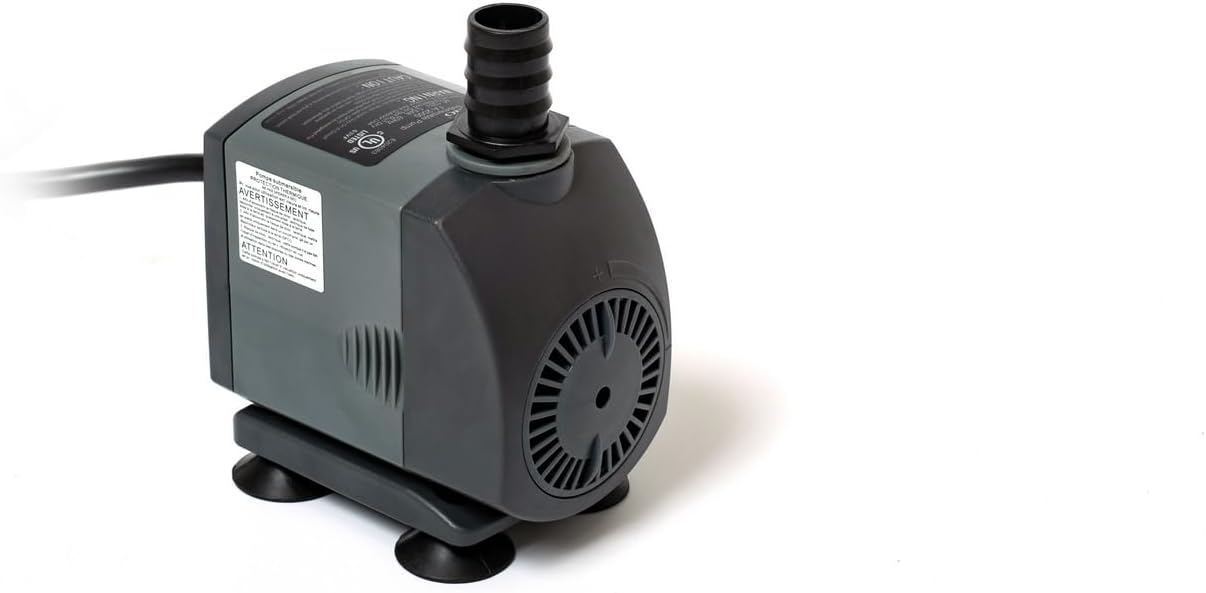

Image: The Jebao FA-2000 pump with a barbed hose adapter installed on the top outlet.
-
4.3 Connexió elèctrica
Route the power cord to a GFCI-protected electrical outlet. Ensure there is a drip loop in the cord to prevent water from traveling along the cord to the outlet. Do not plug in the pump until it is fully submerged in water.
5. Instruccions de funcionament
-
5.1 Posada en marxa inicial
Once the pump is fully submerged and all connections are secure, plug the pump into the GFCI-protected outlet. The pump should start immediately, circulating water.
-
5.2 Funcionament continu
The Jebao FA-2000 pump is designed for continuous operation. Monitor water levels to ensure the pump remains fully submerged at all times. Running the pump dry will cause damage and void the warranty.
-
5.3 Tancament
Per apagar la bomba, simplement desendolleu-la de la presa de corrent.
6. Manteniment
Regular maintenance ensures optimal performance and extends the life of your pump. Always disconnect power before maintenance.
-
6.1 Neteja de l'impulsor
Over time, debris can accumulate around the impeller, reducing pump performance. To clean:
- Desendolleu la bomba de la font d'alimentació.
- Traieu la bomba de l'aigua.
- Carefully remove the front cover/intake screen.
- Gently pull out the impeller assembly.
- Clean the impeller and its housing with a soft brush and clean water. Remove any debris, algae, or mineral deposits.
- Reassemble the pump, ensuring all parts are securely in place.
-
6.2 Hivernació (si escau)
If operating in freezing climates, remove the pump from the water before temperatures drop below freezing. Clean the pump thoroughly and store it in a frost-free location, fully submerged in a bucket of water or completely dry.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Pump does not start or runs intermittently. |
|
|
| Reducció del cabal d'aigua. |
|
|
| La bomba és sorollosa. |
|
|
8. Especificacions
Imatge: Superior view of the Jebao FA-2000 pump, showing the product label with electrical specifications.
| Número de model: | FA-2000 |
| Cabal màxim: | 530 GPH (galons per hora) |
| Capçalera màxima: | 8.0 peus |
| Potència: | 35W |
| Voltage: | 120 V |
| Actual: | 0.64A |
| Freqüència: | 60 Hz |
| Dimensions (L x A x A): | 3.75 x 3 x 4.5 polzades |
| Pes de l'article: | 2.1 lliures |
| Material: | Plàstic |
| Estil: | Submergible |
| Font d'alimentació: | Elèctric amb cable |
9. Informació de la garantia
Jebao products are manufactured to high-quality standards. This product is covered by a limited warranty against defects in materials and workmanship from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, neglect, unauthorized modifications, or running the pump dry.
For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact customer support.
10. Atenció al client
If you have any questions, require technical assistance, or need to report a problem with your Jebao FA-2000 pump, please contact our customer support team.
- Weblloc: www.jebao.com (Exampl'enllaç, l'enllaç real pot variar)
- Correu electrònic: support@jebao.com (Example email, actual email may vary)
- Telèfon: 1-800-XXX-XXXX (Ex.ample number, actual number may vary)
When contacting support, please have your pump model number (FA-2000) and purchase date available.
