Introducció
The Soozier Folding Squat Rack is designed to optimize your workout space, making it ideal for home gyms or garages with limited area. This wall-mounted power rack features an adjustable barbell rack with 17 height levels and a built-in pull-up bar, supporting up to 1000 lbs for diverse strength training. Its robust steel construction ensures stability and safety during intense lifts, while its folding design allows for convenient storage when not in use.
Informació de seguretat
- Consulteu sempre amb un professional de la salut abans de començar qualsevol nou programa d'exercici.
- Ensure the squat rack is securely mounted to a sturdy wall structure according to the assembly instructions.
- Regularly inspect all bolts, nuts, and pins to ensure they are tightened and in good condition before each use.
- Do not exceed the maximum weight capacity of 1000 lbs for the barbell rack.
- Use appropriate safety spotters or safety bars when lifting heavy weights.
- Mantingueu els nens i les mascotes lluny de l'equip durant l'ús.
- Porteu calçat i roba esportiva adequats.
Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats abans de començar el muntatge.
- 1 x Soozier Folding Squat Rack
- Mounting Screws (for wall installation)
- 1 x manual d'instruccions
- J-Hooks (pair)
- Barra de dominades
- Adjunt a les mines terrestres
Muntatge i muntatge
Follow these steps carefully to assemble your Soozier Folding Squat Rack. It is recommended to have at least two people for assembly.
1. Desembalatge i identificació dels components
Carefully remove all parts from the packaging. Lay them out and compare them against the parts list in the included manual to ensure all components are present.
Vídeo: Unboxing and identifying components for the squat rack. This video shows the initial setup process, including unpacking the parts and laying them out for assembly.
2. Assembling the Base Frame
Connect the horizontal base bars to the vertical uprights. Ensure all bolts are securely tightened. The frame is constructed from thick commercial-grade steel for durability.
Imatge: A close-up of the base frame assembly, highlighting the sturdy steel construction and connection points. The diagonal support bar and non-slip floor pads contribute to stability.
3. Muntatge a la paret
Identify suitable wall studs for secure mounting. Use the provided mounting screws to attach the wall brackets firmly. The wall-mounted design enhances stability and safety during use.
Imatge: The squat rack fully assembled and mounted to a wall, demonstrating its stable and secure installation.
4. Attaching the Pull-Up Bar and J-Hooks
Install the pull-up bar at the top of the uprights. Attach the J-hooks to the desired height levels using the locking pins. The J-hooks are adjustable across 17 height levels.
Imatge: Un detallat view of the J-hooks, showing their robust construction and how they attach to the uprights for height adjustment.
Instruccions de funcionament
Adjusting J-Hook Height
The J-hooks can be adjusted to 17 different height levels (from 9.8" to 72.8") to accommodate various exercises and user heights. To adjust, remove the locking pin, slide the J-hook to the desired hole, and reinsert the pin securely. Ensure both J-hooks are at the same height for balanced lifting.
Imatge: A user demonstrating the adjustment of the J-hooks, highlighting the numbered holes for precise height selection.
Using the Pull-Up Bar
The integrated pull-up bar allows for diverse upper body workouts. Ensure the rack is fully extended and stable before performing pull-ups. The pull-up bar has a diameter of 1" and a length of 43.3".

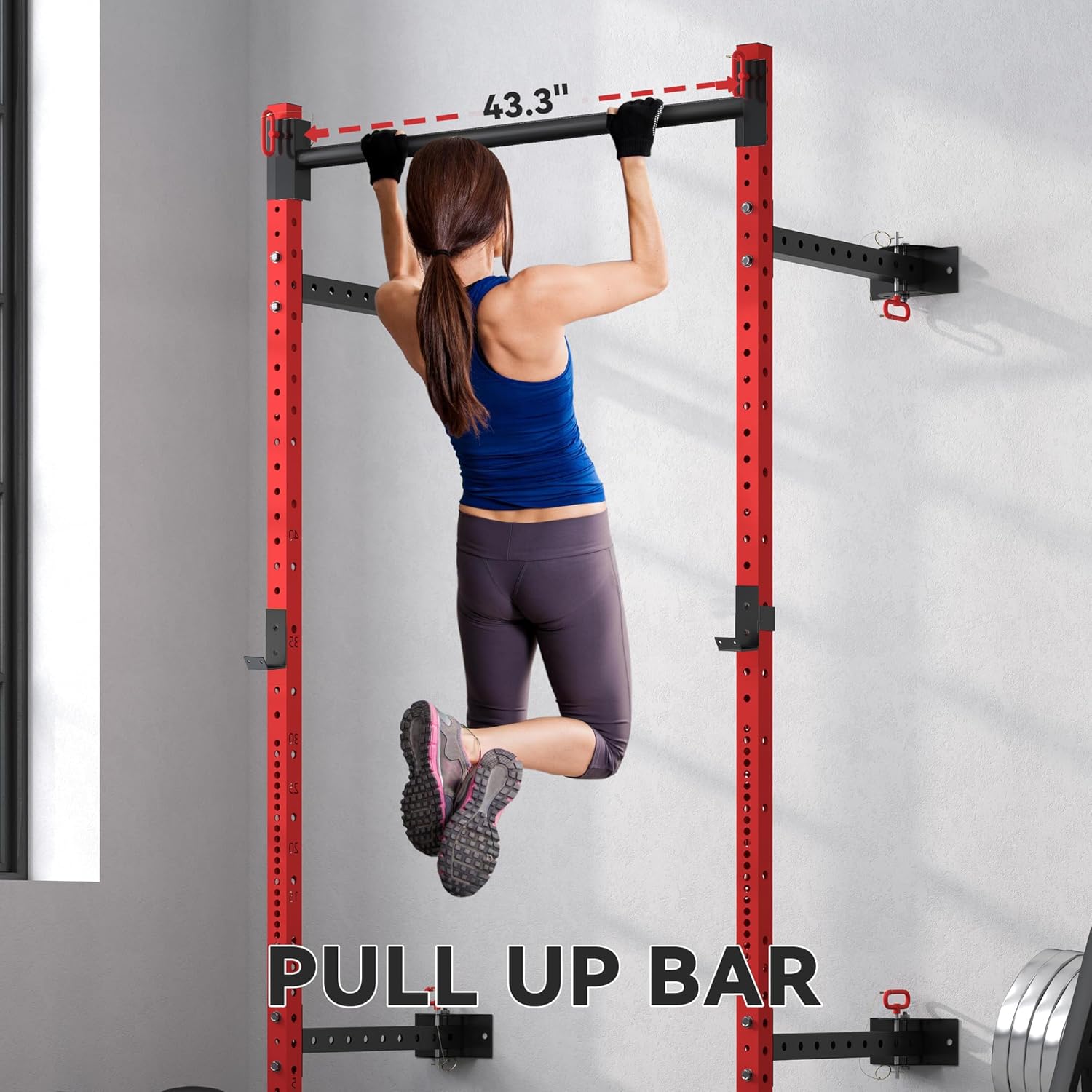

Imatge: A user performing pull-ups on the integrated bar, showcasing its use for bodyweight exercises.
Utilizing the Landmine Attachment
The landmine attachment provides versatility for exercises like landmine rows, presses, and twists. Insert one end of your barbell into the attachment. Ensure the attachment is securely fastened to the rack before use.
Folding and Unfolding the Rack
To fold the rack for space-saving storage, remove the pull-up bar and the four locking pins. Gently lift the uprights and pivot them inwards towards the wall. To unfold, reverse the process, ensuring all pins and the pull-up bar are securely reinstalled before use.
Vídeo: Demonstration of folding and unfolding the Soozier Wall Mounted Folding Squat Rack. This video illustrates the space-saving design and ease of storage.
Manteniment
- Inspecció periòdica: Periodically check all nuts, bolts, and connections for tightness. Tighten any loose fasteners immediately.
- Neteja: Netegeu el marc amb anunciamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
- Lubricació: If any moving parts (e.g., folding mechanisms) become stiff, apply a small amount of silicone-based lubricant.
- Emmagatzematge: When not in use, especially for extended periods, ensure the rack is folded and stored in a dry, clean environment to prevent rust and wear.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Rack feels unstable or wobbly. | Loose bolts or improper wall mounting. | Ensure all bolts are tightened. Verify the rack is mounted to solid wall studs or appropriate anchors. |
| J-hooks are difficult to adjust. | Pins are stuck or holes are misaligned. | Ensure the pins are fully retracted. Check for any debris in the holes. Apply a small amount of lubricant if necessary. |
| El mecanisme de plegat és rígid. | Falta de lubricació o obstrucció menor. | Clean the pivot points and apply silicone-based lubricant. Ensure no cables or objects are obstructing the movement. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Soozier |
| Número de model | A91-365V00RD |
| Material | Acer d'aliatge |
| Dimensions totals (L x A x A) | 48" x 23.6" x 89.8" |
| Folding Dimensions (L x W x H) | 48" x 2" x 89.8" |
| Barbell Rack Height Adjustment | 17 levels, 9.8" - 72.8" H |
| Pull-Up Bar Dimensions | 1" Dia. x 43.3" L |
| Capacitat de pes | 1000 lliures |
| Pes de l'article | 60 lliures |
Garantia i Suport
For warranty information, product support, or to purchase replacement parts, please contact Soozier customer service. Refer to the contact details provided in your product packaging or visit the official Soozier weblloc.
