ECHTPower P03 Wireless Controller for PS4/PC User Manual

1. Producte acabatview

The ECHTPower P03 Wireless Controller is designed for an enhanced gaming experience on both PlayStation 4 and PC. It features advanced Hall Effect joysticks for precision, programmable back buttons for custom controls, a Type-C charging port, and immersive vibration feedback. This manual provides instructions for setup, operation, and maintenance.

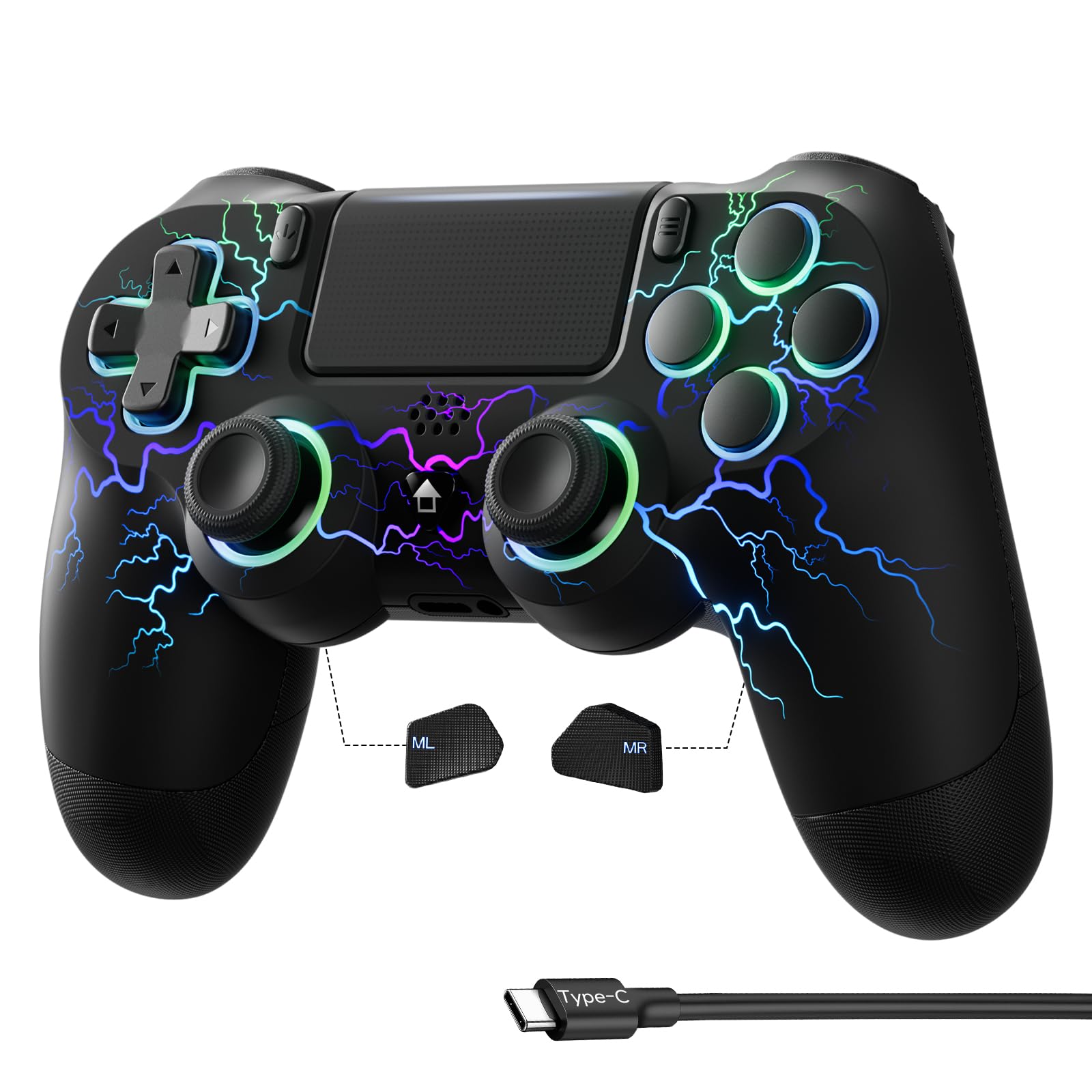

Image: ECHTPower P03 Wireless Controller, showcasinpel seu disseny ergonòmic i els botons il·luminats.

2. Característiques clau

• Port de càrrega tipus C: Equipped with a modern Type-C port for faster and more convenient charging. The 1000mAh battery provides up to 10 hours of continuous gameplay.
• Connectivitat sense fils: Supports Bluetooth wireless connection for both PS4 and PC, offering freedom of movement during gameplay.
• Joysticks d'efecte Hall: Utilizes magnetic Hall Effect technology to prevent joystick drift and wear, ensuring precise and responsive control in all games.
• Botons enrere programables: Two customizable back buttons allow users to assign complex button combinations or frequently used actions for a competitive edge.
• Funció turbo: Enables rapid-fire actions by holding down a button, ideal for games requiring quick, repeated inputs.
• Immersive Vibration: Provides realistic haptic feedback, enhancing the gaming experience by making in-game actions feel more impactful.
• Giroscopi: Integrated gyroscope for motion control in supported games.
• Ergonomic Anti-slip Design: Designed for comfort during long gaming sessions, with an anti-slip texture for a secure grip.

3. Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

• ECHTPower P03 Wireless Controller
• Cable de càrrega USB-C
• Manual d'usuari

4. Configuració i connexió

4.1 Càrrega del controlador

Before first use, fully charge the controller using the provided USB-C cable. Connect the Type-C end to the controller and the USB-A end to a power source (e.g., PS4 console, PC, or USB wall adapter).

Image: Controller connected via Type-C cable, illustrating the charging process. A 1000mAh battery provides long duration, with 2-4 hours charging time for 10 hours of use.

4.2 Connecting to PS4

1. Enceneu la vostra consola PS4.
2. Connect the controller to the PS4 console using the USB-C cable.
3. Press the PS button on the controller. The light bar will flash and then turn solid, indicating a successful connection.
4. You can then disconnect the cable for wireless play.

4.3 Connecting to PC (Wireless)

1. Assegureu-vos que el vostre ordinador tingui el Bluetooth habilitat.
2. Al controlador, premeu i manteniu premut COMPARTIR botó i el PS button simultaneously until the light bar starts flashing rapidly. This indicates pairing mode.
3. On your PC, go to Bluetooth settings and search for new devices.
4. Select "Wireless Controller" or "GamePad" from the list of available devices to pair.
5. Once paired, the light bar will turn solid, indicating a successful connection.

Image: The controller is compatible with PS4/Slim/Pro, PC, Android/iOS, and Steam Deck, offering wide compatibility.

5. Instruccions de funcionament

5.1 Joystick Calibration

To ensure optimal joystick performance and prevent drift, perform calibration:

1. Manteniu premut el botó Triangle botó, Cercle botó, i CASA botó simultàniament.
2. The RGB lights will flash rapidly in red, green, and blue sequence.
3. Rotate both the left and right joysticks more than three full turns.
4. Finalment, premeu el botó X button to complete the calibration. The lights will return to their previous state.

Image: Close-up of the Hall Effect joystick, highlighting its precision and durability with "Drift Prevention" and "5 Million Uses" indicators.

5.2 RGB Light Adjustment

The controller features customizable RGB lighting:

1. To cycle through RGB modes, press the COMPARTIR i OPCIONS botons simultàniament.
2. To turn off the RGB lights, press the COMPARTIR i R3 botons simultàniament.
3. To adjust the brightness of the RGB lights, press the M button (located on the back) while pushing the joystick downwards.

Image: The controller displaying various RGB lighting effects, indicating 9 colors and 7 modes for an immersive gaming experience.

5.3 Changing PC Connection Mode (DS4/XINPUT)

When connected to a PC, the controller can switch between DS4 and XINPUT modes:

1. Connect the controller to your PC via the USB-C cable.
2. To switch from DS4 mode to XINPUT mode, press and hold the COMPARTIR i OPCIONS buttons simultaneously for 5 seconds. The light bar will change from blue (DS4) to orange (XINPUT).
3. To switch from XINPUT mode back to DS4 mode, press and hold the COMPARTIR i OPCIONS buttons simultaneously for 5 seconds. The light bar will change from orange (XINPUT) to blue (DS4).

5.4 Turbo Function Configuration

The Turbo function allows for rapid, repeated button presses:

1. Turbo manual: Manteniu premut el botó M button (on the back) and then press the desired function button (e.g., X, Circle, Square, Triangle, L1, R1, L2, R2). The function button will now activate Turbo mode when held.
2. Turbo automàtic: Manteniu premut el botó M button, then press the function button twice. The function button will now activate Turbo mode automatically without needing to be held.
3. Desactiva el Turbo: Manteniu premut el botó M button, then press the function button three times. The Turbo function for that button will be deactivated.

Image: A user playing a game with the controller, illustrating the benefit of the Turbo function for rapid actions.

5.5 Ajust de vibració

Adjust the intensity of the controller's vibration feedback:

1. Manteniu premut el botó L1, R1, L2, i R2 botons simultàniament.
2. The vibration intensity can be adjusted through three levels: 0% (no vibration), 50% (medium), and 100% (strong). Cycle through these levels by repeating the button combination.

Image: The controller with visual cues indicating active vibration, emphasizing the "Real Vibration" feature for realistic game actions.

5.6 Botons Enrere programables

The two back buttons (MR and ML) can be programmed to replicate other button inputs:

1. Manteniu premut el botó M button (on the back) and the desired back button (MR or ML) simultaneously until the light bar flashes.
2. Mentre encara aguanta el M button, press the button(s) you wish to map to the back button.
3. Release all buttons. The light bar will stop flashing, indicating successful programming.
4. To clear a programmed back button, repeat the process without pressing any function buttons in step 2.

Imatge: Part posterior view of the controller showing the MR and ML programmable back buttons, with an illustration of possible button mappings.

6. Manteniment

• Mantingueu el controlador net netejant-lo amb un drap suau i sec.
• Eviteu exposar el controlador a temperatures extremes, humitat o llum solar directa.
• Do not disassemble the controller, as this will void the warranty.
• Guardeu el controlador en un lloc segur quan no l'utilitzeu per evitar danys.

7. Solució De Problemes

• El controlador no es connecta: Ensure the controller is charged. Try connecting via USB cable first to establish a connection. For PC, ensure Bluetooth is enabled and the controller is in pairing mode.
• Deriva del joystick: Perform the joystick calibration procedure as described in section 5.1.
• La vibració no funciona: Check the vibration intensity settings as described in section 5.5. Ensure it's not set to 0%.
• Els botons no responen: Ensure the controller is properly connected and charged. If the issue persists, try resetting the controller (a small reset button is usually located on the back, requiring a pin to press).
• PC mode issues: Ensure you are in the correct DS4 or XINPUT mode for your game, as described in section 5.3.

8. Especificacions

9. Garantia i Suport

ECHTPower products come with a standard manufacturer's warranty. For detailed warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official ECHTPower weblloc.

For further assistance, please contact ECHTPower customer support.
