1. Introducció
Thank you for choosing the VINGLI Outdoor Swivel Bar Stools. These 30-inch metal barstools are designed for comfort and durability, featuring a 360-degree rotating seat, backrest, and footrest. They are suitable for various outdoor and indoor settings, including gardens, patios, balconies, and kitchen islands. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure safe and optimal use of your new bar stools.
Image 1.1: VINGLI Outdoor Swivel Bar Stools in a home setting.
2. Informació de seguretat
- Llegiu atentament totes les instruccions abans de muntar i utilitzar.
- Mantingueu tots els materials d'embalatge fora de l'abast dels nens per evitar riscos d'asfíxia.
- Assegureu-vos que tots els cargols i perns estiguin ben ajustats abans d'utilitzar-los. Comproveu-los periòdicament i torneu-los a apretar si cal.
- No us poseu drets sobre el tamboret ni el feu servir com a escala.
- No supereu la capacitat màxima de pes de 350 lliures (158 kg).
- Utilitzeu-lo sobre una superfície plana i estable per evitar que es bolqui.
- Keep hands and fingers clear of moving parts, especially during swivel operation.
3. Contingut del paquet
Abans de començar el muntatge, verifiqueu que totes les peces que s'enumeren a continuació siguin presents i no estiguin danyades. Si hi ha alguna peça que falti o estigui danyada, no continueu amb el muntatge. Poseu-vos en contacte amb el servei d'atenció al client per obtenir ajuda.
- Seat with Swivel Mechanism (x2)
- Backrest (x2)
- Leg Frame Assembly (x2)
- Footrest Ring (x2)
- Paquet de ferramenta (cargols, volanderes, clau Allen)
- Manual d'instruccions (aquest document)
4. Muntatge i muntatge
Assembly typically takes 30-60 minutes per stool. It is recommended to have a second person assist with certain steps.
4.1. Preparació
- Deixeu una zona espaiosa i neta per al muntatge.
- Carefully unpack all components and lay them out.
- Sort all screws and hardware by size and type to avoid confusion during assembly. Refer to the hardware diagram in your included paper manual if available.
- Optional: Apply a small amount of lubricant (e.g., WD-40) to the swivel mechanism before assembly to ensure smoother rotation. Work the lubricant into the mechanism by rotating it several times.
4.2. Passos de muntatge
- Fixar el respatller al seient: Position the backrest onto the seat. Start by inserting the screws into the bottom holes first, only partially threading them. This allows for slight movement. Insert the inner bushings between the seat bottom and the backrest. Then, align and insert the top two screws, ensuring the bushings are correctly positioned between the armrest and the backrest. Once all screws are started, gently tighten them, ensuring the backrest is flush and secure.
- Attach Swivel Plate to Seat: If the swivel plate is separate, align it with the pre-drilled holes on the underside of the seat. Start all screws without fully tightening them. You may need to gently wiggle the swivel plate to align the holes. Once all screws are started, tighten them securely.
Image 4.1: Detail of the 360-degree swivel mechanism.
- Attach Footrest to Leg Frame: Position the footrest ring onto the leg frame. Ensure that any drain holes on the footrest are facing downwards. Start all screws without fully tightening them. You may need to apply slight pressure or wiggle the legs to align the holes. Once all screws are started, tighten them securely.
Image 4.2: Reinforced dual-use frame serving as a footrest.
- Connect Seat Assembly to Leg Frame: Carefully place the assembled seat (upside down) on a stable, elevated surface (e.g., the product box). Invert the leg frame assembly and align the holes on the swivel plate with the holes on the top of the leg frame. Start all screws without fully tightening them. Once all screws are started, tighten them securely.
- Comprovació final: Once assembled, gently place the stool upright. Check for stability and ensure all screws are fully tightened. Adjust the leveling feet if necessary to prevent wobbling.
Imatge 4.3: Peus anivelladors ajustables per a més estabilitat.
5. Instruccions de funcionament
5.1. Ús de la funció de gir
The VINGLI bar stools feature a smooth 360-degree swivel mechanism. To rotate, simply apply gentle pressure to the seat in the desired direction. The swivel action allows for easy movement and interaction in various settings.
Image 5.1: Illustration of the 360-degree swivel seat.
5.2. Utilizing the Footrest
The integrated footrest provides comfortable support for your feet, enhancing the ergonomic design of the stool for extended sitting periods.
6. Manteniment
To ensure the longevity and appearance of your VINGLI bar stools, follow these maintenance guidelines:
- Neteja: Wipe down the metal frame and wood-plastic composite seat with a soft cloth dampened with mild soap and water. Avoid harsh chemicals or abrasive cleaners, which can damage the finish. Rinse with clean water and dry thoroughly.

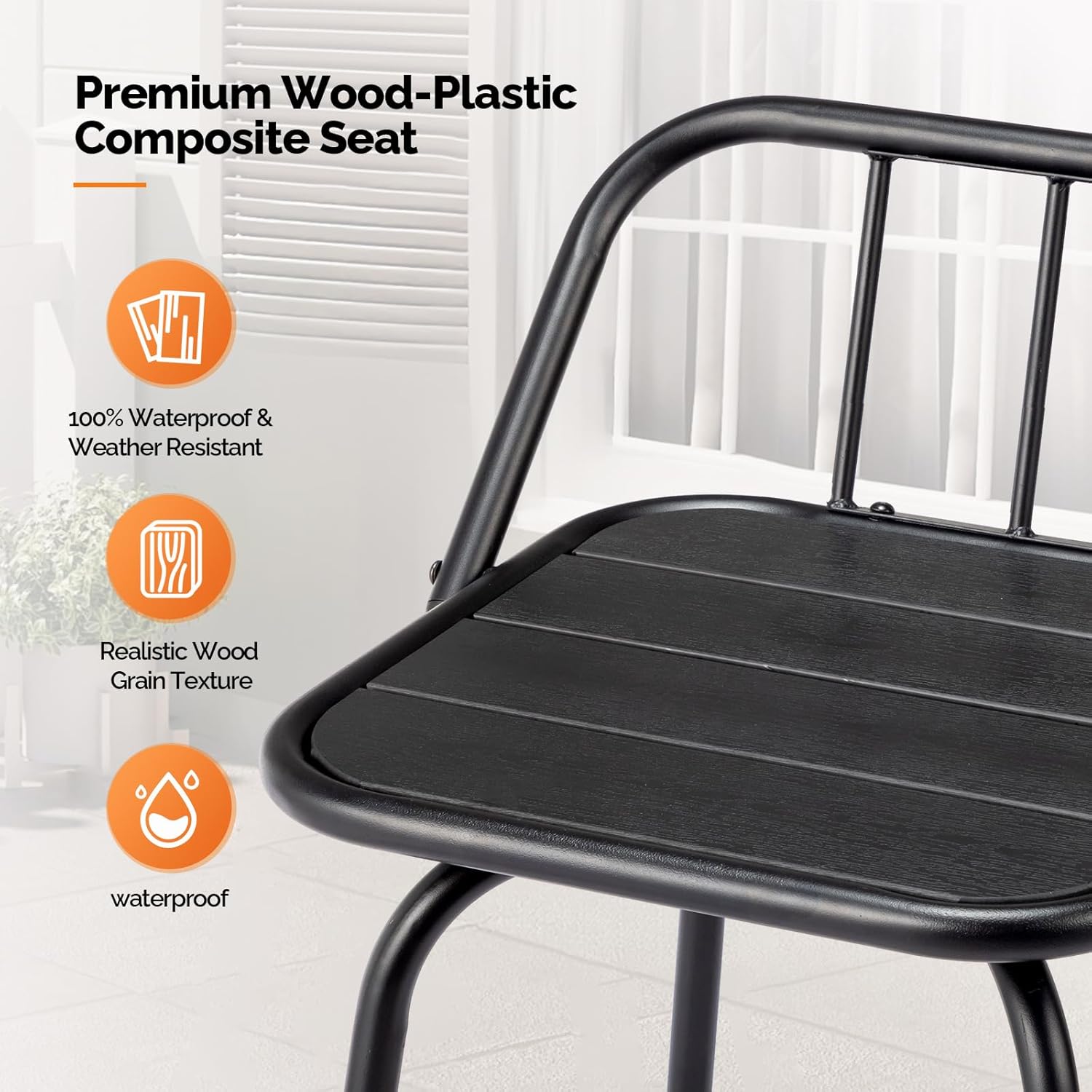

Image 6.1: Premium wood-plastic composite seat detail.
- Resistència a la intempèrie: The stools are designed for all-weather outdoor use. However, for prolonged periods of extreme weather or during off-season storage, covering the stools or storing them indoors will help preserve their condition.
- Comprovació de maquinari: Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten any loose hardware to maintain stability and safety.
- Mecanisme giratori: If the swivel mechanism becomes stiff over time, apply a silicone-based lubricant to the moving parts.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Les femtes es mouen o són inestables. | Uneven floor surface; loose hardware; uneven leg assembly. | Adjust the leveling feet on the bottom of the legs. Ensure all assembly screws are securely tightened. If wobbling persists, disassemble and reassemble, ensuring even pressure during tightening. |
| El mecanisme giratori és rígid o fa soroll. | Lack of lubrication; debris in mechanism; overtightened screws. | Apply a silicone-based lubricant to the swivel mechanism. Rotate the seat several times to distribute the lubricant. Check that the screws attaching the swivel plate are not overtightened. |
| Difficulty aligning screw holes during assembly. | Parts not correctly positioned; screws partially tightened too early. | Ensure all screws are only started (partially threaded) before fully tightening any. This allows for necessary adjustment and alignment. Gently wiggle parts to help align holes. |
8. Especificacions
| Característica | Detall |
|---|---|
| Número de model | VIRGRED02 |
| Marca | VINGLI |
| Material | Iron frame, Wood-Plastic Composite seat |
| Color | Negre |
| Alçada del seient muntat | 30 polzades |
| Característiques especials | 360-degree rotation, Adjustable leveling feet, Backrest, Footrest |
| Pes de l'article | Approximately 28.2 pounds per stool |
| Capacitat de pes | Fins a 350 lliures (158 kg) |
| Dimensions (total) | Refer to Image 8.1 for detailed dimensions. |
Imatge 8.1: Diagrama de dimensions del producte.
9. Garantia i Suport
For any questions regarding assembly, missing parts, or product performance, please contact VINGLI customer support. Refer to your purchase documentation or the VINGLI official weblloc web per obtenir informació específica sobre la garantia i les dades de contacte.
Assistència en línia: Visita el VINGLI Store on Amazon per obtenir més informació sobre el producte i opcions d'assistència.
