Spider Farmer 5L Smart Humidifier and SF4000 Grow Tent Kit User Manual

1. Introducció

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Spider Farmer 5L Smart Humidifier and SF4000 Grow Tent Kit. Please read this manual thoroughly before use to ensure proper function and longevity of your equipment.

2. Instruccions de seguretat

• Desconnecteu sempre l'alimentació abans de netejar o fer manteniment.
• No submergiu els components elèctrics a l'aigua.
• Ensure all electrical connections are secure and dry.
• Keep the humidifier and electrical components away from direct water spray.
• Operate the equipment within specified voltage i límits de corrent.
• Mantenir fora de l'abast dels nens i mascotes.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar el muntatge:

Figura 3.1: Mésview of all included components for the grow tent kit and humidifier.

• SF4000 LM301H EVO Grow Light
• Dimming Box
• Grow Tent 4x4x6.6ft
• 6" Inline Fan
• 6" Carbon Filter
• 6" Ducting
• Control de velocitat del ventilador
• 6" Clip Fan
• Spider Farmer 5L Smart Humidifier
• Y-shaped Vapor Outlet
• Extendable Hoses
• Monitor de temperatura i humitat
• Temporitzador
• 5 Gallon Grow Bags (x6)
• Trellis Plant Netting
• YOYO Hanger (x4)
• Vent Cover (x2)
• Corner Shelves (x2)
• Mànega Clamps (x3)

4. Configuració

4.1 Grow Tent Assembly

Follow the included tent assembly instructions to construct the 4x4x6.6ft grow tent frame and cover. Ensure all poles are securely connected using the triangular design connectors for enhanced stability.

Figure 4.1: Grow tent frame stability with triangular connectors.

1. Unpack all tent frame components.
2. Assemble the base frame, ensuring all corner pieces are firmly in place.
3. Attach the vertical poles to the base.
4. Install the top frame, connecting it to the vertical poles.
5. Drape the tent fabric over the assembled frame, zipping it up carefully.

4.2 Humidifier Setup

The 5L Smart Humidifier can be placed inside or outside the grow tent. Use the Y-shaped vapor outlet and extendable hoses to direct mist as needed.

Figure 4.2: Humidifier and its accessories for mist distribution.

1. Place the humidifier on a stable, level surface.
2. Ompliu el dipòsit d'aigua amb aigua neta i destil·lada.
3. Attach the Y-shaped vapor outlet and extendable hoses to the humidifier's mist output.
4. Route the hoses into the grow tent or desired area.
5. Connecteu el cable d'alimentació.

4.3 Grow Light Installation (SF4000)

Install the SF4000 LM301H EVO Grow Light using the provided YOYO hangers.

1. Attach the YOYO hangers to the corners of the grow light.
2. Hang the grow light from the tent's support bars, ensuring it is level and secure.
3. Connect the dimming box to the grow light.
4. Plug the grow light into a power source.

4.4 Ventilation System Setup

Assemble the inline fan, carbon filter, and ducting to create an effective ventilation system.

1. Connect the carbon filter to one end of the inline fan using ducting and hose clamps.
2. Connect the other end of the inline fan to the exhaust port of the grow tent using ducting and hose clamps.
3. Mount the inline fan and carbon filter securely within or outside the tent.
4. Connect the fan speed control to the inline fan and then to a power source.
5. Install the 6" clip fan inside the tent for air circulation.

4.5 Col·locació del sensor

Place the temperature and humidity sensor strategically within the grow tent for accurate readings.

Figure 4.3: Temperature and humidity sensor for environmental monitoring.

1. Hang the sensor at canopy level, away from direct light or airflow from fans.
2. Ensure the sensor is connected to the appropriate control system (e.g., GGS Controller or AC5/AC10 Smart Power Strip) if using smart features.

5. Instruccions de funcionament

5.1 Funcionament de l'humidificador

The 5L Smart Humidifier offers both manual and smart app control.

Figure 5.1: Humidifier LED digital control panel.

• Control manual:
  • Premeu el botó d'engegada per encendre/apagar.
  • Use the "SET" button to adjust desired humidity levels (35%-95% in 5% increments).
  • Use the "MIST" button to select one of the four adjustable mist levels.
  • Use the "TIMER" button to set an operating timer from 1 to 24 hours.
  • The humidifier will automatically shut off if the water level is low, indicated by a flashing icon and three beeps.
• Aplicació intel·ligent i control remot:


  Figure 5.2: Smart app control interface for the humidifier.

  • Connect the humidifier to a GGS Controller or AC5/AC10 Smart Power Strip (sold separately).
  • Download the Spider Farmer app on your mobile device.
  • Follow the app's instructions to pair your humidifier.
  • Adjust humidity levels, mist modes, and set timers remotely via the app.
  • Monitor real-time data from the temperature and humidity sensor.

5.2 Grow Light Operation (SF4000)

The SF4000 grow light features a dimming box for intensity control.

1. Plug in the grow light.
2. Use the dimming knob on the dimming box to adjust light intensity as required for different growth stages.
3. Utilize the provided timer to set on/off cycles for the light.

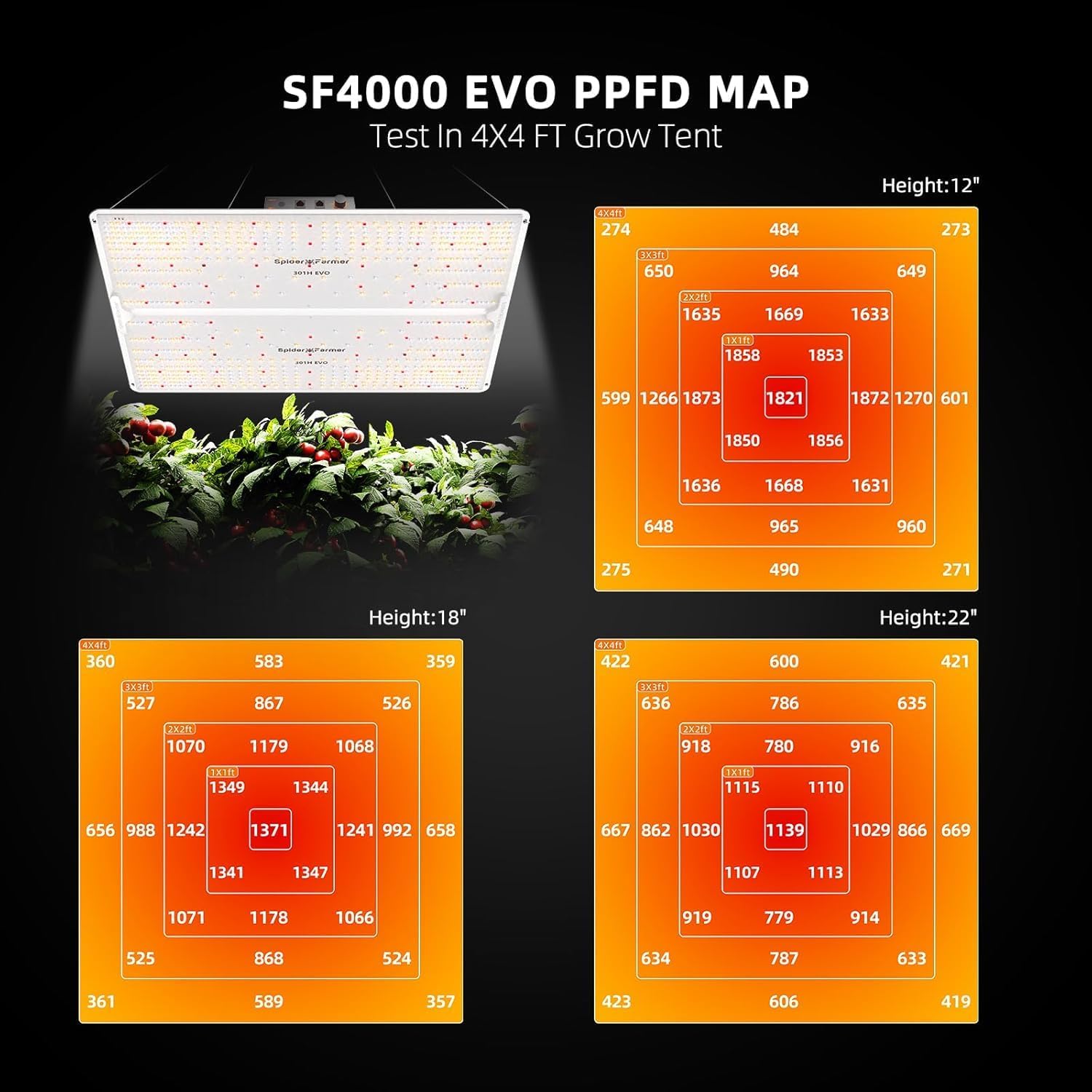

Figure 5.3: SF4000 EVO PPFD map showing light intensity distribution at various heights.

5.3 Ventilation System Operation

Control the inline fan using the fan speed control.

1. Plug in the inline fan via the fan speed control.
2. Adjust the knob on the fan speed control to set the desired airflow.
3. Ensure the carbon filter is properly installed to manage odors.
4. Operate the clip fan for internal air circulation to prevent hot spots and strengthen plant stems.

6. Manteniment

6.1 Humidifier Cleaning

Regular cleaning prevents mineral buildup and ensures efficient operation.

1. Desendolla l'humidificador i buida l'aigua que quedi.
2. Disassemble the mist outlet and hoses.
3. Clean the water tank and base with a soft cloth and mild detergent. For mineral buildup, use a descaling solution or a mixture of white vinegar and water.
4. Rinse all components thoroughly and allow them to air dry completely before reassembly.
5. Clean the Y-shaped vapor outlet and hoses as needed.

6.2 Grow Tent Cleaning

Keep the grow tent clean to maintain a healthy environment.

1. Remove all plants and equipment from the tent.
2. Wipe down interior surfaces with a damp cloth and a mild, plant-safe cleaning solution.
3. Ensure the tent is completely dry before reintroducing plants and equipment.

6.3 Substitució del filtre

The carbon filter has a limited lifespan and should be replaced periodically to maintain odor control effectiveness.

• Replace the carbon filter every 6-12 months, depending on usage and environmental conditions.
• Refer to the carbon filter's specific instructions for replacement procedures.

7. Solució De Problemes

8. Especificacions

• Humidifier Capacity: 5 litres
• Humidifier Humidity Range: 35%-95% RH (in 5% increments)
• Humidifier Mist Levels: 4 nivells ajustables
• Humidifier Noise Level: ≤35dB
• Grow Light Model: SF4000 LM301H EVO
• Grow Light Efficiency: 3.14 µmol/J PPE (per diode)
• Grow Tent Dimensions: 4x4x6.6 ft (approximately)
• Ventilation Fan Size: 6 polzades
• Carbon Filter Size: 6 polzades

9. Garantia i Suport

Spider Farmer proporciona un Garantia de servei de 5 anys for this product. We maintain a dedicated service and maintenance center in the USA to assist with any issues or inquiries.

For technical support, warranty claims, or general assistance, please contact Spider Farmer customer service through the official weblloc web o la vostra plataforma de compra.

Si us plau, conserveu el comprovant de compra per validar la garantia.
