1. Introducció

Thank you for choosing the KAIWEETS KC200D Digital Clamp Meter. This device is a compact, high-precision instrument designed for electrical measurements in various settings, including home, commercial, and industrial environments. It features True RMS technology for accurate readings of complex waveforms, Non-Contact Voltage (NCV) detection for enhanced safety, and a clear backlit LCD for easy readability. This manual provides essential information for safe and effective use of your clamp metre.

2. Informació de seguretat

To ensure safe operation, please read and understand all safety warnings and operating instructions before using this instrument. Failure to observe these warnings can result in serious injury or death.

• Respecteu sempre els codis de seguretat locals i nacionals.
• No utilitzeu el mesurador si sembla danyat o si l'aïllament dels cables de prova està compromès.
• No apliqueu més del volum nominaltage, as marked on the meter, between terminals or between any terminal and ground. The maximum operating voltage és 600V.
• Tingueu molta precaució quan treballeu amb voltagper sobre de 60 V CC o 30 V CA RMS. Aquests voltagsuposen un risc de xoc.
• Keep your fingers behind the finger guards on the test leads during use.
• No feu funcionar el mesurador en entorns amb gasos, vapors o pols explosius.
• Traieu els cables de prova del circuit abans de canviar les funcions.
• Always turn off the power to the circuit under test before connecting or disconnecting the test leads.
• Ensure the battery cover is securely closed before operating the meter.

3. Contingut del paquet

Verify that all items listed below are present and undamaged:

• 1 x KAIWEETS KC200D Digital Clamp Mesurador
• 1 x Manual d'usuari
• 1 x bossa d'emmagatzematge
• 2 cables de prova (vermell i negre)
• 2 piles AAA de 1.5 V

4. Producte acabatview

The KAIWEETS KC200D is designed for ease of use and durability. Familiarize yourself with the main components:

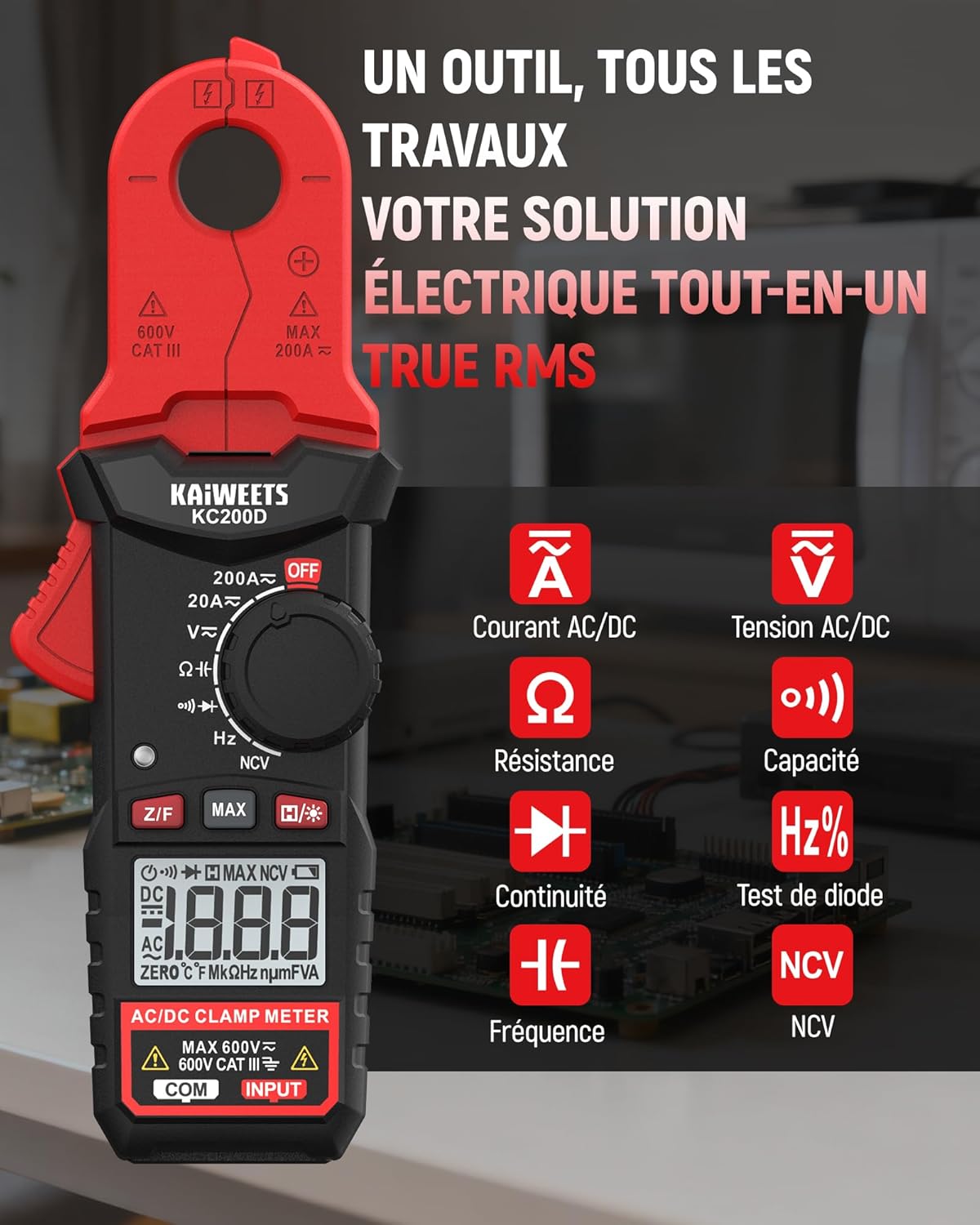

Figura 4.1: KAIWEETS KC200D Clamp Meter with its various measurement functions highlighted, including AC/DC Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Diode Test, Continuity, and NCV.

4.1 Components clau

• Clamp Mandíbula: S'utilitza per a la mesura de corrent AC/DC sense contacte.
• Marcador de funció: Rotary switch to select measurement modes.
• Pantalla LCD: Mostra lectures de mesura, unitats i indicadors.
• Botons: For special functions like Data Hold, MAX/MIN, DC Zero, Backlight, and NCV.
• Terminals d'entrada: Per connectar els cables de prova per a voltage, resistance, capacitance, frequency, diode, and continuity measurements.

5. Configuració

5.1 Instal·lació de la bateria

The KC200D requires two AAA 1.5V batteries (included).

1. Assegureu-vos que el comptador estigui apagat.
2. Localitzeu el compartiment de la bateria a la part posterior del mesurador.
3. Feu servir un tornavís per obrir la tapa del compartiment de la bateria.
4. Insert the two AAA batteries, observing the correct polarity (+ and -).
5. Substituïu la tapa del compartiment de la bateria i fixeu-la amb el cargol.

5.2 Connexió dels cables de prova

Per a mesures que requereixen cables de prova (voltage, resistance, capacitance, frequency, diode, continuity):

• Insert the red test lead into the "INPUT" terminal.
• Insert the black test lead into the "COM" (Common) terminal.

6. Instruccions de funcionament

Always select the appropriate function before making any measurement. Turn the function dial to the desired measurement mode.

6.1 Mesura de corrent AC/DC (Clamp)

Utilitzeu el clamp jaw for non-contact current measurement. This method is ideal for safely measuring current without breaking the circuit.

Figura 6.1: El clamp jaw of the KC200D measuring current on a single electrical wire, demonstrating its compact design and precision.

1. Gireu el dial de funció a 20A~ or 200A~ position for AC current, or 20A= or 200A= per a corrent continu.
2. Premeu el clamp trigger to open the jaw.
3. Encircle only un conductor with the clamp mandíbula. No tanqueuamp around multiple wires, as this will result in an inaccurate reading.
4. For DC current measurement, press the Z/F button to zero the display before clamping.
5. Llegiu el valor actual a la pantalla LCD.

6.2 AC/DC Voltage Mesura

Per mesurar voltage, use the test leads.

1. Gireu el dial de funció a V~ (Volum AC)tage) o V= (DC Voltage) posició.
2. Connect the red test lead to the positive side of the circuit and the black test lead to the negative side (or ground).
3. Llegeix el voltage valor a la pantalla LCD.

6.3 Mesura de la Resistència

Assegureu-vos que el circuit estigui desenergitzat abans de mesurar la resistència.

1. Gireu el dial de funció a Ω posició.
2. Connecteu els cables de prova al component que s'ha de mesurar.
3. Llegiu el valor de la resistència a la pantalla LCD.

6.4 Mesura de la capacitat

Discharge capacitors completely before measurement to avoid damage to the meter or injury.

1. Gireu el dial de funció a Capacitat position (often shared with Diode/Continuity, press FUNC to cycle).
2. Connecteu els cables de prova a través del condensador.
3. Llegiu el valor de la capacitat a la pantalla LCD.

6.5 Mesura de la freqüència

Per mesurar la freqüència:

1. Gireu el dial de funció a % Hz posició.
2. Connect the test leads across the circuit where frequency is to be measured.
3. Llegiu el valor de freqüència a la pantalla LCD.

6.6 Prova de díodes

Assegureu-vos que el díode estigui desconnectat del circuit.

1. Gireu el dial de funció a Díode position (often shared with Capacitance/Continuity, press FUNC to cycle).
2. Connect the red test lead to the anode and the black test lead to the cathode.
3. A forward voltage drop will be displayed for a good diode. Reverse the leads; the display should show OL (Open Loop).

6.7 Prova de continuïtat

Assegureu-vos que el circuit estigui desenergitzat.

1. Gireu el dial de funció a Continuïtat position (often shared with Diode/Capacitance, press FUNC to cycle).
2. Connecteu els cables de prova al component o cable.
3. If there is continuity (low resistance), the meter will emit an audible beep.

6.8 Vol. sense contactetage (NCV) Detecció

The NCV function allows for quick and safe detection of live AC voltagi sense contacte directe.

Figura 6.2: The KC200D performing Non-Contact Voltage (NCV) detection near an electrical outlet, showing visual indicators for low and high voltage presència.

1. Gireu el dial de funció a NCV posició.
2. Bring the top end of the meter near the conductor or outlet.
3. The meter will emit an audible beep and illuminate LED indicators, with frequency increasing as voltagla força augmenta.

6.9 Funcions especials

Figura 6.3: The KC200D highlighting its user-friendly functions: MAX for peak value, Z/F for DC current zeroing, H for data hold, backlight for low-light conditions, and auto-off for battery saving.

• Data Hold (H/* button): Premeu per congelar la lectura actual a la pantalla. Premeu de nou per alliberar-la.
• MAX/MIN (MAX button): Press to display the maximum or minimum measured value. Press again to cycle.
• DC Current Zero (Z/F button): For DC current measurements, press this button before clamping to zero out any residual readings.
• Backlight (H/* long press): Long press the H/* button to turn the display backlight ON or OFF for improved visibility in low-light conditions.
• Apagat automàtic: The meter automatically powers off after approximately 15 minutes of inactivity to conserve battery life. Press any button or rotate the function dial to wake it up.

7. Manteniment

7.1 Neteja

Netegeu el mesurador amb un drap sec i suau. No utilitzeu abrasius ni dissolvents.

7.2 Substitució de la bateria

When the battery indicator appears on the LCD, replace the batteries as described in the Setup section (5.1 Battery Installation).

7.3 Emmagatzematge

If the meter is not used for an extended period, remove the batteries to prevent leakage and damage. Store the meter in its carrying bag in a cool, dry place.

8. Solució De Problemes

9. Especificacions

Technical specifications for the KAIWEETS KC200D Digital Clamp Mesurador:

10. Garantia i Suport

KAIWEETS products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact information provided on the KAIWEETS official website or contact your local distributor. Please retain your purchase receipt as proof of purchase for warranty claims.
