1. Introducció
Thank you for choosing the VANNECT Walking Pad Treadmill Model AA. This manual provides essential information for the safe and efficient use of your new fitness equipment. Please read it thoroughly before first use and keep it for future reference.
The VANNECT Walking Pad Treadmill is designed for home use, offering a versatile workout experience with features like adjustable incline, a wide speed range, and smart connectivity.
2. Instruccions de seguretat importants
To reduce the risk of serious injury, read all important precautions and instructions in this manual before using the treadmill. VANNECT assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
- Consulteu sempre amb un metge abans de començar qualsevol programa d'exercici.
- Mantingueu els nens i les mascotes lluny de la cinta de córrer en tot moment.
- Place the treadmill on a level surface with at least 0.6 meters (2 feet) of clear space around it.
- Porteu roba esportiva i calçat esportiu adequats.
- No feu servir la cinta de córrer si té el cable d'alimentació o l'endoll danyats o si no funciona correctament.
- Do not use the treadmill outdoors or in areas of high humidity.
- La capacitat màxima de pes de l'usuari per a aquesta cinta de córrer és de 180 kg (396 lliures).
- Feu servir sempre la clau de seguretat durant el funcionament.
3. Configuració i ús inicial
The VANNECT Walking Pad Treadmill is designed for minimal assembly, allowing for quick setup.
3.1 Desembalatge i col·locació
- Carefully remove the treadmill from its packaging. Due to its weight (approximately 34 kg), it is recommended to have assistance during unpacking and placement.
- Place the treadmill on a firm, level surface. Ensure there is adequate space around the unit for safe operation and movement.
3.2 Plegat i desplegament
The treadmill features a foldable design for easy storage.
- Per desplegar: Gently lift the running deck until it locks into the upright position. Ensure the handrails are securely in place.
- Per plegar: Release the locking mechanism (if present, typically a lever or knob) and carefully lower the running deck until it is flat. The handrails can also be folded down.
Figura 3.2.1: The treadmill can be easily folded and stored under furniture, demonstrating its space-saving design. Transport wheels at the base facilitate movement.
3.3 Connexió d'alimentació
- Connecteu el cable d'alimentació a una presa de corrent elèctrica amb terra.
- Ensure the power switch on the treadmill is in the "ON" position.
4. Instruccions de funcionament
4.1 Tauler de control i comandament a distància
The treadmill can be operated via its integrated LED display and the included remote control.
Figura 4.1.1: Acabatview of the treadmill's display, remote control, and incline capability. The remote control allows for convenient speed adjustments and stopping.
- Pantalla LED: Shows real-time data such as distance, time, calories, speed, and pulse.
- Comandament a distància: Use the remote to adjust speed, start/stop the treadmill, and pause your workout. The remote has a magnetic back for secure attachment to the treadmill when not in use.
- Funció de pausa: Press the pause button on the remote to temporarily stop your workout without losing your progress data.
4.2 Ajust de velocitat i modes
The treadmill offers a speed range of 1-14 km/h, suitable for various activities.
Figura 4.2.1: The treadmill supports various modes from working (1-3 km/h) to running (10-14 km/h), including an incline mode.
- Mode de treball: 1-3 km/h, ideal for light activity while working.
- Mode de caminada: 4-6 km/h, suitable for brisk walking.
- Mode de córrer: 7-9 km/h, for a moderate jog.
- Mode de funcionament: 10-14 km/h, for higher intensity running.
4.3 Incline Feature
The treadmill features a 12% incline capability to simulate more realistic climbing scenarios and increase calorie burn.
- To activate the incline, adjust the support pivot located at the center of the treadmill to ensure it adheres firmly to the ground. This provides a more stable workout experience.
4.4 App Connectivity (Kinomap & Zwift)
Enhance your workout experience by connecting the treadmill to fitness apps via Bluetooth.
Figura 4.4.1: The treadmill supports virtual training and challenges through Kinomap and Zwift apps, displayed on a large screen for an immersive experience.
- Download the Kinomap or Zwift app on your smartphone or tablet.
- Enable Bluetooth on your device and pair it with the treadmill.
- Use the app to access virtual training, running routes, and challenges.
- The app or LCD monitor will display real-time data including distance, time, calories, and pulse, helping you track your progress.
4.5 Altaveu Bluetooth
The treadmill includes an integrated surround sound Bluetooth speaker.
- Pair your smartphone or tablet with the treadmill's Bluetooth speaker.
- Enjoy music or videos through the speaker during your workout.

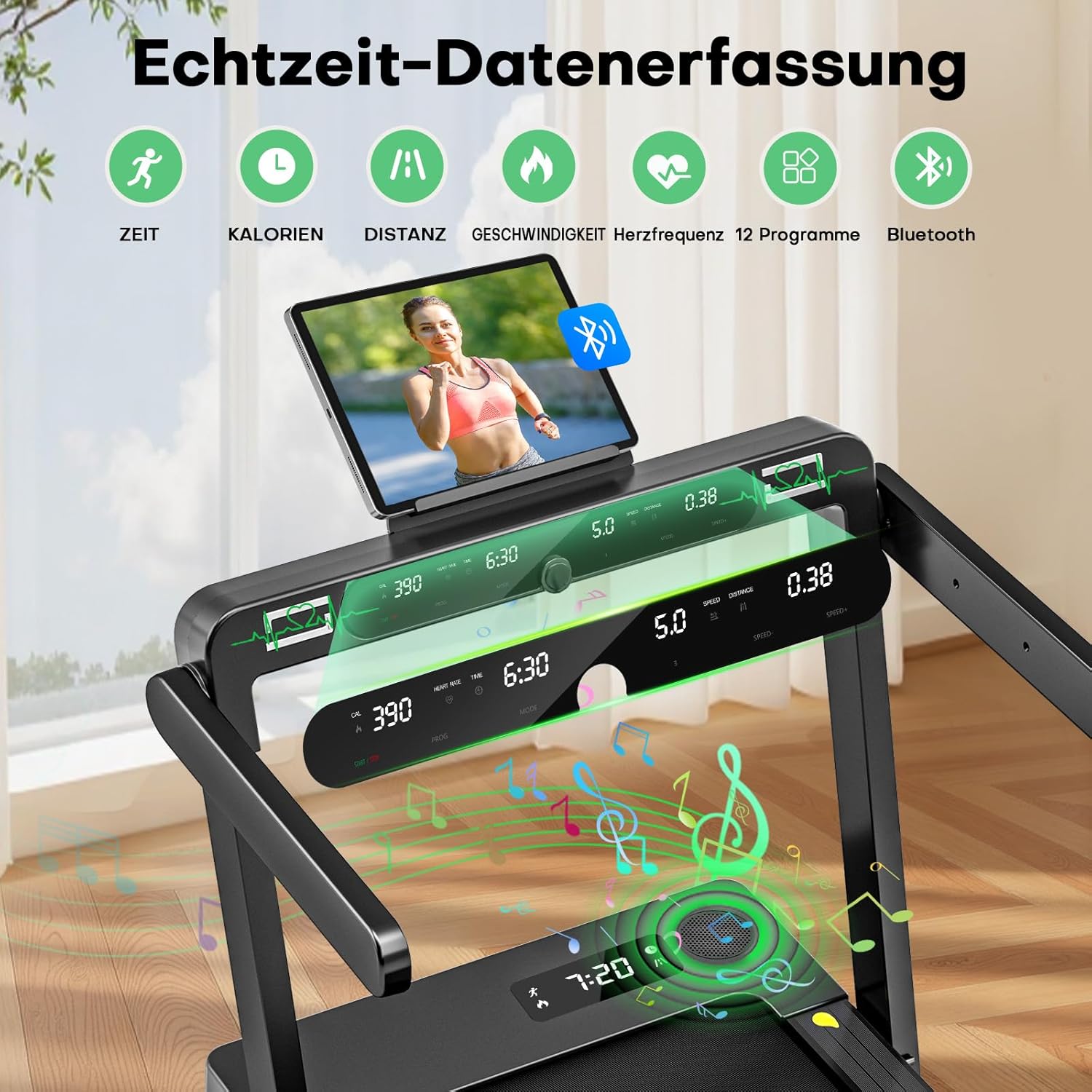

Figura 4.5.1: The control panel features a tablet holder and displays workout data. The integrated Bluetooth speaker allows for audio playback during exercise.
5. Manteniment
Un manteniment regular garanteix la longevitat i el rendiment òptim de la cinta de córrer.
5.1 Neteja
- Netegeu la cinta de córrer després de cada ús amb un anunciamp drap per eliminar la suor i la pols.
- No utilitzeu netejadors abrasius ni dissolvents.
5.2 Lubricació de la corretja
The running belt requires periodic lubrication to reduce friction and extend its lifespan. A small bottle of silicone oil is included for this purpose.
- Refer to the specific instructions provided with the silicone oil for proper application.
- Typically, lubrication is recommended every few months, depending on usage frequency.
5.3 Ajust del cinturó
- If the running belt becomes off-center or slips, it may need adjustment. Use the included Allen key to make small adjustments to the rear rollers.
- Consult the troubleshooting section or contact customer support if you are unsure how to perform this adjustment.
6. Solució De Problemes
Aquesta secció tracta els problemes habituals que podeu trobar amb la vostra cinta de córrer.
| Problema | Causa possible | Solució |
|---|---|---|
| La cinta de córrer no s'encén. | Cable d'alimentació no connectat, interruptor apagat, interruptor automàtic saltat. | Ensure power cord is securely plugged in. Check power switch. Reset circuit breaker if necessary. |
| La cinta de córrer rellisca o està descentrada. | Belt tension too loose, belt alignment incorrect. | Adjust belt tension and alignment using the rear roller bolts and the included Allen key. Make small, incremental adjustments. |
| Soroll inusual durant el funcionament. | Lack of lubrication, loose components, foreign object. | Lubricate the running belt. Check for any loose screws or components. Inspect for foreign objects under the belt. |
| Display surface is loose or detached. | Manufacturing defect or damage during transport. | Contact VANNECT customer support for assistance. Do not attempt to reattach with adhesives as this may void warranty. |
| L'altaveu Bluetooth no es connecta. | Bluetooth on device is off, treadmill not in pairing mode, interference. | Ensure Bluetooth is enabled on your device. Restart both the treadmill and your device. Move closer to the treadmill. |
7. Especificacions del producte
Detailed specifications for the VANNECT Walking Pad Treadmill Model AA.
| Característica | Detall |
|---|---|
| Número de model | AA |
| Dimensions (producte) | 120 x 50 x 60 cm (47.2 x 19.7 x 23.6 polzades) |
| Superfície de córrer | 106.9 x 42 cm (42.1 x 16.5 polzades) |
| Pes (article) | 34 kg (75 lliures) |
| Material | Aluminum frame, 5-layer anti-slip belt |
| Potència del motor | 3.0 HP (Peak) / 2.75 HP (Continuous) |
| Interval de velocitat | 1-14 km/h (0.6-8.7 mph) |
| Inclinació | Up to 12% (manual adjustment) |
| Pes màxim de l'usuari | 180 kg (396 lliures) |
| Nivell de soroll | Below 25dB (whisper quiet operation) |
| Absorció de xoc | Dual system with 10 silicone shock absorbers and rubber pads |
| Connectivitat | Bluetooth for app connection (Kinomap, Zwift) and integrated speaker |
| Mostra | LED display for real-time data (distance, time, calories, pulse) |
| Components inclosos | Remote control, safety key, silicone oil, Allen key |
Figura 7.1.1: The treadmill supports a maximum user weight of 180 kg and has compact dimensions when folded for storage.
Figura 7.1.2: The treadmill features advanced shock absorption with a multi-layered running belt and multiple shock absorbers for joint protection.
Figura 7.1.3: Built with an industrial carbon steel frame, the treadmill ensures stability for users up to 180 kg and operates with a super quiet motor, generating less than 25dB of noise.
Figura 7.1.4: Comparison illustrating the superior performance of the VANNECT 3.0 HP motor, offering higher efficiency, longer continuous operation, and significantly quieter performance compared to conventional motors.
8. Garantia i atenció al client
VANNECT is committed to providing high-quality products and excellent customer service.
- Garantia: VANNECT offers a Servei de substitució gratuït durant 5 any for all parts of the treadmill.
- Atenció al client: If you have any questions, require assistance, or encounter issues with your treadmill, please contact VANNECT customer support. Professional video support is available from our specialized staff.
- Refer to your purchase documentation or the VANNECT official weblloc per obtenir dades de contacte.
