STRICH Pipe Tones Pocket Multi-Effects Processor User Manual

1. Acabatview

The STRICH Pipe Tones is a compact desktop multi-effects processor designed for both electric guitar and bass. It offers a comprehensive suite of features for practice, recording, and live performance, eliminating the need for bulky pedalboards. This device integrates advanced sound modeling, a wide array of effects, and convenient connectivity options into a portable unit.

Característiques principals:

• 125 Effect Types: Access a diverse range of effects for various musical styles.
• 10 Simultaneous Effect Modules: Utilize GATE, OD/FX, AMP, CAB, EQ, MOD, DELAY, REVERB, LOOPER, and DRUM modules concurrently.
• DSM Amp Modeling: Experience realistic tube amp dynamics with 30 built-in amp models (25 guitar, 5 bass).
• Expandable Tone Library: Supports NAM (NFILE) amp model import and third-party IR loading with 10 dedicated slots.
• Control sense fil: Manage parameters and audio playback via a mobile app.
• Interfície d'àudio USB: Record directly to your computer at 48 kHz / 24-bit with ASIO support.
• Built-in Practice Tools: Includes a 40-second stereo looper with Auto Rec mode and 100 drum patterns.
• Potència portàtil: Integrated rechargeable lithium battery for on-the-go use.

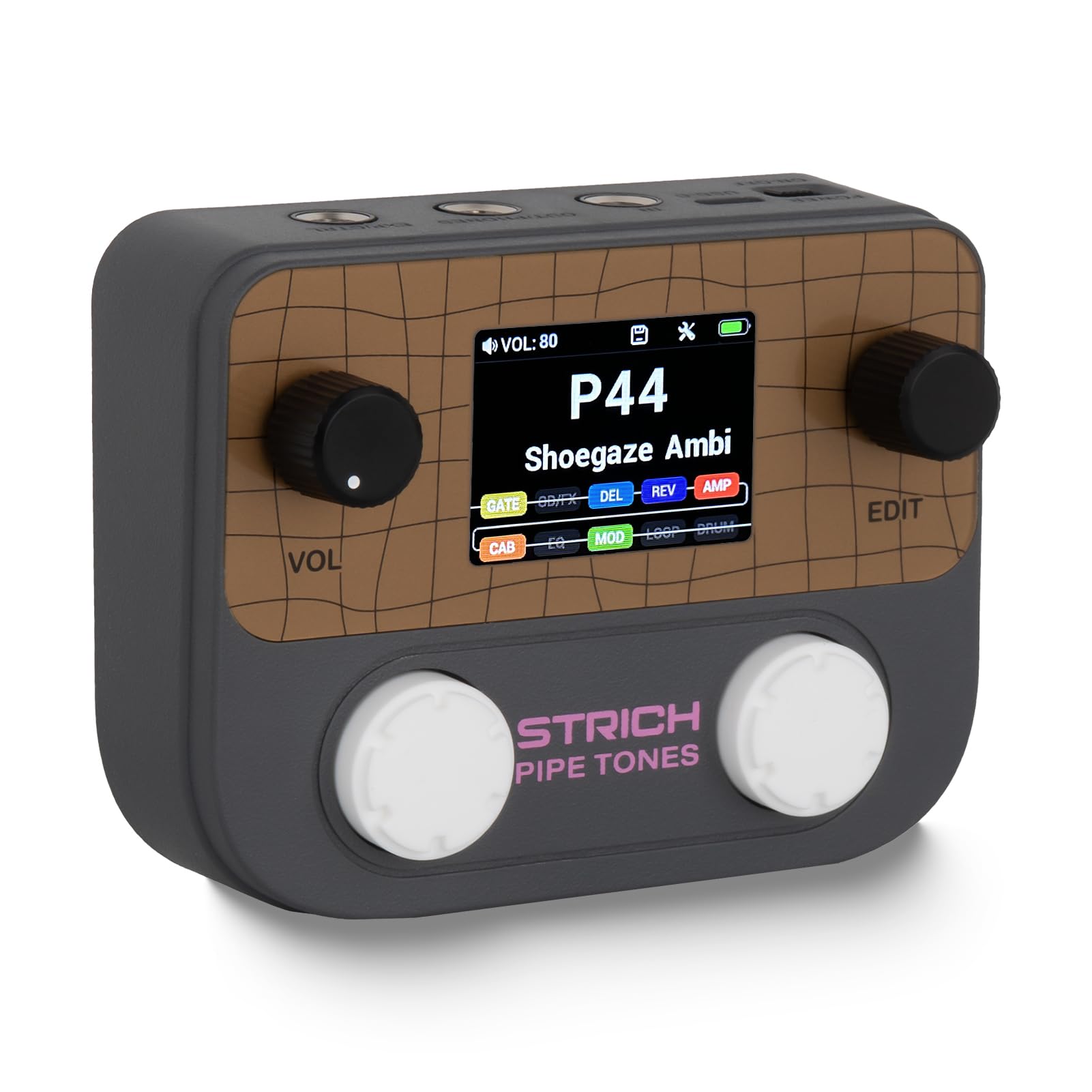

Figure 1: The STRICH Pipe Tones Pocket Multi-Effects Processor in Dark Gray.

2. Configuració

2.1 Desembalatge i inspecció inicial

Carefully remove the STRICH Pipe Tones unit from its packaging. Inspect the device for any signs of damage. Ensure all accessories are present.

2.2 Engegada/apagada

• To power on the device, locate the ENCENDIDA / APAGADA switch on the rear panel and slide it to the 'ON' position.
• Per apagar-lo, feu lliscar l'interruptor a la posició "OFF".
• The device features a built-in rechargeable lithium battery. Charge the unit using the provided USB-C cable connected to a compatible power source.

2.3 Connexions físiques

Connect your instrument and audio output devices to the appropriate jacks on the rear panel.

1. USB-C: Connect to a power source for charging or to a computer for USB audio interface functionality and app control.
2. EN: Connect your guitar or bass to this 1/4-inch (6.35 mm) input jack.
3. SORTIDA/TELÈFONS: Connect headphones for private practice or an amplifier/mixer for output.
4. EXP/CTRL: Connect an external expression pedal or control footswitch (1/4-inch TRS input) for additional control over effects.

Figure 2: Rear panel connections including USB-C, IN, OUT/PHONES, and EXP/CTRL ports.

3. Instruccions de funcionament

3.1 Controls bàsics

The STRICH Pipe Tones features intuitive controls for easy navigation and parameter adjustment.

• Mando VOL: Ajusta el volum de sortida general.
• EDIT Knob: Used for navigating menus, selecting options, and adjusting effect parameters. Press to confirm selections.
• Pedals: The two large footswitches allow for preset changes and looper control.

Figure 3: Front panel controls of the Pipe Tones, including Volume (1), Edit (2), and two footswitches (4, 5).

3.2 Effect Modules

The unit supports up to ten effect modules running simultaneously, offering extensive tonal possibilities. These modules include:

• PORTA: Noise gate for reducing unwanted noise.
• OD/FX: Overdrive and various other effects.
• AMP: Ampsimulacions de lificadors.
• CABINA: Cabinet simulations.
• EQ: Equalization for tone shaping.
• MOD: Modulation effects (e.g., chorus, flanger).
• RETARD: Efectes de retard.
• REVERB: Efectes de reverberació.
• LOOPER: Phrase looper.
• TAMBOR: Drum machine with various patterns.

Figure 4: Visual representation of the 10 multi-functional effector modules.

3.3 DSM Amp Modeling and IR Loading

The Pipe Tones utilizes Dynamic Spectrum Modeling (DSM) to accurately recreate the sound and feel of tube amplifiers. It includes 30 built-in amp models (25 for guitar, 5 for bass) and supports importing NAM (NFILE) amp models and third-party Impulse Responses (IRs) with 10 dedicated import slots.

Figure 5: High-precision DSM Speaker Simulation and support for NAM+IR file importar.

3.4 Looper i màquina de tambor

Enhance your practice and creativity with the integrated looper and drum machine:

• Looper: A 40-second stereo looper with an Auto Rec mode allows for easy phrase recording and overdubbing.
• Drum Patterns: Choose from 100 diverse drum patterns to play along with.

Figure 6: The built-in looper module interface on the Pipe Tones display.

3.5 Wireless Control and USB Audio

The Pipe Tones offers modern connectivity for seamless integration into your workflow:

• Control sense fil: Connect wirelessly via Bluetooth to a mobile app for intuitive parameter editing and management.
• Interfície d'àudio USB: Use the USB-C port to connect to a computer for 48 kHz / 24-bit audio recording with ASIO support. This allows for direct recording without additional interfaces.

Figure 7: Smart App integration for wireless control and parameter storage on intelligent devices.

3.6 Built-in Tuner

A chromatic tuner is integrated into the device for quick and accurate tuning of your instrument. Access the tuner function through the device's menu or dedicated footswitch assignment.

4. Manteniment

4.1 Neteja

To clean the unit, use a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents. Avoid spraying liquid cleaners directly onto the unit.

4.2 Cura de la bateria

The built-in lithium polymer battery provides portable power. For optimal battery life:

• Carregueu la bateria completament abans del primer ús.
• Eviteu esgotar completament la bateria amb freqüència.
• If storing the unit for an extended period, charge it to approximately 50% capacity.

5. Solució De Problemes

5.1 Sense sortida de so

• Check all cable connections (instrument, output, headphones).
• Ensure the volume knob on the Pipe Tones is turned up.
• Verifiqueu que el vostre amplifier or headphones are powered on and their volume is adjusted.
• Check if any effect modules (e.g., GATE) are muting the signal or if a preset has a very low output level.

5.2 Connectivity Issues (Wireless/USB)

• For wireless app control, ensure Bluetooth is enabled on both the Pipe Tones and your mobile device.
• For USB audio, verify that the Pipe Tones is recognized as an audio device by your computer and that the correct drivers (if necessary) are installed.
• Try restarting both the Pipe Tones and the connected device.

5.3 El dispositiu no respon

• If the device freezes, try powering it off and on again.
• Assegureu-vos que la bateria estigui prou carregada.

6. Especificacions

7. Garantia i assistència

STRICH is committed to providing quality products and customer satisfaction.

• Serveis de garantia: The product comes with up to a 12-month warranty. Please retain your proof of purchase for warranty claims.
• Política de devolució: A 30-day free return policy is available. Refer to your retailer's specific return guidelines.
• Atenció al client: For any inquiries or support, please contact STRICH customer service. Expect a prompt response via email chat assistant within 24 hours.

Figure 8: STRICH Customer Care details, including prompt response, warranty, and return policy.
