GYMAX Luxury Running Machine Walking Pad User Manual

1. Introducció

Thank you for choosing the GYMAX Luxury Running Machine Walking Pad. This 2-in-1 folding treadmill is designed for both walking and running, featuring a 4.75HP motor, LED touch screen, app control, built-in speaker, and a convenient handle. Its compact and portable design makes it suitable for home or small office spaces. This manual provides essential information for safe and effective use of your new treadmill.

2. Informació important de seguretat

Please read all instructions carefully before using the GYMAX Walking Pad. Retain this manual for future reference.

Col·loqueu sempre la cinta de córrer sobre una superfície plana i estable.
Mantingueu els nens i les mascotes lluny de la cinta de córrer durant el funcionament.
Wear appropriate athletic footwear while using the treadmill.
Ensure the safety key is properly attached to your clothing before starting. In case of emergency, pulling the safety key will immediately stop the treadmill.
Do not use the treadmill on carpet to prevent motor overheating.
The maximum user weight for this treadmill is 265 pounds.
Desconnecteu el cable d'alimentació quan no l'utilitzeu o abans de netejar-lo/mantenir-lo.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents al paquet:

GYMAX Luxury Running Machine Walking Pad
Cable d'alimentació
Control remot
Clau de seguretat
Manual d'usuari (aquest document)

4. Muntatge i muntatge

The GYMAX Walking Pad arrives approximately 90% assembled. Follow these steps for final setup:

Desplegant la cinta de córrer: With the side folding handle, you can easily raise the riser in seconds.
Installing Handrails: The left and right handrails can be securely installed using the provided screws. Ensure they are tightened for a stable running experience.
Col·locació: Position the treadmill on a hard, level surface. Avoid placing it on carpets to prevent overheating.
Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent adequada.

GYMAX Walking Pad with handrails raised, ready for use. — The GYMAX Walking Pad with handrails in the upright position, ready for operation.

Woman folding the GYMAX Walking Pad by removing handrails and lowering the console. — This image demonstrates the folding process of the GYMAX Walking Pad. The handrails are removed, and the console is lowered, allowing for compact storage. Built-in wheels aid in easy transportation.

5. Instruccions de funcionament

Your GYMAX Walking Pad offers versatile operation modes and control options.

5.1 Power On/Off and Safety Key

To power on, ensure the treadmill is plugged in and the main power switch (if present) is on.
Attach the red safety key to the designated area on the console. The treadmill will not operate without the safety key in place.
To stop the treadmill immediately, pull the safety key.

5.2 modes de funcionament

The treadmill supports two primary modes:

Mode de caminada: Speed range from 0.6 to 3 mph. Ideal for light exercise or under-desk use.
Mode de funcionament: Speed range from 0.6 to 10.5 mph. Suitable for more intense cardio workouts.

GYMAX Walking Pad in walking mode (0.6-3 mph) and running mode (0.6-10.5 mph). — This image illustrates the two operational modes of the GYMAX Walking Pad: a walking mode with a speed range of 0.6 to 3 mph, and a running mode with a speed range of 0.6 to 10.5 mph, highlighting its versatility.

5.3 LED Touch Screen and Display

The integrated LED touch screen provides real-time feedback on your workout:

Metrics Displayed: Speed, Time, Distance, Calories Burned, and Pulse.
Funció de pausa: Press the pause key to temporarily stop your workout while retaining all sports data.

GYMAX Walking Pad LED touch screen displaying exercise data and pause function. — This image focuses on the LED touch screen of the GYMAX Walking Pad, showing real-time feedback for speed, time, distance, calories, and pulse. It also highlights the pause key feature for retaining exercise data during breaks.

5.4 Control remot

The included remote control allows for convenient adjustment of speed and mode.

Ajust de velocitat: Use the speed buttons to increase or decrease your pace.
HRC Function: The remote may include a Heart Rate Control (HRC) function to automatically adjust speed based on your heart rate.
Quick Speed Switch: A dedicated button allows for rapid changes in speed.

GYMAX Walking Pad remote control with HRC function and flashing light indicator. — The image highlights the remote control's Heart Rate Control (HRC) function for automatic speed adjustment and a quick speed switch button. It also shows the flashing light indicator on the treadmill, which changes based on speed in walking and running modes.

5.5 App Control and Bluetooth Connectivity

Enhance your workout experience by connecting your treadmill to the GYMAX App via Bluetooth.

Connecta't a l'aplicació: Pair your device with the GYMAX App via Bluetooth.
Funcions de l'aplicació: Control treadmill settings, set sports goals, track detailed exercise data, access professional courses, and share your progress with the community.
Altaveu integrat: Enjoy audio through the built-in Bluetooth speaker.
Titular del dispositiu: Use the integrated device holder to secure your phone or tablet.
Canvi d'unitat: Switch between miles and kilometers for speed and distance display within the app.

GYMAX Walking Pad app control interface for setting goals and sharing data. — This image displays the GYMAX app interface, which allows users to control the treadmill, set sports goals, track mileage, calories, and speed, and share exercise data with a community.

5.6 Vídeo operacional

This video demonstrates the key features of the GYMAX Luxury Running Machine, including its 2-in-1 folding design, shock absorption system, powerful motor, wide running belt, LED display, HRC function, quick speed switch, Bluetooth speaker, and app connectivity.

6. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim de la cinta de córrer.

Neteja: Netegeu la cinta de córrer amb anuncisamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
Lubricació de corretja: Periodically lubricate the running belt according to the instructions provided with your lubricant (usually every few months depending on usage). This reduces friction and extends belt life.
Tensió i alineació de la corretja: Check the running belt tension and alignment regularly. Adjust if the belt feels loose or is drifting to one side. Refer to specific instructions for adjustment screws.
Àrea del motor: Keep the area around the motor clean and free of dust and debris to ensure proper ventilation and prevent overheating.

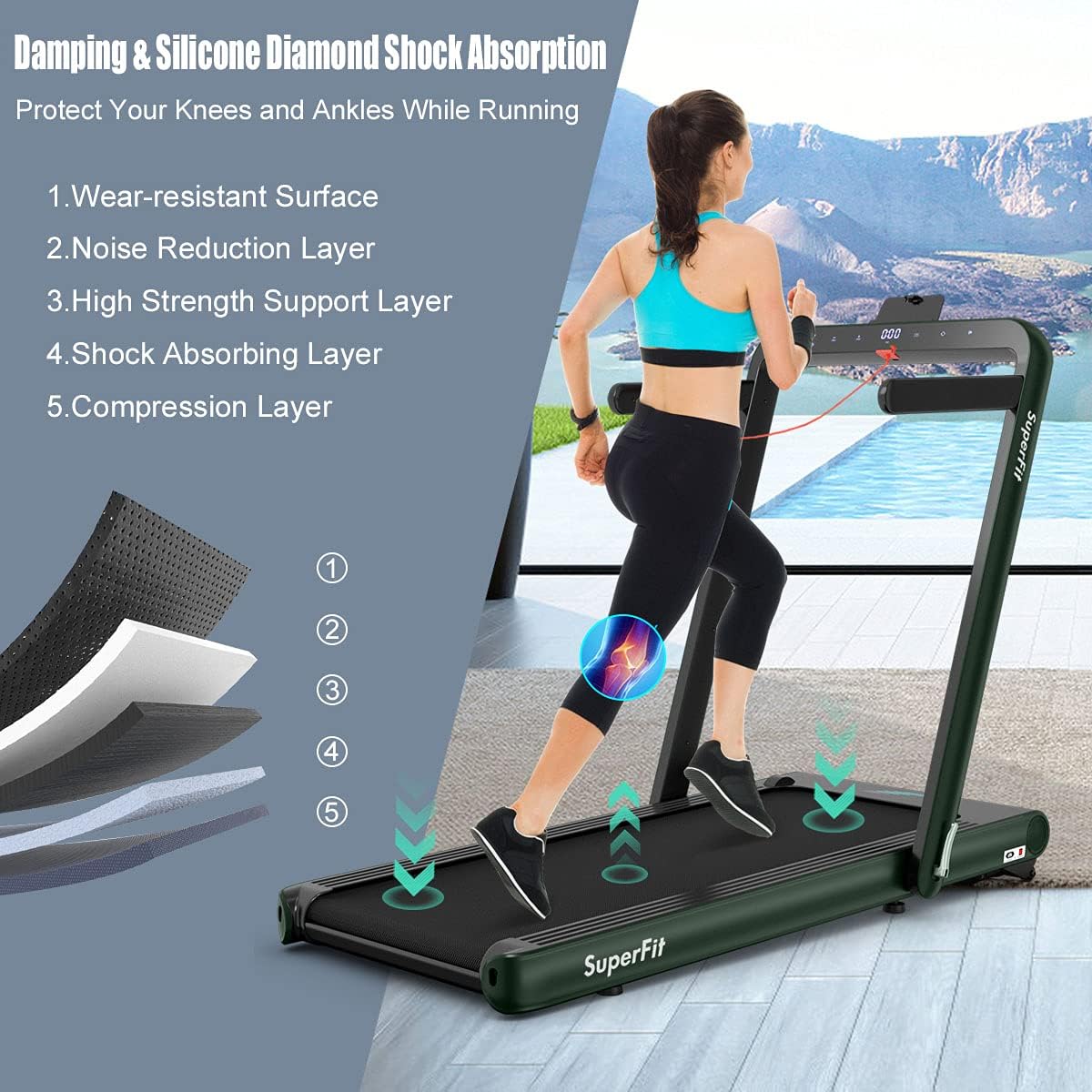

GYMAX Walking Pad's 5-layer shock absorption system for joint protection. — The image details the treadmill's 5-layer shock absorption system, including a wear-resistant surface, noise reduction layer, high-strength support layer, shock absorbing layer, and compression layer, designed to protect knees and ankles during exercise.

7. Solució De Problemes

Si teniu problemes amb la vostra almohadilla per caminar GYMAX, consulteu els següents problemes i solucions habituals:

Problema	Causa possible	Solució
La cinta de córrer no s'encén.	Cable d'alimentació no connectat, interruptor principal apagat, clau de seguretat no col·locada.	Check power connection, ensure main switch is on, insert safety key.
Running belt stops unexpectedly.	Safety key dislodged, motor overload, power interruption.	Re-insert safety key. Reduce load if exceeding max weight. Check power supply.
El comandament a distància no respon.	Low battery, remote not paired.	Replace remote control batteries. Refer to pairing instructions in the full manual.
Soroll inusual durant el funcionament.	Loose components, belt misalignment, lack of lubrication.	Check for loose screws. Adjust belt alignment. Lubricate the running belt.
Error Code 'E07' displayed.	Safety key not detected.	Ensure the safety key is correctly placed on the console.

8. Especificacions

Marca	GYMAX
Nom del model	Luxury Running Machine
Dimensions del producte (desplegat)	58 "P x 31" W x 47" H
Mida plegada	61" x 31" x 6.5"
Pes de l'article	106 lliures
Recomanació de pes màxim	265 lliures
Potència màxima	4.75 cavalls de potència
Velocitat mínima	0.6 milles per hora
Velocitat màxima	10.5 milles per hora
Longitud de coberta	49 polzades
Amplada de la coberta	20 polzades
Material	Acrylonitrile Butadiene Styrene (ABS), Engineered Wood, Metal, Polyvinyl Chloride (PVC)
Material del marc	Acer d'aliatge
Tipus de visualització	LED
Font d'alimentació	Elèctric amb cable
Tecnologia de connectivitat	Bluetooth
Nom del programa de control	Gymax
Mètriques mesurades	Calories Burned, Distance, Heart Rate
Característiques especials	Foldable, Heavy Duty, Portable, Shock Absorbent, Touch Screen
Muntatge obligatori	Sí

Dimensions of the GYMAX Walking Pad, unfolded and folded. — This image provides key dimensions of the GYMAX Walking Pad: unfolded (58"D x 31"W x 47"H) and folded (61" x 31" x 6.5"), along with other specifications like motor power, speed range, and maximum load.

9. Informació de la garantia

The GYMAX Luxury Running Machine Walking Pad comes with a 90 dies de garantia from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for any warranty claims.

For detailed warranty terms and conditions, please refer to the documentation included with your product or contact customer support.

10. Atenció al client

If you have any questions, require assistance, or need to report an issue with your GYMAX Walking Pad, please contact GYMAX customer service.

For more information and support, visit the official GYMAX store: Botiga GYMAX a Amazon
