DONOW Smith Machine with Weight Stacks Home Gym System

Introducció

This manual provides essential information for the safe and effective assembly, operation, and maintenance of your DONOW Smith Machine with Weight Stacks Home Gym System. Please read all instructions carefully before use to ensure optimal performance and user safety.

The DONOW Smith Machine is an all-in-one home gym system combining a power cage, Smith machine, dual cable crossover machine, cable station, and pull-up station. It features adjustable 320lb cement weight stacks (160lbs each side) and is constructed from 50mm x 50mm commercial-grade steel tubing for durability and stability.

Informació de seguretat

• Consulteu sempre amb un metge abans de començar qualsevol programa d'exercici.
• Assegureu-vos que tots els cargols, femelles i connexions estiguin ben ajustats abans de cada ús.
• No permeteu que els nens o les mascotes s'acostin a l'equip durant el funcionament.
• Use the safety catches and spotter arms when performing exercises with the Smith machine bar.
• Inspect cables, pulleys, and moving parts regularly for wear and tear. Replace damaged components immediately.
• Maintain a clear area around the equipment to prevent accidents.
• Do not exceed the maximum weight capacity of 2040 lbs for the entire machine.

Contingut del paquet

Your DONOW Smith Machine is shipped in 9 boxes. Please verify all components are present and undamaged before beginning assembly. Refer to the detailed parts list in the included manual for identification.

Els components clau inclouen:

• Smith machine frame components
• 320lb Cement Weight Stacks (160lbs each side)
• Weight bench (if included in your package)
• Long lat bar, cable handles, lat pull down bar, cable bar, bicep rope, ankle strap
• Assembly hardware (bolts, washers, nuts)

Instruccions de muntatge

For detailed visual guidance, please refer to the official installation video provided by DONOW FITNESS. This video complements the written instructions and can significantly assist in the assembly process.

General steps for assembly:

1. Muntar el marc base: Connect the main base components using the specified bolts and washers. Ensure all connections are firm but do not fully tighten until all parts are aligned.
2. Install Upright Posts: Attach the vertical upright posts to the base frame. These posts feature numbered holes for height adjustments.
3. Mount Weight Stacks: Carefully slide the cement weight plates onto the guide rods. Secure the top plate and selector pin mechanism.
4. Attach Smith Machine Guide Rods and Bar: Install the solid Smith machine guide rods and the padded Smith bar. Ensure smooth linear bearing operation.
5. Install Pull-Up Station: Secure the multi-grip pull-up bar to the top frame of the unit.
6. Route Cables and Pulleys: Follow the cable routing diagram in your manual precisely. Attach all pulleys and cables for the dual cable crossover system.
7. Ajustament final: Once all components are in place and aligned, fully tighten all bolts and nuts.

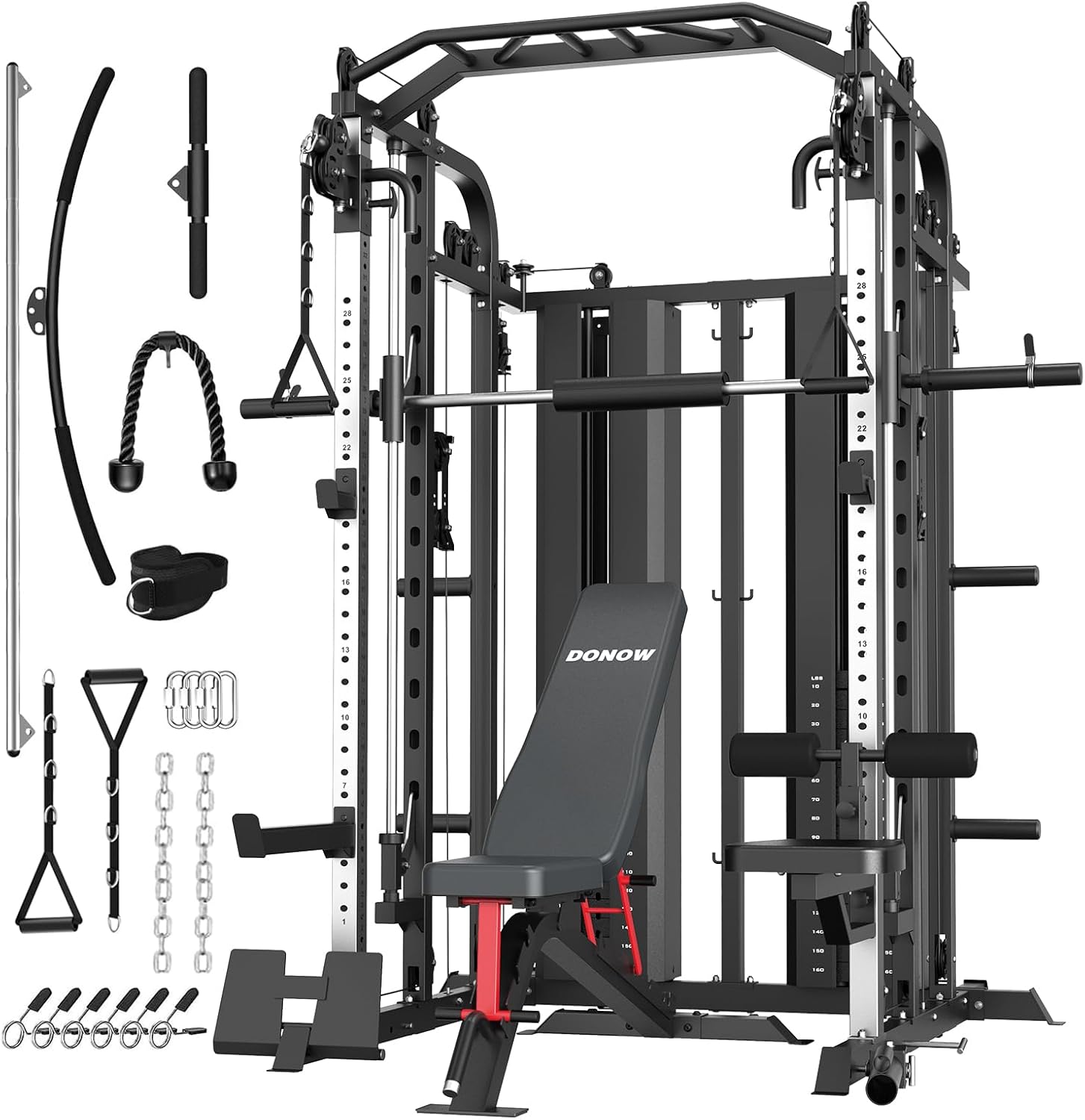

En general view of the DONOW Smith Machine with Weight Stacks Home Gym System, showcasing its comprehensive design and various stations.

Detailed dimensions of the DONOW Smith Machine, including height (88.3 in), length (70.9 in), and width (75.6 in).

Instruccions de funcionament

Your DONOW Smith Machine offers a wide range of exercises. Familiarize yourself with each station before beginning your workout.

• Smith Machine: The Smith bar moves vertically along guide rods. Use the safety catches to set your desired start/end height. Twist the bar to engage/disengage from the safety hooks.
• Dual Cable Crossover: Adjust the height of the cable pulleys by pulling the pin and sliding the carriage to the desired position. Attach various handles (included) for different exercises like cable crossovers, rows, tricep pushdowns, and bicep curls.
• Piles de pes: Select your desired weight by inserting the selector pin into the corresponding weight plate. Ensure the pin is fully inserted before lifting.
• Pull-Up Station: Utilize the multi-grip pull-up bar for various pull-up and chin-up exercises.
• Lat Pull Down Bench: Adjust the height of the lat pull down bench for comfortable and effective lat pulldowns.

Close-up of the solid Smith machine poles with smooth linear bearings, ensuring fluid movement during exercises.

Illustration of the dual independent cable system, highlighting the 2" x 2" steel tubing and adjustable pulley height.

Manteniment

• Neteja: Netegeu l'equipament amb anuncisamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
• Inspecció: Regularly check all cables, pulleys, bolts, and moving parts for any signs of wear, damage, or loosening.
• Lubricació: Apply a silicone-based lubricant to the guide rods and moving parts as needed to ensure smooth operation.
• Emmagatzematge: Store all attachments neatly on the designated hooks to prevent tripping hazards and keep them organized.

Resolució de problemes

• Sticky Smith Bar: Ensure guide rods are clean and lubricated. Check for any obstructions in the linear bearings.
• Moviment aproximat del cable: Inspect cables for fraying and pulleys for proper alignment. Lubricate pulleys if necessary.
• Components solts: Periodically re-tighten all nuts and bolts to maintain stability and safety.
• Weight Plate Issues: Ensure the selector pin is fully inserted. Check for any debris obstructing the weight plates' movement.

Especificacions

Garantia i Suport

Your DONOW Smith Machine comes with a 5 any de garantia. Replacements for machine parts are free of charge. For any support needs, please contact DONOW customer service. Refer to your purchase documentation for specific contact details.
