1. Introducció
Thank you for choosing the Juxujoin Hydrogen Water Bottle Generator. This device is designed to enrich your drinking water with hydrogen, utilizing advanced SPE and PEM technology to achieve high hydrogen concentrations. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your hydrogen water bottle.
2. Producte acabatview
The Juxujoin Hydrogen Water Bottle Generator is a portable device crafted from durable borosilicate glass and stainless steel. It features a leak-proof design and an intelligent digital display. The generator produces up to 6000 PPB (parts per billion) of hydrogen in approximately 9 minutes, ensuring high-purity hydrogen water by separating ozone and chlorine.
Característiques principals:
- High Hydrogen Concentration: Up to 6000 PPB in 9 minutes.
- Tecnologia avançada: Utilizes SPE (Solid Polymer Electrolyte) and PEM (Proton Exchange Membrane) for efficient hydrogen production.
- Puresa: Effectively separates and discharges ozone and chlorine.
- Construcció duradora: Made from food-grade borosilicate glass and stainless steel.
- Disseny a prova de fuites: Ensures secure transport without spills.
- Portàtil: Lightweight and suitable for various environments including home, office, and travel.
- Pantalla digital: Shows countdown timer and battery level.
- Hydrogen Retention: Maintains hydrogen concentration for up to 10 hours.
Components:
- Hydrogen Water Bottle (Glass body, stainless steel lid, and base)
- Cable de càrrega USB-C
- Inhalation Tube (for hydrogen inhalation mode)
- Cleaning Sponge and Brush

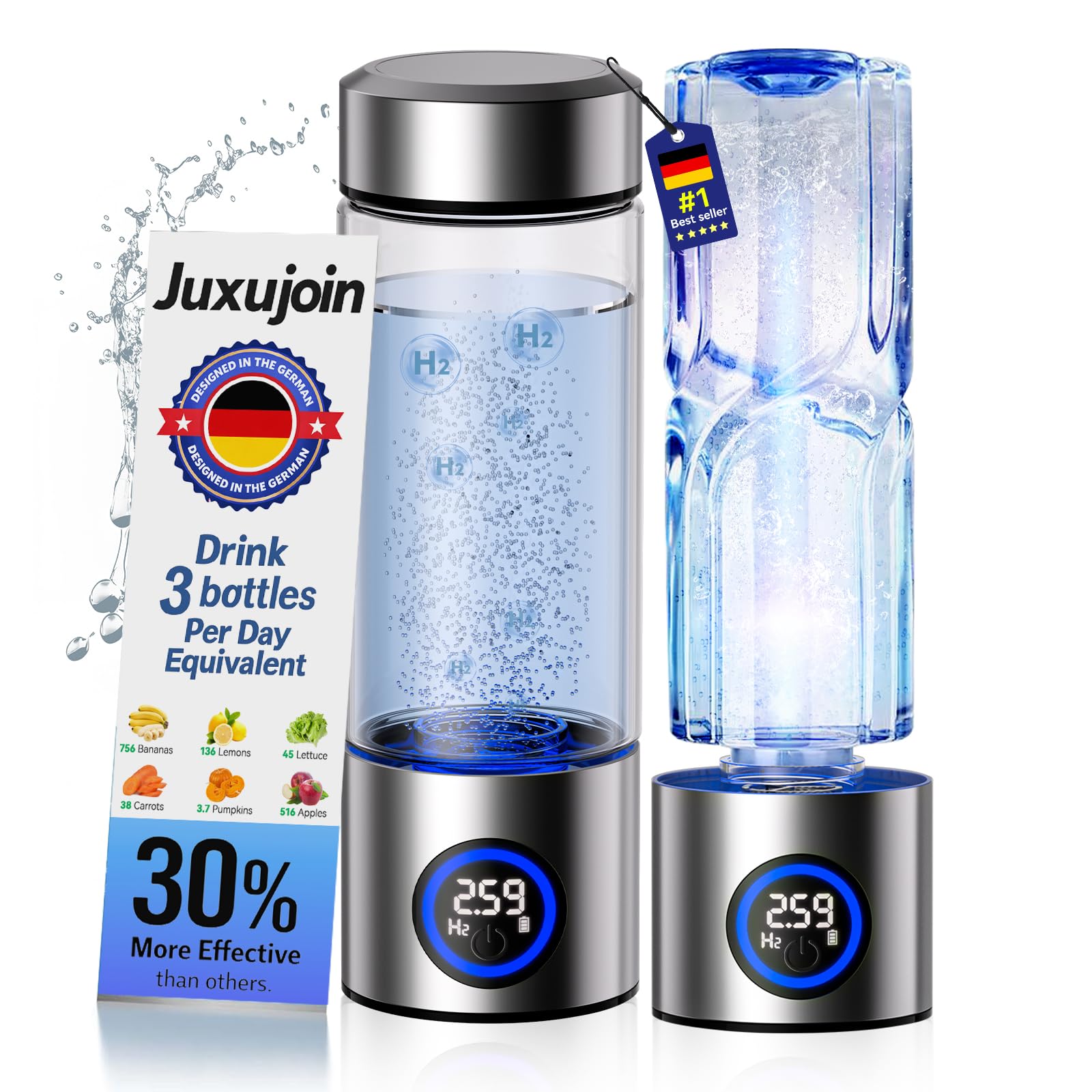

Figure 2.1: The Juxujoin Hydrogen Water Bottle Generator.
Figura 2.2: Explotat view of the hydrogen water bottle showing its main components.
Figure 2.3: Diagram illustrating the SPE Electrolysis Technology for hydrogen production and removal of harmful by-products.
Figure 2.4: The hydrogen water bottle in use, demonstrating both drinking and inhalation modes.

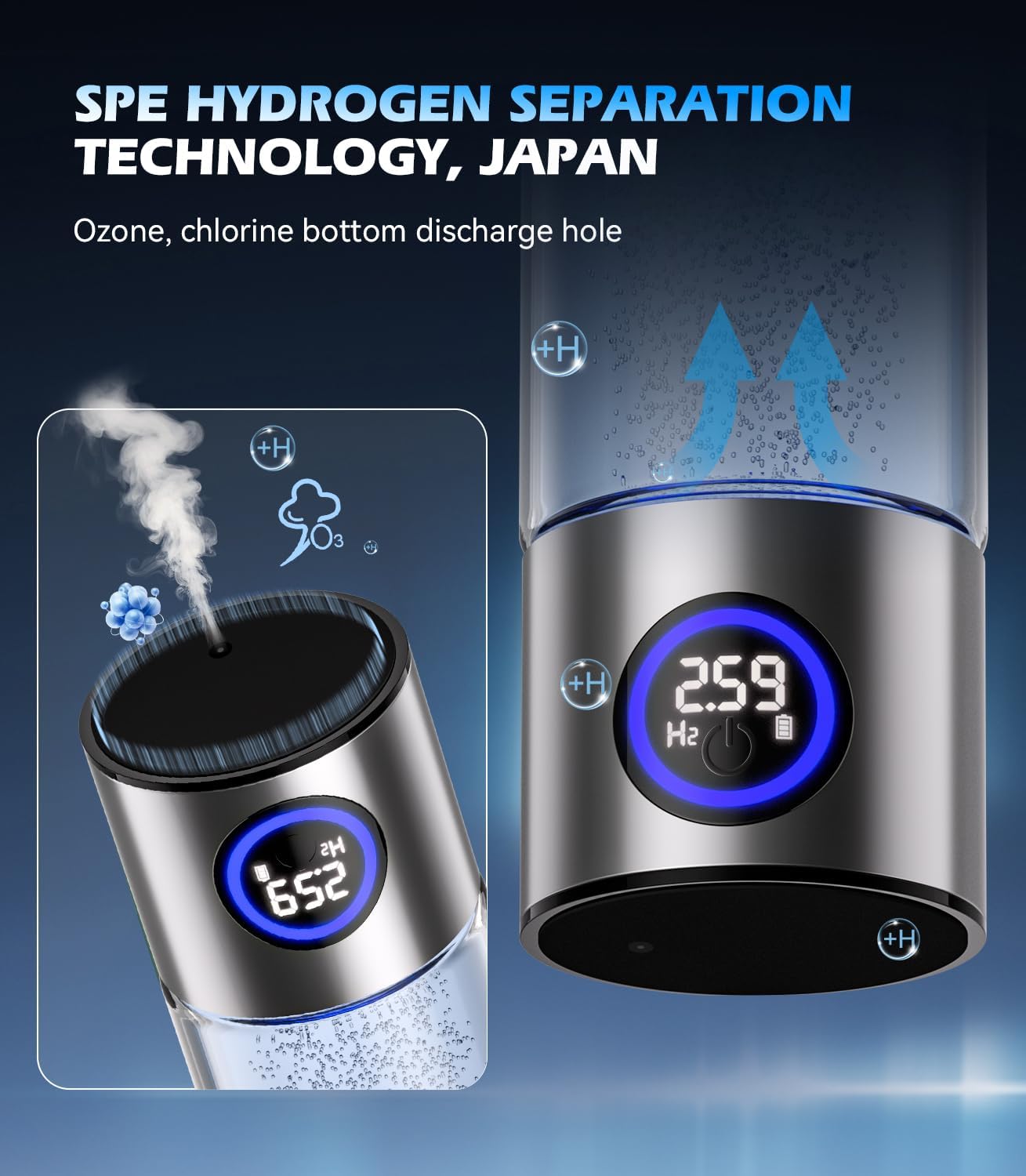

Figura 2.5: Primer pla view of the base, highlighting the ozone and chlorine discharge hole for pure hydrogen water.
3. Informació de seguretat
- Do not immerse the base of the generator in water or any other liquid.
- Use only clean drinking water (purified, filtered, or mineral water). Do not use carbonated beverages, milk, or other liquids.
- Mantingueu el dispositiu fora de l'abast dels nens.
- No intenteu desmuntar o reparar el dispositiu vosaltres mateixos. Contacteu amb l'assistència al client per obtenir assistència.
- Ensure the charging port cover is securely closed when not charging to prevent water ingress.
- Avoid extreme temperatures. Do not freeze or heat the bottle.
4. Configuració
- Desembalar: Traieu amb cura tots els components de l'embalatge. Inspeccioneu-ho per veure si hi ha algun dany.
- Càrrec inicial: Before first use, fully charge the hydrogen water bottle. Connect the provided USB-C charging cable to the charging port located on the back of the base and plug it into a suitable power source. The digital display will indicate charging status.
- Muntar: Ensure the glass bottle is securely screwed onto the base.
- Primera neteja: Fill the bottle with clean water and run a self-cleaning cycle (refer to Section 6 for instructions) or manually clean it with the provided tools. Discard the water after the first cleaning cycle.
5. Instruccions de funcionament
5.1 Hydrogen Water Generation
- Omplir l'ampolla: Unscrew the lid and fill the glass bottle with clean drinking water. Do not overfill; leave a small gap from the top.
- Assegureu la tapa: Screw the lid back on tightly to ensure a leak-proof seal.
- Start Generation: Press and hold the power button on the base for approximately 2 seconds. The digital display will illuminate, showing a 5-minute countdown (or 9-minute depending on the cycle selected, if applicable) and the battery level. Bubbles will begin to rise from the bottom, indicating hydrogen production.
- Finalització: The device will automatically stop after the cycle is complete, and an audible alert may sound. The display will turn off.
- Gaudeix: Your hydrogen-enriched water is now ready to drink. For optimal benefits, consume within 10 hours.
5.2 Hydrogen Inhalation Mode (Optional)
Your Juxujoin Hydrogen Water Bottle Generator may include an inhalation tube for direct hydrogen gas intake. To use this feature:
- Preparació de l'aigua: Generate hydrogen water as described in Section 5.1.
- Connect Tube: Once the generation cycle is complete, carefully remove the small cap on the lid and insert one end of the inhalation tube into the port.
- Inhale: Place the other end of the tube into your nostrils and breathe normally.
6. Manteniment i Neteja
Regular cleaning ensures the longevity and optimal performance of your hydrogen water bottle.
6.1 Neteja diària
- After each use, rinse the glass bottle and lid with clean water.
- Netegeu l'exterior de la base amb anunciamp cloth. Do not submerge the base in water.
6.2 Deep Cleaning / Self-Cleaning Mode
To clean the electrolysis plate and remove mineral buildup:
- Omplir amb aigua: Fill the bottle with clean water.
- Activate Self-Clean: Double-tap the power button on the base. The device will enter a self-cleaning cycle, indicated by a different light pattern or display.
- Esbandida: After the self-cleaning cycle, discard the water and rinse the bottle thoroughly.
6.3 Neteja manual dels components
Use the provided cleaning sponge and brush for thorough cleaning of the bottle interior and hard-to-reach areas.
Figure 6.1: The bottle's components are designed for easy disassembly and cleaning.
7. Solució De Problemes
If you encounter issues with your Juxujoin Hydrogen Water Bottle Generator, please refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El dispositiu no s’encén. | Bateria baixa o sense càrrega. | Carregueu el dispositiu completament amb el cable USB-C proporcionat. |
| No bubbles during operation. | Insufficient water, incorrect water type, or electrolysis plate issue. | Ensure the bottle is filled with clean drinking water. If the problem persists, perform a deep cleaning cycle. |
| Fuga d'aigua. | Lid not tightened properly or seal is damaged. | Ensure the lid is securely tightened. Check the silicone seals for proper placement and any damage. |
| Unusual odor or taste. | Mineral buildup or residue. | Perform a deep cleaning cycle. Ensure the bottle is thoroughly rinsed after cleaning. |
If the issue is not resolved by the above steps, please contact Juxujoin customer support for further assistance.
8. Especificacions
- Marca: Juxujoin
- Número de model: B0G33TRD3J
- UPC: 769295525369
- Material: Vidre borosilicat, acer inoxidable
- Color: Plata
- Pes de l'article: Aproximadament 1.19 lliures (0.54 kg)
- Dimensions del producte: Aproximadament 21 cm (alçada) x 6.5 cm (diàmetre)
- Concentració d'hidrogen: Up to 6000 PPB
- Hydrogen Production Time: Uns 9 minuts
- Hydrogen Retention: Fins a 10 hores
- Càrrega: USB-C (Rechargeable battery)
Figure 8.1: Product dimensions for the Juxujoin Hydrogen Water Bottle.
9. Garantia i Suport
For warranty information, product support, or any inquiries not covered in this manual, please contact Juxujoin customer service. Refer to your purchase documentation or the official Juxujoin weblloc per obtenir dades de contacte.
