LG GBBS322CPY Total No Frost Combined Refrigerator User Manual

1. Introducció

This manual provides essential information for the safe and efficient use of your LG GBBS322CPY Total No Frost Combined Refrigerator. Please read it thoroughly before installation and operation, and keep it for future reference.

Figura 1: Interior view of the LG GBBS322CPY refrigerator, showcasing its spacious compartments and organized food storage.

2. Informació de seguretat

Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury when using your appliance. Ensure the refrigerator is properly grounded. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Keep ventilation openings clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

3. Configuració

3.1 Desembalatge

Remove all packaging materials, including tape and protective films. Inspect the refrigerator for any damage. Keep packaging materials out of reach of children.

3.2 Col·locació

Place the refrigerator on a firm, level floor. Ensure adequate space around the appliance for proper ventilation. The dimensions of the refrigerator are approximately 59.7 cm (W) x 67.4 cm (D) x 203 cm (H). Allow at least 4mm clearance from the wall for door opening.

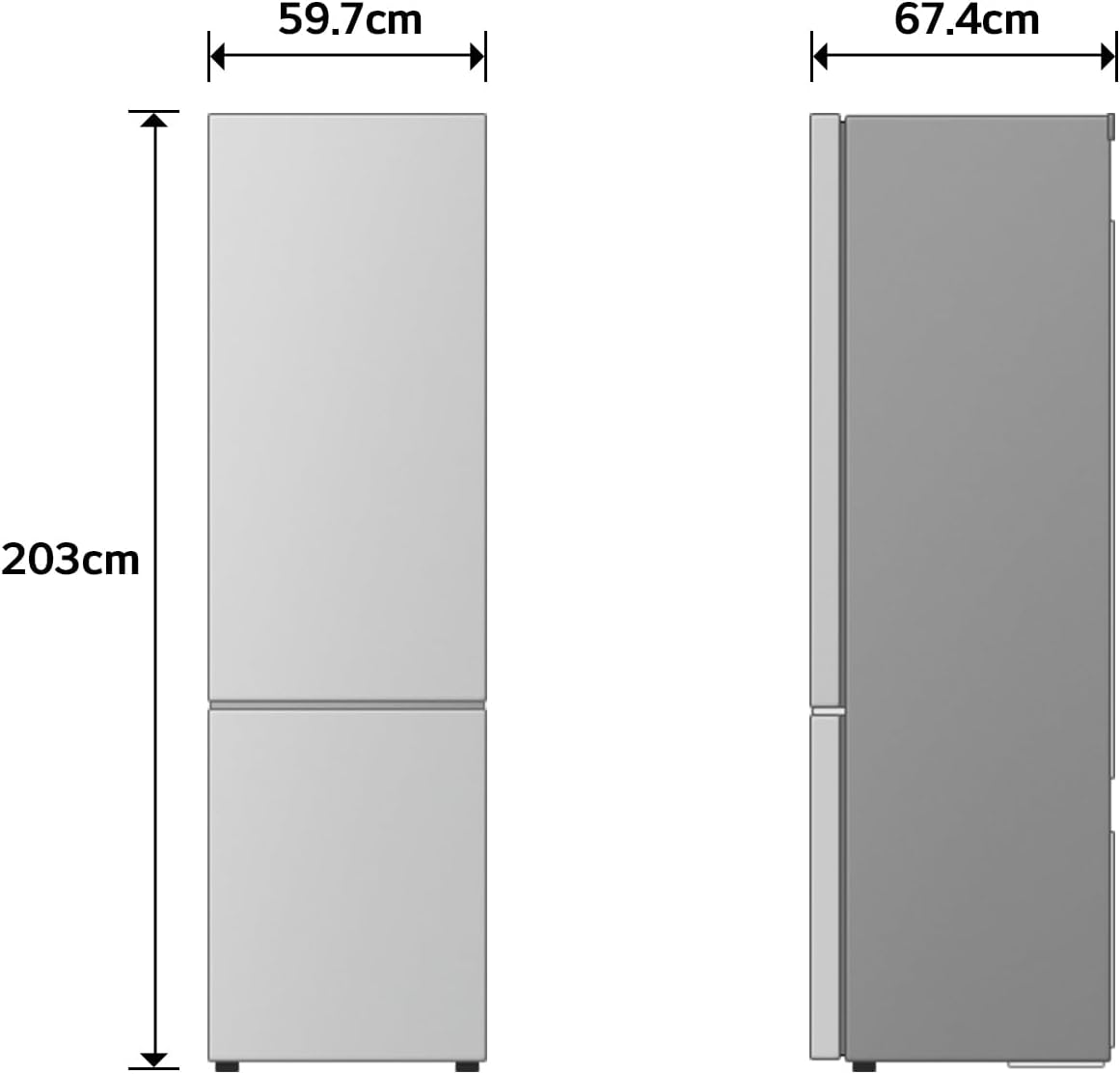

Figure 2: Dimensional drawing of the LG GBBS322CPY refrigerator.

Figure 3: Detail of the flush door opening mechanism, allowing installation close to a wall.

3.3 Anivellació

Adjust the leveling feet to ensure the refrigerator is stable and level. This prevents vibrations and ensures proper door sealing.

3.4 Connexió d'alimentació

Plug the power cord into a dedicated, grounded wall outlet. Wait at least 2-3 hours before loading food to allow the internal temperature to stabilize.

4. Instruccions de funcionament

4.1 Control de temperatura

Your LG refrigerator features AI Inverter™ functions for optimized cooling and energy saving:

• AI Fresh: Cools more intensely during periods of high usage.
• AI Saving Mode: Reduces energy consumption when the refrigerator is used less.

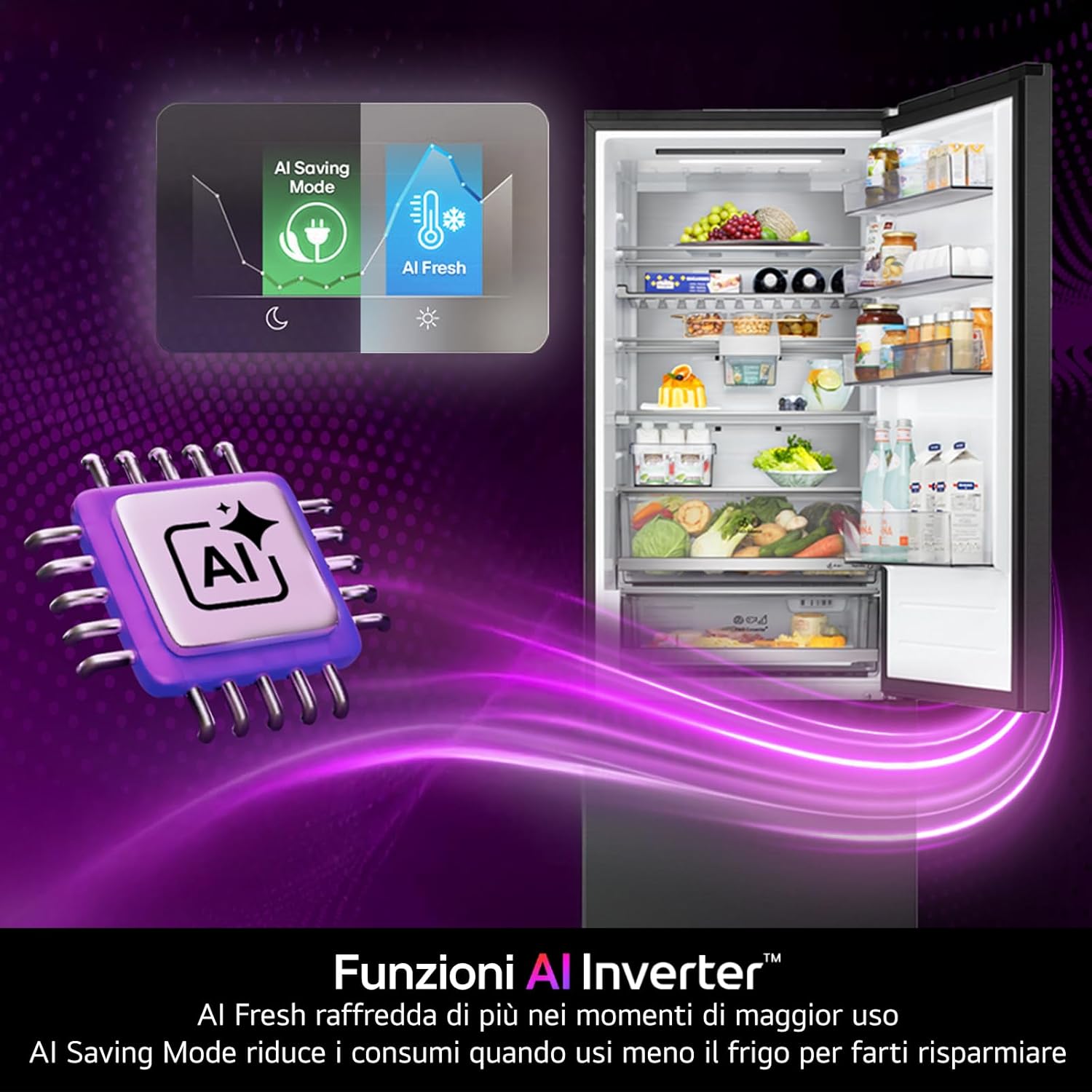

Figure 4: AI Inverter™ functions for intelligent cooling and energy management.

4.2 Cooling Technologies

• Total sense gelades: Prevents ice buildup in the freezer, eliminating the need for manual defrosting and keeping food fresher.
• Door & Linear Cooling™: Provides faster cooling and maintains a more constant temperature, especially for items stored in the door.

Figure 5: Door & Linear Cooling™ ensures rapid and consistent cooling.

Figure 6: Total No Frost technology keeps food fresh and eliminates freezer defrosting.

4.3 Funcions d'emmagatzematge

• Smart Flex Interior: Designed to optimize space with adjustable shelves and space-saving compartments.
• Rack de vi: Stores up to 5 wine bottles or bulky items horizontally.
• FRESH Balancer™ Drawer: Regulates humidity to best preserve fruits or vegetables.
• Fresh Converter+™ Drawer: Allows you to adjust the temperature based on what you store (Meat at -3°C, Fish at 0°C, Cheese at 2°C).

Figure 7: Smart Flex interior with various adjustable storage options.

Figure 8: Dedicated Wine Rack for convenient storage.

Figure 9: FRESH Balancer™ drawer for humidity control.

Figure 10: Fresh Converter+™ drawer for customized temperature storage.

5. Manteniment

5.1 Neteja

Regularly clean the interior and exterior of your refrigerator with a mild detergent and soft cloth. Avoid abrasive cleaners or solvents. Ensure the power is disconnected before cleaning.

5.2 Descongelació

Thanks to the Total No Frost technology, manual defrosting of the freezer compartment is not required. If ice buildup occurs in the refrigerator section, check door seals for proper closure.

5.3 Consells per estalviar energia

• Do not open the doors too frequently or leave them open for too long.
• Assegureu-vos que la nevera no estigui a prop de fonts de calor.
• Allow hot food to cool before placing it inside.

6. Solució De Problemes

If you experience issues with your refrigerator, refer to the following common solutions:

• L'aparell no refreda: Check if the power cord is properly plugged in and the circuit breaker is not tripped. Ensure temperature settings are correct.
• Soroll excessiu: Verify the refrigerator is level. Ensure no items are vibrating against the back wall or other components.
• Fuga d'aigua: Check if the drain hole is clogged or if the water collection tray is overflowing.

For more complex issues, contact LG customer support.

7. Especificacions

Figure 11: Energy Label for LG GBBS322CPY. For more details, visit the Base de dades EPREL.

8. Garantia i Suport

Your LG GBBS322CPY refrigerator comes with a standard warranty. Additionally, the Smart Inverter Compressor is covered by a 10 any de garantia. For the first 2 years, the product is covered by the conventional warranty. From the third to the tenth year, LG offers a conventional warranty exclusively on the Inverter compressor. Labor and intervention costs are excluded.

Figure 12: Smart Inverter Compressor with 10-year warranty.

For technical assistance, spare parts, or to register your product, please visit the official LG website or contact LG customer service. You can also find more information on the Botiga de la marca LG a Amazon.
