olayks. 1.5L Electric Hot Pot and Tea Kettle with Temperature Control User Manual

Introducció

Gràcies per la compraasing the olayks. 1.5L Electric Hot Pot and Tea Kettle. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before first use and retain it for future reference.

Instruccions importants de seguretat

Quan utilitzeu aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat per reduir el risc d'incendi, descàrrega elèctrica i/o lesions a les persones, incloses les següents:

• Llegeix totes les instruccions.
• No toqueu superfícies calentes. Utilitzeu nanses o poms.
• Per protegir-vos contra les descàrregues elèctriques, no submergiu el cable, els endolls ni l'aparell en aigua ni en altres líquids.
• És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
• Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces i abans de netejar l'aparell.
• No feu servir cap aparell amb un cable o un endoll danyats o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
• L'ús d'accessoris no recomanats pel fabricant de l'aparell pot provocar incendis, descàrregues elèctriques o lesions a persones.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
• No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
• Connecteu sempre primer l'endoll a l'aparell i després el cable a la presa de corrent. Per desconnectar-lo, gireu qualsevol control a la posició "off" i, a continuació, retireu l'endoll de la presa de corrent.
• No utilitzeu l'aparell per a un altre ús que el previst.
• This appliance has overheat protection and dry-burn protection features to ensure safety during cooking. If the appliance overheats or runs dry, it will automatically power off.
• The hot pot surface is made of ceramic glaze, free from PTEE, PAS, or PFOS. It will not release harmful substances under high temperatures.

Components del producte

Olla elèctrica

• Non-stick ceramic glaze inner pot
• Handle with power control switch (OFF/LOW/HIGH)
• Tapa de vidre
• Cable d'alimentació

Figure 1: Electric Hot Pot with 1.5L capacity, 20cm diameter, and 7cm depth.

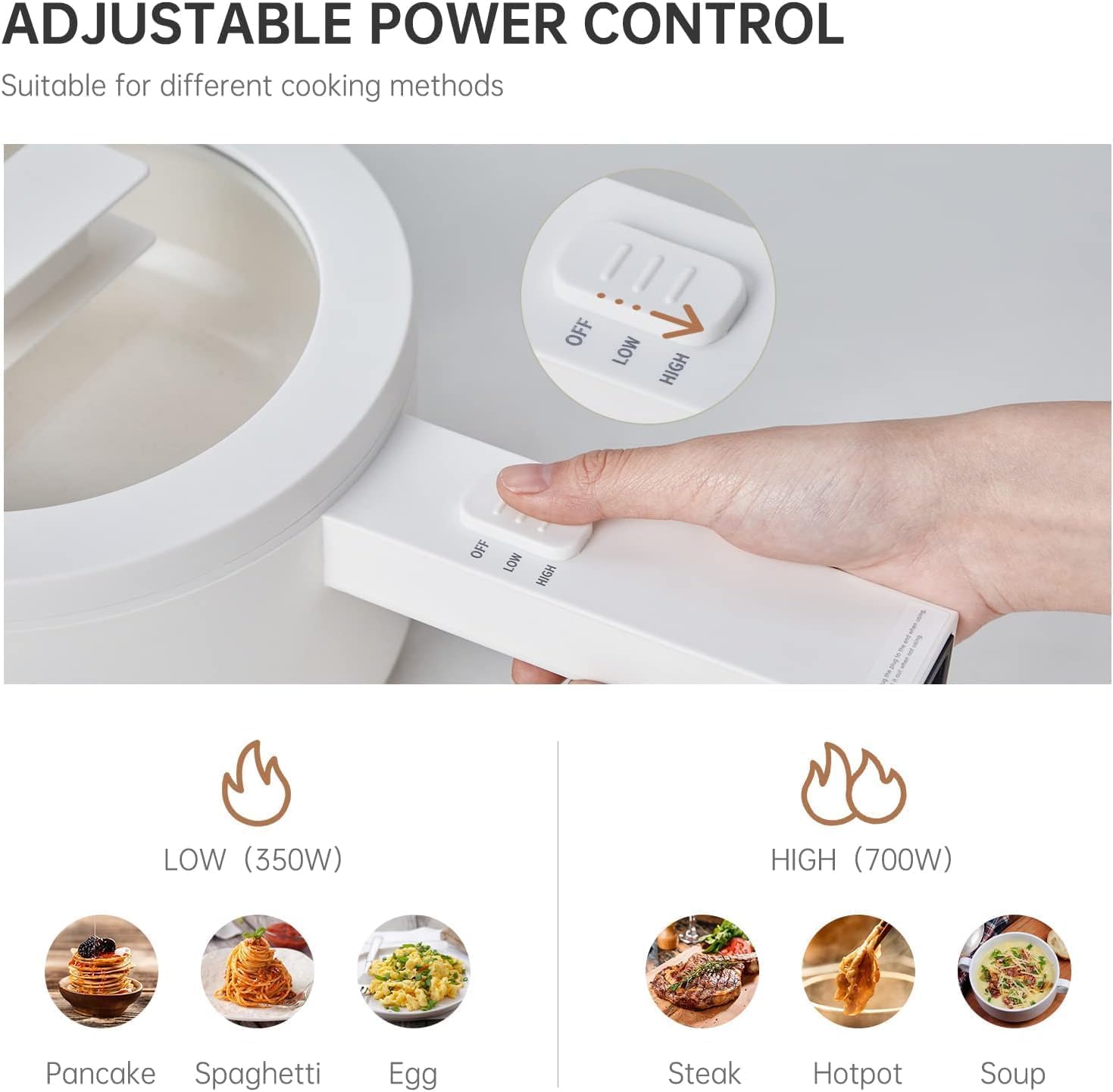

Figure 2: Hot Pot adjustable power control switch.

Bullidor elèctric de te

• Tapa de bullidor
• Removable Stainless Steel Infuser (Food-grade 304 stainless steel)
• Non-Drip Spout
• Glass Kettle Body (BPA-free)
• Stainless Steel Heating Plate
• 360° Rotation Base with Temperature Control Panel

Figure 3: Electric Tea Kettle components.

Configuració

1. Desembalatge: Carefully remove all packaging materials and inspect the appliance for any damage.
2. Neteja inicial: Before first use, clean the hot pot and tea kettle according to the "Maintenance and Cleaning" section.
3. Col·locació: Place the appliance on a stable, flat, heat-resistant surface, away from water sources and heat. Ensure adequate ventilation.
4. Connexió d'alimentació: Ensure the power switch is in the "OFF" position before plugging the appliance into a grounded electrical outlet.

Instruccions de funcionament

Using the Electric Hot Pot

1. Omplir: Add desired ingredients and liquid to the hot pot. Do not exceed the maximum fill line.
2. Connectar l'alimentació: Ensure the hot pot is placed on a stable surface and plug the power cord into a suitable electrical outlet.
3. Seleccioneu potència: Use the switch on the handle to select the desired power setting:
   • BAIX (350 W): Suitable for gentle cooking such as pasta, ramen, pancakes, and eggs.
   • ALTA (750W): Suitable for faster cooking, such as steak, soup, or hot pot.
4. cuiner: Allow the food to cook. The upgraded heating plate ensures even and lasting heating.
5. Monitor: The hot pot features overheat and dry-burn protection, which will automatically power off the unit if these conditions occur.
6. Servir: Once cooking is complete, switch the power to "OFF" and unplug the appliance. Carefully serve the food.

Figure 4: Hot Pot heating technology for even and fast heating.

Using the Electric Tea Kettle

1. Omplir: Open the kettle lid and fill the kettle with fresh water. Do not fill above the MAX line or below the MIN line. For brewing tea, you may place loose leaf tea into the removable stainless steel infuser before closing the lid.
2. Col·locació: Place the kettle securely on its 360° rotation base.
3. Seleccioneu la temperatura: Use the temperature control panel on the base to select your desired brewing temperature. The kettle offers precise temperature control for various beverages:
   • 175 °F (80 °C): Ideal for White Tea, Green Tea.
   • 195 °F (90 °C): Ideal for Oolong Tea.
   • 200 °F (93 °C): Ideal for Coffee.
   • 212 °F (100 °C): Ideal for Black Tea, French Press, or boiling water.
4. Inici de la calefacció: Press the "Start" button to begin heating. The kettle will automatically shut off once the selected temperature is reached.
5. Funció de mantenir la calor: The kettle features a 120-minute keep warm function. Activate this function if you wish to maintain the water temperature for an extended period.
6. Servir: Carefully lift the kettle from its base and pour. The non-drip spout ensures clean pouring.

Figure 5: Tea Kettle precise temperature control settings.

Figure 6: Tea Kettle 120-minute Keep Warm function.

Manteniment i Neteja

Una neteja regular garanteix un rendiment òptim i allarga la vida útil del teu electrodomèstic.

1. Desconnecta sempre: Abans de netejar-lo, assegureu-vos que l'aparell estigui desendollat ​​de la presa de corrent i que s'hagi refredat completament.
2. Hot Pot Cleaning:
   • Wash the non-stick ceramic glaze inner pot with warm, soapy water and a soft sponge. Rinse thoroughly and dry.
   • Do not use abrasive cleaners or metal scouring pads, as these can damage the non-stick coating.
   • Wipe the exterior of the hot pot with a damp cloth. Do not immerse the hot pot body in water.
3. Tea Kettle Cleaning:
   • The wide opening and removable stainless steel infuser make cleaning easy. Wash the infuser and kettle interior with warm, soapy water.
   • For mineral deposits (limescale), fill the kettle with a mixture of equal parts water and white vinegar, or use a descaling solution. Boil the mixture, then let it sit for 15-30 minutes before rinsing thoroughly.
   • Netegeu l'exterior del bullidor i la base elèctrica amb anuncis.amp drap. No submergiu mai la base d'alimentació en aigua.
4. Emmagatzematge: Store the clean, dry appliance in a cool, dry place.

Resolució de problemes

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

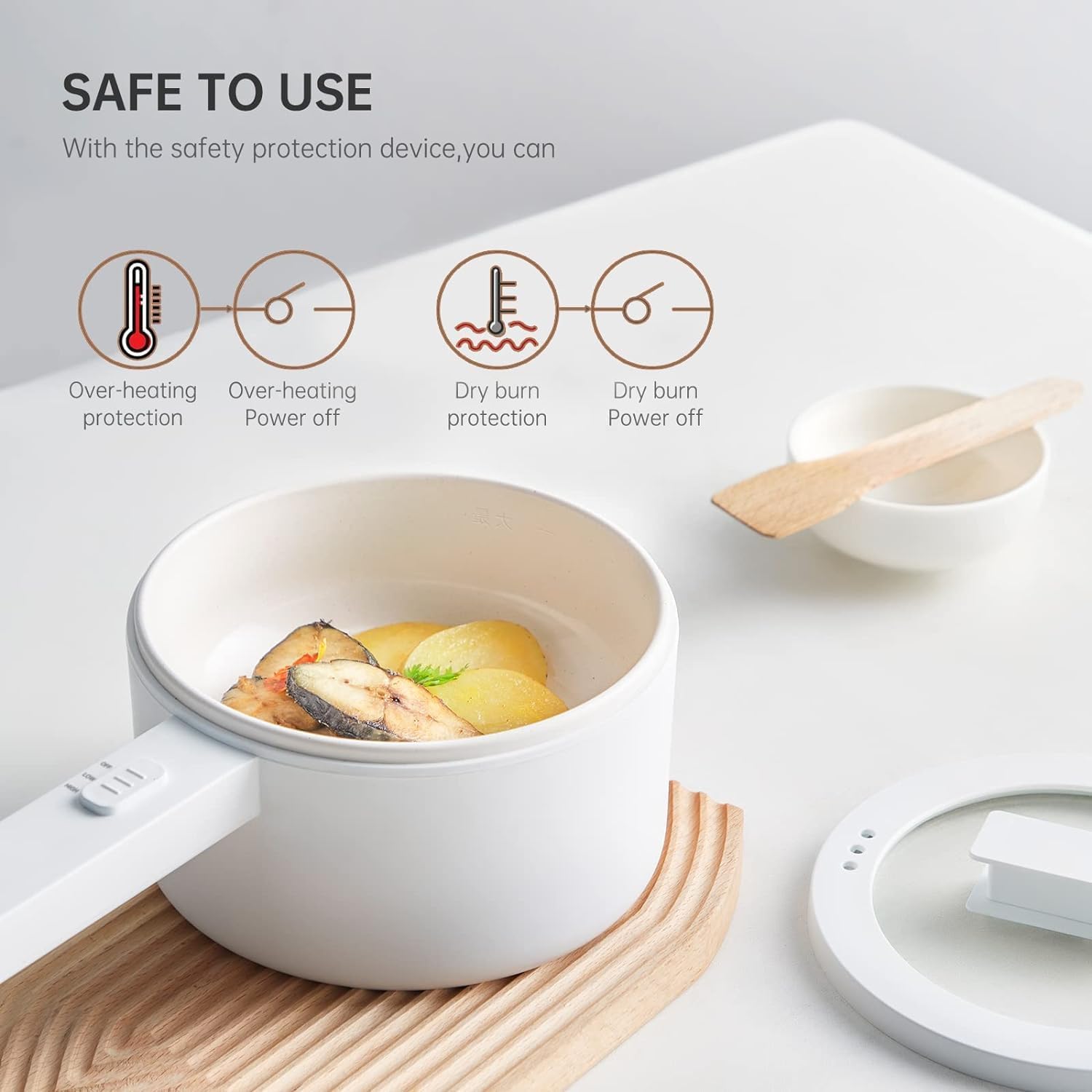

Figure 7: Safety protection features of the hot pot.

Especificacions

Garantia i Suport

For warranty information or technical support, please refer to the documentation included with your purchase or contact the manufacturer directly through their official website or customer service channels. Please have your model number (B0FYVT49GY) and purchase date available when contacting support.
