Introducció
This manual provides essential information for the safe and efficient operation of your VIKIO HOME 24-inch Electric Single Wall Oven, Model KNOB03S. Please read all instructions carefully before installation and use.

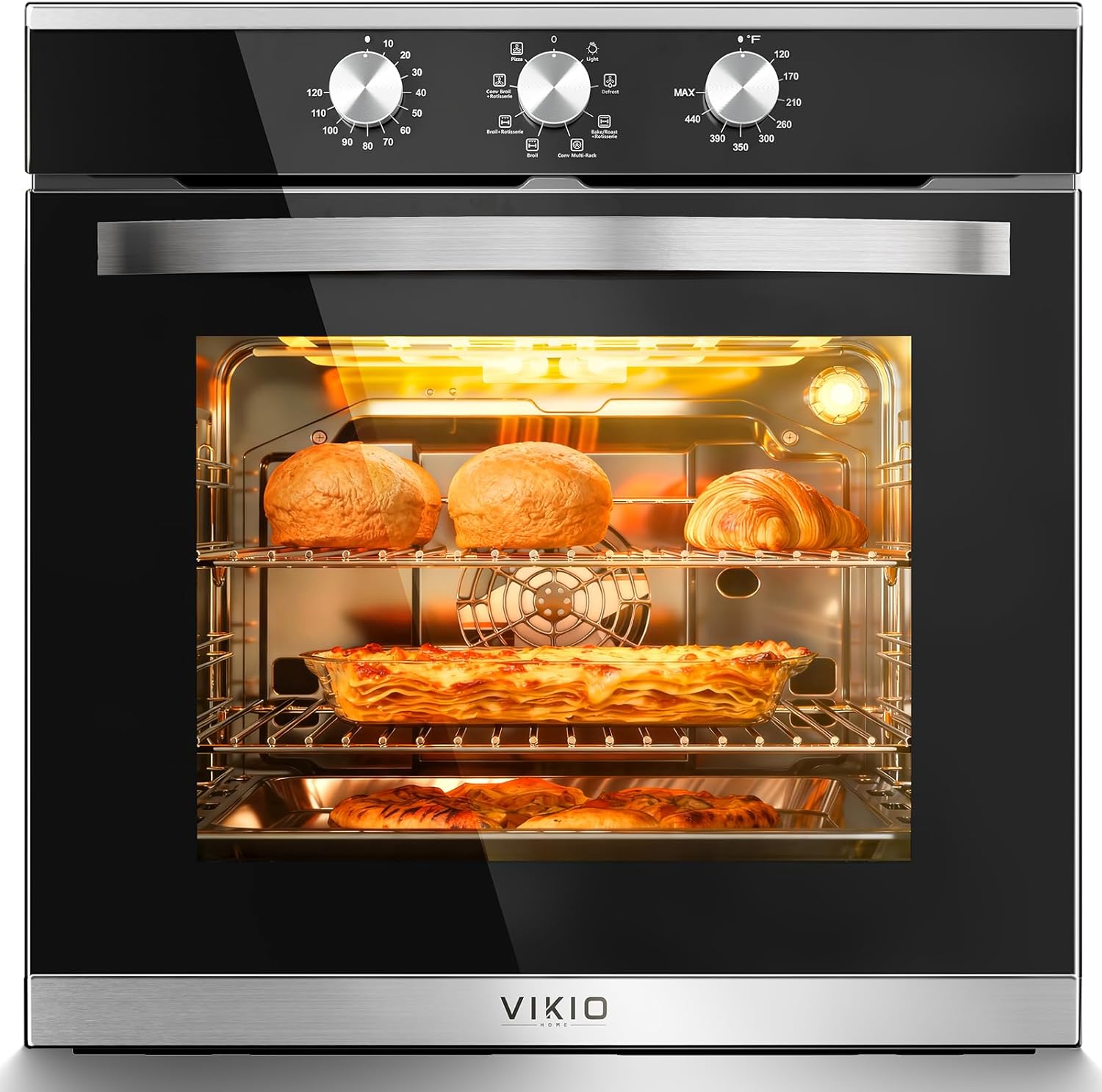

Figure 1: VIKIO HOME 24-inch Electric Single Wall Oven, Model KNOB03S.
Informació important de seguretat
ADVERTÈNCIA: Per reduir el risc d'incendi, descàrrega elèctrica, lesions a persones o danys en utilitzar l'aparell, seguiu les precaucions bàsiques, incloses les següents:
- Llegiu totes les instruccions abans d'utilitzar l'aparell.
- Assegureu-vos que la instal·lació adequada per part d'un tècnic qualificat.
- Do not touch hot surfaces. Use oven mitts or potholders.
- Never use the appliance for warming or heating a room.
- No emmagatzemeu materials inflamables dins o prop del forn.
- Superviseu sempre els nens quan l'aparell estigui en ús.
- Desconnecteu l'alimentació abans del servei.
Configuració i instal·lació
Desembalatge i inspecció inicial
Carefully remove the oven from its packaging. Inspect the unit for any damage. Retain packaging materials for potential future transport or service.
Vídeo: Acabatview of the VIKIO HOME Knob Control Electric Single Wall Oven, including unboxing and initial setup.
Requisits d'instal·lació
- Dimensions: Oven Dimensions: 23.43"L × 21.5"D × 23.43"H.
- Mida del retall: 22.05"L × 21.65"D × 23.19"H.
- Connexió elèctrica: Requires a 240V hardwired connection. Installation should be performed by a qualified electrician.
- Ventilació: Ensure at least a 2.76-inch opening at the bottom rear of the cabinet for proper ventilation.
Figure 2: Oven and cut-out dimensions for seamless integration into kitchen cabinetry.
Preparació per al primer ús
Before cooking, clean the oven interior. Then, set the oven to its maximum temperature (480°F) and run it for approximately 30 minutes. This process helps to burn off any manufacturing residues and is normal to experience some odors or light smoke during this initial cycle.
Instruccions de funcionament
Tauler de control acabatview
The oven features user-friendly mechanical knobs for straightforward operation. The control panel includes knobs for temperature, cooking function, and timer settings.
Figure 3: Mechanical knob controls for easy selection of cooking modes and temperature.
Funcions de cuina
This oven offers 8 versatile cooking modes:
- Cocció per convecció: Ideal for even baking with 360° hot air circulation.
- A la brasa: For grilling and browning the top surface of food.
- rostit: For roasting meats evenly on a rotating spit.
- Fan Grill: Combines grilling with fan assistance for faster, more even results.
- Turbo: For rapid heating and cooking.
- Descongelar: Descongela suaument els aliments congelats.
- Mantenir-se calent: Manté els aliments a la temperatura de servei.
- Llum del forn: Illuminates the oven interior.
Figure 4: Visual representation of the 8 cooking modes.
Configuració de la temperatura
The oven provides a wide temperature range from 50°F to 480°F, suitable for various cooking needs:
- 100°F – 200°F: Proofing, Thawing, Low & Slow (e.g., yogurt, dough).
- 200°F – 350°F: Baking (e.g., cakes, cookies, pizza).
- 350°F – 480°F: Roasting & Broiling (e.g., ribs, turkey, casseroles).
Figure 5: Temperature guide for various cooking applications.
Rack Positions and Capacity
The 2.83 cubic feet (80L) oven cavity offers ample space, providing 17% more usable volume compared to standard models. It includes multiple rack positions to accommodate different dish sizes and cooking requirements.
Figure 6: Large capacity oven interior with flexible multi-rack layout.
3D Heating with True Convection
The oven features a true convection system with three high-efficiency heating elements (2420W–3220W power range) and 360° hot air circulation. This ensures quick preheating and even cooking results throughout the oven cavity.
Figure 7: Illustration of the 3D heating and convection system.
Manteniment i Neteja
Neteja sense esforç
The oven's enamel-coated cavity and anti-oil coating design for the liner prevent grease and residue buildup, making cleaning easier. For general cleaning, use a soft cloth with mild detergent and warm water. Avoid abrasive cleaners.
Figure 8: Cleaning the oven interior.
Removable Triple-Layer Glass Door
The oven features a triple-layer removable tempered glass door. This design provides effective heat insulation, preventing burns and enhancing safety. The removable feature also simplifies cleaning and maintenance of the door panels.
Figura 9: Explotat view of the removable triple-layer glass door.
Resolució de problemes
If you encounter any issues with your oven, please refer to the following common troubleshooting steps:
- El forn no escalfa: Check the power supply and ensure the oven is properly connected. Verify that the temperature and function settings are correctly selected.
- Cocció desigual: Ensure food is placed centrally on the rack. Utilize the convection function for more even heat distribution. Avoid overcrowding the oven.
- Oven Light Not Working: Check if the oven light function is selected. If the bulb is faulty, consult the service manual for replacement instructions or contact customer support.
- Excessive Smoke/Odor on First Use: This is normal during the initial burn-off period. Ensure adequate ventilation. If it persists after the first use, contact customer support.
For more complex issues, please contact VIKIO HOME customer support.
Especificacions del producte
| Característica | Detall |
|---|---|
| Marca | CASA VIKIO |
| Número de model | KNOB03S (VK-OW03S-KNOB) |
| Capacitat | 2.83 peus cúbics (80 L) |
| Potència (Wattage) | 3220 watts |
| Voltage | 240 Volts |
| Tipus d'instal·lació | Integrat |
| Mode de cocció al forn | Convecció |
| Tipus de material | Acer inoxidable |
| Pes de l'article | 88.8 lliures |
| Dimensions del paquet | 29.5 x 27 x 26 polzades |
| Components inclosos | Rotisserie kit, 2 stainless steel racks, baking pan, pull-out handle, manual |
Garantia i Suport
Garantia del producte
For information regarding the product warranty, please refer to the warranty card included with your purchase or contact VIKIO HOME customer support. Extended protection plans are also available for purchase.
Atenció al client
If you require assistance with your VIKIO HOME oven, including technical support, parts, or service, please contact our customer support team. Refer to the contact information provided in your product packaging or visit the official VIKIO HOME weblloc.
Assistència en línia: Visit the VIKIO HOME Store on Amazon
