Introducció
Gràcies per la compraasing the Klipsch ProMedia Lumina 2.1 Computer Gaming Speaker System. This manual provides essential information for setting up, operating, and maintaining your new speaker system to ensure optimal performance and longevity. The ProMedia Lumina system is designed to deliver powerful audio with deep bass and customizable RGB lighting, enhancing your gaming, music, and movie experiences.
Informació de seguretat
Si us plau, llegiu totes les instruccions de seguretat abans d'utilitzar aquest producte. Conserveu aquest manual per a futures consultes.
- Font d'alimentació: Connect the system only to the type of power source indicated on the marking label.
- Ventilació: Ensure proper ventilation around the speakers and subwoofer. Do not block any ventilation openings.
- Aigua i humitat: Do not expose the system to water, rain, or moisture. Do not place objects filled with liquids on the system.
- Calor: Mantingueu el sistema allunyat de fonts de calor com ara radiadors, registres de calor, estufes o altres aparells que produeixin calor.
- Neteja: Netegeu només amb un drap sec.
- Manteniment: No intenteu atendre aquest producte vosaltres mateixos. Consulteu tots els serveis a personal de servei qualificat.
Contingut del paquet
Verifiqueu que tots els elements siguin presents al vostre paquet:
- 1 x Klipsch ProMedia Lumina Subwoofer
- 2 x Satellite Speakers (Left and Right)
- 1 x Bluetooth Speaker (This is listed as "Included Components" in the product data, but typically refers to the system's Bluetooth capability rather than a separate speaker unit. The system itself has Bluetooth functionality.)
- Cable d'alimentació
- Cables de connexió d'altaveus
- Cable USB-C
- Cable auxiliar de 3.5 mm
- Manual d'usuari (aquest document)
Producte acabatview
The Klipsch ProMedia Lumina system consists of a powerful subwoofer and two satellite speakers, designed for a rich 2.1 audio experience. The system features integrated controls and multiple connectivity options.
Figura 1: The complete Klipsch ProMedia Lumina 2.1 speaker system, showing the central subwoofer unit flanked by two satellite speakers. The speakers are black with silver accents and sit on small stands.
Altaveus satèl·lit
The two satellite speakers feature a re-envisioned cabinet design with tiltable stands for optimal sound projection. They are equipped with Microtractrix horn tweeters for pinpoint clarity.

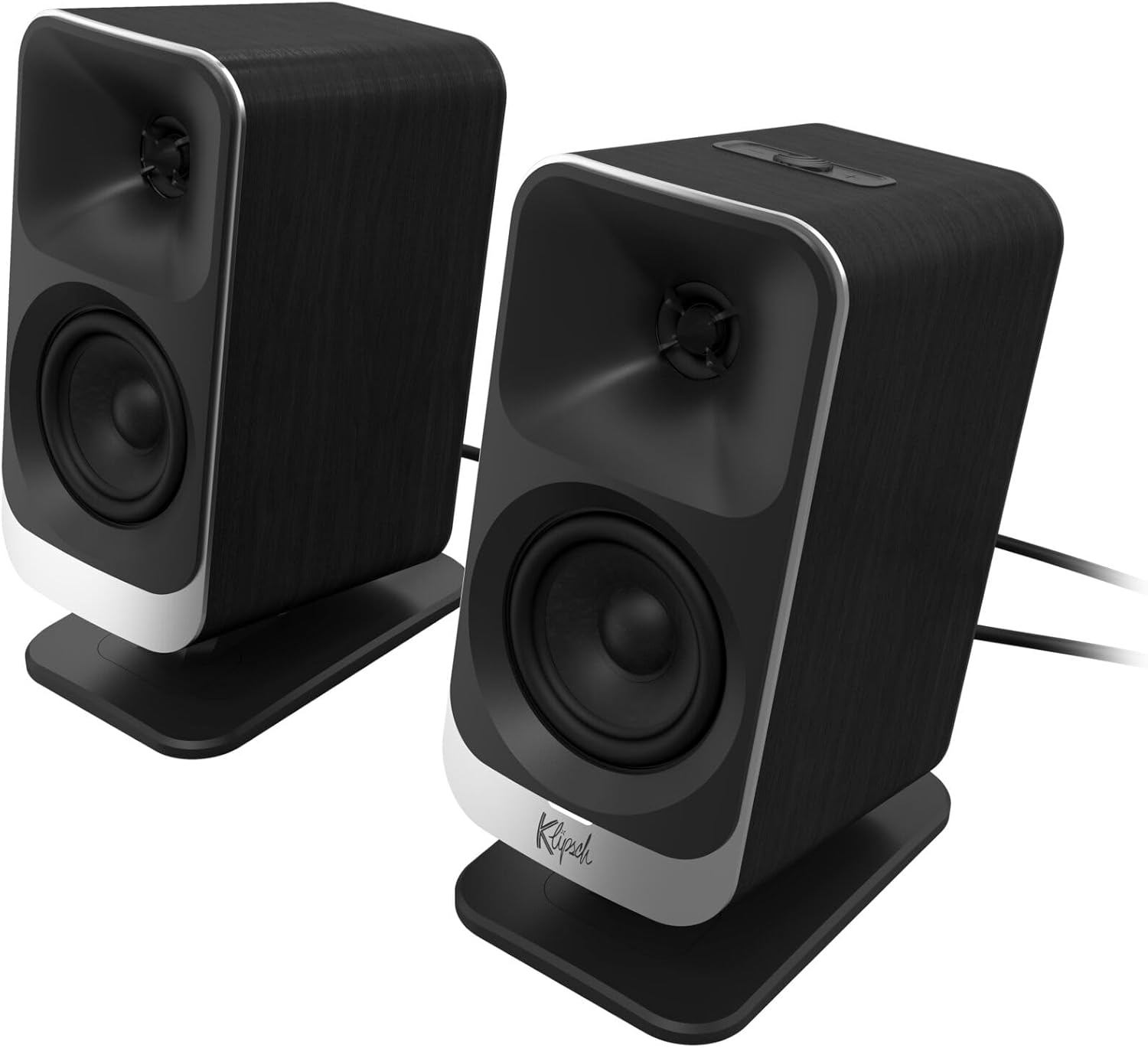

Figura 2: Un front de primer pla view of the two Klipsch ProMedia Lumina satellite speakers, highlighting their black finish, silver base, and speaker cones.
Figura 3: Una darrera view of the two Klipsch ProMedia Lumina satellite speakers, showing the various ports and controls on their back panels. The left speaker has a settings button and a headphone jack, while the right speaker has a USB-C port and a power/Bluetooth button.
Subwoofer
El low-profile subwoofer delivers powerful low-end punch. It features an adjustable gain knob and cable management design for minimal floor space and maximum impact.

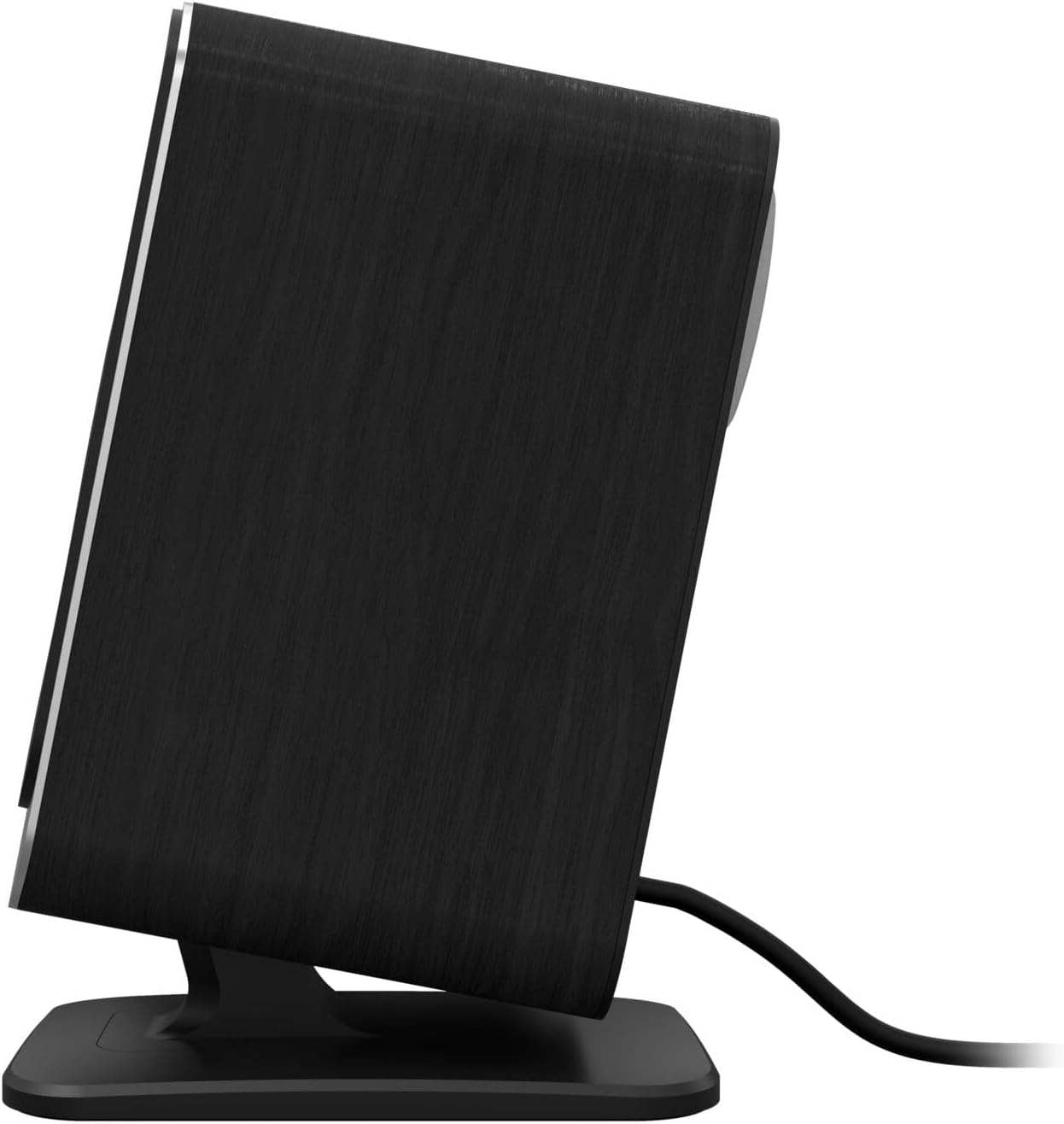

Figura 4: Un costat view of the Klipsch ProMedia Lumina subwoofer, showcasing its compact design and textured black finish.
Vídeo 1: An official product video from Klipsch showcasing the ProMedia Lumina Computer Speakers with LED Lighting. The video highlights the design and lighting features of the speaker system.
Configuració
Follow these steps to set up your Klipsch ProMedia Lumina speaker system:
- Col·locació: Place the subwoofer on the floor or a sturdy surface near your computer. Position the satellite speakers on either side of your monitor, ensuring they are at ear level for the best audio experience.
- Connecteu els altaveus satèl·lit: Connect the left and right satellite speakers to the corresponding outputs on the back of the subwoofer using the provided speaker cables. Ensure a secure connection.
- Connecteu-vos a la font d'àudio:
- USB-C: Connect the USB-C cable from your computer to the USB-C input on the right satellite speaker.
- AUX (3.5 mm): Connect the 3.5mm AUX cable from your audio source (e.g., computer, smartphone) to the AUX input on the left satellite speaker.
- Bluetooth: For wireless connection, ensure Bluetooth is enabled on your device and the speaker system. Press and hold the power/Bluetooth button on the right satellite speaker to enter pairing mode. Select "Klipsch ProMedia Lumina" from your device's Bluetooth settings.
- Connexió d'alimentació: Connect the power cable to the subwoofer and then plug it into a wall outlet.
- Encès: Press the power/Bluetooth button on the right satellite speaker to turn on the system.
Figura 5: The Klipsch ProMedia Lumina speaker system integrated into a gaming desktop setup, showing the satellite speakers flanking a monitor and the subwoofer placed discreetly.
En funcionament
Once your system is set up, you can begin enjoying your audio. The main controls are located on the subwoofer and the right satellite speaker.
Controls bàsics
- Volum: Use the volume knob on the subwoofer to adjust the overall sound level.
- Aguts/gravs: Adjust the treble and bass knobs on the subwoofer to fine-tune your audio preferences.
- Selecció d'entrada: Use the input button (if available on the subwoofer or remote) to switch between connected sources (USB-C, AUX, Bluetooth).
Klipsch Control App
Enhance your experience with the Klipsch Control desktop app, available on all app stores. The app allows for precision command over various settings:
- Personalització d'EQ: Adjust equalization settings to match your audio content.
- Modes d'il·luminació: Customize RGB lighting effects, including night mode and music react mode.
- Control de funcions: Access additional features and settings for personalized audio.
Figura 6: A laptop screen displaying the Klipsch Control App interface, with a satellite speaker visible next to it, illustrating the app's role in customizing the speaker system.
Figura 7: The rear of the Klipsch ProMedia Lumina satellite speakers displaying different customizable light patterns, showcasing the RGB lighting effects.
Manteniment
To ensure the longevity and optimal performance of your Klipsch ProMedia Lumina system, follow these maintenance guidelines:
- Neteja: Use a soft, dry cloth to clean the surfaces of the speakers and subwoofer. Avoid using abrasive cleaners, waxes, or solvents.
- Pols: Regularly dust the speaker grilles and vents to prevent dust buildup, which can affect sound quality and ventilation.
- Gestió de cables: Keep cables organized and untangled to prevent damage and ensure a tidy setup.
- Condicions ambientals: Avoid exposing the system to extreme temperatures, high humidity, or direct sunlight.
Resolució de problemes
If you encounter any issues with your speaker system, refer to the following common troubleshooting steps:
| Problema | Solució |
|---|---|
| Sense so |
|
| Static or Distortion |
|
| Problemes d'aparellament de Bluetooth |
|
Especificacions
| Característica | Detall |
|---|---|
| Nom del model | Klipsch ProMedia Lumina |
| Número de model de l'article | 1073625 |
| Tipus d'altaveu | Altaveu informàtic |
| Mode de sortida d'àudio | Envoltant |
| Tecnologia de connectivitat | Bluetooth (5.3), USB-C, AUX (3.5mm) |
| Característica especial | Llum LED (RGB personalitzable) |
| Potència de sortida màxima dels altaveus | 10 watts |
| Resposta de freqüència | 20 Hz |
| Dimensions del producte | 6.5 "P x 4" W x 9.75" H |
| Pes de l'article | 13.1 lliures |
| Color | Negre |
Garantia i Suport
Klipsch products are designed for years of enjoyment. For warranty information and technical support, please refer to the official Klipsch weblloc web o poseu-vos en contacte amb el servei d'atenció al client. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
